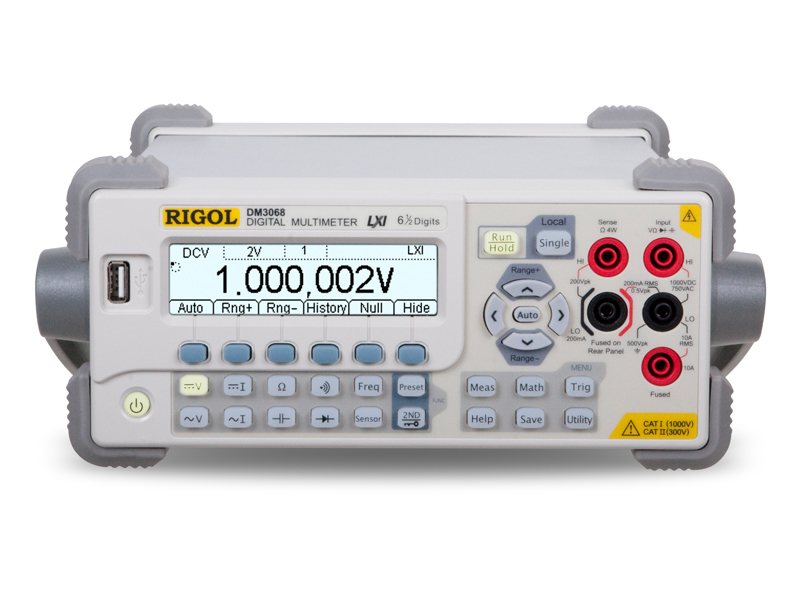

RIGOL Digital Multimeter DM3068

RIGOL Digital Multimeter DM3068

Accuracy 6.5 digits

DCV Accuracy (1 year) 0.0035%

Fastest Test Rate 10K rdgs/s

Connectivity USB, GPIB, LAN(LXI-C), RS232

Delivery：1 Week

Standard Accessories

Quantity：

€699.00 excl. VAT

€831.81 incl. 19% VAT

Buy Now Add to cart Add to wish list

Description
DM3000 Digital Multimeter Model
Feature & Video
Software ＆ Firmware
Datasheet & Manual Download

Add To Cart

<source src="/images/pub/media/wysiwyg/download/video/dm3000/dm3000_video01_using_level_trigger.mp4" type="video/mp4">
 </video>
6.5 Digital Multimeter(2,200,000 Count), 0.0035% DC Voltage Accuracy, 10krdgs/s, USB, GPIB, RS232, LAN,EU Cable

------
<ul>
<li>Real 6½ digits reading resolution.</li>
<li>Minimum integration time: 0.006 PLC.</li>
<li>Dual display: synchronously display two kinds of characteristics of the same signal.</li>
<li>Switch between “Normal” and “Preset” operation modes. The “Preset” mode can quickly recall the preset configurations.</li>
<li>DC voltage measurement range: -1050 V to 1050 V.</li>
<li>DC current measurement range: -10.5 A to 10.5 A.</li>
<li>AC voltage measurement range: True-RMS, 0 V to 787.5 V.</li>
<li>AC current measurement range: True-RMS, 0 A to 10.5 A.</li>
<li>Resistance measurement range: 0 Ω to 110 M Ω; support 2-wire (2WR) and 4-wire (4WR) resistance measurements.</li>
<li>Capacitance measurement range: 0 F to 110 mF.</li>
<li>Frequency measurement range: 3 Hz to 1 MHz.</li>
<li>Continuity and Diode tests.</li>
<li>User-defined any sensor measurements and three types of temperature sensor measurements: TC, RTD and THERM.</li>
<li>Plenty of math operations such as STA (MAX, MIN, AVG, ALL), P/F, dBm, dB, REL as well as real-time tendency graph and histogram display functions.</li>
<li>Enable to store data and configuration in USB storage device.</li>
<li>Plenty of interfaces: USB Device, USB Host, GPIB, RS232 and LAN.</li>
<li>Support the command sets of RIGOL DM3068, Agilent 34401A (including some extensions) and Fluke 45.</li>
<li>Two power management modes: enable or disable the front panel power switch.</li>
<li>Enable to store 10 groups of system configurations and 5 groups of sensor configurations in internal memory and recall them when necessary.</li>
<li>Configuration clone: back up all the instrument configurations in a USB storage device or clone the configurations to other DM3068.</li>
<li>Provide English/Chinese menus and built-in help system.</li>
<li>Powerful remote control and any sensor editing software</li>
</ul>

DM3068 is a digital multimeter designed with 6 digits readings resolution especially fitting to the needs of high-precision, multifunction and automatic measurement. It adopts many today's new technologies to achieve high performance, abundant features in the same class. It's designed to aim at the requirements of the largest DMM market from the research, education,industrial electronics,consumer electronics and automotive industries with its innovative technology,industry leading specifications,powerful measurement functions and broad analysis capabilities.

Model	Market Price	Price	Delivery	Accuracy	DCV Accuracy (1 year)	Fastest Test Rate	Connectivity
RIGOL Digital Multimeter DM3068	€699.00	€699.00	1 Week	6.5 digits	0.0035%	10K rdgs/s	USB, GPIB, LAN(LXI-C), RS232
RIGOL Digital Multimeter DM3058	€599.00	€599.00	1 Week	5.5 digits	0.015%	123 rdgs/s	USB, GPIB（only DM3058）, LAN(only DM3058), RS232
RIGOL Digital Multimeter DM3058E	€429.00	€429.00	1 Week	5.5 digits	0.015%	123 rdgs/s	USB，RS232

True 6.5 Bits Multimeter

It has ± 2200000 counts, which is much greater than ± 1200000 of similar products. At the same reading resolution, it has a larger measurement range than similar products.
Double Screen Display

When measuring the voltage or current of the AC signal, the frequency can also be measured. At this time, the voltage or current is displayed on the main display screen and the frequency is displayed on the secondary display screen.
Support Any Sensor Measurement

The measured physical quantities (pressure, flow rate, temperature, etc.) can be converted into voltage, current, resistance and other easily measured physical quantities for measurement, and the measured value and corresponding value can be displayed on the screen at the same time.
Supports a Variety of Temperature Sensors

Directly use TC (thermocouple), RTD (thermistor) and therm (thermistor) temperature sensors to measure temperature The temperature sensor used meets the international temperature standard ITS-90.
Capacitance Test Function

It can be used for capacitance measurement with a maximum display resolution of 1pf (2NF range).
Trend Chart Display

By drawing the trend chart of real-time measurement data, users can observe the change of measurement data without other auxiliary means.
Histogram Display

Display the distribution of measured data in real time, including AVG, SDEV and histogram of measured data, and change constantly in the measurement process.
Statistical analysis function

Perform mathematical statistics on the current measurement data, giving the minimum, maximum, average, and mean square error of the measured data.

File Name	Version	Release Date	Operation
DM3068 Firmware	01.01.00.01.10.00.00	10/27/2021	Download

File Name	Version	Release Date	Operation
DM3068 IVI Driver	V1.0	10/27/2021	Download
Ultra Sensor Software	V1.0	10/27/2021	Download
Ultra Sigma (HelpDocument)	V1.0	10/27/2021	Download
Ultra Sigma (PC)lnstaller	V00.01.06.01	10/27/2021	Download

Manual Download

File Name	Version	Release Date	Operation
DM3068 Datasheet	V1.0	2/19/2024	Download
DM3068 Programming Manual	V1.0	10/27/2021	Download
DM3068 Quick Guide	v1.0	11/24/2021	Download
DM3068 User Manual	V1.0	2/19/2024	Download
RM-DM3000 Rackmount Kit Manual	V1.0	2/19/2024	Download
