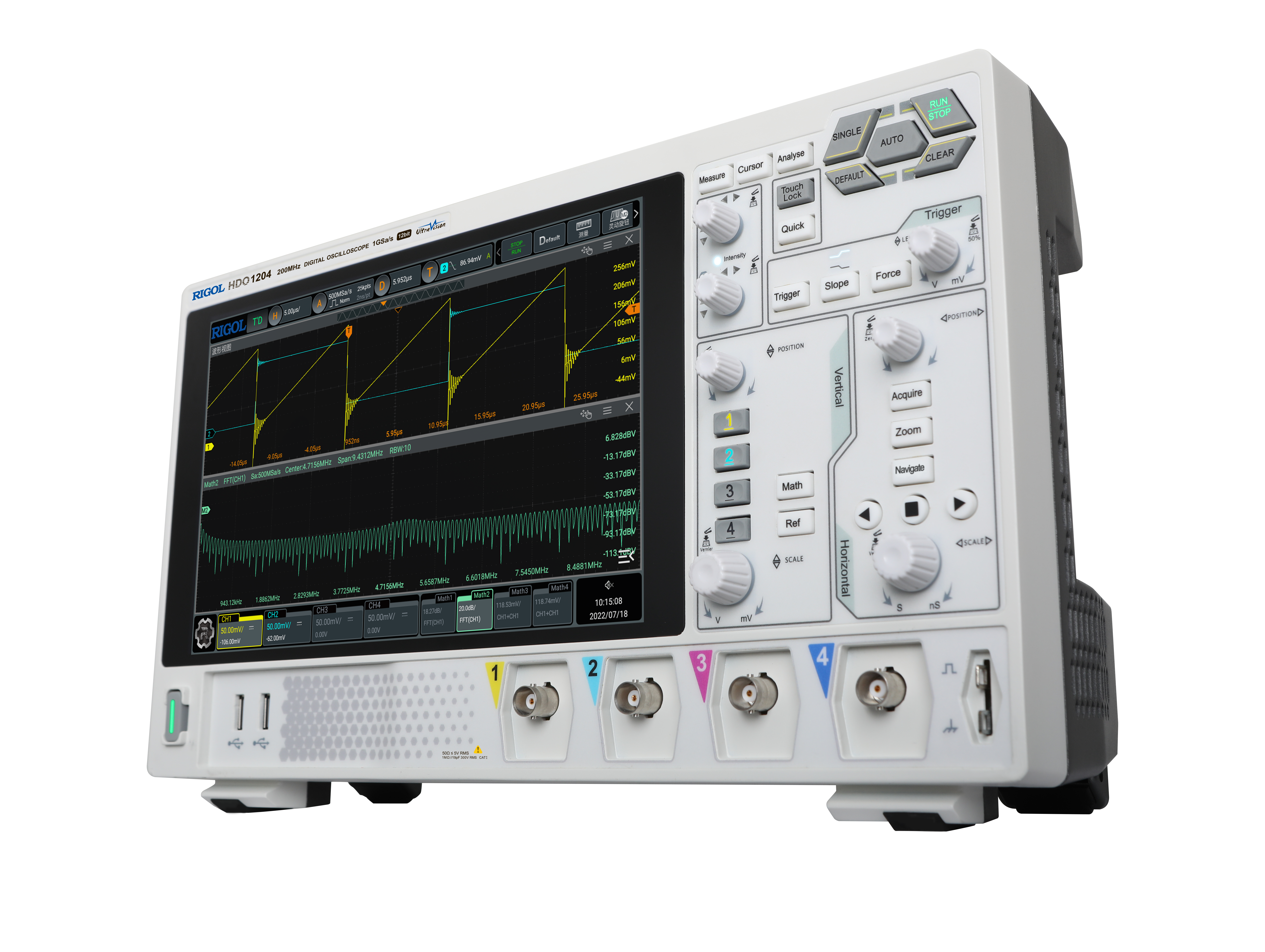

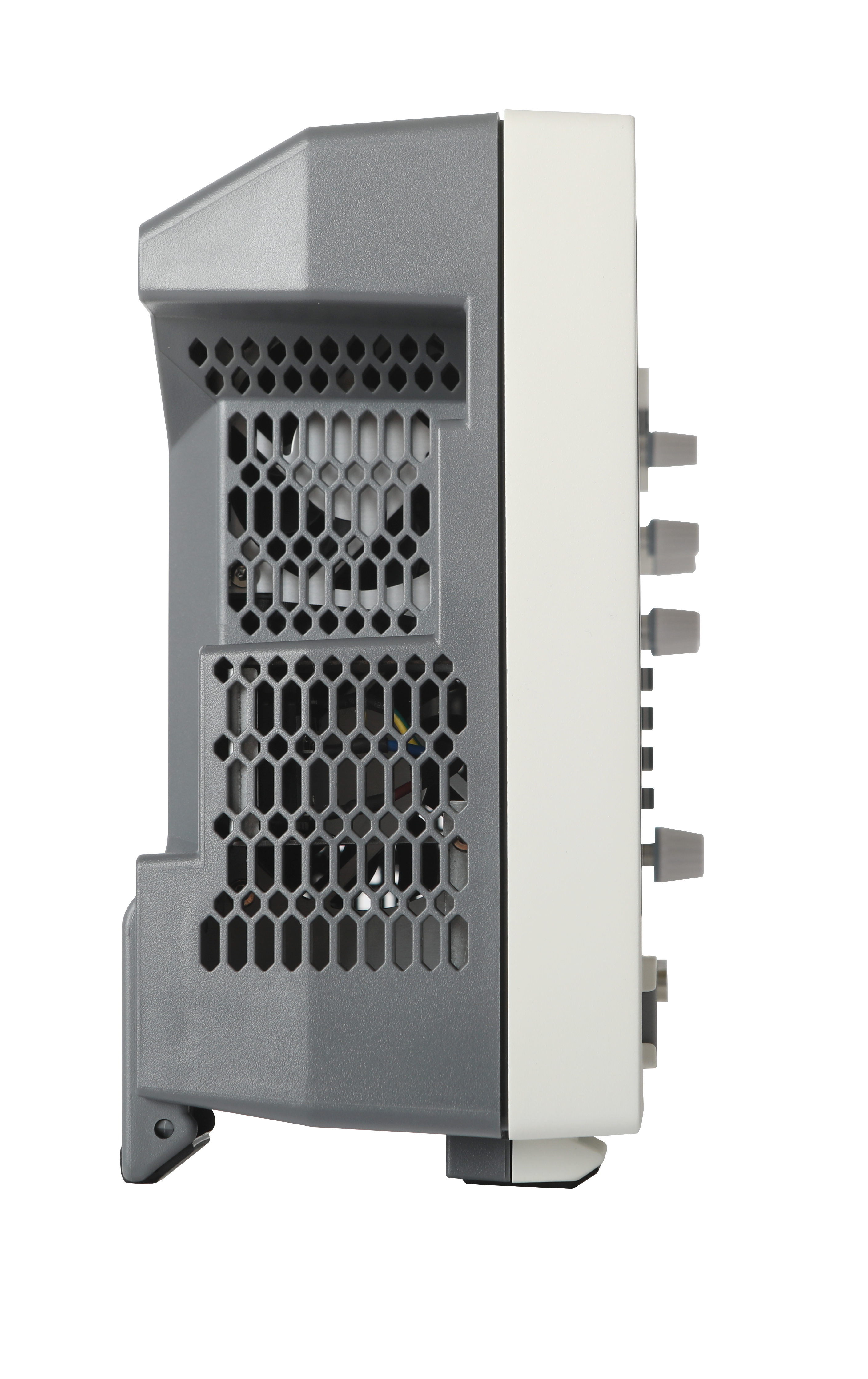

Digital Oscilloscope HDO1104

NEW! 100 MHz, 4 analog channels and 1 EXT channel, Real-time sample rate up to 2 GSa/s, Memory Depth up to 100 Mpts (optional), 12-bit vertical resolution, Up to 1,500,000 wfms/s waveform capture rate, 10.1'' 1280*800 HD touch display



Deliver in
2 - 3 working Days
€1,399.00 €1,664.81

  • Brand-new chipset "Centaurus" developed by RIGOL
  • Analog channel bandwidth: 100 MHz
  • 4 analog channels and 1 EXT channel
  • 12-bit vertical resolution
  • Real-time sample rate up to 2 GSa/s
  • Ultra-low noise floor for cleaner signals, measuring small signals accurately
  • Memory Depth up to 100 Mpts (optional)
  • Vertical sensitivity range: 500 μV/div to 10 V/div
  • Up to 1,500,000 wfms/s waveform capture rate with the UltraAcquire mode
  • 10.1'' 1280*800 HD touch display
  • User-friendly Flex Knobs, bringing smoother interaction
  • Standard photoelectric encoder operating knobs, effectively prolonging its service life
  • Standard USB Device & Host, LAN, and HDMI interfaces


12bit High Resolution

..12bit vertical resolution 4096 levels of quantization, 16 times the quantization level of 8bit, small signal testing is handy.



UltraAcquire Condensation Acquisition Mode

..Provides UltraAcquire condensation acquisition mode, up to 1,500,000wfms/s high waveform capture rate, do not miss any abnormal waveform.



10.1-Inch High-Resolution Touch Screen

..Provides a 10.1-inch high-resolution touch screen, making human-computer interaction more convenient.



Flex Knob

..Double multi-function knob design, no more complicated switching steps of a single knob, and achieve more efficient interaction.



Photoelectric Encoder

..Standard photoelectric encoder, 34-year long service life, protect your fixed assets.




Datasheet Download Description File Size Version Release Date
HDO1000_DataSheet_EN HDO1000 DataSheet (English) 7.20 MB V1.0 09.2022
Manual Download Description File Size Version Release Date
HDO1000_UserGuide_EN HDO1000 UserGuide (English) 18.97 MB V1.0 09.2022
General Download Description File Size Version Release Date
HDO1000_QuickGuide_EN HDO1000 QuickGuide (English) 3.29 MB V1.0 07.2022
