RIGOL Digital Oscilloscope DS1104Z Plus

In stock
SKU
DS1104Z Plus

Analog channel bandwidth: 100 MHz, 4 analog channel, 16 digital channel, 1 GSa/s, Memory depth up to 24 Mpts, Up to 30,000 wfms/s waveform capture rate, Trigger and Decoding options are permanent free installed, UltraVision, USB Host&Device, LAN (LXI), AUX, 7-inch WVGA (800x480) TFT LCD Display,EU Cable

Get all options for free with the purchase of a new DS1000Z/MSO1000Z oscilloscope! All licenses are preinstalled! Options: SD-DS1000Z Serial Decoder, AT-DS1000Z Advanced Trigger, MEM-DS1000Z Memory Option, REC-DS1000Z Record-Module!

Deliver in
2 - 4 working Days
Special Price €373.15 €444.05 Regular Price €522.41

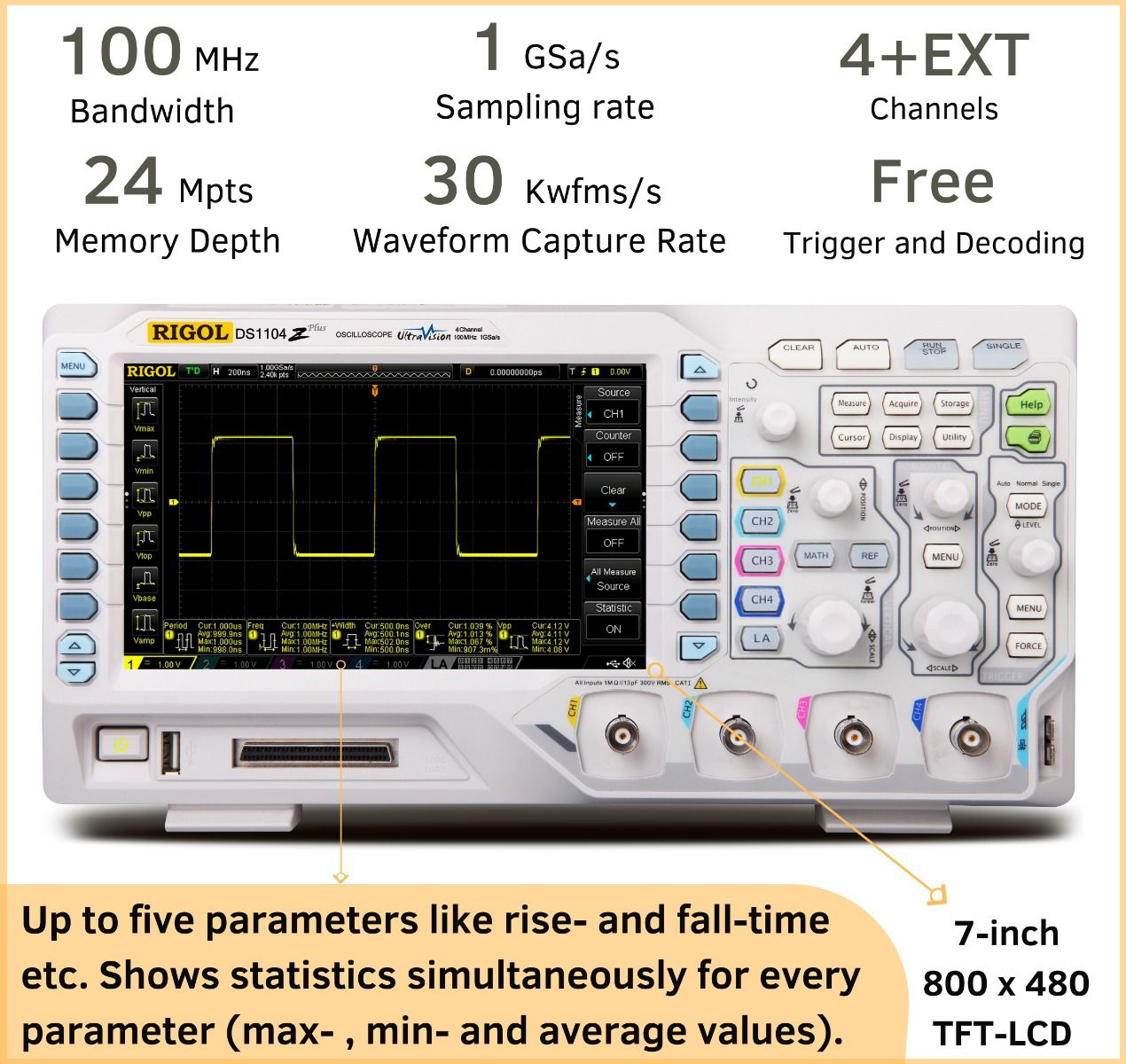

  • Analog channel bandwidth: 100 MHz
  • 4 analog channels, 16 digital channels
  • Real-time sample rate up to 1 GSa/s
  • Memory Depth up to 24 Mpts

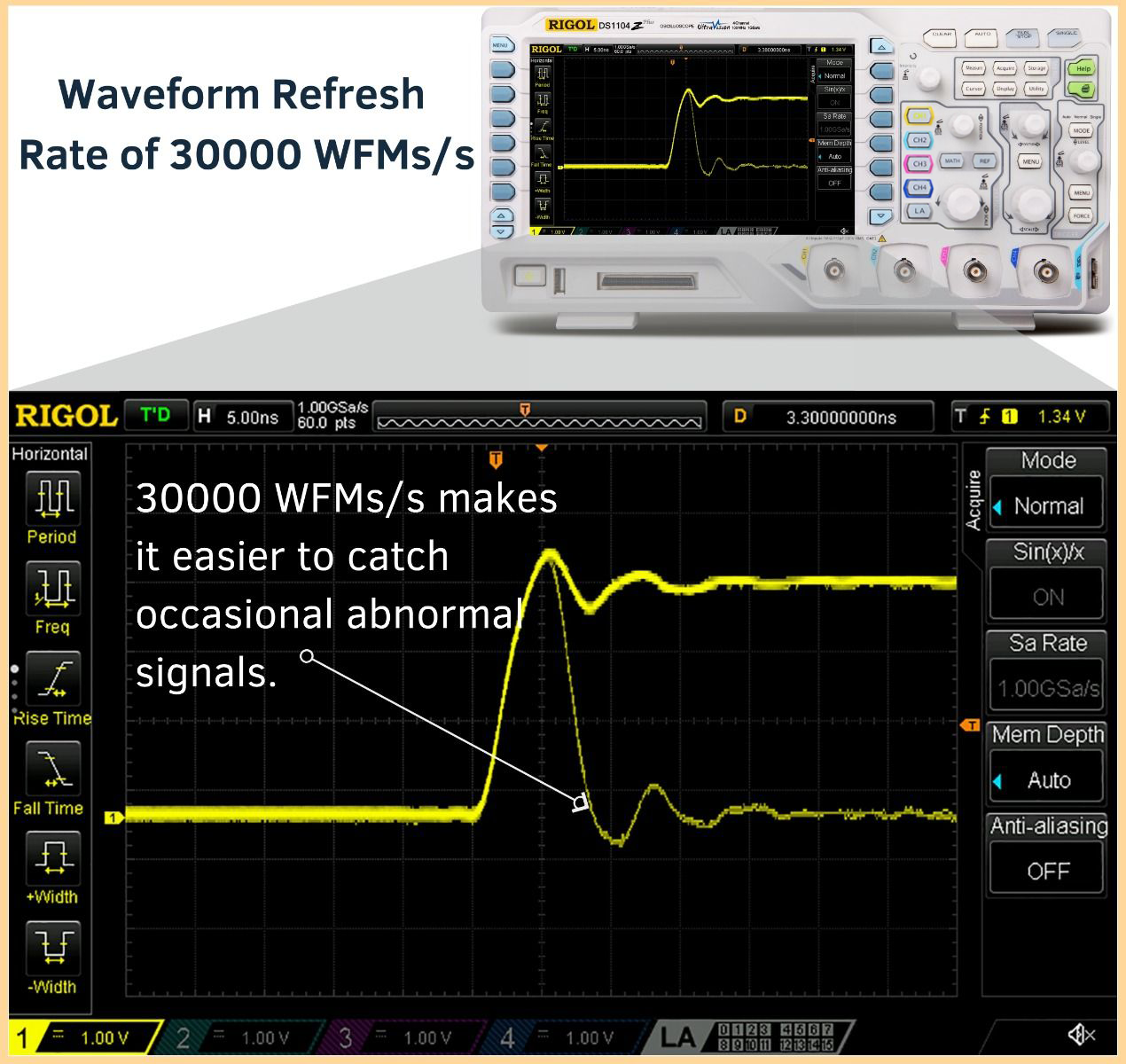

  • Up to 30,000 wfms/s waveform capture rate
  • Up to 60,000 frames hardware real-time waveform recording and playback functions
  • Innovative "UltraVision" technology

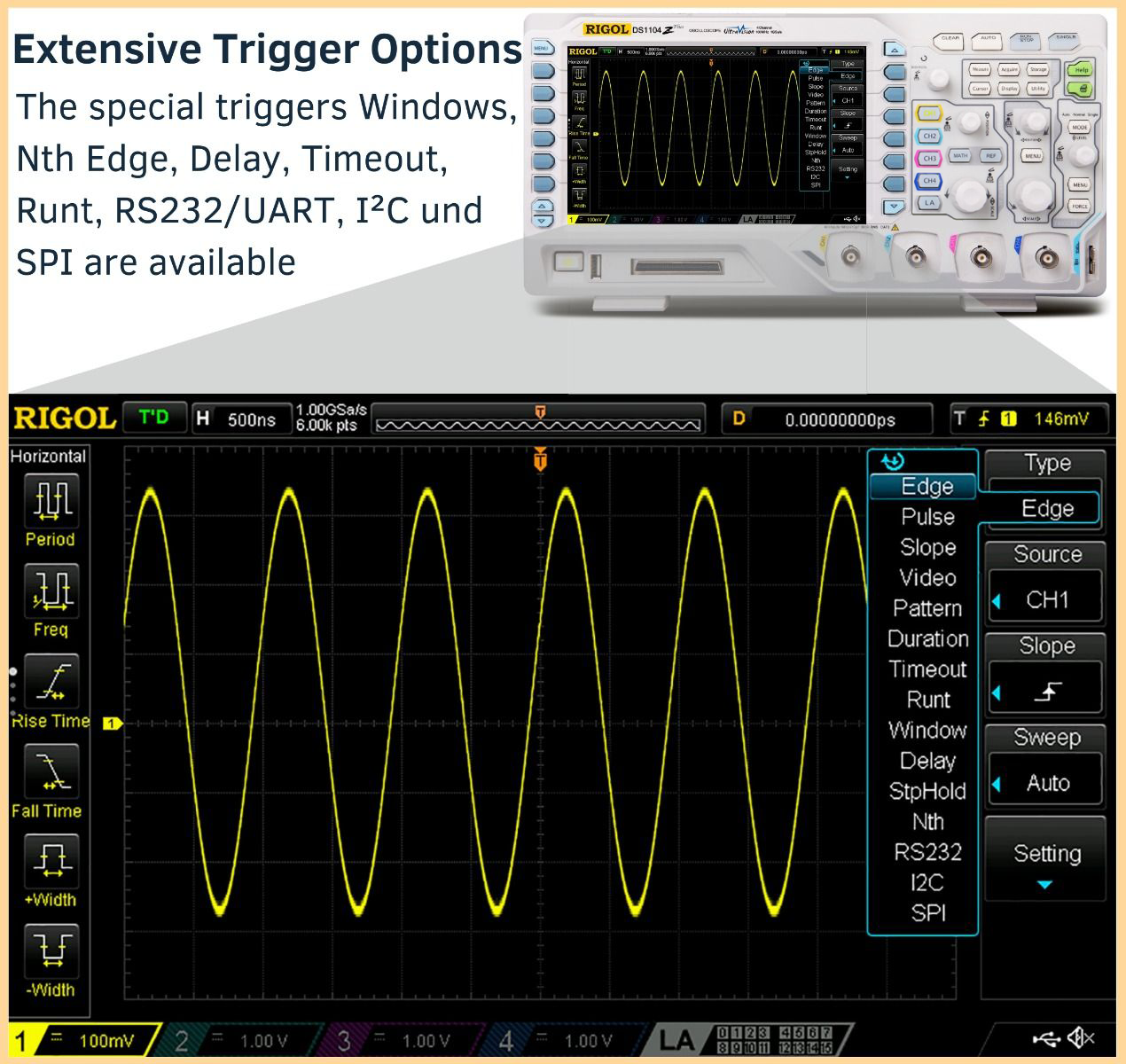

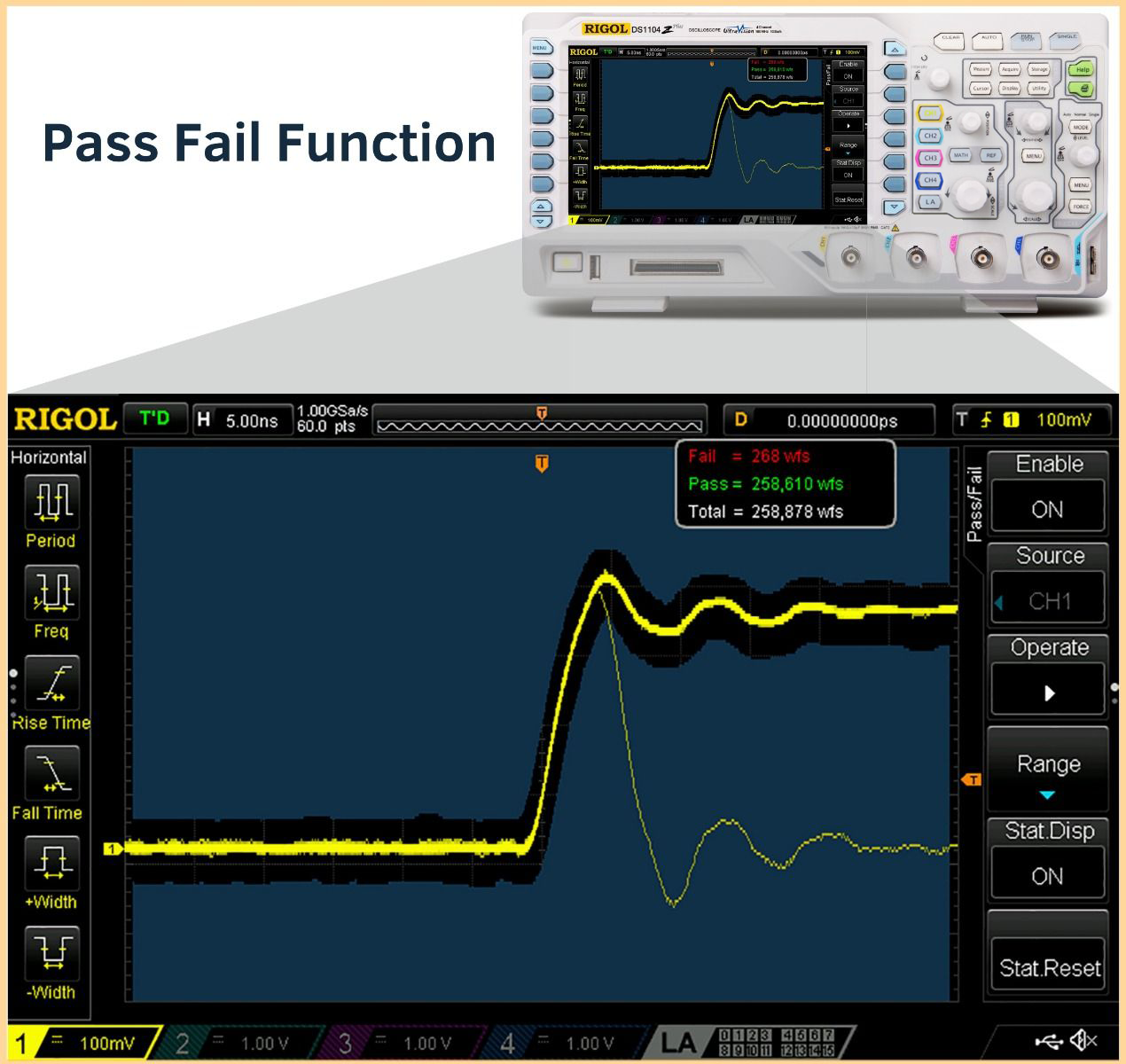

  • Various trigger and bus decoding functions
  • Low noise floor, vertical scale range: 1 mV/div to 10 V/div
  • Various interfaces: USB Host&Device, LAN (LXI), AUX
  • Compact size, lightweight, easy to use
  • 7-inch WVGA (800x480) TFT LCD, intensity graded color display

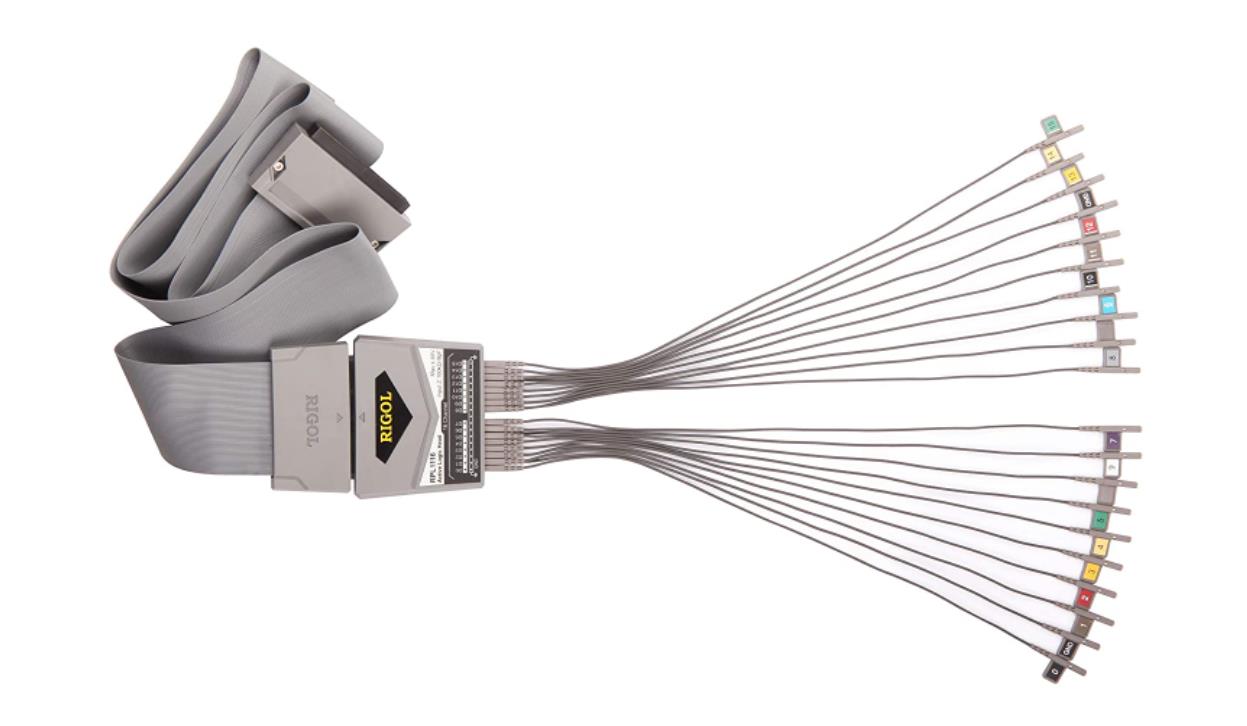

  • Logic probe RPL1116 need to be extra purchased for the MSO function.


4 Channels As Standard

..The price of 2-channel can obtain 4-channel products, and 4 analog channels are configured as standard to facilitate simultaneous measurement of multiple signals

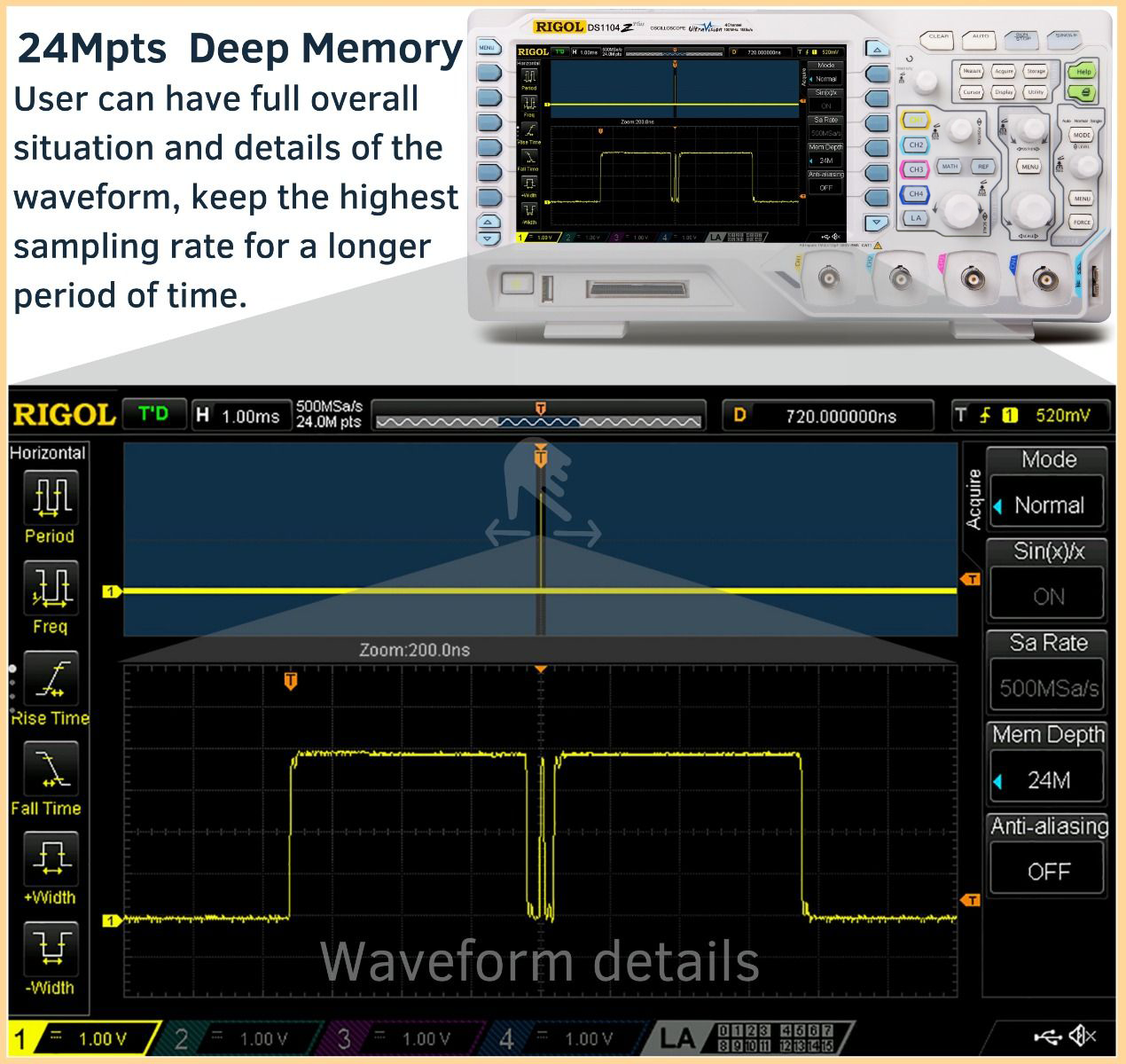

12Mpts Storage Depth

..Standard with 12M, optional with 24m super long storage depth. (Standard configuration of digital channel 6m, optional 12m) allows the user to give full consideration to the overall situation and details of the waveform, maintain the highest sampling rate in a longer period of time, without missing any waveform changes



Hardware Waveform Recording and Playback Function

..Provide waveform recording function options, record waveform changes, easily replay waveform, find out the fault location

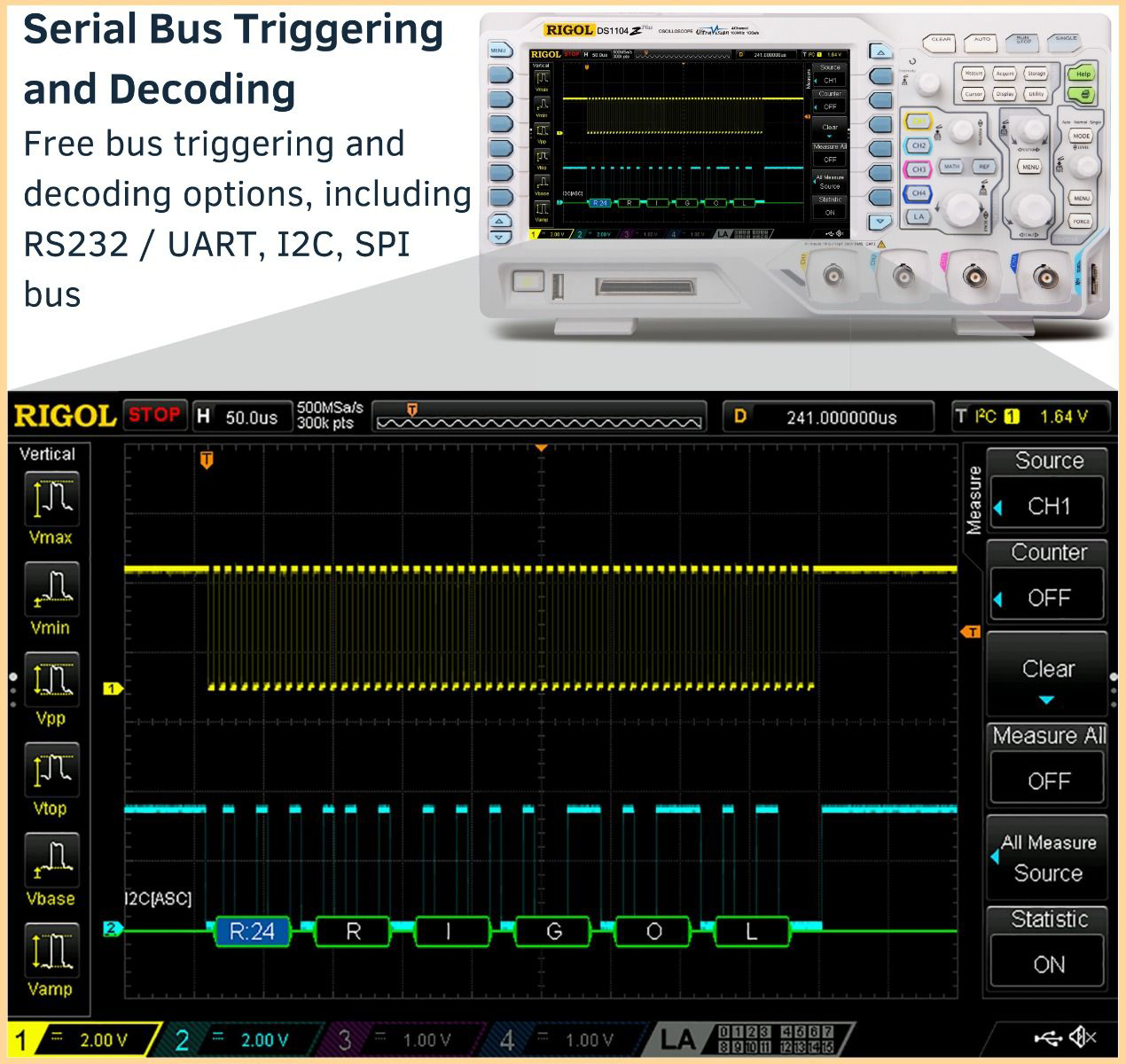

Serial Bus Triggering and Decoding

..Provide bus triggering and decoding options, support RS232 / UART, I2C, SPI bus

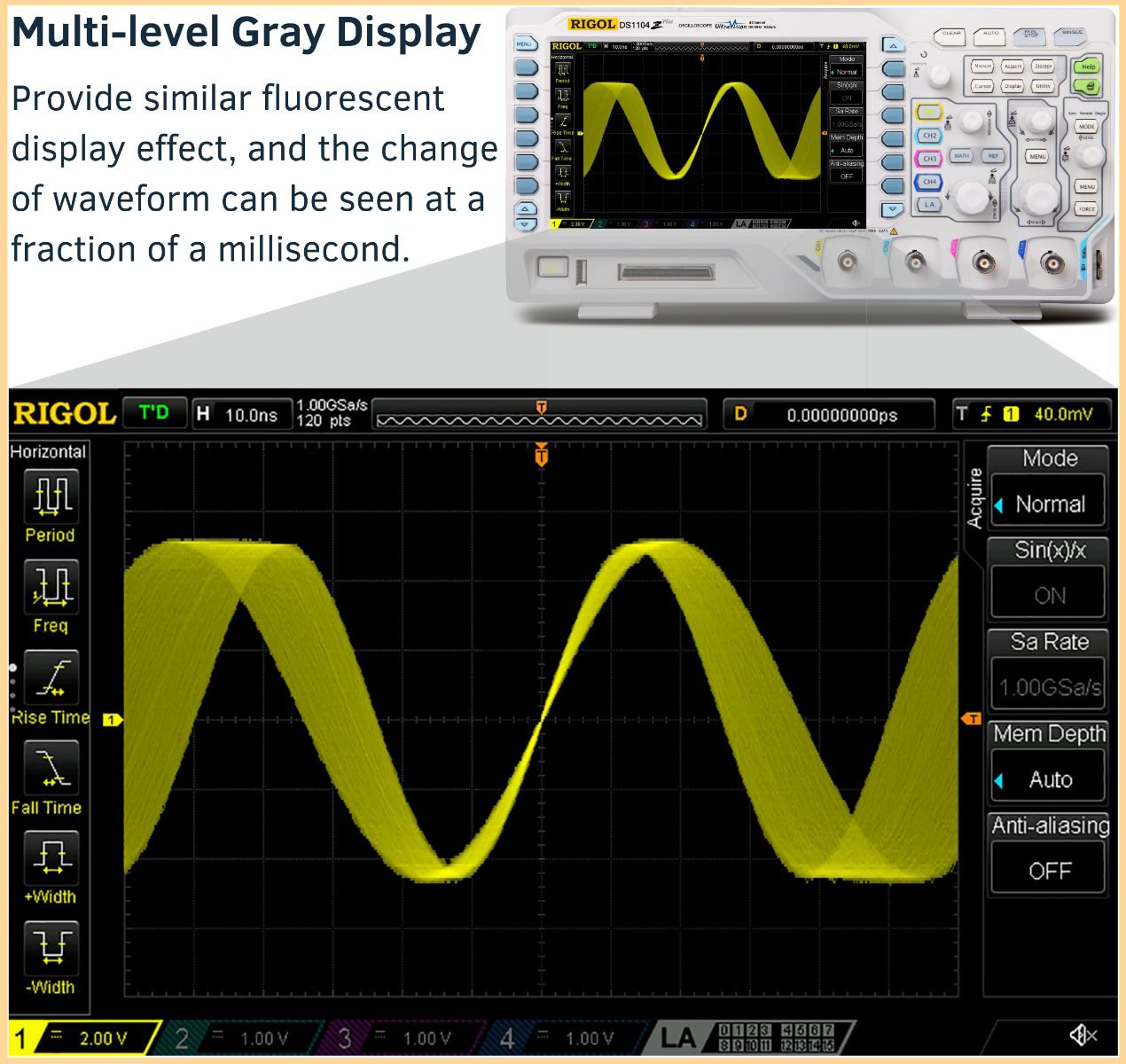

Digital Fluorescent Display

..Gray level display capability, similar to fluorescent display effect, with minute change of waveform



Mixed Signal Analysis Capability

..The plus model provides 16 digital logic channels, which makes it more convenient to test multiple analog and digital signals at the same time and analyze logic signals more conveniently. DS1000z plus can be upgraded to MSO



Two 25MHz Signal Sources

..With two 25MHz arbitrary waveform generator models, the oscilloscope, logic analyzer and signal source are combined to give you a more efficient test experience




Software Download Description File Size Version Release Date
Ultra Power Analyzer Ultra Power Analyzer 12.41 MB 00.01.02.05 2019-10-22
Ultra Scope Software Ultra Scope Software 11.15 MB 00.01.02.12 2019-12-13
Ultra Sigma(HelpDocument) Ultra Sigma(HelpDocument) 9.79 MB V1.0 2019-08-22
Demo_DS1000Z_ReadWaveform_C_Sharp Demo_DS1000Z_ReadWaveform_C_Sharp 32.17 KB V1.0 2019-08-29
Demo_DS1000Z_ReadWaveform_matlab Demo_DS1000Z_ReadWaveform_matlab 1.09 KB V1.0 2019-08-29
NI-VISA Run-Time Engine 15.0 O/S: Windows 8.1 (64/32 Bit), 8 (64/32 Bit), 7 (64/32 Bit), Vista (64/32 Bit), XP (64/32 Bit) 83.95 MB V1.0 08.03.2015
NI-VISA Run-Time Engine 17.0 O/S: Windows 10 (64/32 Bit), 8.1 (64/32 Bit), 8 (64/32 Bit), 7 (64/32 Bit) 123.33 MB V1.0 22.05.2017
DS1000Z IVI Driver DS1000Z IVI Driver 518.15 KB 1.0.3 2019-08-29
Firmware Download Description File Size Version Release Date
DS1000Z Firmware (exclude DS1000Z-E ) DS1000Z Firmware 2.36 MB 00.04.05.02.04 2019-08-29
Datasheet Download Description File Size Version Release Date
MSO1000Z_Datasheet MSO1000Z_Datasheet 6.53 MB V1.0 2019-08-29
DS1000Z_Datasheet_ES DS1000Z_Datasheet_ES 4.92 MB latest 2022-06-21
Manual Download Description File Size Version Release Date
DS1000Z_UserGuide_DE DS1000Z_UserGuide_DE 3.21 MB V1.0 01.08.2013
MSO_DS1000Z_UserGuide_EN MSO_DS1000Z_UserGuide_EN 4.20 MB V1.0 2019-08-29
DS1000Z&DG4000_RackMount_CN&EN DS1000Z&DG4000_RackMount_CN&EN 594.25 KB V1.0 2019-08-29
MSO_DS1000Z_ProgrammingGuide_EN MSO_DS1000Z_ProgrammingGuide_EN 4.80 MB V2.0 2019-08-29
MSO_DS1000Z_QuickGuide_EN MSO_DS1000Z_QuickGuide_EN 2.31 MB V1.0 2019-08-29
rigol-software-tools rigol-software-tools 551.36 KB V1.0 10.04.2014
VISA_TMC_Driver_information VISA_TMC_Driver_information 435.80 KB V1.0 04.08.2010
