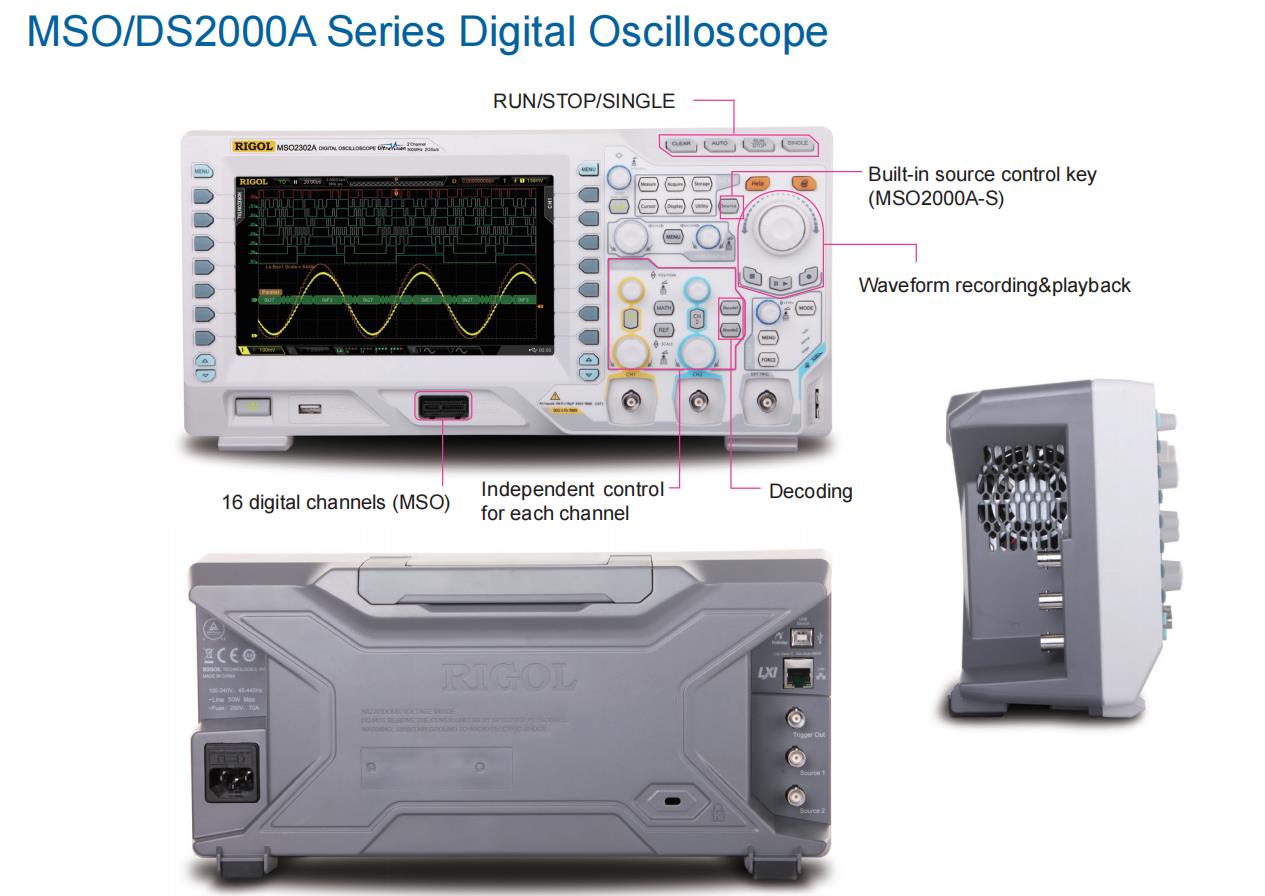

300 MHz, standard 50 Ω input, 2 analog channel, 16 digital channel, 2 GSa/s, Memory depth up to 56 Mpts, Up to 52,000 wfms/s, Up to 65,000 frames hardware real-time waveform record, playback and analysis functions (standard), UltraVision, USB Host&Device, LAN (LXI), AUX, USB-GPIB (optional), 8 inch TFT (800x480) WVGA, Up to 256 levels intensity grading waveform display, Built-in 25 MHz AWG,EU Cable
All MSO/DS2000-BND options are preinstalled!
------
- Analog channel bandwidth: 300 MHz
- 2 analog channels, 16 digital channels
- Real-time Sample Rate: analog channel up to 2 GSa/s, digital channel up to 1 GSa/s (MSO)

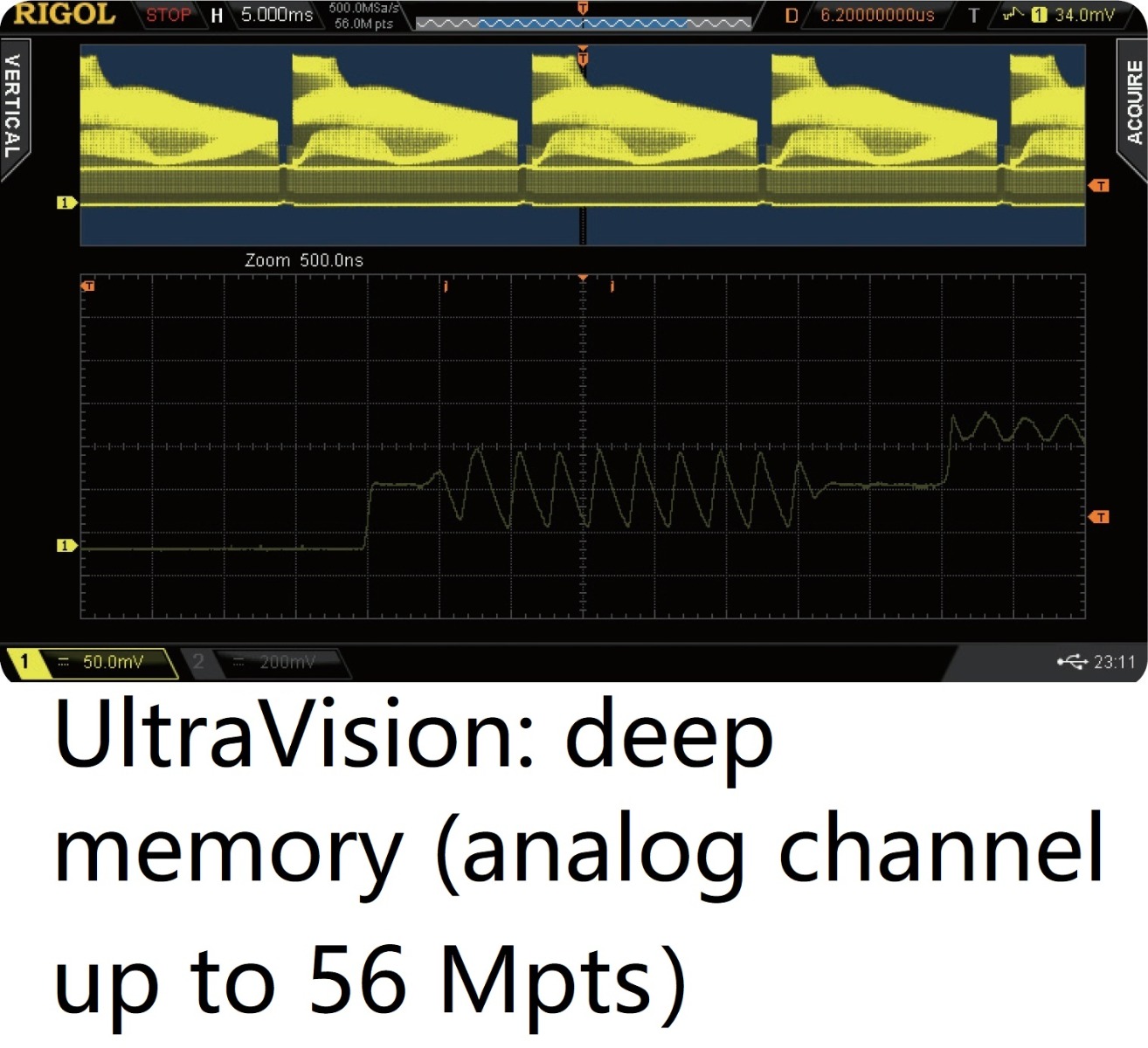

- Memory Depth: analog channel up to 14 Mpts (standard)/56 Mpts (optional), digital channel up to 14 Mpts (standard)/28 Mpts (optional, MSO)

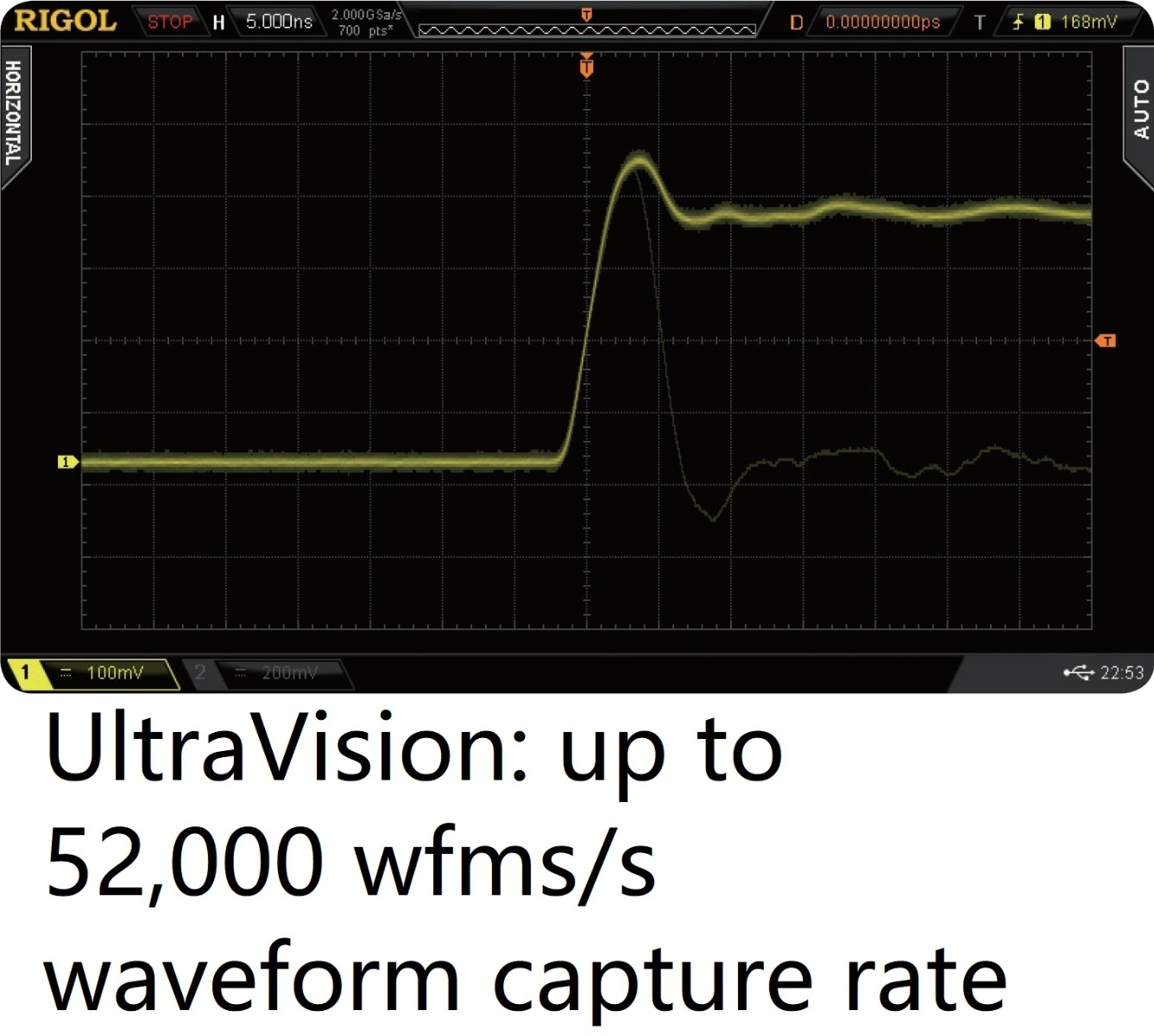

- Up to 52,000 wfms/s waveform capture rate

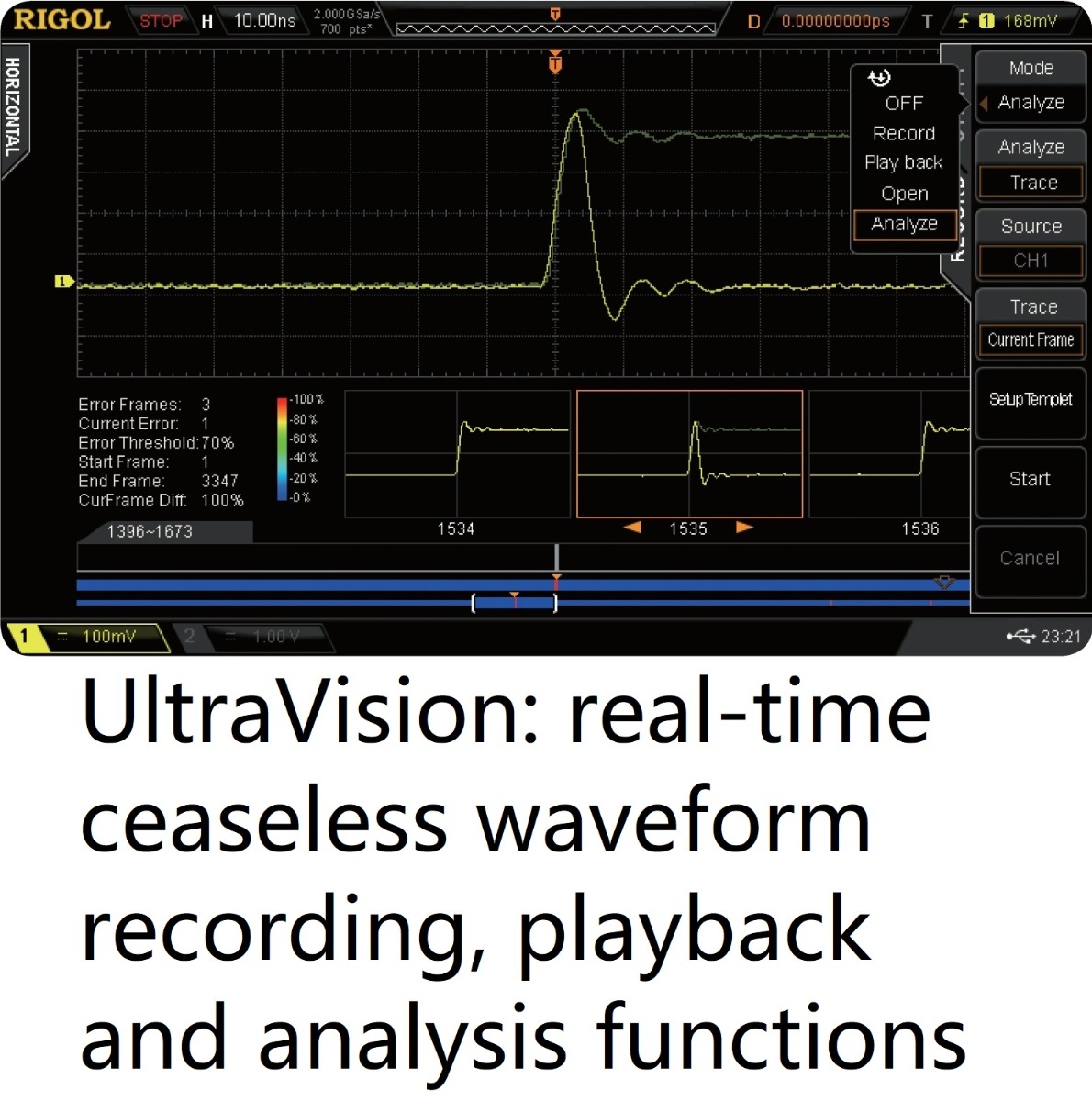

- Up to 65,000 frames hardware real-time waveform record, playback and analysis functions (standard)

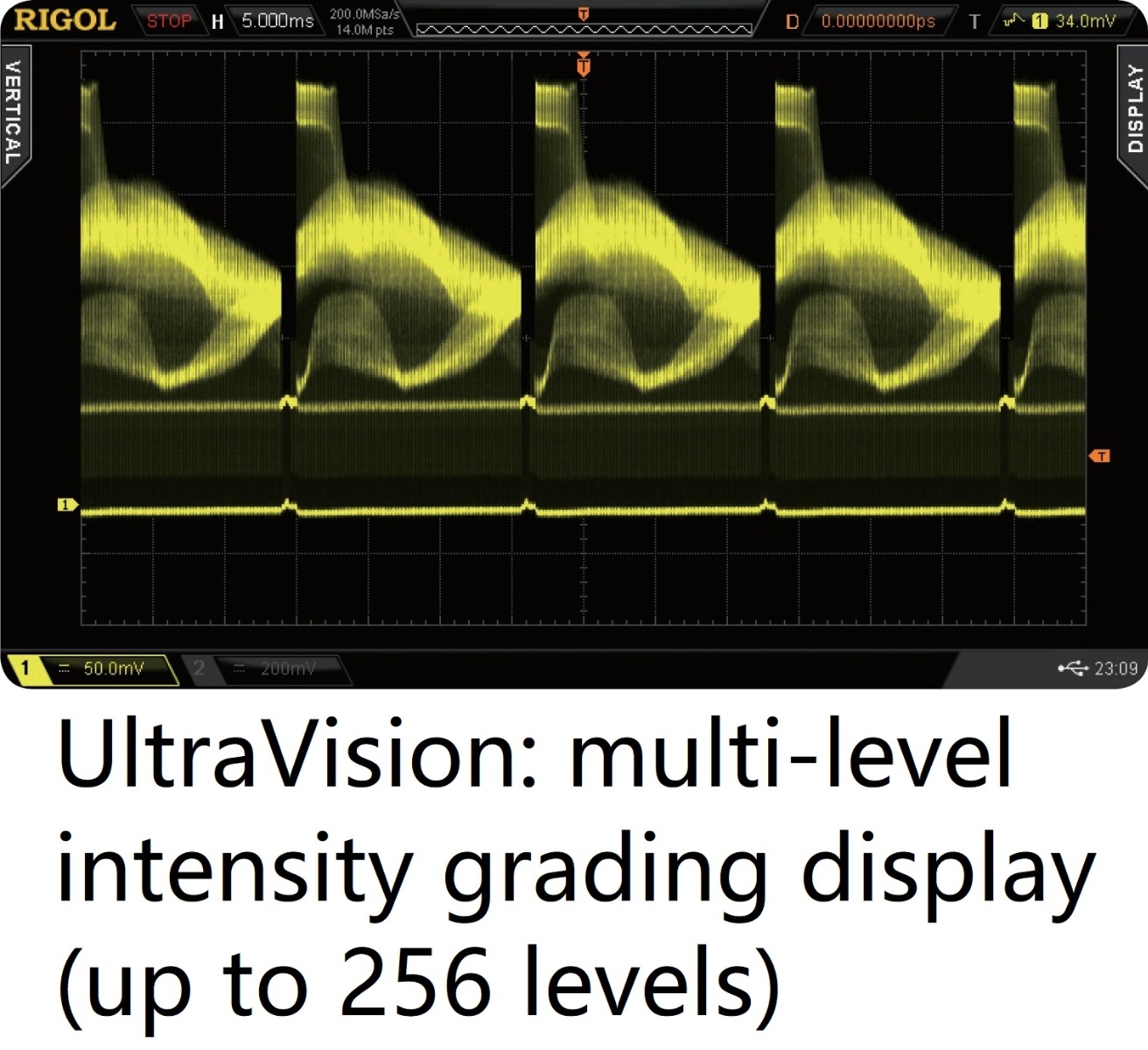

- Innovative "UltraVision" technology
- A variety of trigger and bus decoding functions (Parallel, RS232, I2C, SPI, CAN)
- Low noise floor, vertical scale range: 1 mV/div to 10 V/div
- Complete connectivity: USB Host&Device, LAN (LXI), AUX, USB-GPIB (optional)
- Compact size, lightweight, easy to use
- 8 inch TFT (800x480) WVGA, Up to 256 levels intensity grading waveform display
- Built-in dual-channel 25 MHz function/arbitrary waveform generator
| Model | Market Price | Price | Delivery | Bandwidth | Analog Channels | Max. Real-time Sample Rate | Max. Memory Depth | Digital Channels | Built-in Signal Source | Waveform Capture Rate | Operation |
|---|---|---|---|---|---|---|---|---|---|---|---|
| RIGOL Digital Oscilloscope DS2302A | €719.00 |
€719.00
|
about one month | 300MHz | 2 | 2GSa/s | 56Mpts | - | - | 52,000wfms/s | |
| RIGOL Digital Oscilloscope DS2202A | €599.00 |
€599.00
|
2 Weeks | 200MHz | 2 | 2GSa/s | 56Mpts | - | - | 52,000wfms/s | |
| RIGOL Digital Oscilloscope DS2102A | €569.00 |
€569.00
|
about one month | 100MHz | 2 | 2GSa/s | 56Mpts | - | - | 52,000wfms/s | |
| RIGOL Digital Oscilloscope MSO2102A | €909.00 |
€909.00
|
about one month | 100MHz | 2 | 2GSa/s | 56Mpts | 16(Probe opt.) | - | 52,000wfms/s | |
| RIGOL Digital Oscilloscope MSO2102A-S | €1149.00 |
€1149.00
|
about one month | 100MHz | 2 | 2GSa/s | 56Mpts | 16(Probe opt.) | 2CH | 52,000wfms/s | |
| RIGOL Digital Oscilloscope MSO2202A | €959.00 |
€959.00
|
about one month | 200MHz | 2 | 2GSa/s | 56Mpts | 16(Probe opt.) | - | 52,000wfms/s | |
| RIGOL Digital Oscilloscope MSO2202A-S | €1259.00 |
€1259.00
|

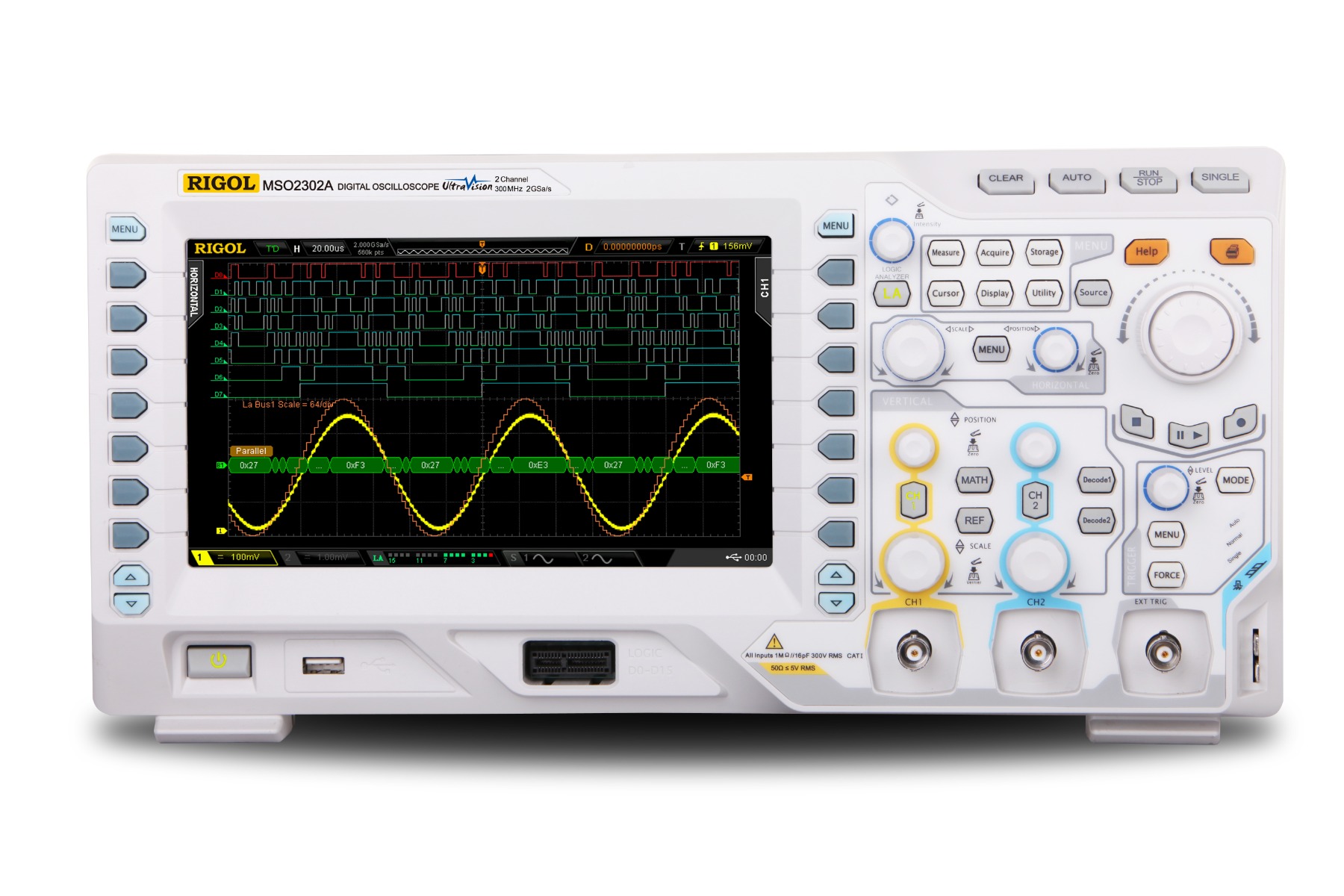

about one month | 200MHz | 2 | 2GSa/s | 56Mpts | 16(Probe opt.) | 2CH | 52,000wfms/s | |
| RIGOL Digital Oscilloscope MSO2302A | €1139.00 |
€1139.00
|
about one month | 300MHz | 2 | 2GSa/s | 56Mpts | 16(Probe opt.) | - | 52,000wfms/s | |
| RIGOL Digital Oscilloscope MSO2302A-S | €1379.00 |
€1379.00
|
about one month | 300MHz | 2 | 2GSa/s | 56Mpts | 16(Probe opt.) | 2CH | 52,000wfms/s |
-

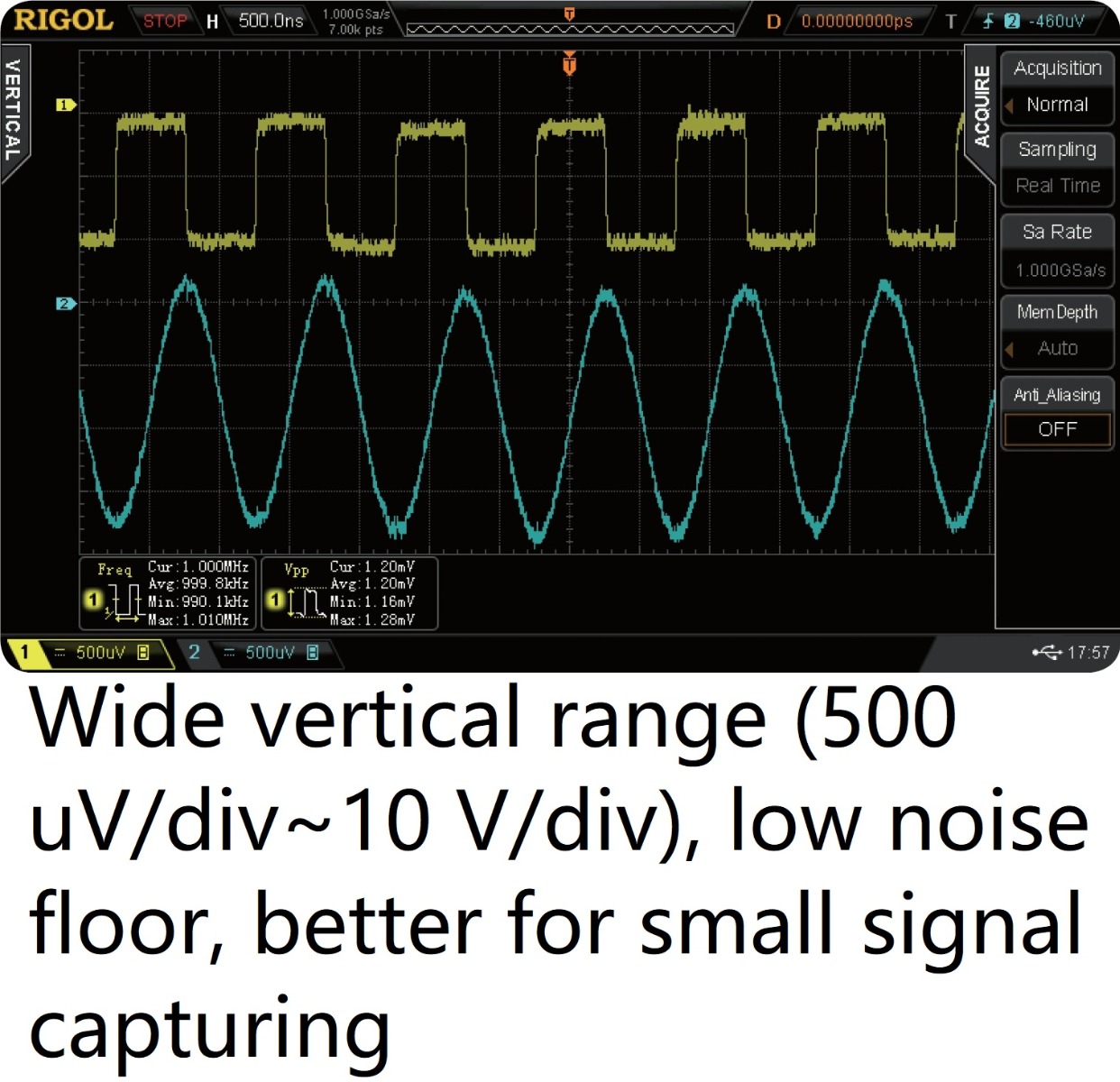

Low Noise floor with wide vertical range (500uV/div ~ 10V/div)..With a lower noise range setting at 500uV/div as well as included 50 Ohm termination and a clean frequency response design, the 2000 Series oscilloscope enables more sophisticated analysis of low level signal artifacts that can affect your design. -
Waveform Record and Playback..Debug occasional and random glitches using our fast capture, playback, and onboard analysis capabilities. -

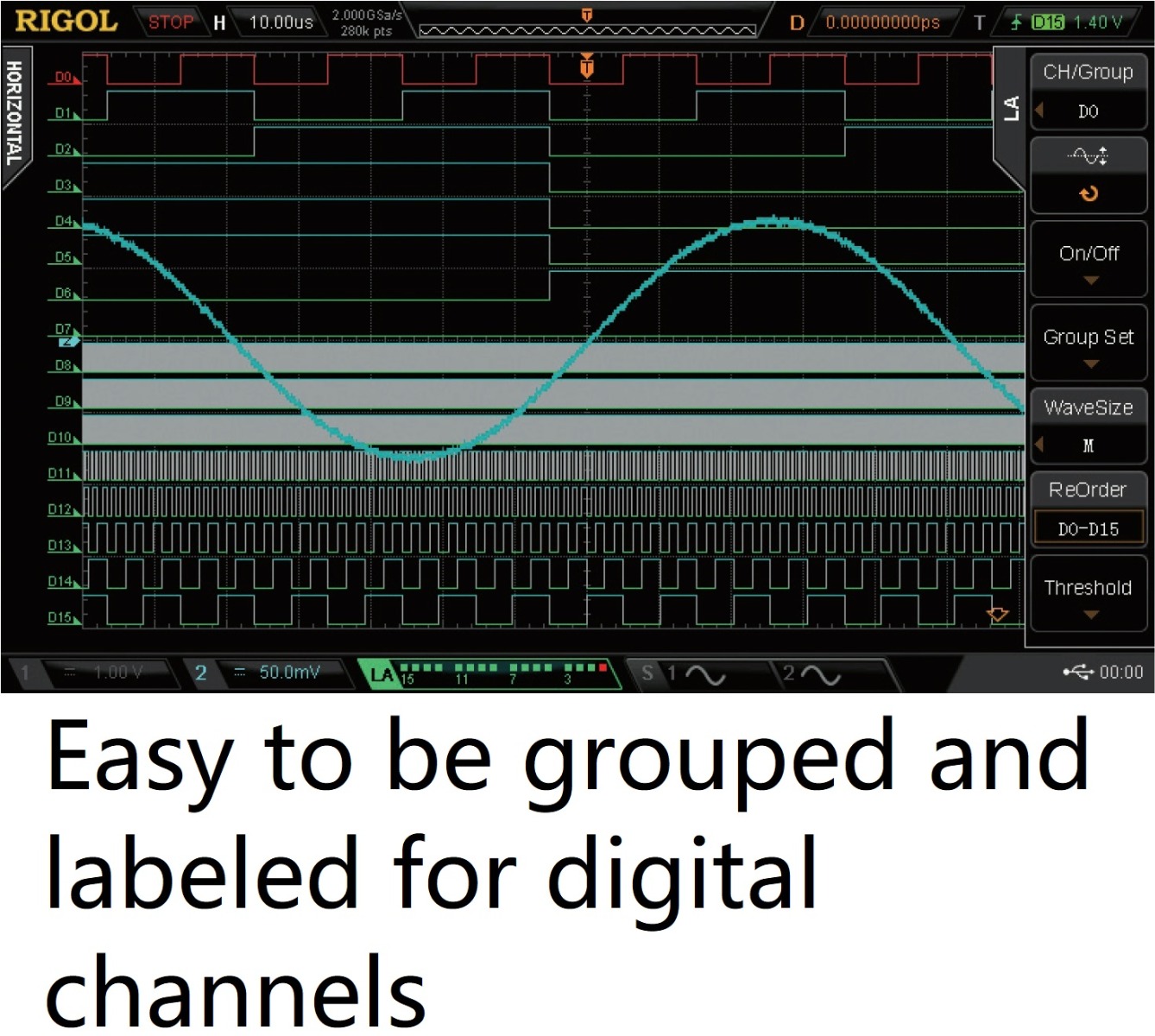

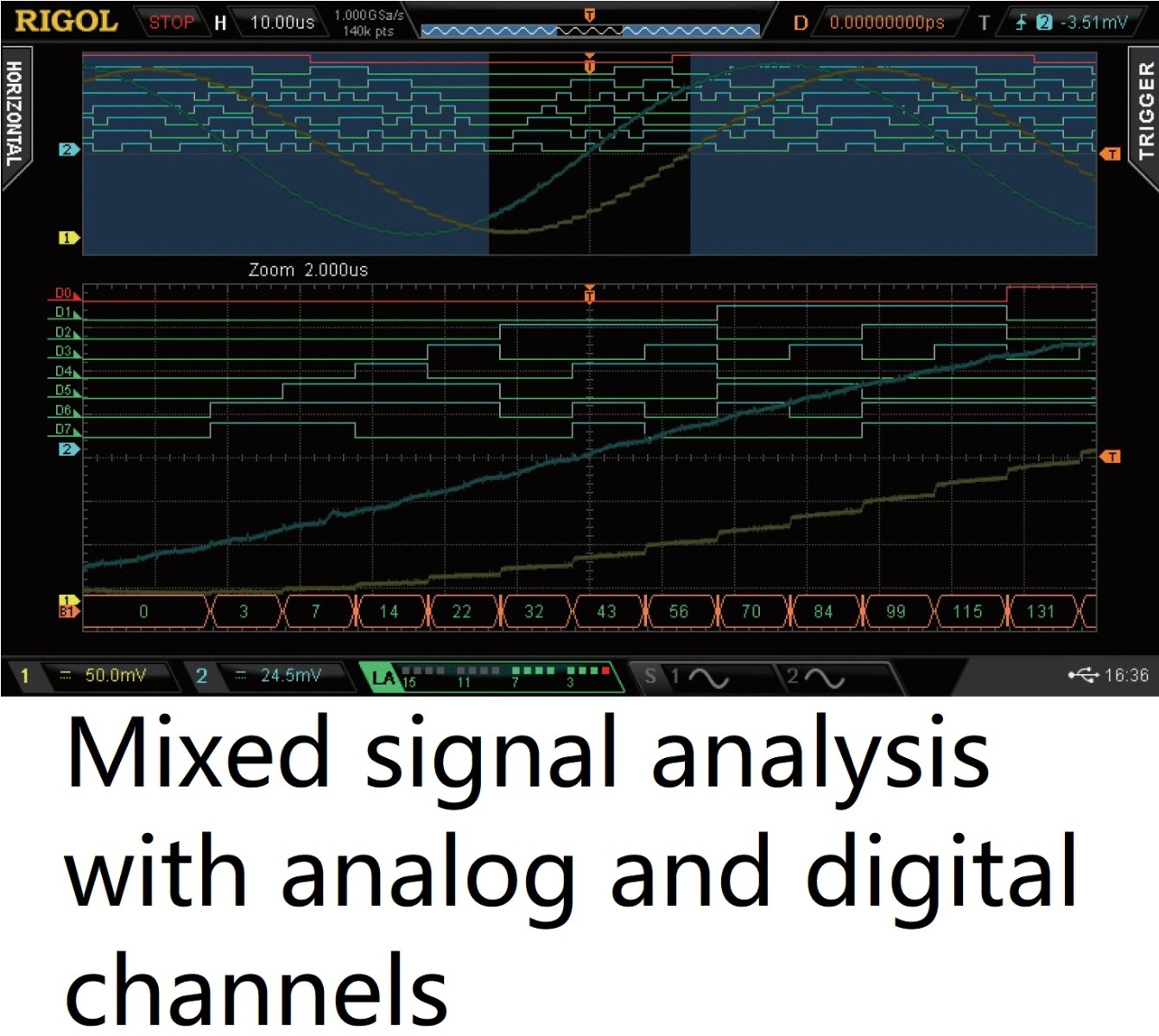

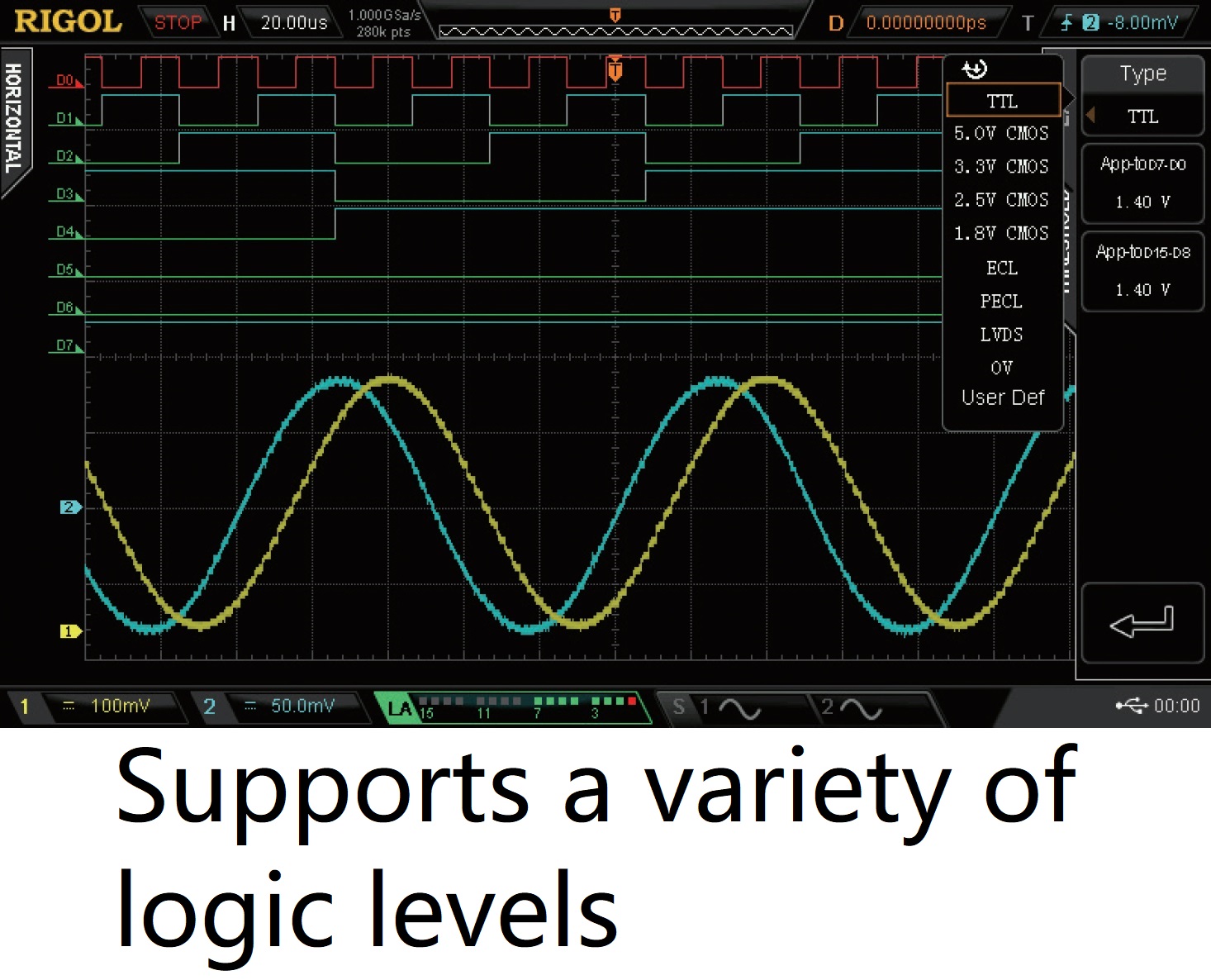

16 Digital Channels (MSO Models).. The MSO2000A models add Mixed Signal Capabilities allowing users to not only look at the analog behavior of up to 4 channels but also trigger, capture, and analyze the behavior of up to 16 digital channels at the same time. -
Integrated 2 Channel full function 25MHz generator..Create standard waves from the front panel, convert captured waves to emulated signals, or build arbitrary waves in the UltraStation PC Software. The embedded waveform generators included in the "-S" models adds value and capability to the bench for a variety of applications. -

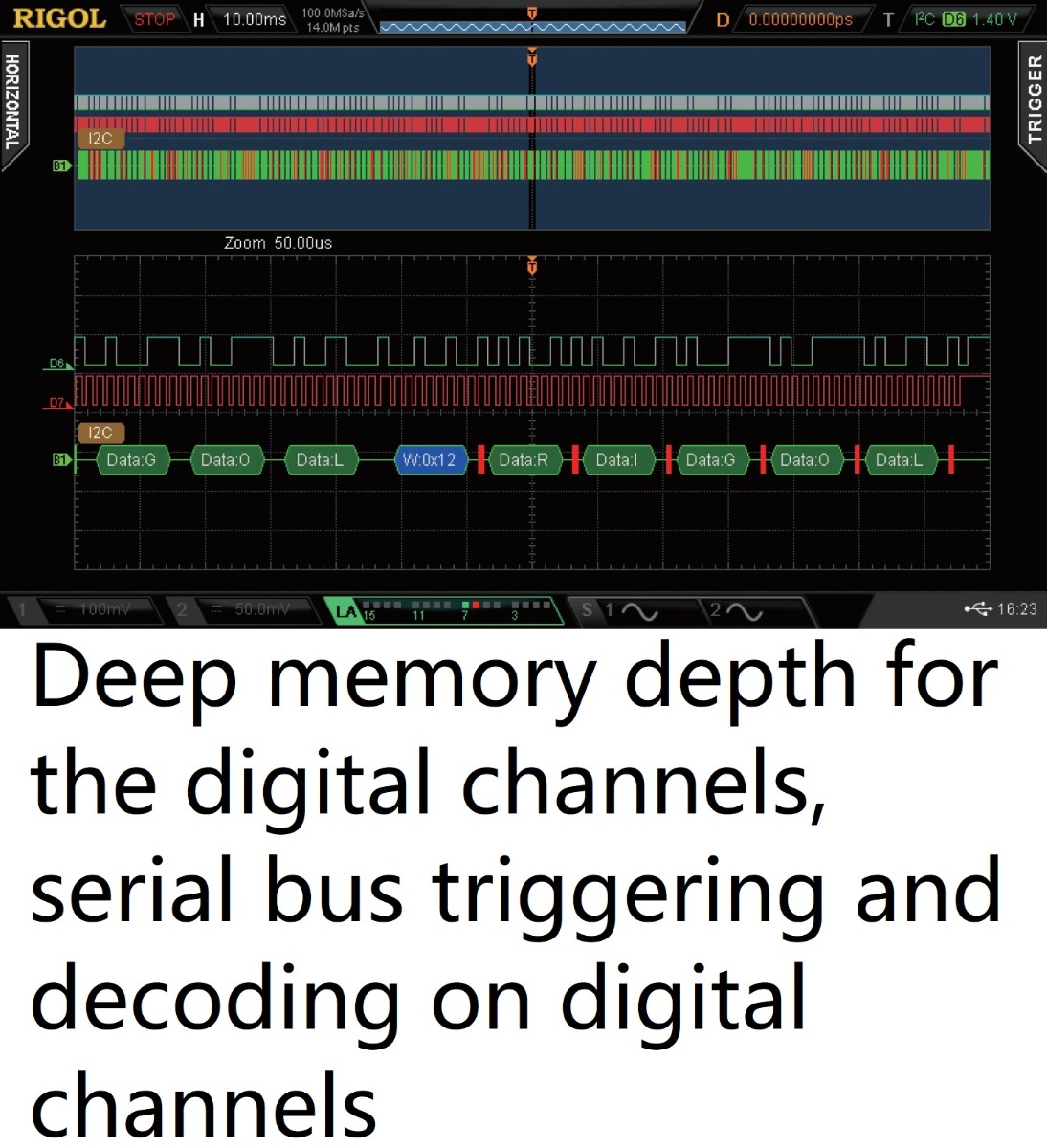

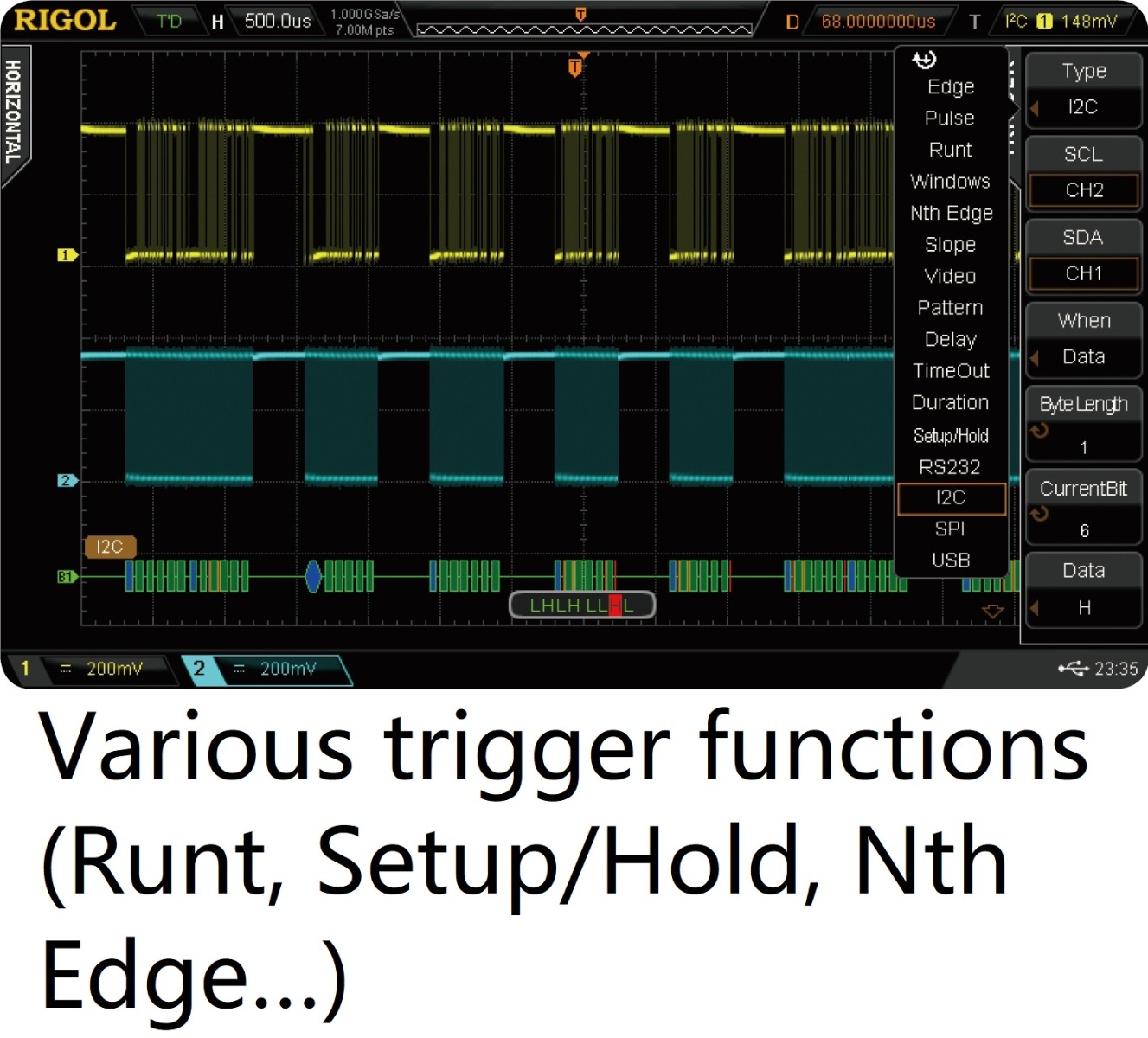

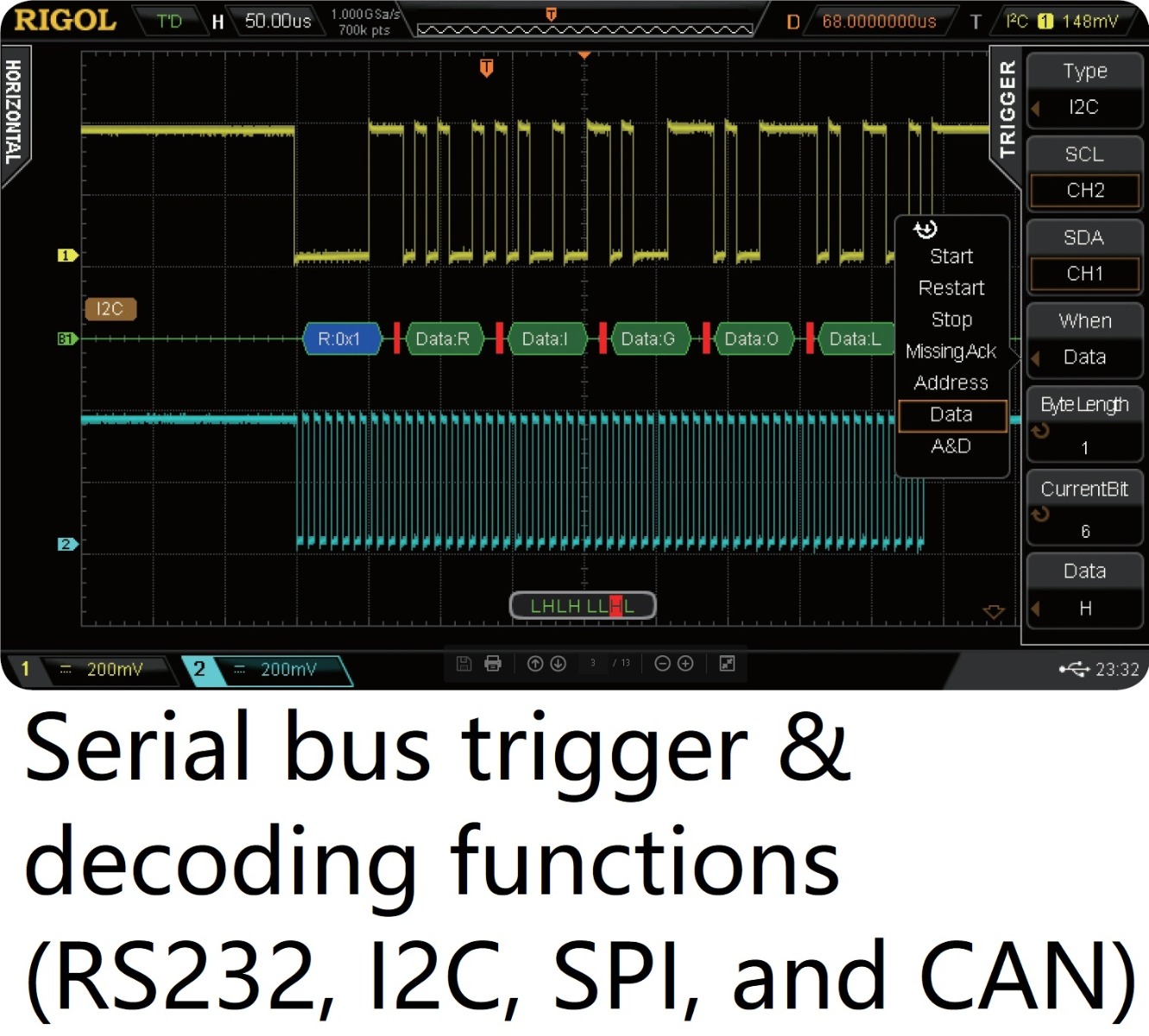

Serial bus triggering and decoding..Supports I2C, SPI, RS232/UART, CAN bus triggering and decoding as standard or optional offers.
