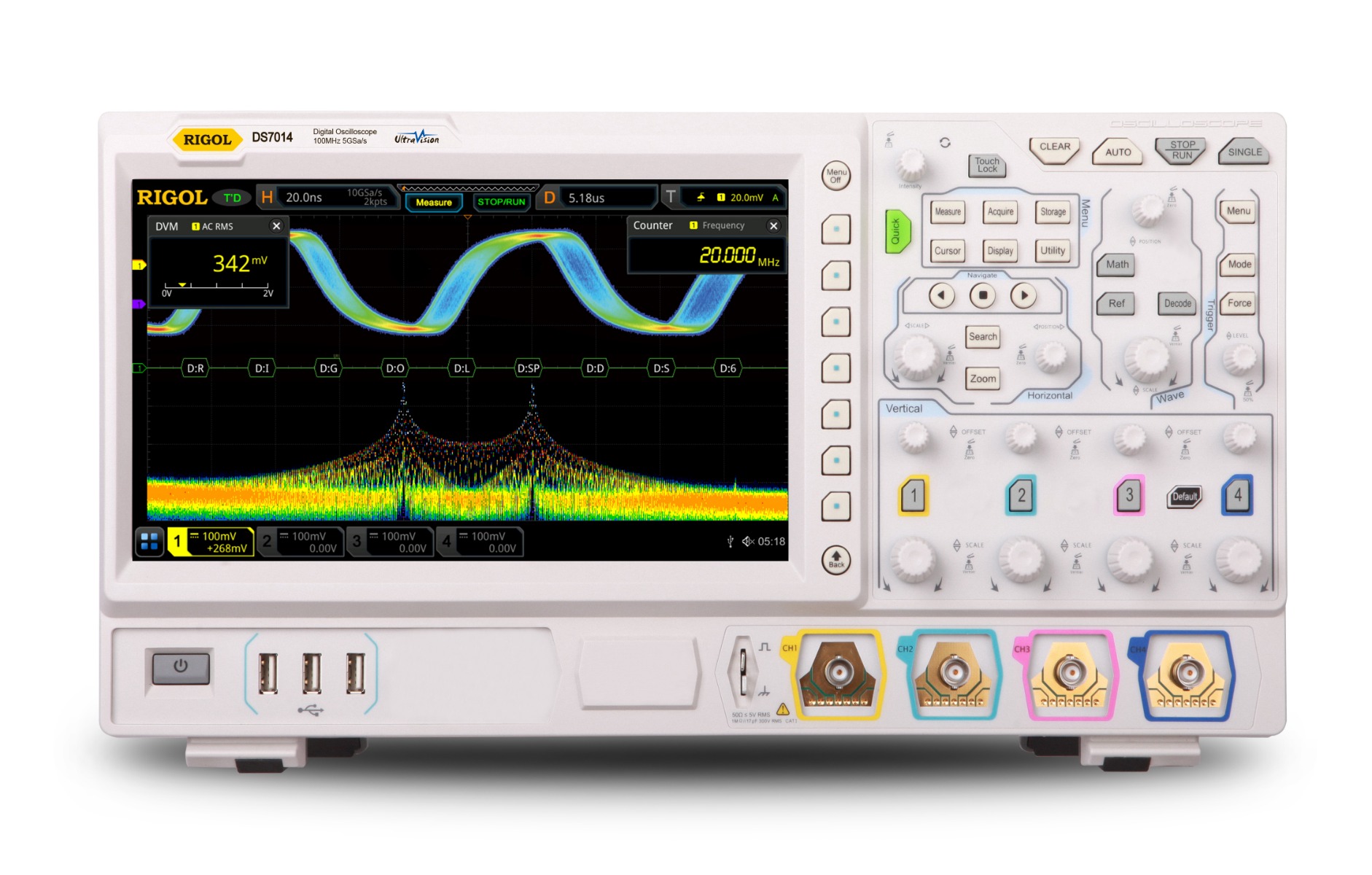

RIGOL Digital Oscilloscope DS7014

RIGOL Digital Oscilloscope DS7014

Bandwidth 100MHz

Analog Channels 4

Max. Memory Depth 500Mpts(opt.)

Built-in Signal Source 2CH

Waveform Capture Rate 600,000 wfms/s

Delivery：about one month

Standard Accessories

Quantity：

€2199.00 excl. VAT

€2616.81 incl. 19% VAT

Buy Now Add to cart Add to wish list

Description
MSO/DS7000 Oscilloscope Model
Feature & Video
Software ＆ Firmware
Datasheet & Manual Download

Add To Cart

<video id="video-1" poster="/images/pub/media/wysiwyg/download/video/cover/mso7000_cover.png" preload="none" controls="controls" width="100%" height="auto">
<source src="/images/pub/media/wysiwyg/download/video/ds7000/ds7000_video01_introduction.mp4" type="video/mp4">
 </video>
100 MHz BW, 10G Sa/s, 500 Mpts, 4CH, 25.7 cm touchdisplay 1024x600 pixel. Upgradable to a 2 channel 25 MHz waveform generator,<span data-sheets-value="{"1":2,"2":"2 GHz (50 Ω), 500MHz (1 MΩ), 4 analog channels, 1 EXT channel, 16 digital channels, Real-time sample rate up to 10 GSa/s, Memory Depth up to 500 Mpts, Built-in dual-channel function/arbitrary waveform generator (optional), up to 12-bit vertical resolution, 10.1'' HD touch display"}" data-sheets-userformat="{"2":8961,"3":{"1":0},"11":4,"12":0,"16":10}">EU Cable------<ul>
<li>Analog bandwidth: 100 MHz; bandwidth upgrade option supported</li>
<li>4 analog channels, 1 EXT channel</li>
<li>Up to 10 GSa/s real-time sample rate</li>
<li>Up to 500 Mpts memory depth (option)</li>
<li>High waveform capture rate (over 600,000 wfm/s)</li>
<li>Up to 450,000 frames of hardware real-time and ceaseless waveforms recording and playing functions</li>
<li>Integrates 7 independent instruments into 1, including digital oscilloscope, 16-channel logic analyzer, spectrum analyzer, dual-channel Function/Arbitrary Waveform Generator, digital voltmeter, 6-digit frequency counter and totalizer, and protocol analyzer</li>
<li>A variety of serial protocol triggers and decodes</li>
<li>Auto measurement of 41 waveform parameters; full-memory hardware measurement function</li>
<li>A variety of math operations, built-in enhanced FFT analysis, and peak search function</li>
<li>Waveform histogram analysis (standard)</li>
<li>Independent search, navigation keys, and event table</li>
<li>Built-in advanced power analysis software (option)</li>
<li>User-defined one-key quick operation</li>
<li>1-inch capacitive multi-touch screen, 256-level intensity grading display, with color persistence</li>
<li>Multiple interfaces available: USB HOST & DEVICE, LAN(LXI), HDMI, TRIG OUT, and USB-GPIB</li>
<li>Web Control remote command</li>
<li>Unique online version upgrade</li>
<li>Novel and delicate industrial design, easy to operate</li>
</ul>

Model	Market Price	Price	Delivery	Bandwidth	Analog Channels	Max. Memory Depth	Built-in Signal Source	Waveform Capture Rate
RIGOL Digital Oscilloscope MSO7054	€5699.00	€5699.00	about one month	500MHz	4	500Mpts(opt.)	2CH	600,000 wfms/s
RIGOL Digital Oscilloscope MSO7034	€4699.00	€4699.00	about one month	350MHz	4	500Mpts(opt.)	2CH	600,000 wfms/s
RIGOL Digital Oscilloscope MSO7024	€3599.00	€3599.00	about one month	200MHz	4	500Mpts(opt.)	2CH	600,000 wfms/s
RIGOL Digital Oscilloscope MSO7014	€2799.00	€2799.00	about one month	100MHz	4	500Mpts(opt.)	2CH	600,000 wfms/s
RIGOL Digital Oscilloscope DS7054	€5299.00	€5299.00	about one month	500MHz	4	500Mpts(opt.)	2CH	600,000 wfms/s
RIGOL Digital Oscilloscope DS7034	€4299.00	€4299.00	about one month	350MHz	4	500Mpts(opt.)	2CH	600,000 wfms/s
RIGOL Digital Oscilloscope DS7024	€2999.00	€2999.00	about one month	200MHz	4	500Mpts(opt.)	2CH	600,000 wfms/s
RIGOL Digital Oscilloscope DS7014	€2199.00	€2199.00	about one month	100MHz	4	500Mpts(opt.)	2CH	600,000 wfms/s

7 instruments in 1

..Combine an Oscilloscope, Logic Analyzer, Protocol Analyzer, Waveform Generator, Voltmeter, and Counter/Totalizer in one instrument to quickly find answers to your measurement challenges.
Long Record Length (100M std/500M opt)

..Find elusive problems in complex digital streams with long acquisitions at high sample rates
Flexible user interface combining touch, mouse, knob/button, web, and remote

..With a 10.1 inch touchscreen, full set of knobs and buttons, and mouse support the 7000 makes it easy to analyze signals whichever way works best in your lab. The included interactive browser control allows interactive control from a phone or tablet. PC software provides remote operation and control. The programming interface makes it possible to automate complex test sequences.
Protocol Analysis for today’s common serial communication buses

..Trigger, decode, and visualize serial bus traffic to speed analysis and debug of Embedded Serial Bus designs
Full Memory Hardware Measurement

..No longer limited to the waveform effects visible on the screen, the results can still be accurately obtained for multi-cycle high-frequency signal testing.
Over 600K wfms/s Waveform Capture rate

..Minimize scope “dead time” between trigger events and increase observations of random and sporadic events.
Enhanced Color FFT

..The FFT capability on the 7000 utilizes up to 1 million points for fine resolution. The 7000 Series advanced user controls make it easier to find signals of interest in the frequency domain. The color FFT function provides a probability colorization that highlights transient and hopping RF signals much like a real-time spectrum analyzer.

Firmware Download

File Name	Version	Release Date	Operation
MSO7000 Firmware	V00.01.04	1/25/2024	Download

Software Download

File Name	Version	Release Date	Operation
Data_from_wfm	V1.0	11/1/2021	Download
Ultra Power Analyzer	V00.01.02.05	11/1/2021	Download
Ultra Scope Software	V00.01.02.13	11/1/2021	Download
Ultra Sigma (HelpDocument)	V1.0	11/1/2021	Download
Ultra sigma (PC)Installer	V00.01.06.01	11/1/2021	Download
Ultra Sigma patch file for MSO8000	V1.1	11/1/2021	Download
Ultra Station (PC) Software & UserGuide	00.02.00.00.14	11/1/2021	Download

Manual Download

File Name	Version	Release Date	Operation
MSO7000 Datasheets	V1.1	11/1/2021	Download
MSO&DS7000&8000 Open Source Acknowledgment	V1.0	11/1/2021	Download
MSO7000 Programming Manual	V1.0	11/1/2021	Download
MSO7000&DS7000 QUICK GUIDE	V1.0	1/25/2024	Download
MSO7000 User Manual	V1.0	11/1/2021	Download
