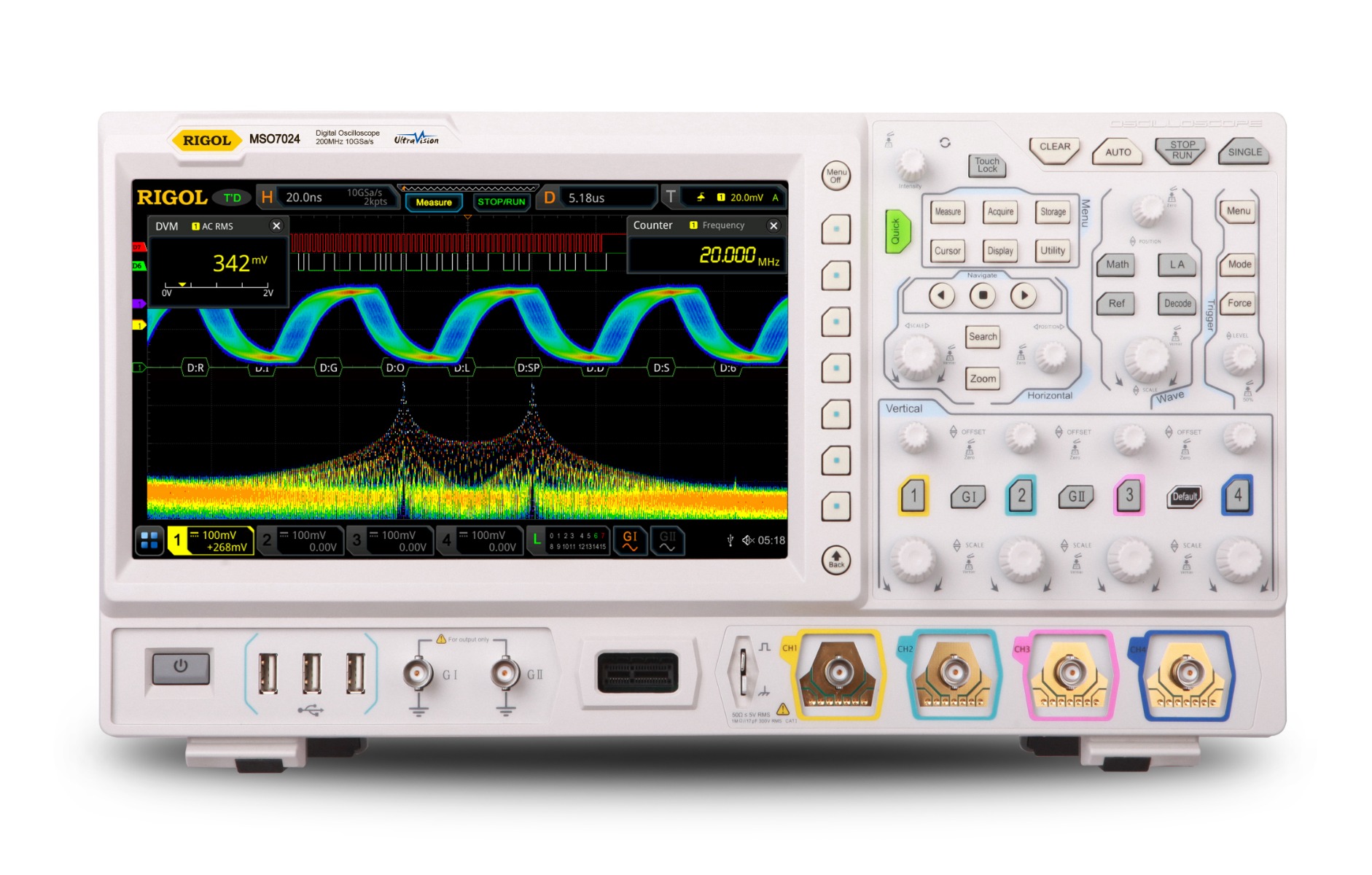

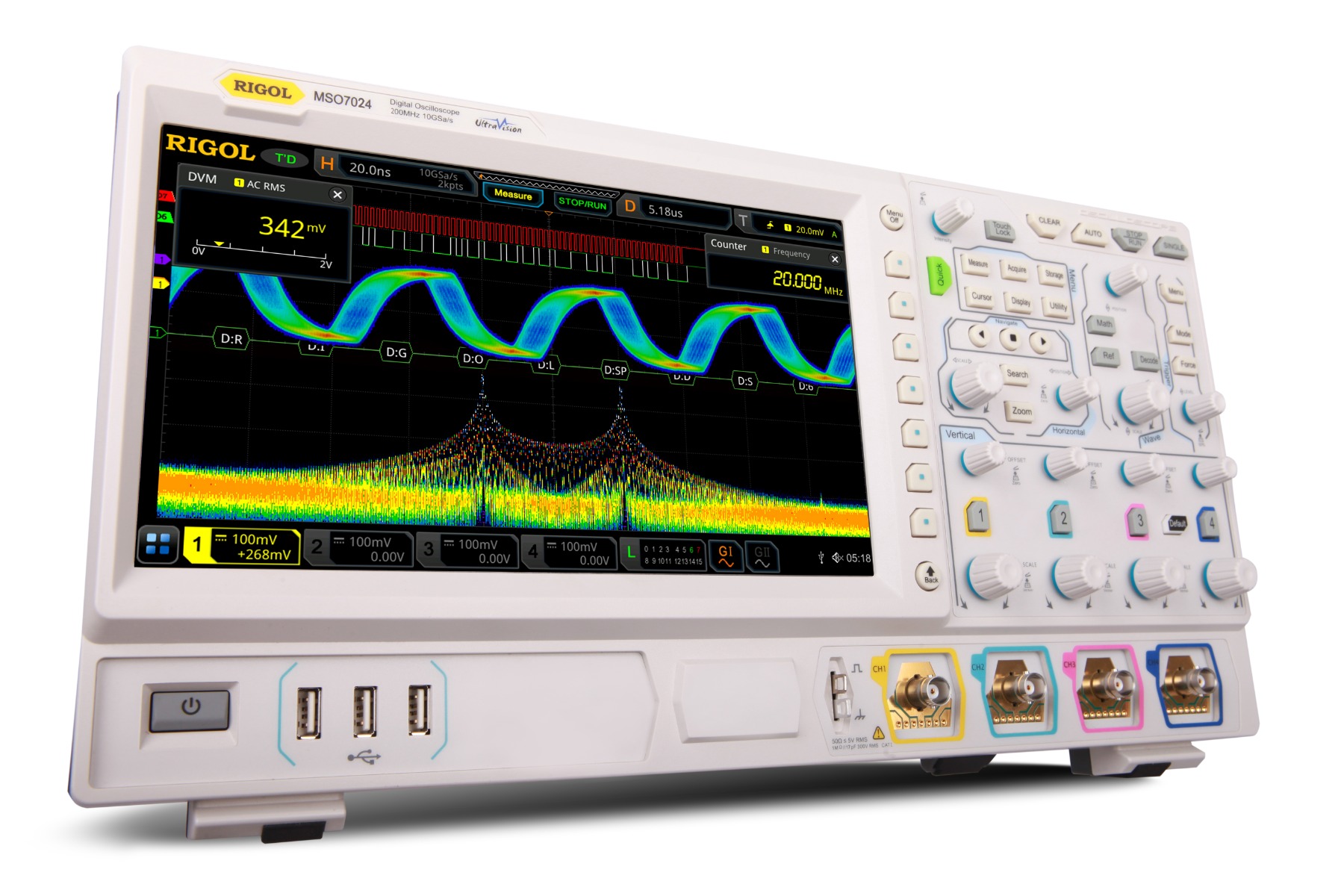

RIGOL Digital Oscilloscope MSO7024
In stock
SKU
MSO7024
Get MSO7000-BND with a 90% discount when you buy MSO7024! Code: 90D7BND
200 MHz BW, 10G Sa/s, 500 Mpts, 4+16 CH MSO, 25.7 cm touchdisplay 1024x600 pixel. Including integrated 16 channel logic analyser. Upgradable to a 2 channel 25 MHz waveform generator，EU Cable
Deliver in
about one month
- Analog bandwidth: 200 MHz; bandwidth upgrade option supported
- 4 analog channels, 1 EXT channel, and 16 optional digital channels
- Up to 10 GSa/s real-time sample rate
- Up to 500 Mpts memory depth (option)
- High waveform capture rate (over 600,000 wfm/s)
- Up to 450,000 frames of hardware real-time and ceaseless waveforms recording and playing functions

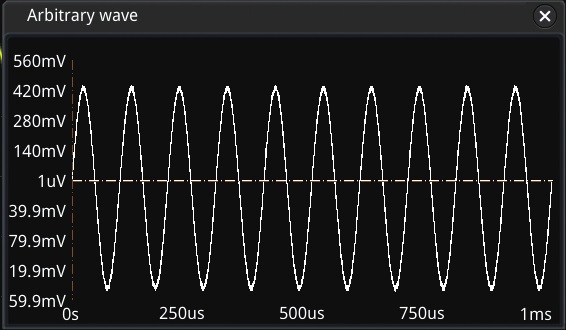

- Integrates 7 independent instruments into 1, including digital oscilloscope, 16-channel logic analyzer, spectrum analyzer, dual-channel Function/Arbitrary Waveform Generator, digital voltmeter, 6-digit frequency counter and totalizer, and protocol analyzer
- A variety of serial protocol triggers and decodes

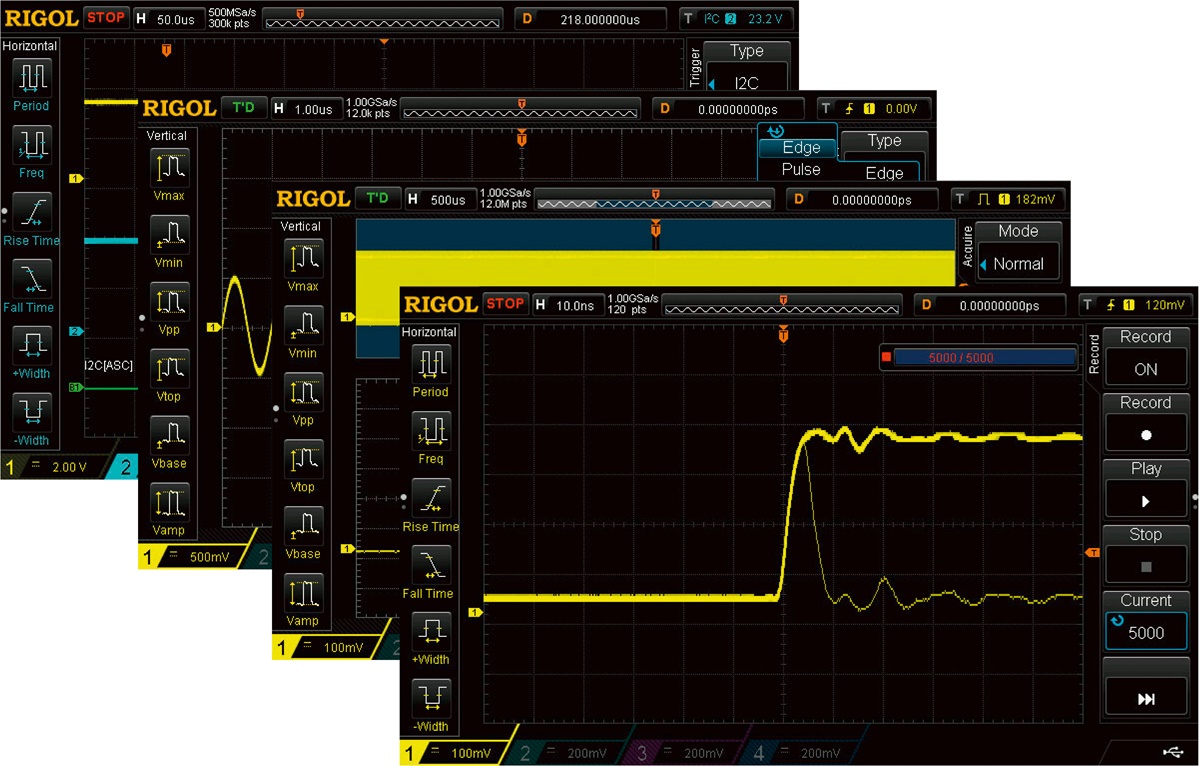

- Auto measurement of 41 waveform parameters; full-memory hardware measurement function
- A variety of math operations, built-in enhanced FFT analysis, and peak search function
- Waveform histogram analysis (standard)
- Independent search, navigation keys, and event table
- Built-in advanced power analysis software (option)
- User-defined one-key quick operation
- 1-inch capacitive multi-touch screen, 256-level intensity grading display, with color persistence

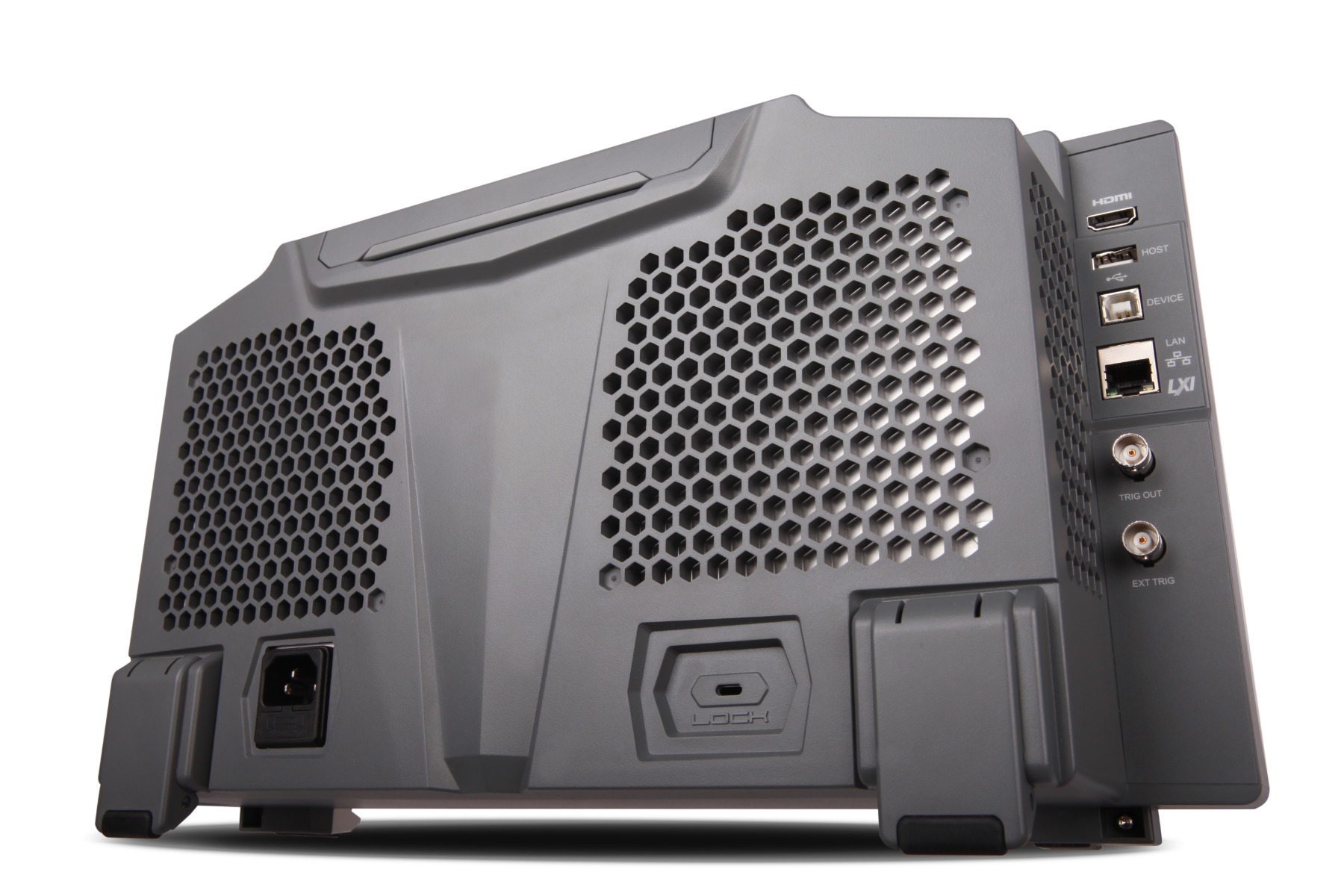

- Multiple interfaces available: USB HOST & DEVICE, LAN(LXI), HDMI, TRIG OUT, and USB-GPIB
- Web Control remote command
- Unique online version upgrade
- Novel and delicate industrial design, easy to operate
7 instruments in 1
..Combine an Oscilloscope, Logic Analyzer, Protocol Analyzer, Waveform Generator, Voltmeter, and Counter/Totalizer in one instrument to quickly find answers to your measurement challenges.

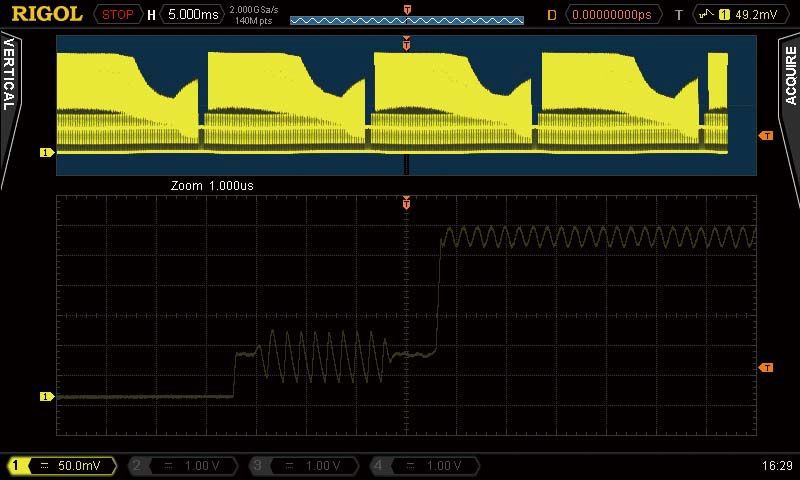

Long Record Length (100M std/500M opt)
..Find elusive problems in complex digital streams with long acquisitions at high sample rates
Flexible user interface combining touch, mouse, knob/button, web, and remote
..With a 10.1 inch touchscreen, full set of knobs and buttons, and mouse support the 7000 makes it easy to analyze signals whichever way works best in your lab. The included interactive browser control allows interactive control from a phone or tablet. PC software provides remote operation and control. The programming interface makes it possible to automate complex test sequences.

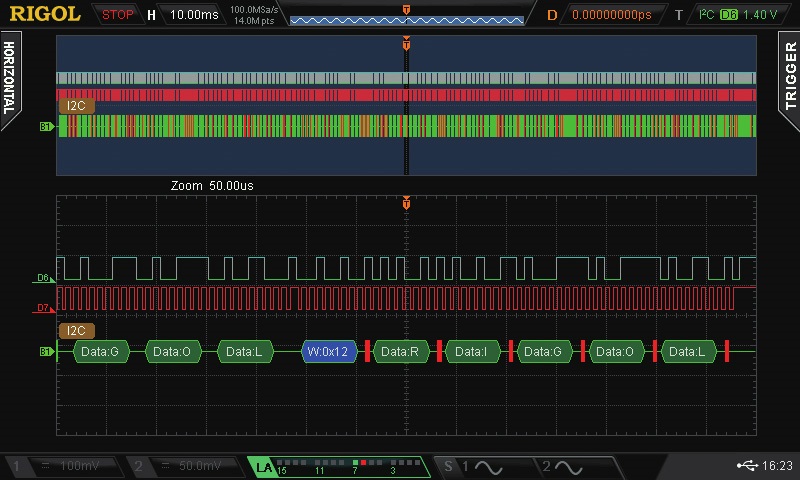

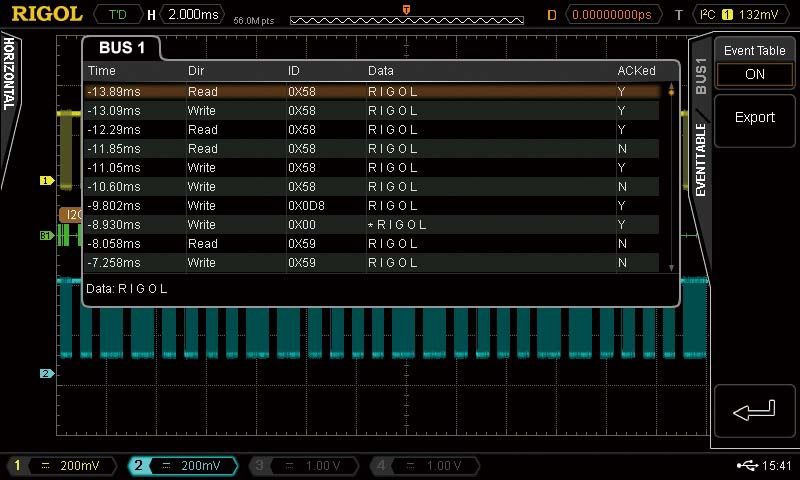

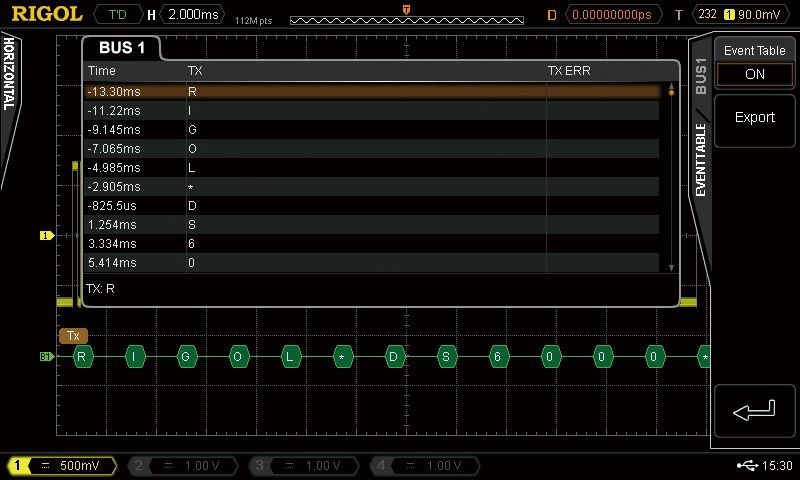

Protocol Analysis for today’s common serial communication buses
..Trigger, decode, and visualize serial bus traffic to speed analysis and debug of Embedded Serial Bus designs
Full Memory Hardware Measurement
..No longer limited to the waveform effects visible on the screen, the results can still be accurately obtained for multi-cycle high-frequency signal testing.
Over 600K wfms/s Waveform Capture rate
..Minimize scope “dead time” between trigger events and increase observations of random and sporadic events.
Enhanced Color FFT
..The FFT capability on the 7000 utilizes up to 1 million points for fine resolution. The 7000 Series advanced user controls make it easier to find signals of interest in the frequency domain. The color FFT function provides a probability colorization that highlights transient and hopping RF signals much like a real-time spectrum analyzer.
