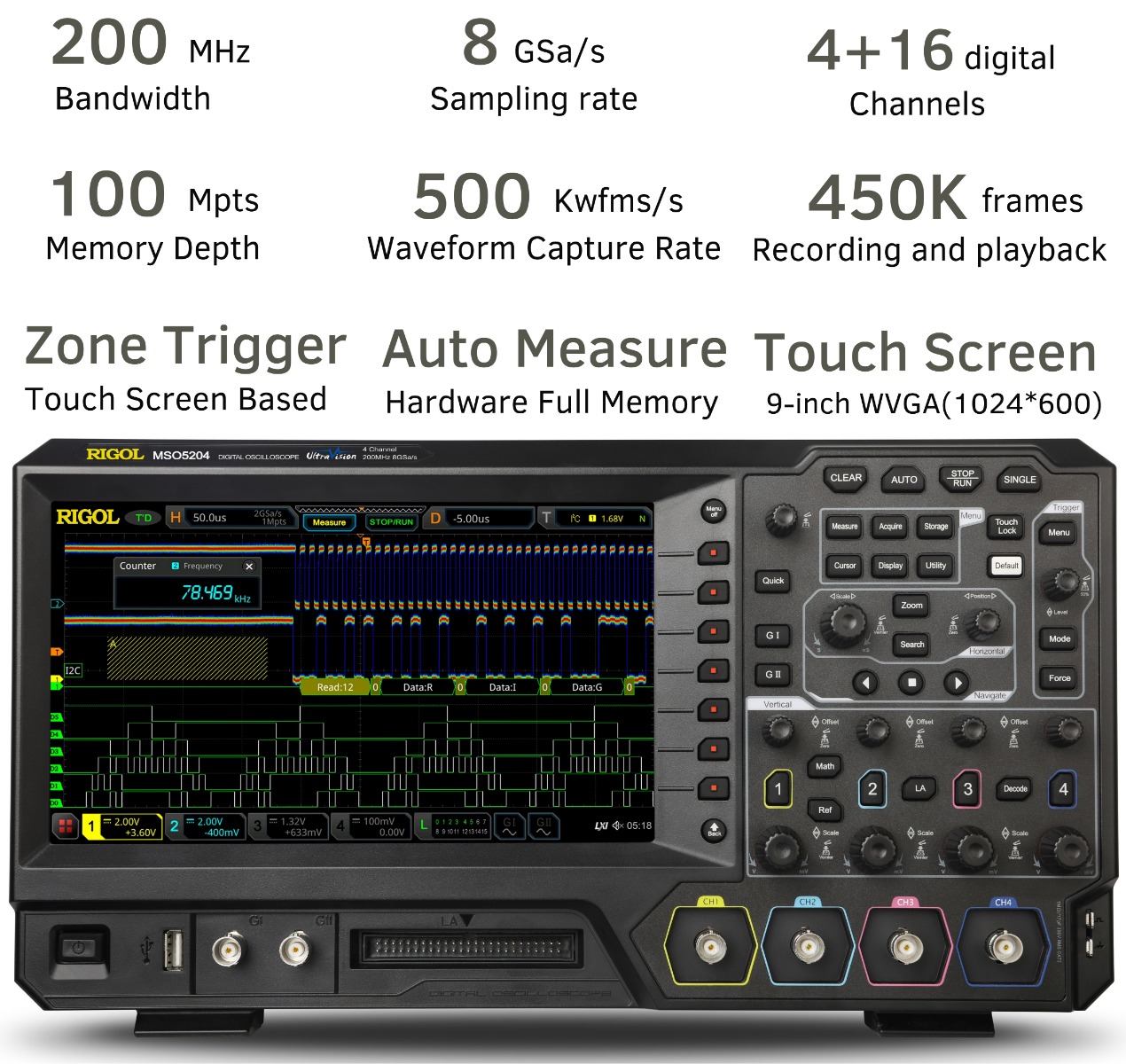

Digitla Oscilloscope MSO5204

200MHz BW,4 Channel+ 16 digital Channel,8GSa/s, up to 200 Mpts,500.000 wfms/s, touchdisplay 1024x600 pixel, MSO Upgradable, MSO5000 option bundle included.

Get the MSO5000 Optionsbundle for free with the purchase of a new MSO5000! Options included: MSO5000-COMP, MSO5000-EMBD, MSO5000-AUTO, MSO5000-FLEX, MSO5000-AUDIO, MSO5000-AERO, MSO5000-PWR, MSO5000-AWG.

Deliver in
2 - 3 working Days
€1,799.00 €2,140.81


The MSO5000 series digital oscilloscope
launched by RIGOL this time integrates 7 independent
instruments into 1, including one digital oscilloscope, one

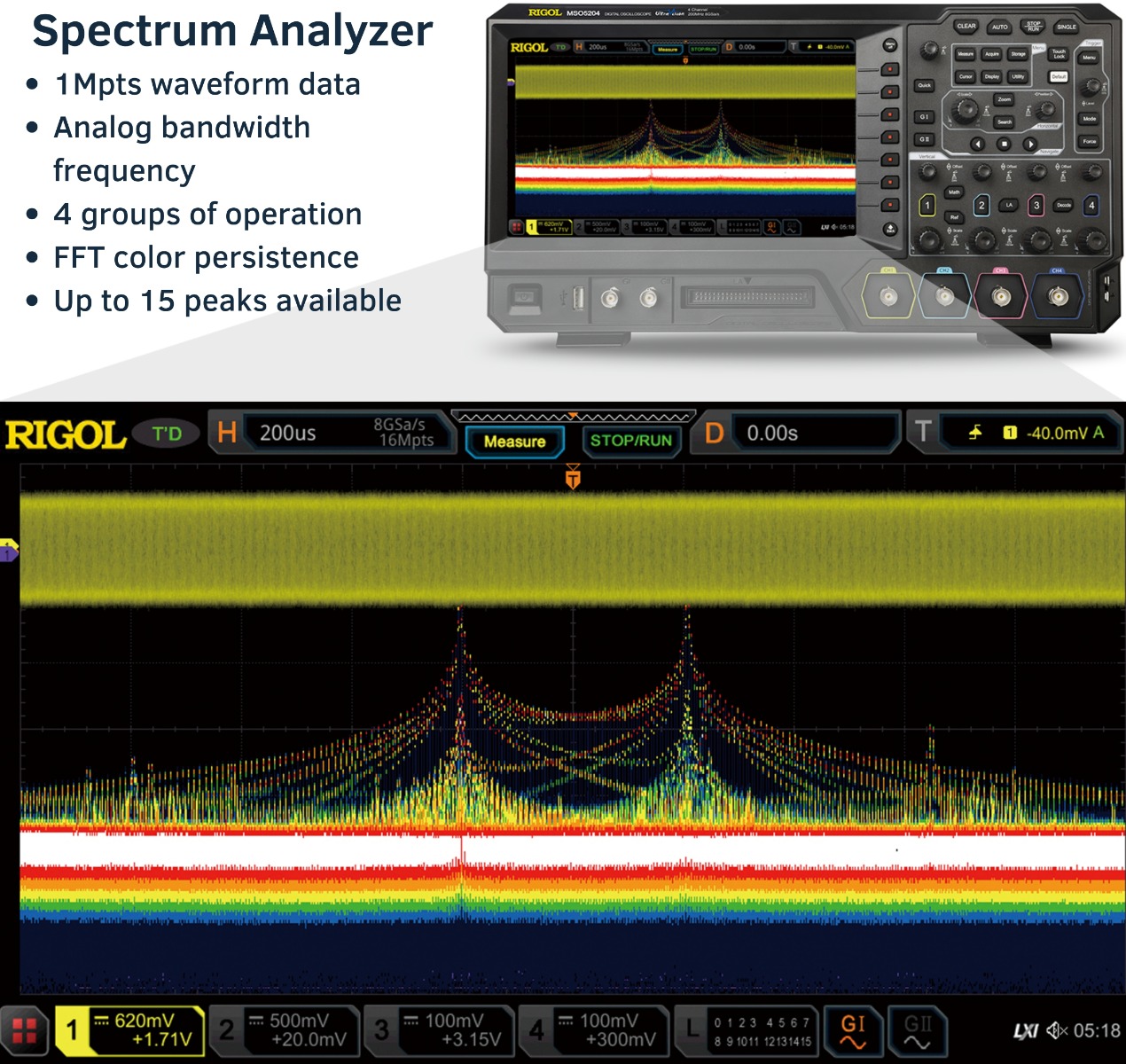

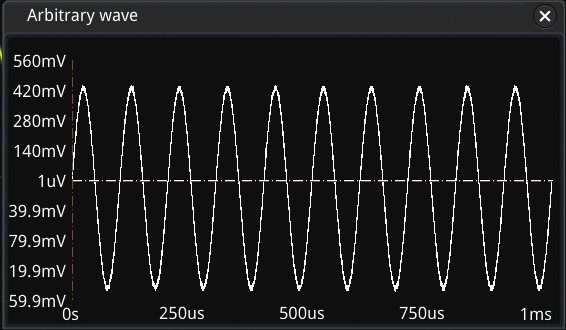

16-channel logic analyzer, one spectrum analyzer, one arbitrary
waveform generator, one digital voltmeter, one high-precision
frequency counter and totalizer, and one protocol analyzer. The
MSO5000 series offers you a flexible and economical solution to
address your actual needs. Analog bandwidth: 350 MHz, 200 MHz, 100 MHz, and 70 MHz; bandwidth upgrade
option supported

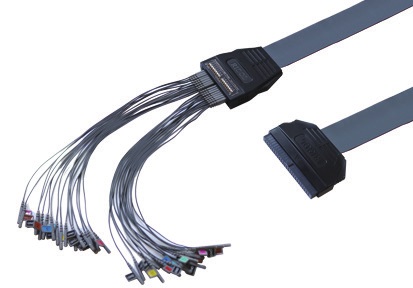

2 or 4 analog channels (upgradable), standard 16 digital channels(LA probe required)
Up to 8 GSa/s real-time sample rate

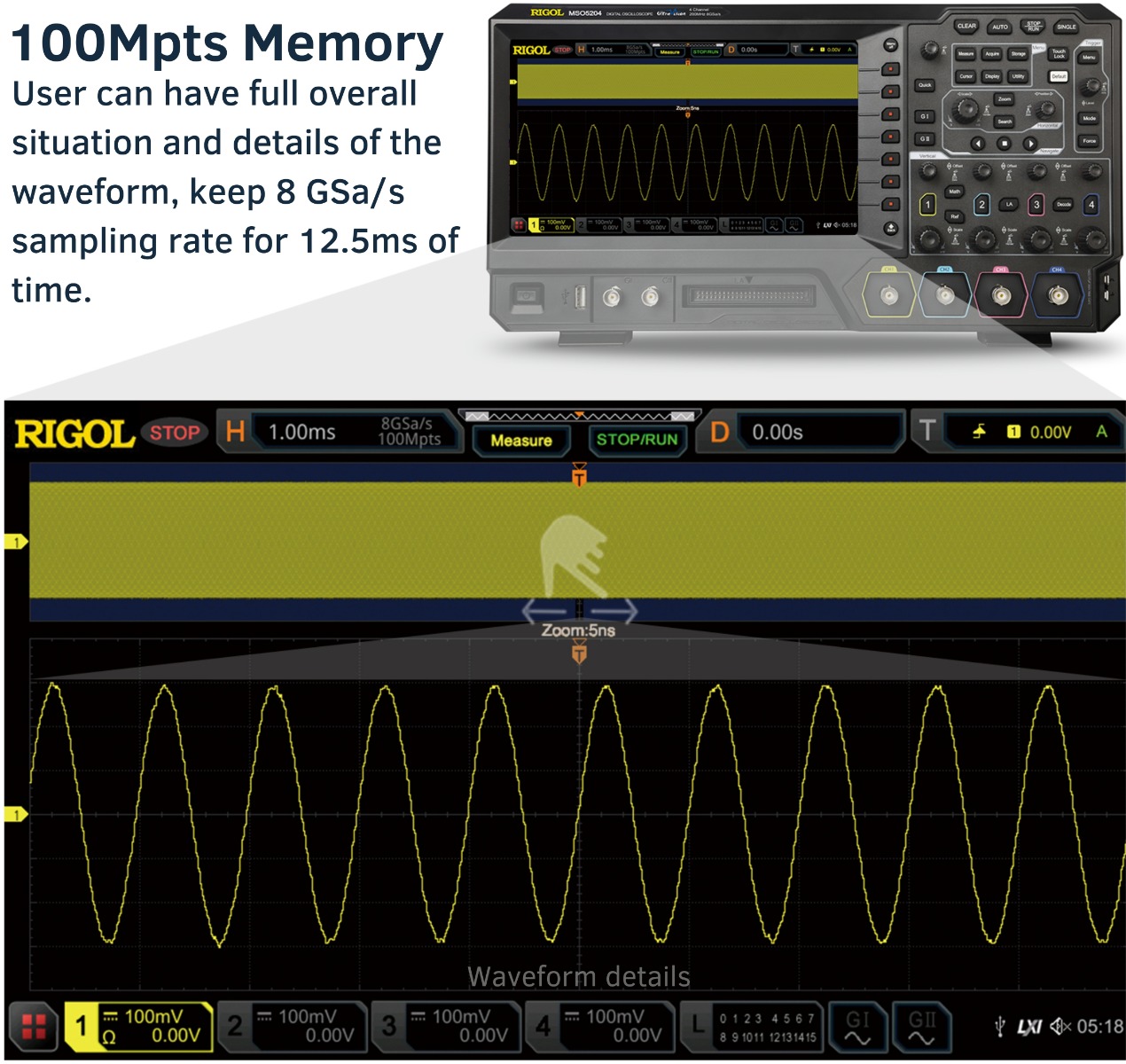

Up to 200 Mpts memory depth (option)
High waveform capture rate (over 500,000 wfm/s)

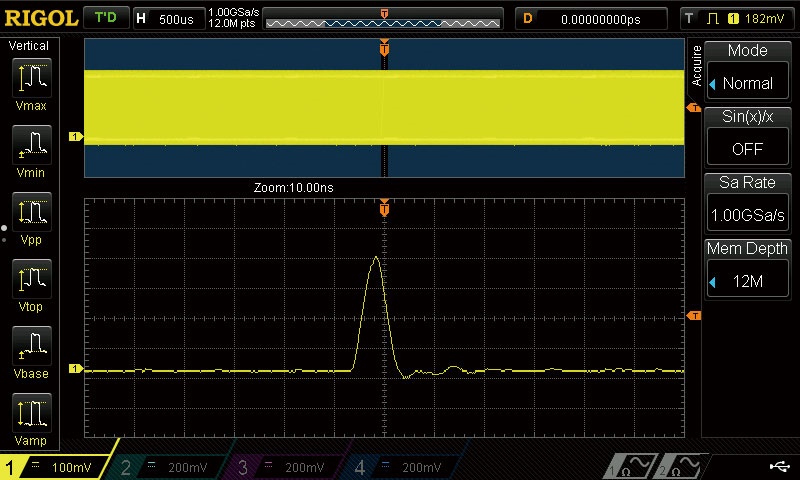

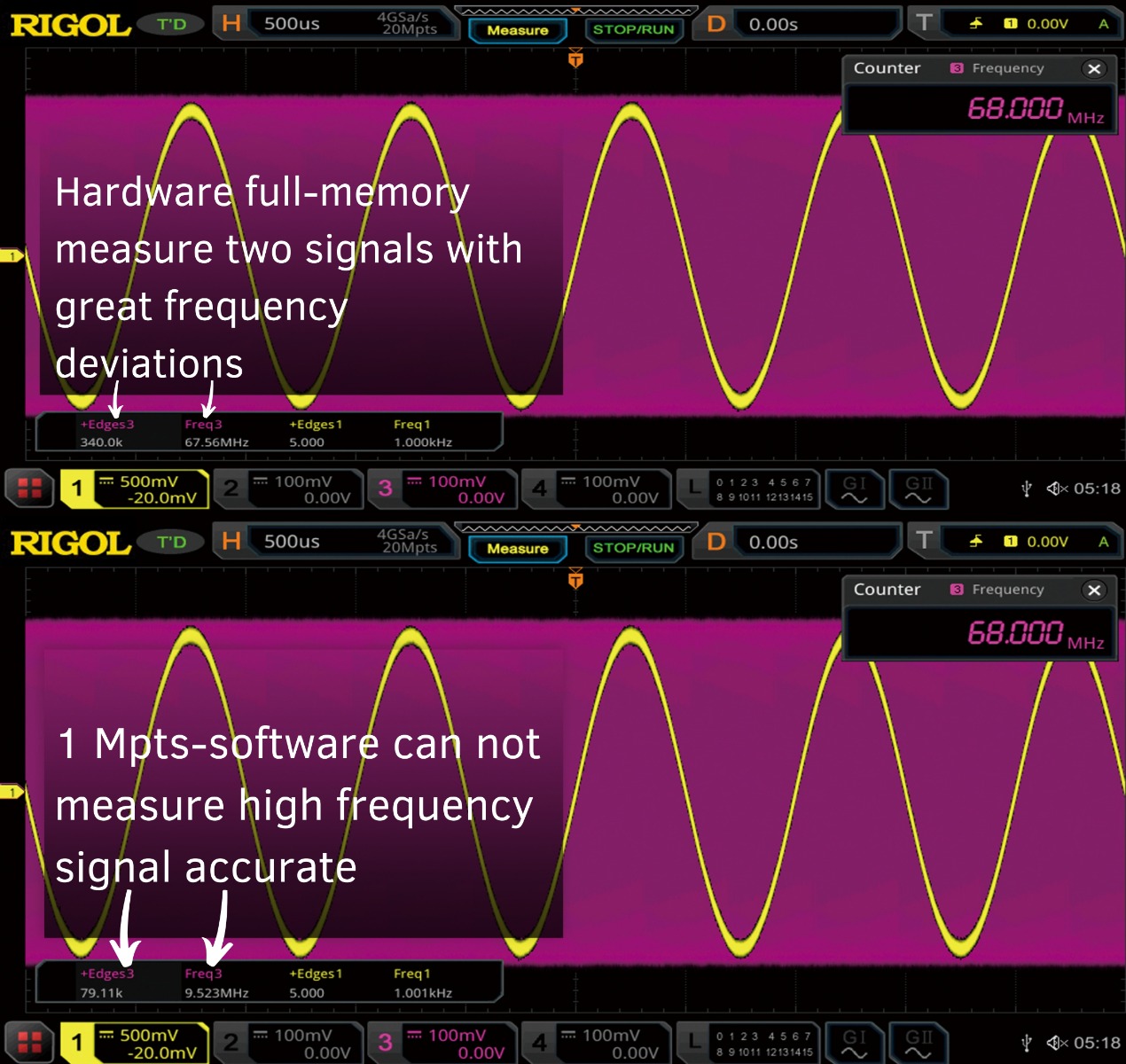

Auto measurement of 41 waveform parameters; full-memory hardware measurement
function

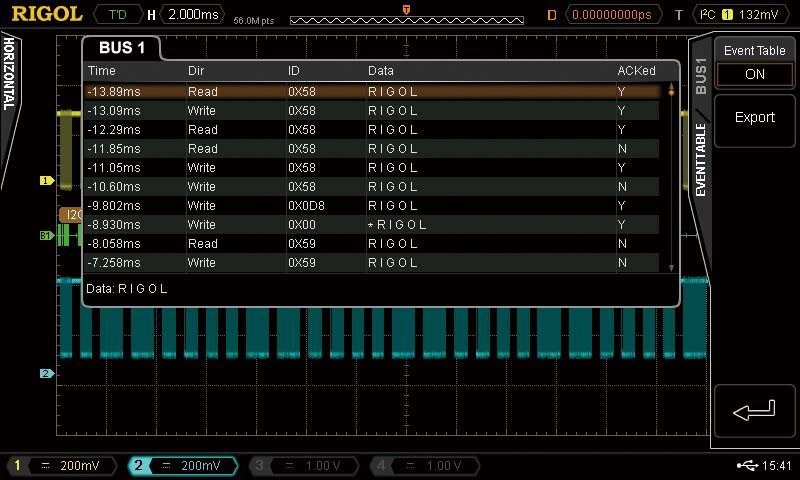

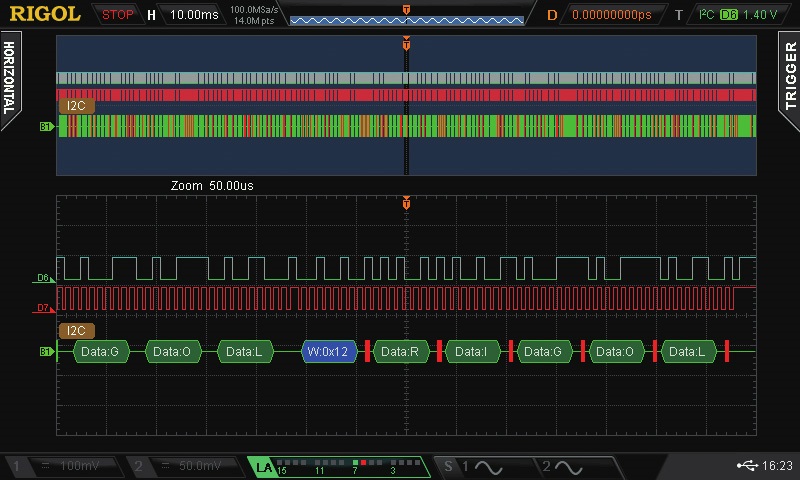

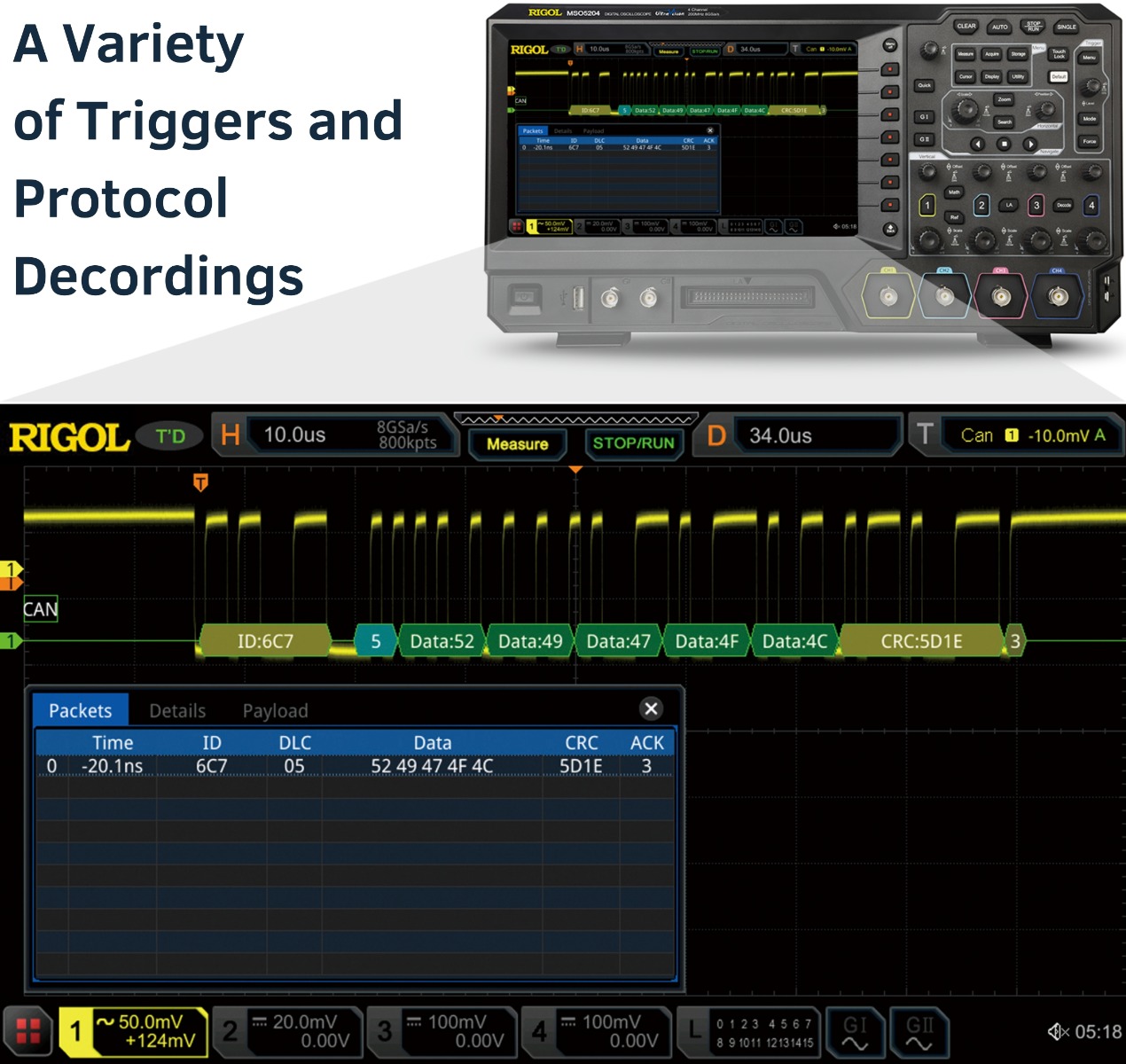

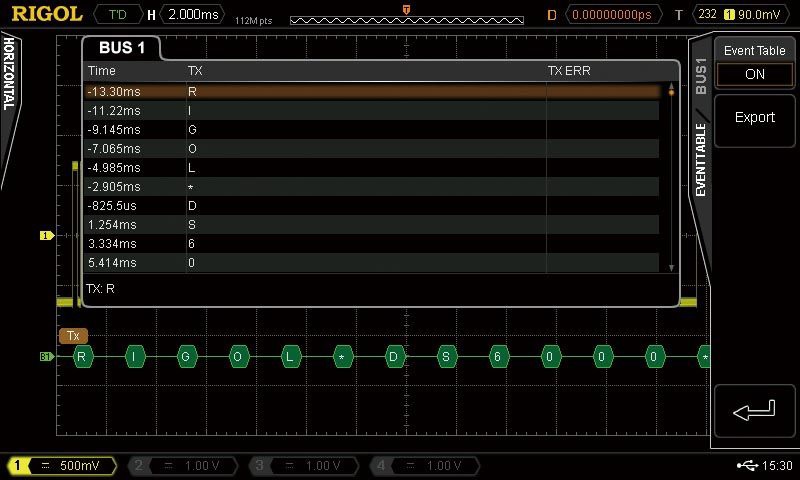

A variety of serial protocol triggers and decodes
Up to 450,000 frames of hardware real-time and ceaseless waveforms recording and
playback functions
Independent search, navigation keys, and event table
Built-in advanced power analysis software (option)
Integrates 7 independent instruments into 1, including a digital oscilloscope, a logic
analyzer, a spectrum analyzer, an arbitrary waveform generator, a digital voltmeter,
a frequency counter and totalizer, and a protocol analyzer
9-inch capacitive multi-touch screen, 256-level intensity grading display, with color
persistence
Multiple interfaces available: USB HOST&DEVICE, LAN(LXI), HDMI, TRIG OUT, and
USB-GPIB
Web Control remote command
Unique online version upgrade
Novel and delicate industrial design, easy to operate



Bode Plot: Switching Power Supply Loop Analysis

The RIGOL MSO5000 Series Oscilloscope comes with a Bode plot function, which intuitively shows test curve and data. This can help engineers quickly determine system stability by analyzing parameters such as phase margin and gain margin.



7 in 1 Product Design

It integrates 7 independent instruments, including an oscilloscope, a 16 channel logic analyzer, a spectrum analyzer, an arbitrary wave generator, a digital voltmeter, a high-precision frequency meter and accumulator, and a protocol analyzer.



9 Inch Multi Touch Capacitive Screen

9-inch multi touch capacitive screen, supporting a variety of gesture operations, providing users with the most optimized interaction experience



Convenient Web Control Remote Control

The user only needs to input the IP address of the oscilloscope in the address bar of the web browser, then he can open the web control control software and easily handle the remote control.

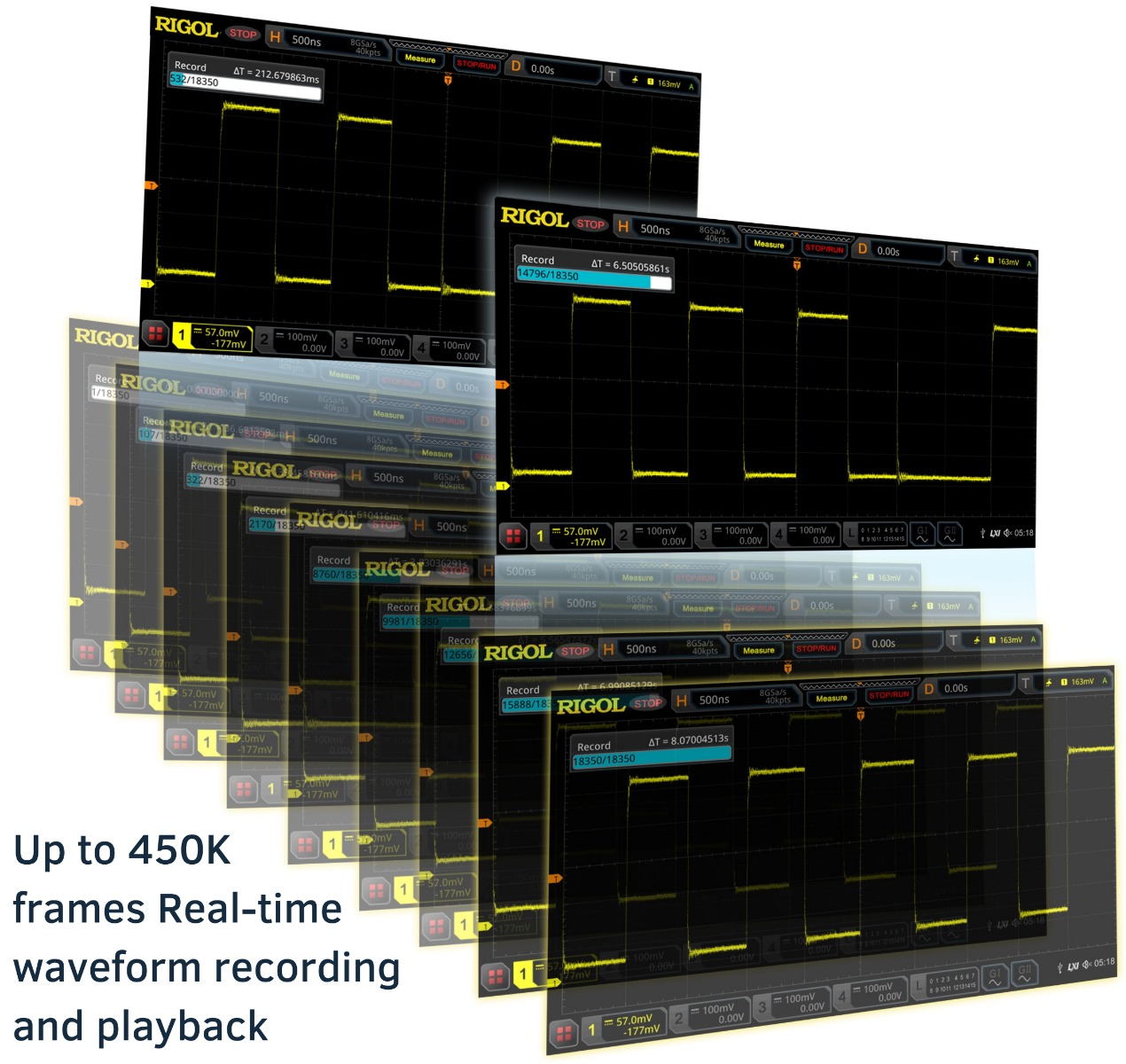

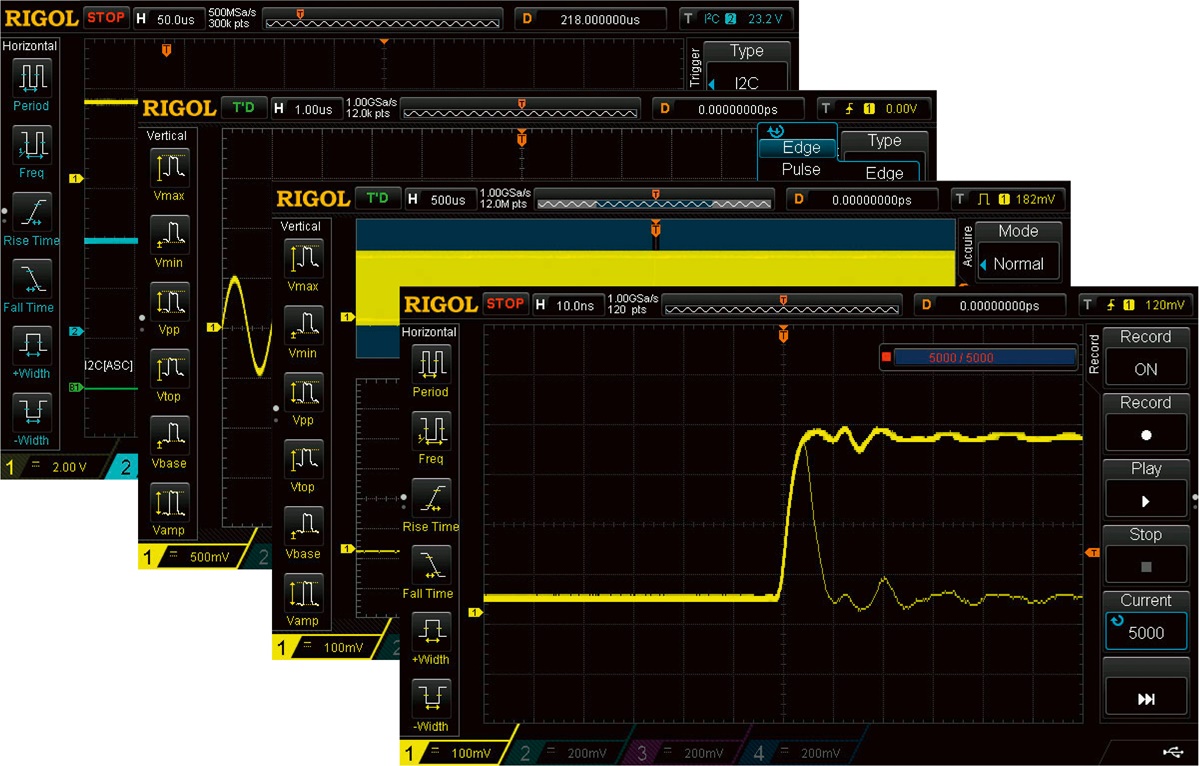

Support Up to 450000 Frames of Hardware Waveform Recording Analysis

The hardware waveform recording function adopts the segmented storage technology, which can selectively capture and store the user's concerned signal by setting the trigger conditions, and mark the time on the signal, which not only ensures the efficiency of acquisition but also further expands the total time of waveform observation.

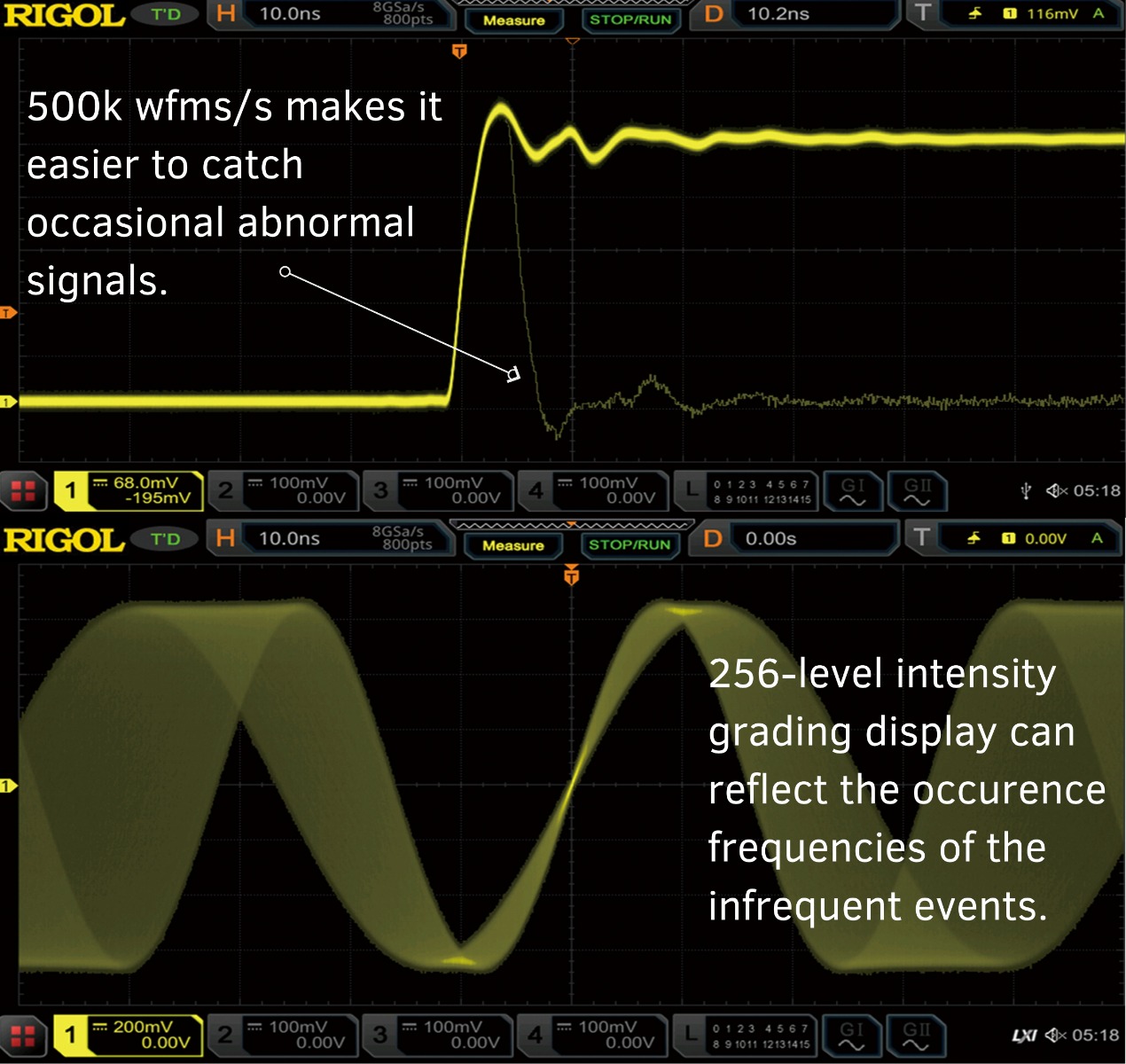

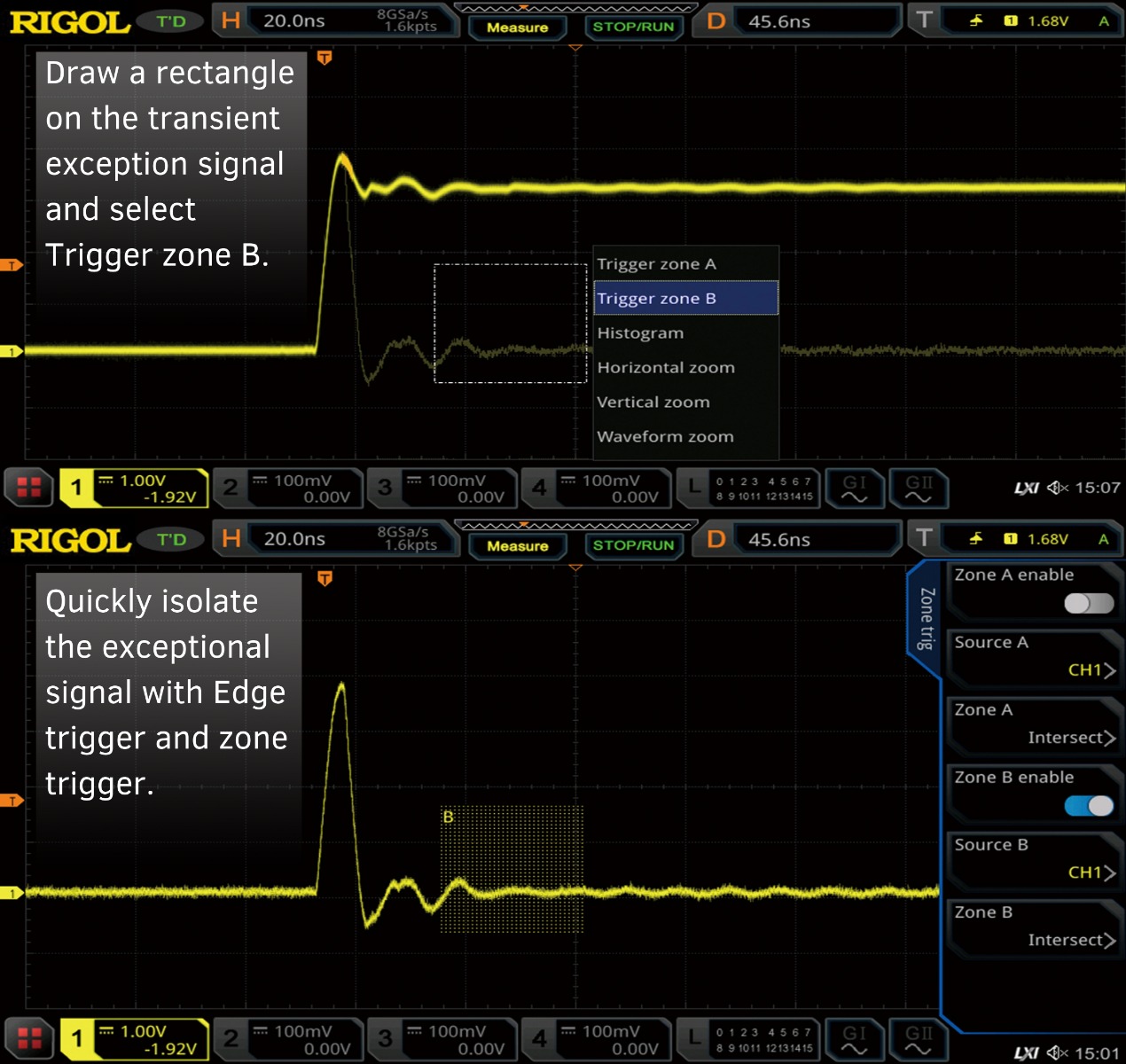

Waveform Capture Rate Up to 500000 Times Per Second

With a waveform capture rate of up to 500000 WFMS / s, the burr and other accidental events in the signal can be found quickly, which greatly improves the debugging efficiency of engineers.








Super High Sampling Bandwidth Ratio

The MSO5000 Series provides a real-time sampling rate of up to 8 GSa / s at 350 MHz bandwidth, with a sampling bandwidth ratio of about 23 times, which makes it a leader in the oscilloscope products of the same level, and has an ultra-long waveform storage depth of 200 mpts.




Software Download Description File Size Version Release Date
Ultra Sigma(HelpDocument) Ultra Sigma(HelpDocument) 9.79 MB V1.0 2019-08-22
Ultra Scope Software Ultra Scope Software 11.15 MB 00.01.02.12 2019-12-13
Firmware Download Description File Size Version Release Date
MSO5000 Open Source Acknowledgment MSO5000 Open Source Acknowledgment 266.57 KB V1.0 2020-01-17
MSO5000 Firmware MSO5000 Firmware 66.82 MB 00.01.03.00.01 2019-08-22
Datasheet Download Description File Size Version Release Date
MSO5000_DataSheet_EN-V2.0 MSO5000_DataSheet_EN-V2.0 7.35 MB V2.0 2020-05-01
Manual Download Description File Size Version Release Date
MSO5000_UserGuide_DE MSO5000_UserGuide_DE 12.47 MB V2.0 18.05.2020
MSO5000_UserGuide_EN-V2.0 MSO5000_UserGuide_EN-V2.0 17.17 MB V2.0 2020-05-01

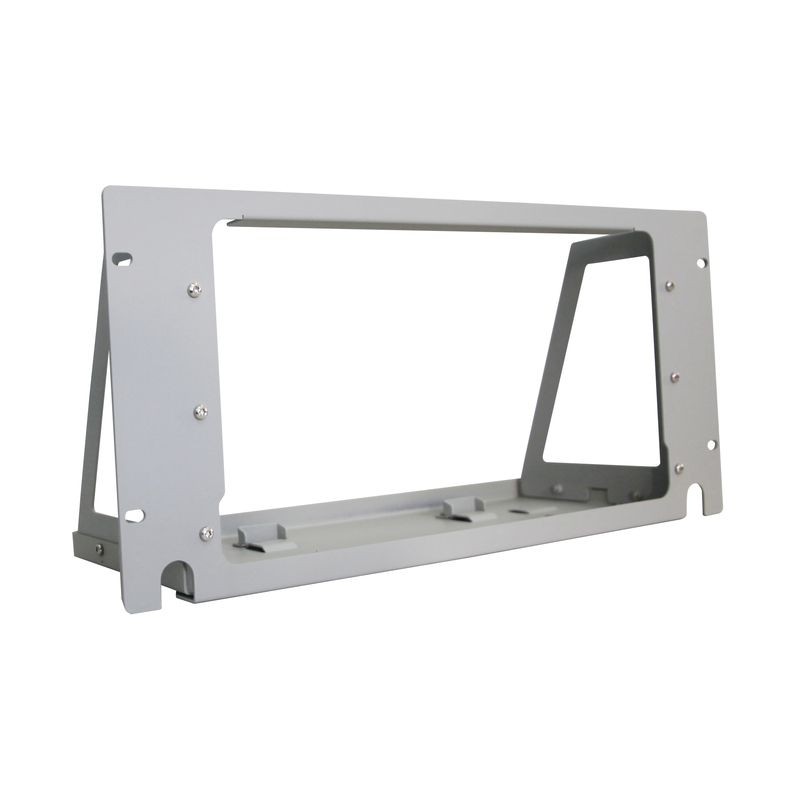

MSO5000_RackmountKit_EN MSO5000_RackmountKit_EN 318.61 KB V1.0 2019-08-29
MSO5000_ProgrammingGuide_EN-V2.0 MSO5000_ProgrammingGuide_EN-V2.0 13.76 MB V2.0 2020-05-01
MSO5000_QuickGuide_EN&CN MSO5000_QuickGuide_EN&CN 3.60 MB V1.0 2019-08-29
