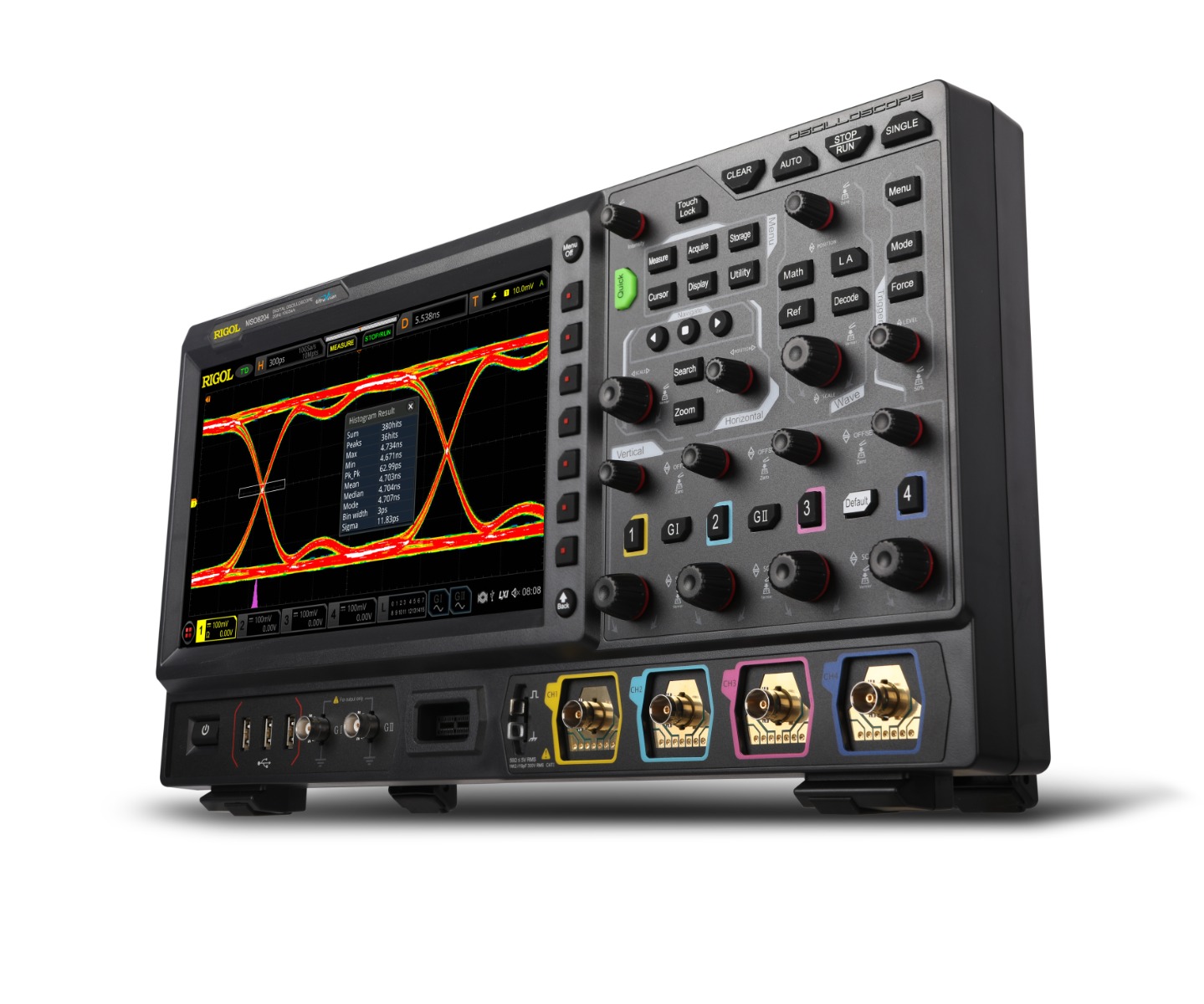

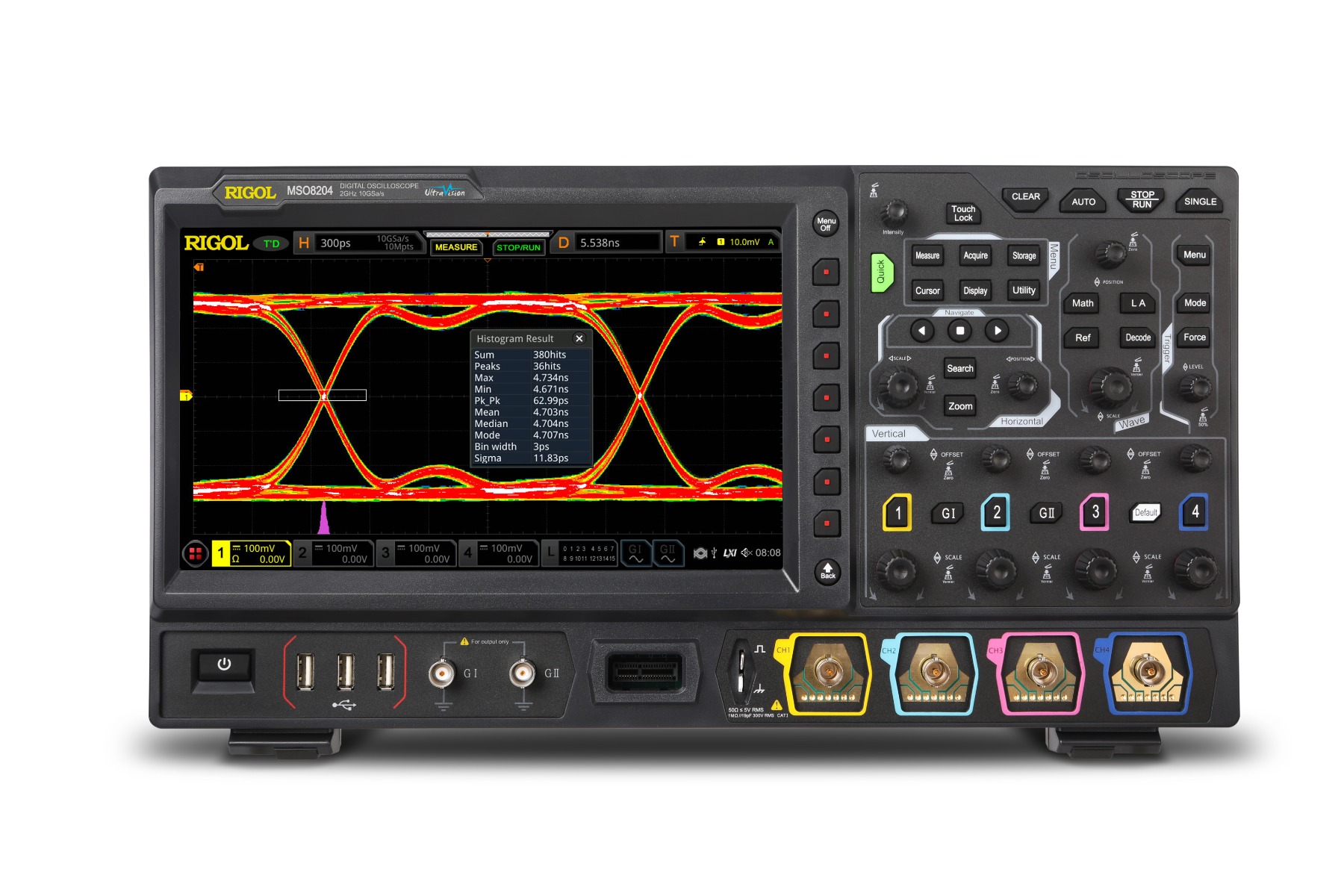

Digital Oscilloscope MSO8064

Rating:
100 % of 100
In stock
SKU
MSO8064



600 MHz BW, 10 GSa/s, 500 Mpts, 4+16 CH MSO, 25.7 cm touchdisplay 1024x600 pixel. Upgradable to a MSO with a 16 channel logic analyzer, 2 channel waveform generator.

Please request a quote by E-Mail



Deliver in
about one month
€7,199.00 €8,566.81
  • Analog bandwidth: 600 MHz (single-channel and half-channel modes)
  • 4 analog channels, 1 EXT channel, and 16 standard configuration of digital channels (required to purchase the probe)
  • Up to 10 GSa/s real-time sample rate
  • Up to 500 Mpts memory depth (standard)
  • High waveform capture rate (over 600,000 waveforms per second)
  • Up to 450,000 frames of hardware real-time and ceaseless waveforms recording and playback functions

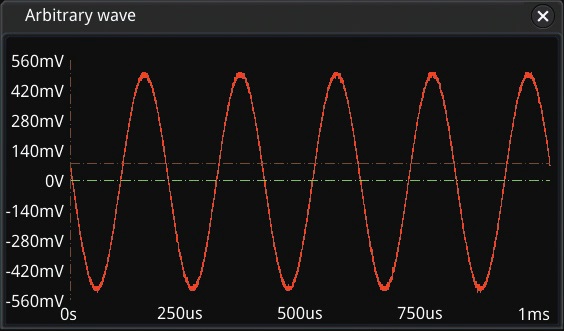

  • Integrates 7 independent instruments into 1, including digital oscilloscope, 16-channel logic analyzer, spectrum analyzer, arbitrary waveform generator (option), digital voltmeter, 6-digit frequency counter and totalizer, and protocol analyzer (option)
  • Auto measurement of 41 waveform parameters; full-memory hardware measurement function
  • A variety of math operations, built-in enhanced FFT analysis, and peak search function
  • Waveform histogram analysis (standard)
  • Independent search, navigation keys, and event table
  • Real-time eye diagram and jitter analysis software (option)

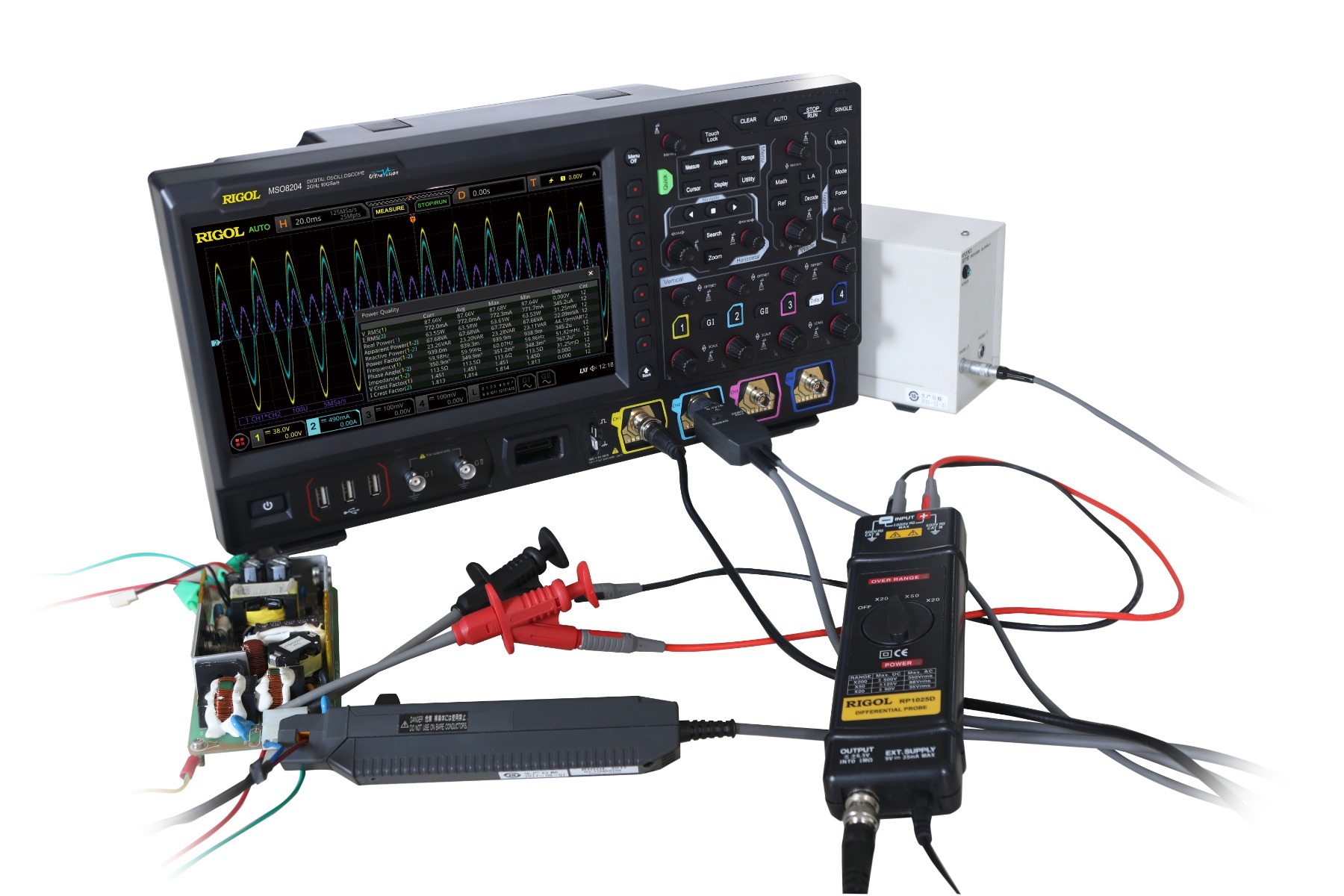

  • Built-in advanced power analysis software (option)
  • User-defined one-key quick operation
  • 1-inch capacitive multi-touch screen, 256-level intensity grading display, with colorpersistence
  • Multiple interfaces available: USB HOST&DEVICE, LAN(LXI), HDMI, TRIG OUT, and USB-GPIB
  • Web Control remote command
  • Unique online version upgrade
  • Sophisticated and convenient industrial design, easy to operate


2 GHz Performance for Advanced and Serial Analysis Applications

..Category Leading Performance for today's most complex embedded debug challenges。Characterize and Debug Communication Links with integrated Jitter and Real-Time Eye Diagram Solutions 10GSa/sec max Sample Rate 500MPts max Record length >600,000 wf/sec Waveform Capture Rate Jitter and Eye Analysis Option Powerful Search and Mark Capabilities



Economical and Practical Eye Diagram Pretest

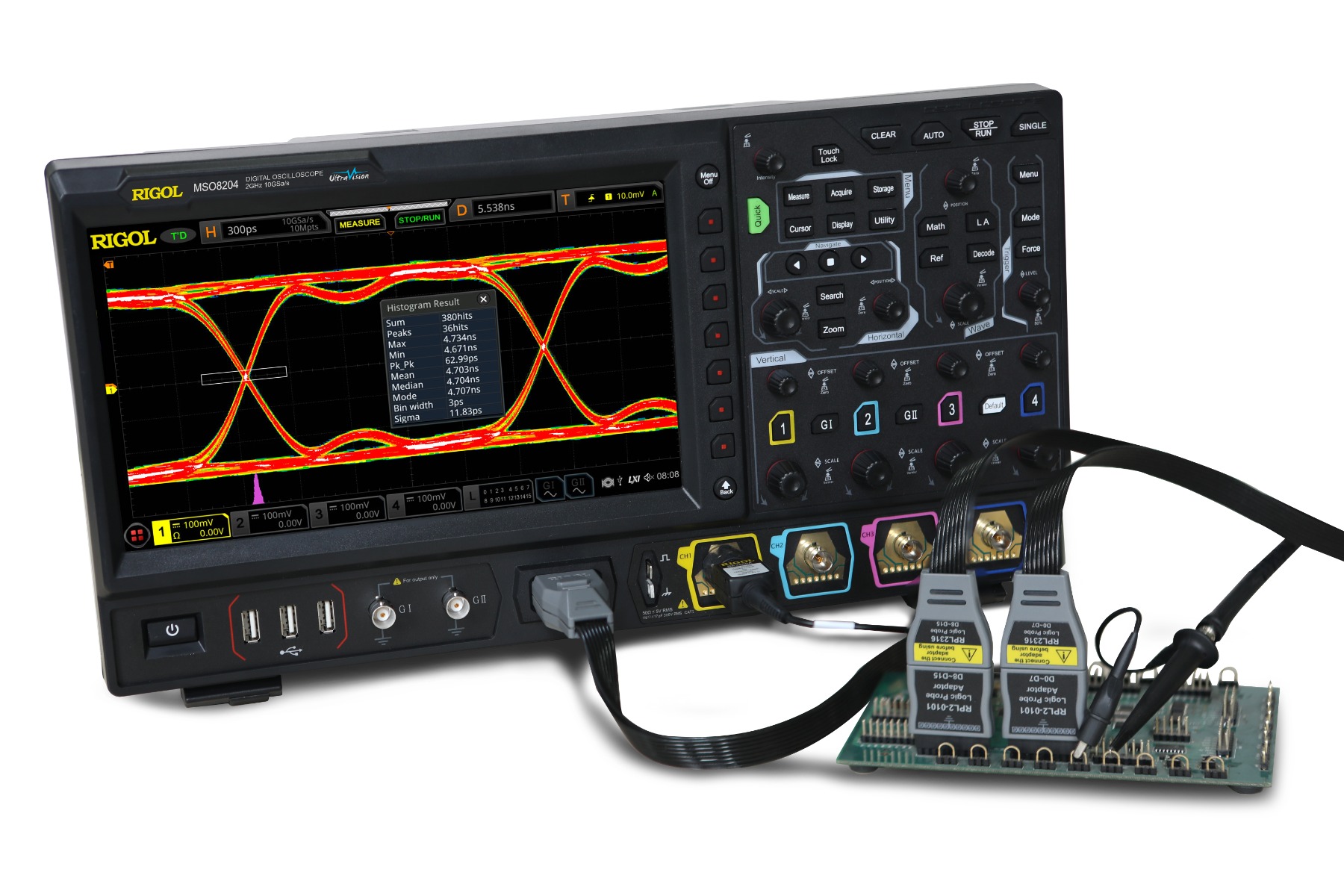

..Eye diagram measurement with an oscilloscope can help users visually display the transmission quality of digital signals, thereby understanding the strength of crosstalk between codes in the system, and making improvements in system design. For those who often need to verify the quality of digital signals, the MSO8000 digital oscilloscope with eye diagram function is your wise choice.



Support for Dither Analysis of Diverse Displays

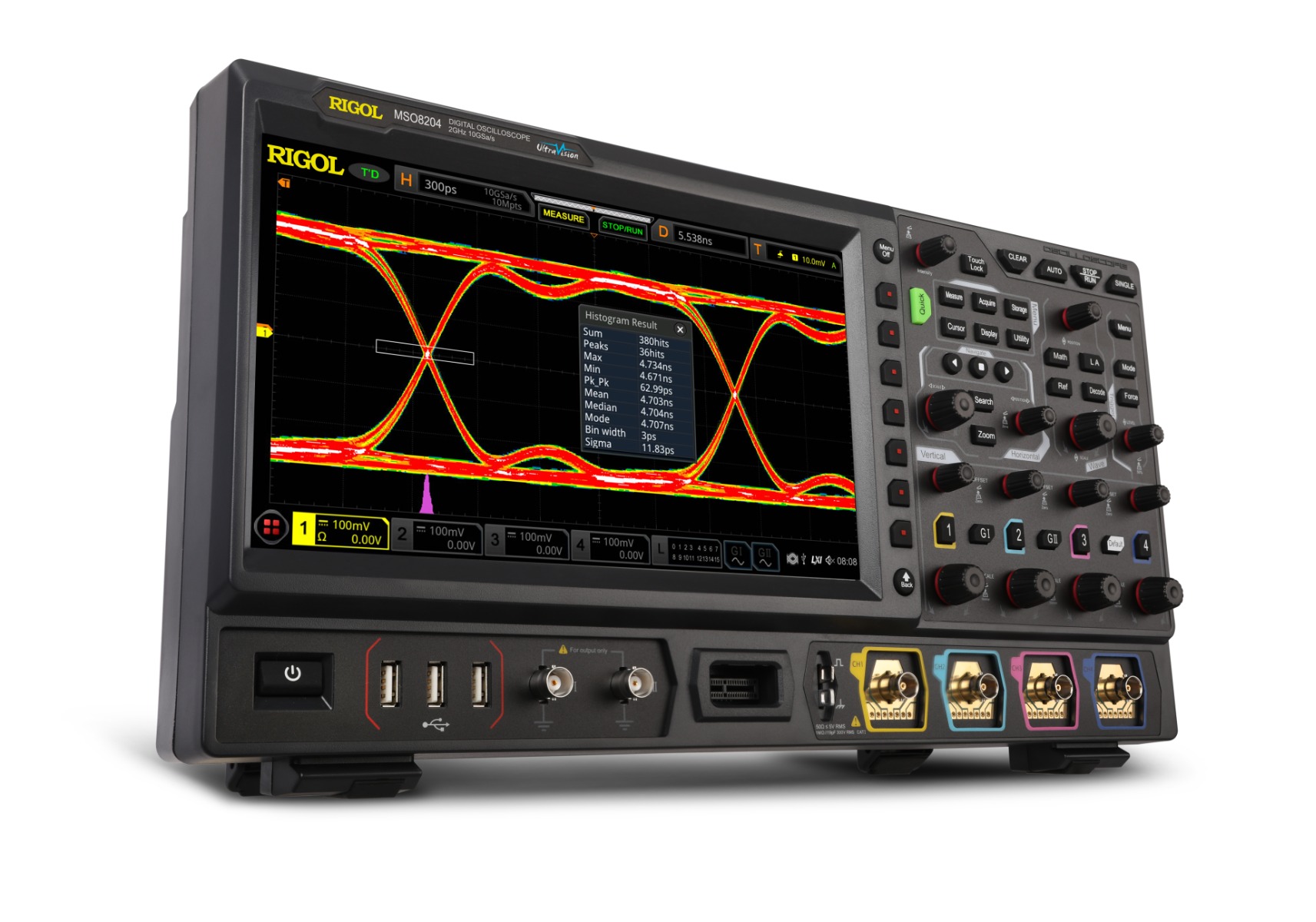

..The MSO8000 Series with the MSO8000-JITTER option enables Jitter and Real-Time Eye analysis. Debug subtle timing effects in your high-speed clock and digital data lines by visualizing error sources with the eye diagram, histogram, and jitter trend. Combine these visualization tools with direct measurements of the most common jitter and eye parameters.



Full Memory Hardware Measurement

..No longer limited to the waveform effects visible on the screen, the results can still be accurately obtained for multi-cycle high-frequency signal testing.



Trigger, decode, and visualize serial bus traffic to speed analysis and debug

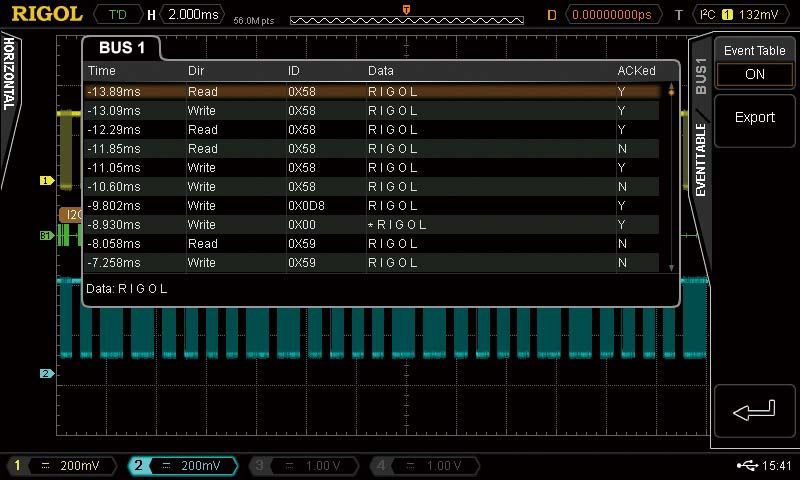

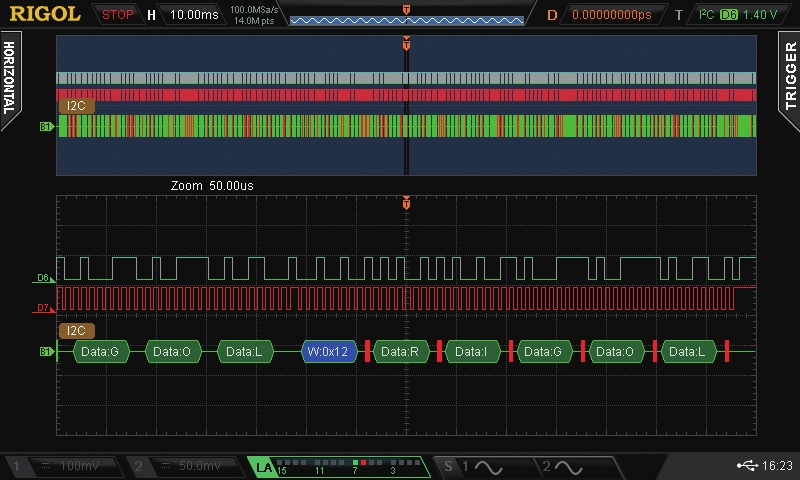

..The MSO8000 Series provides decoding on up to 4 serial buses simultaneously. The MSO8000 provides the option of viewing traffic in a comprehensive event table. Choose from our expanded bus list including RS232/UART, I2C, SPI, LIN, CAN, FlexRay, I2S, and MIL-STD-1553. Add to that search and mark capabilities for the most common serial buses to debug systems quickly and easily.



Minimize scope “dead time” between trigger events and increases

..Faster capture times reduce the time it takes to visualize these transient effects. Most of the scope’s capabilities can be used without sacrificing waveform capture rate performance. This enables detailed analysis with high signal fidelity.








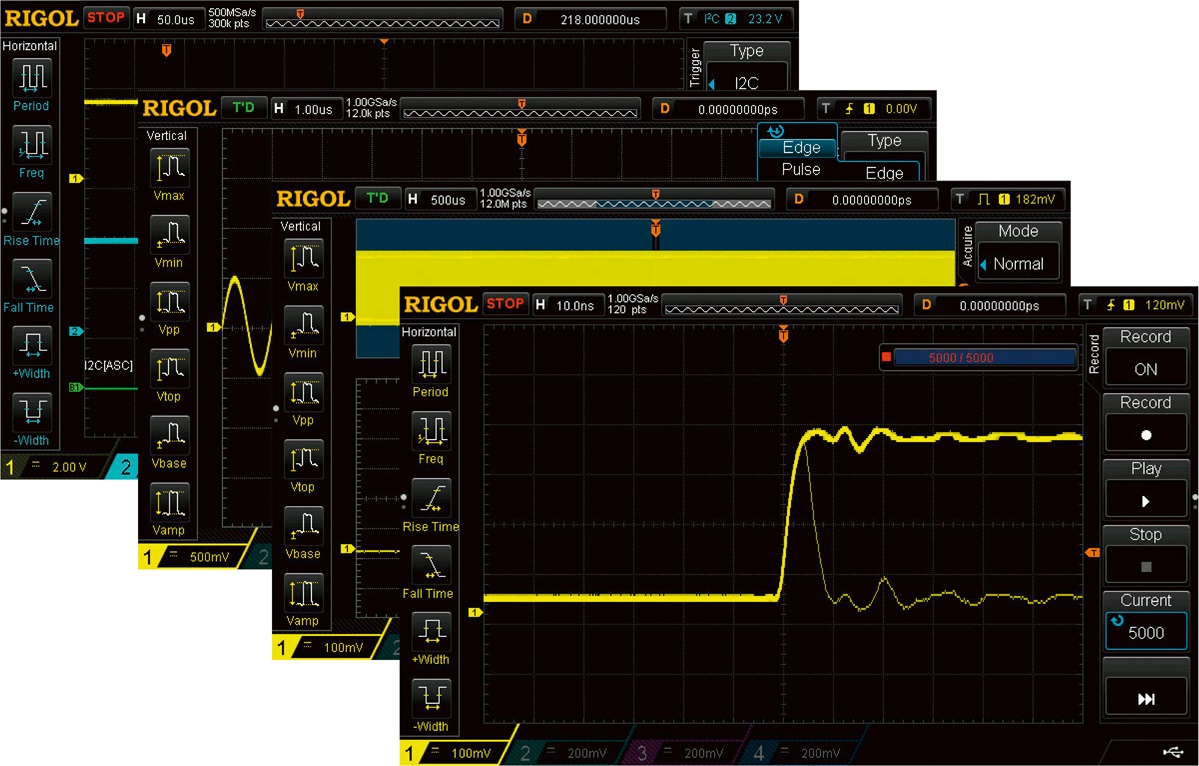

Find elusive problems in complex digital streams with long acquisitions at high

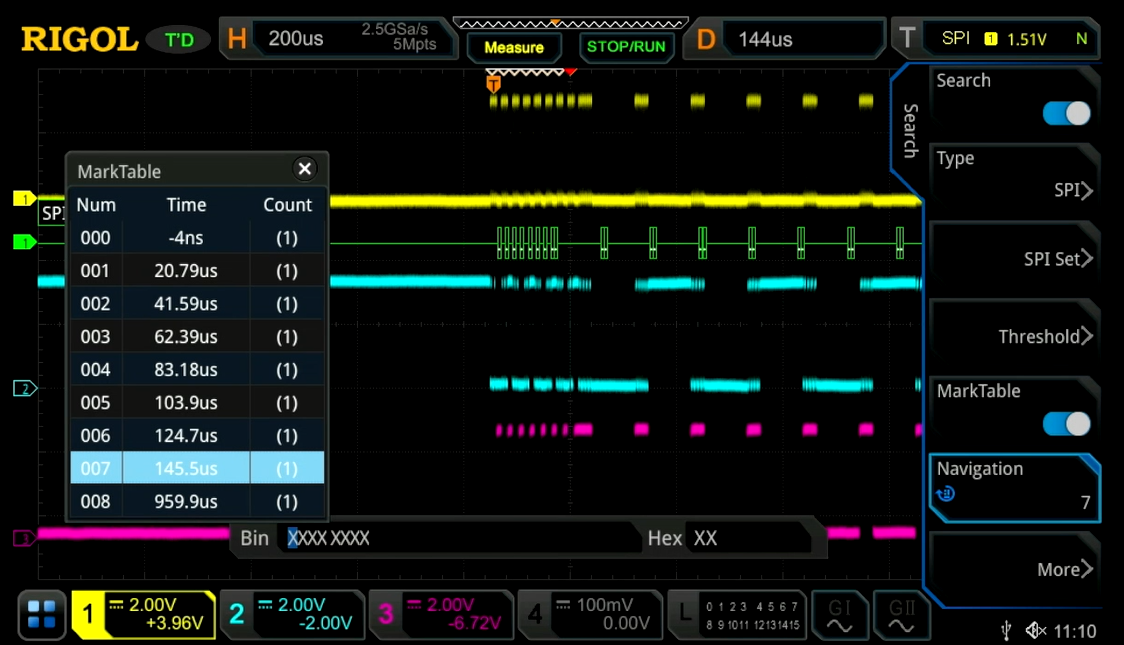

..The MSO8000 provides up to 500 Mpt record lengths while making it easier than ever to utilize these samples. The MSO8000 provides complete search navigation and wave recording capabilities to harness the value of our deeper memory.
