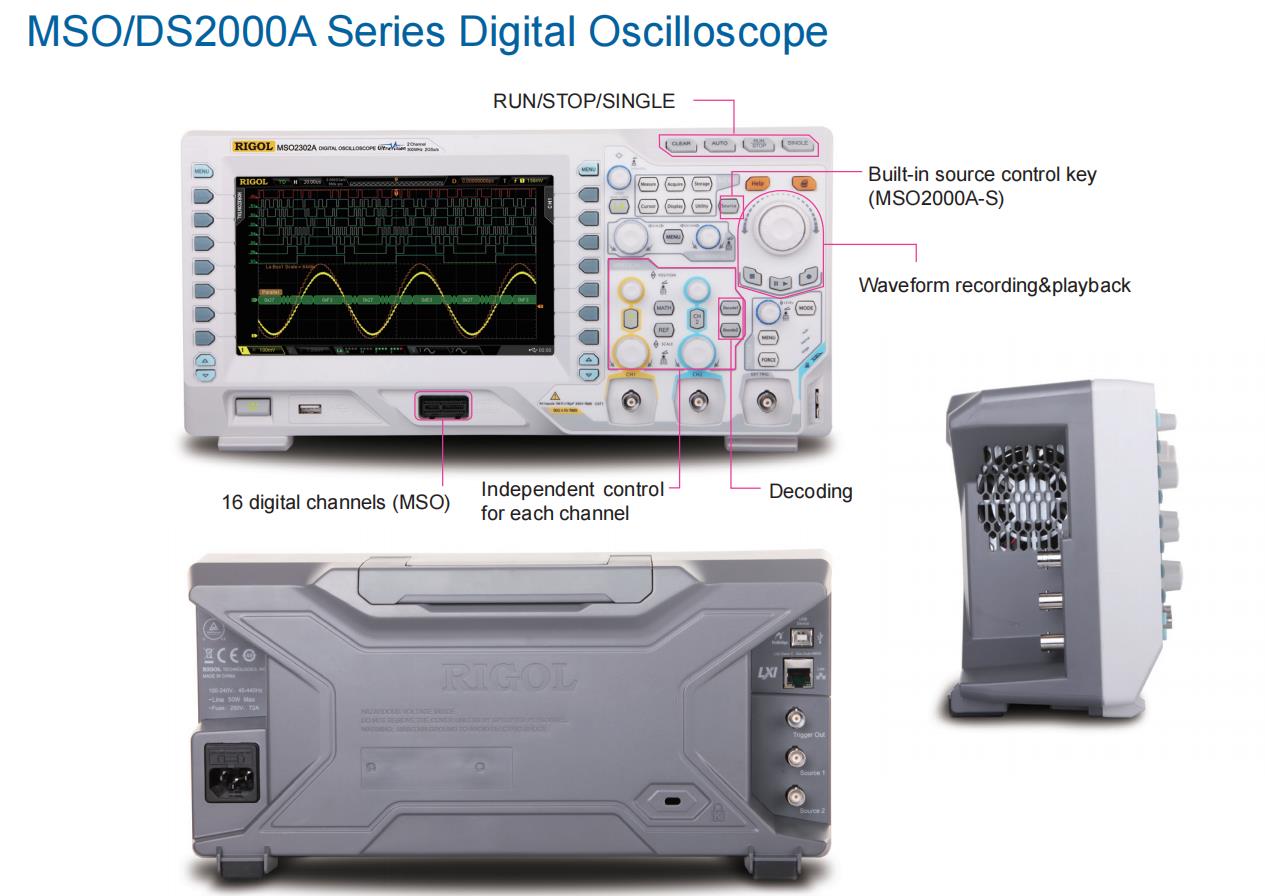

Digital Oscilloscope MSO2202A-S
200MHz, standard with 50 Ω input, 2CH+16 digital Channel Logic Probe, 2GSa/s, 56 Mpts memory depth, up to 52,000 wfms/s, Built-in dual-channel 25 MHz signal source,8 inch TFT (800x480) WVGA. All MSO/DS2000-BND options are preinstalled!
- Bandwidth up to 200 MHz, standard with 50 Ω input
- 2 analog channels, 16 digital channels (FOR MSO2000 ONLY)
- Lower noise floor, wider vertical range: 500 uV/div~10 V/div
- Real-time Sample Rate: analog channel up to 2 GSa/s, digital channel up to 1 GSa/s (MSO)

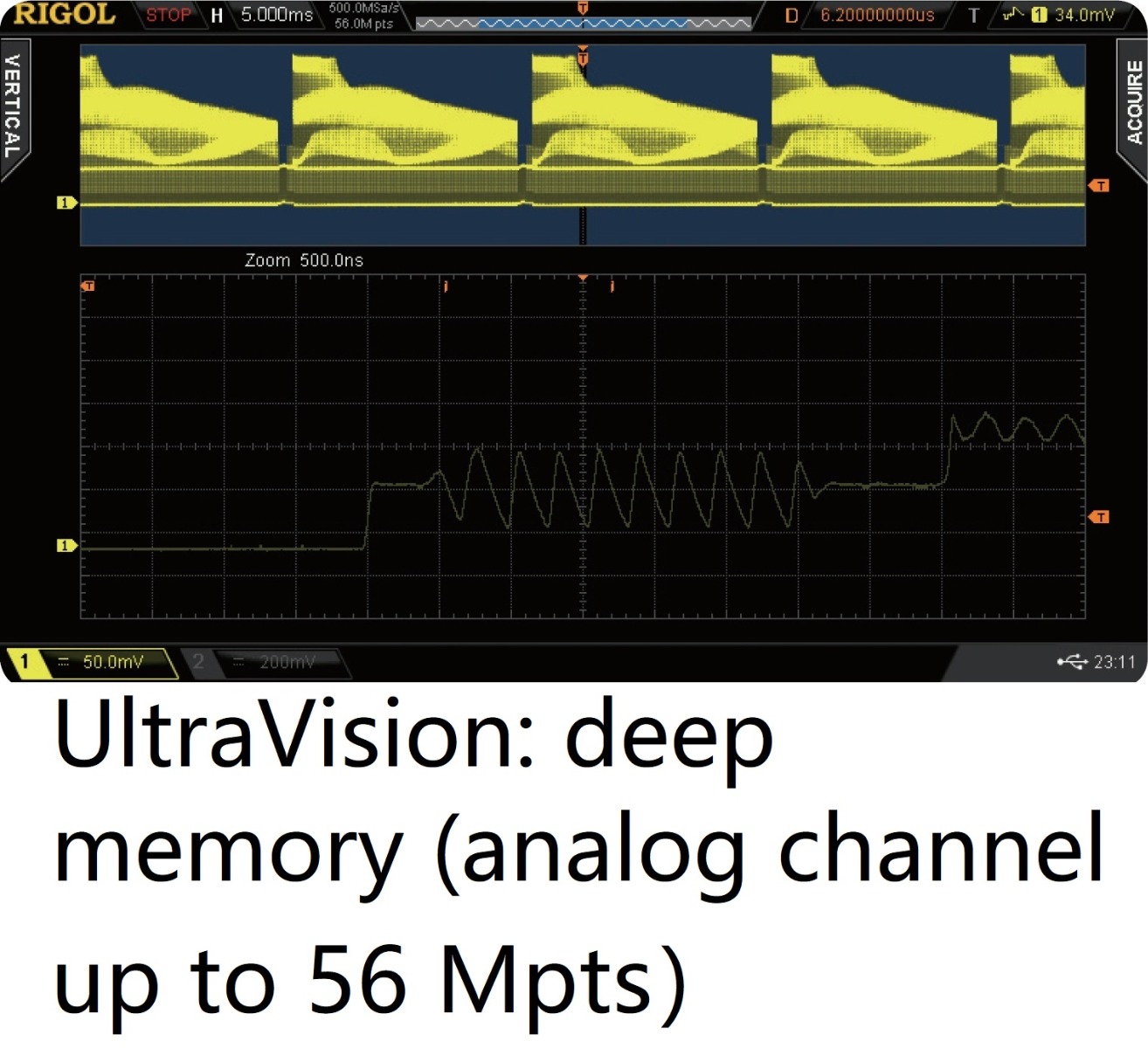

- Memory Depth: 56Mpts
- Innovative "UltraVision" technology

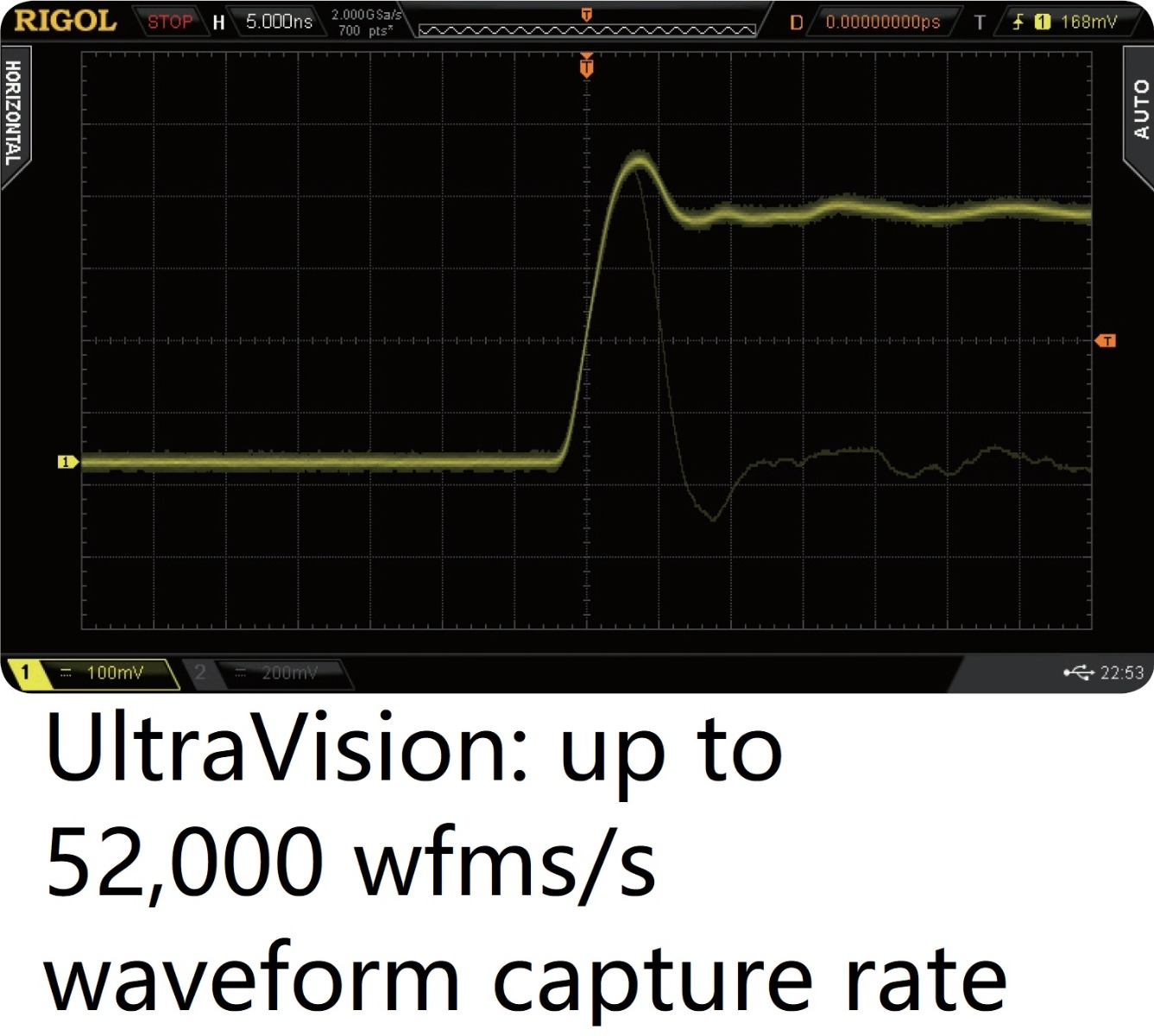

- Waveform capture rate up to 52,000 wfms/s

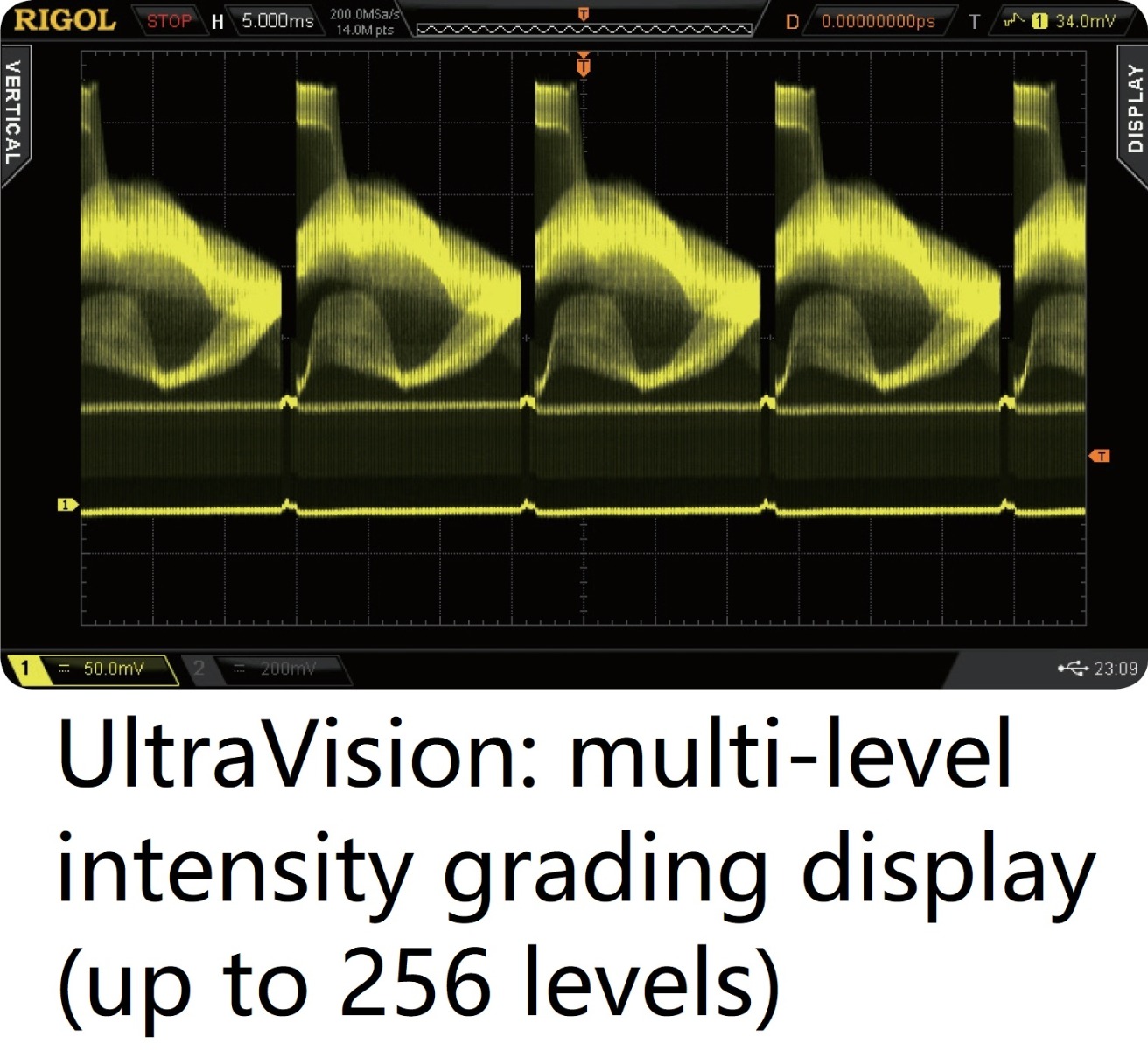

- Up to 256 levels intensity grading waveform display
- Up to 65,000 frames hardware real-time waveform record, playback and analysis functions (standard)
- A variety of trigger and bus decoding functions (Parallel, RS232, I2C, SPI, CAN)
- Built-in dual-channel 25 MHz signal source (only for MSO2000A-S)
- Complete connectivity: USB Host&Device, LAN (LXI), AUX, USB-GPIB (optional)
- 8 inch TFT (800x480) WVGA
MSO/DS2000A series is the new mainstream digital scope to meet the customer's applications with its innovative technology. MSO2000A series has 2+16 channels, targeting for the embedded design and test market with its industry leading specifications, powerful trigger functions and broad analysis capabilities.

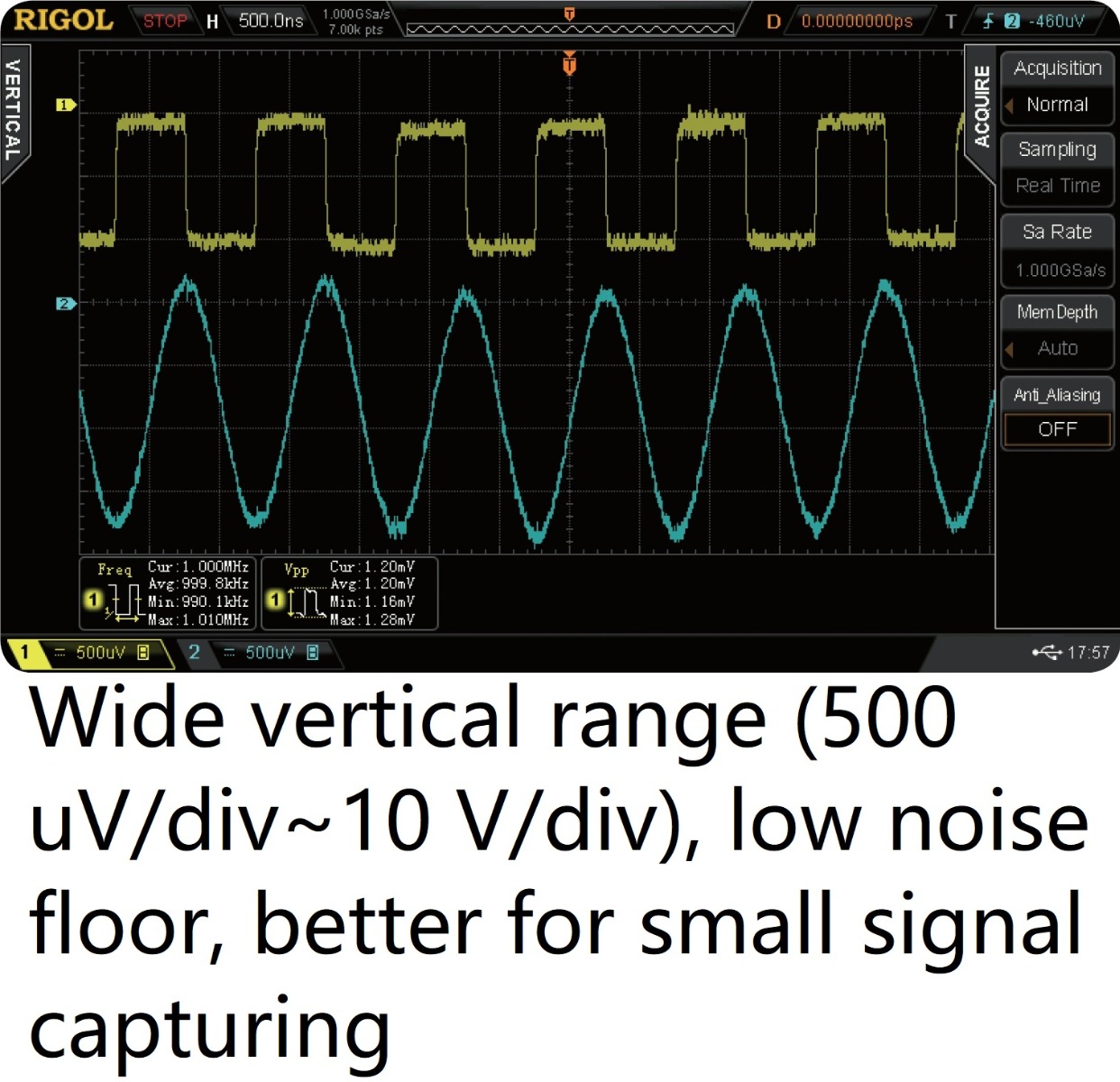

Low Noise floor with wide vertical range (500uV/div ~ 10V/div)
..With a lower noise range setting at 500uV/div as well as included 50 Ohm termination and a clean frequency response design, the 2000 Series oscilloscope enables more sophisticated analysis of low level signal artifacts that can affect your design.

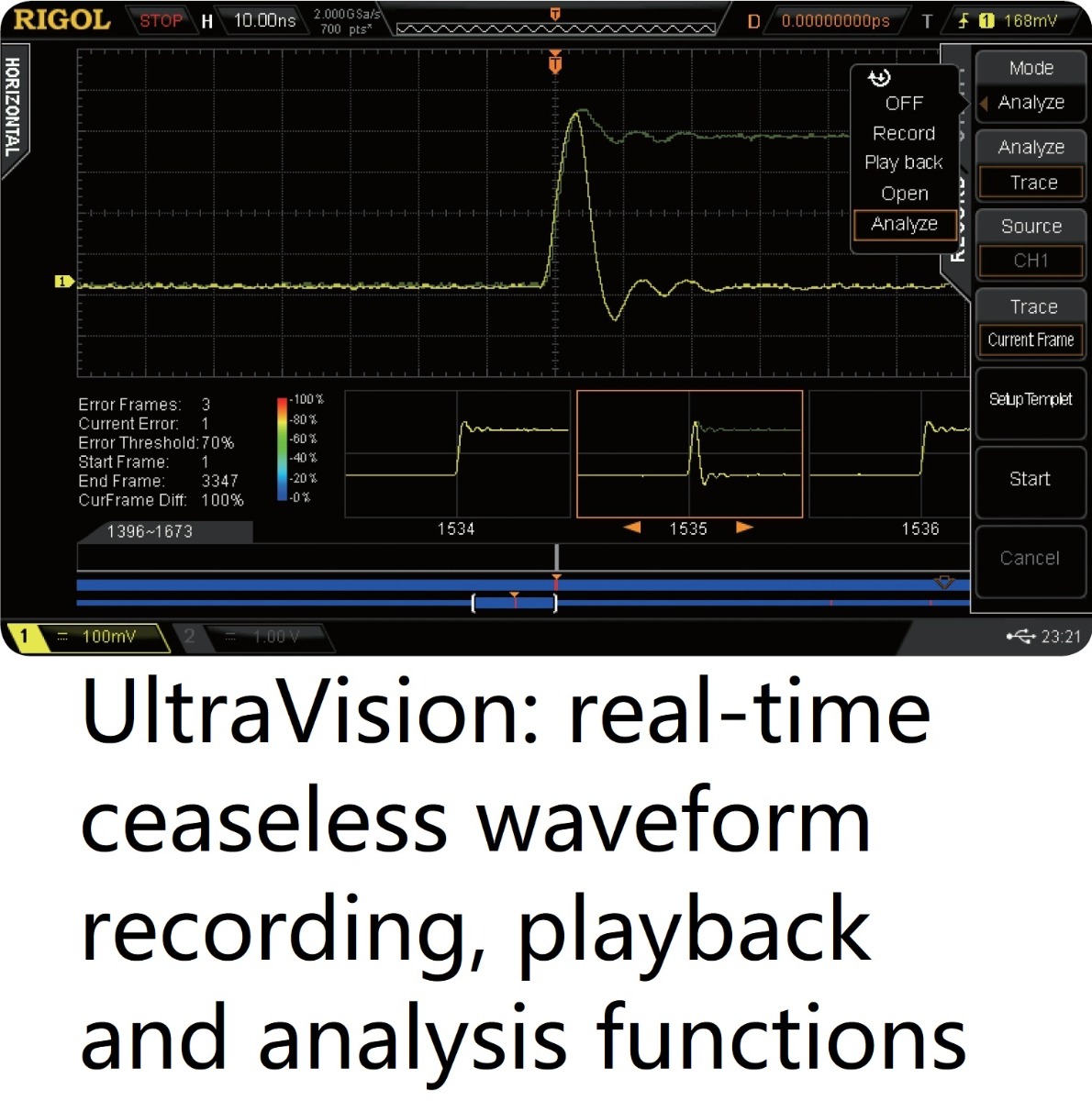

Waveform Record and Playback
..Debug occasional and random glitches using our fast capture, playback, and onboard analysis capabilities.

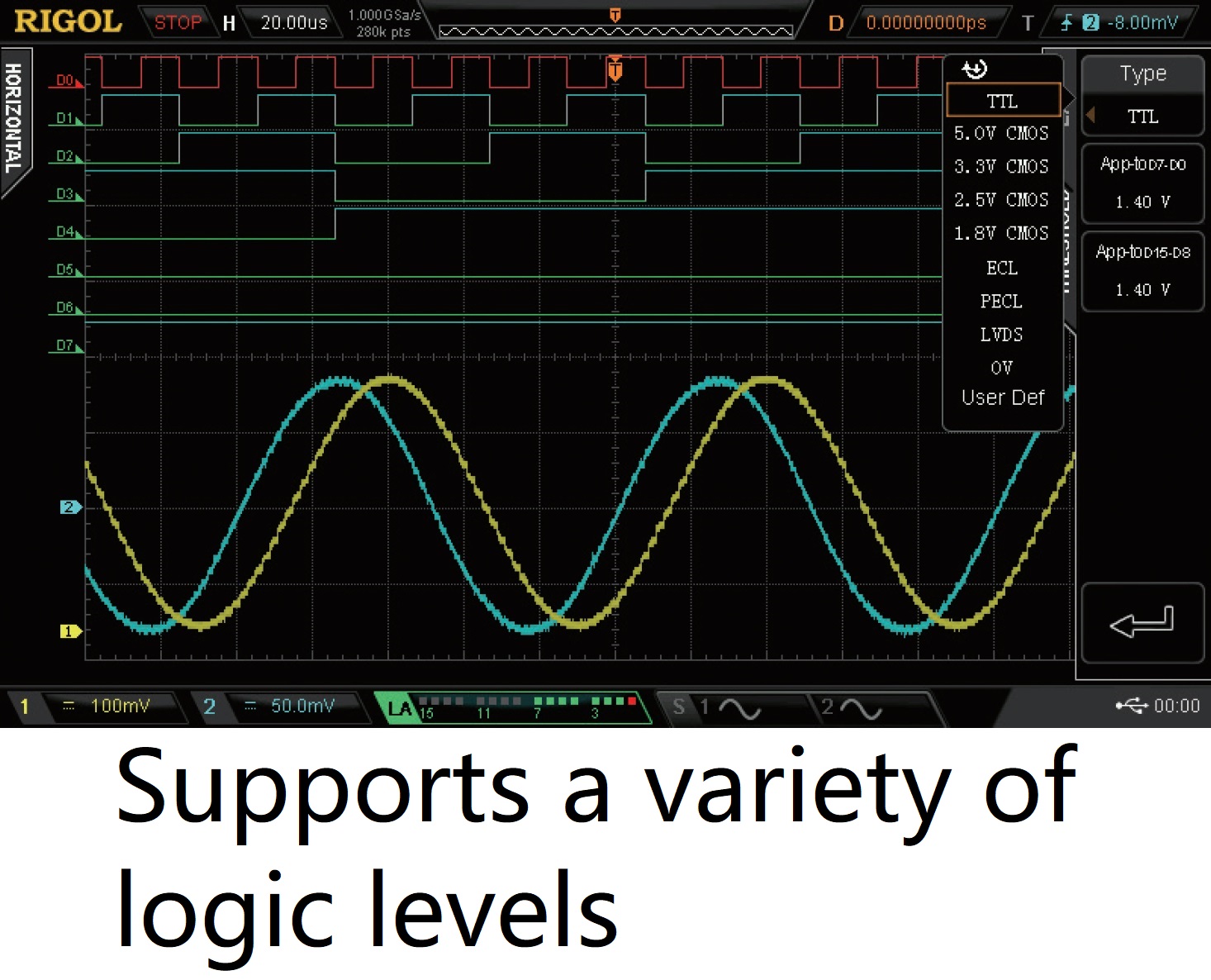

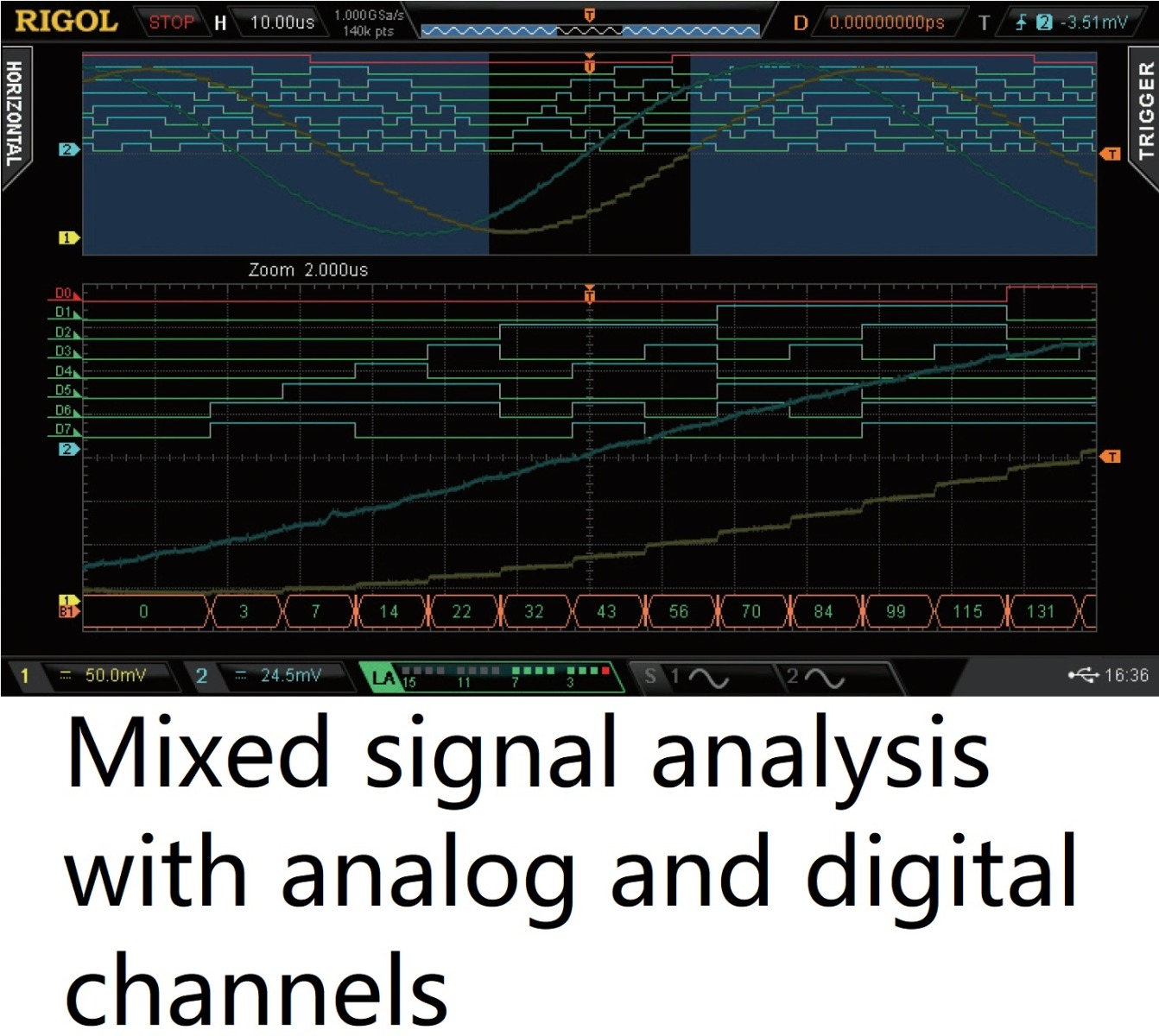

16 Digital Channels (MSO Models)

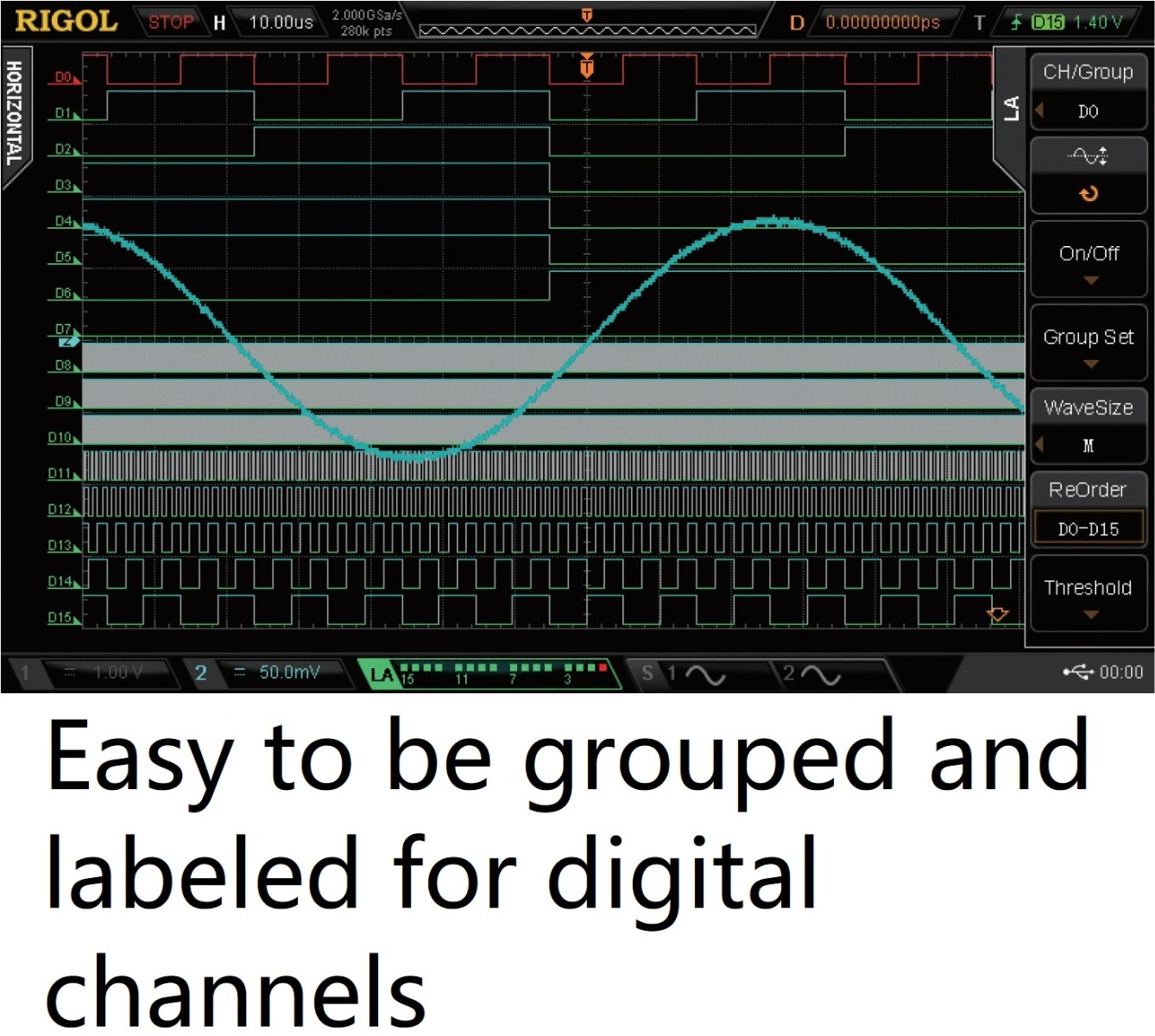

.. The MSO2000A models add Mixed Signal Capabilities allowing users to not only look at the analog behavior of up to 4 channels but also trigger, capture, and analyze the behavior of up to 16 digital channels at the same time.

Integrated 2 Channel full function 25MHz generator
..Create standard waves from the front panel, convert captured waves to emulated signals, or build arbitrary waves in the UltraStation PC Software. The embedded waveform generators included in the "-S" models adds value and capability to the bench for a variety of applications.

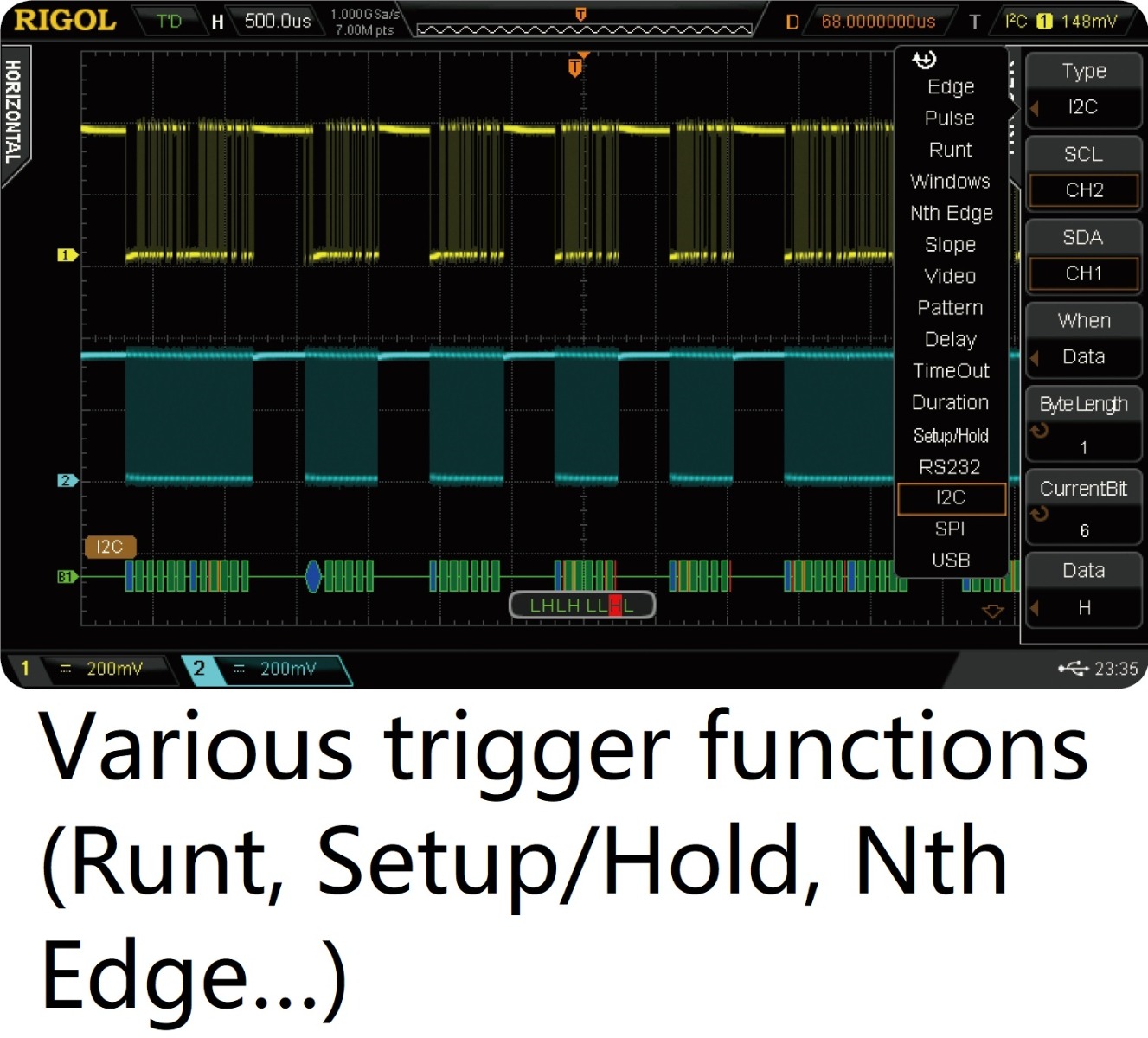

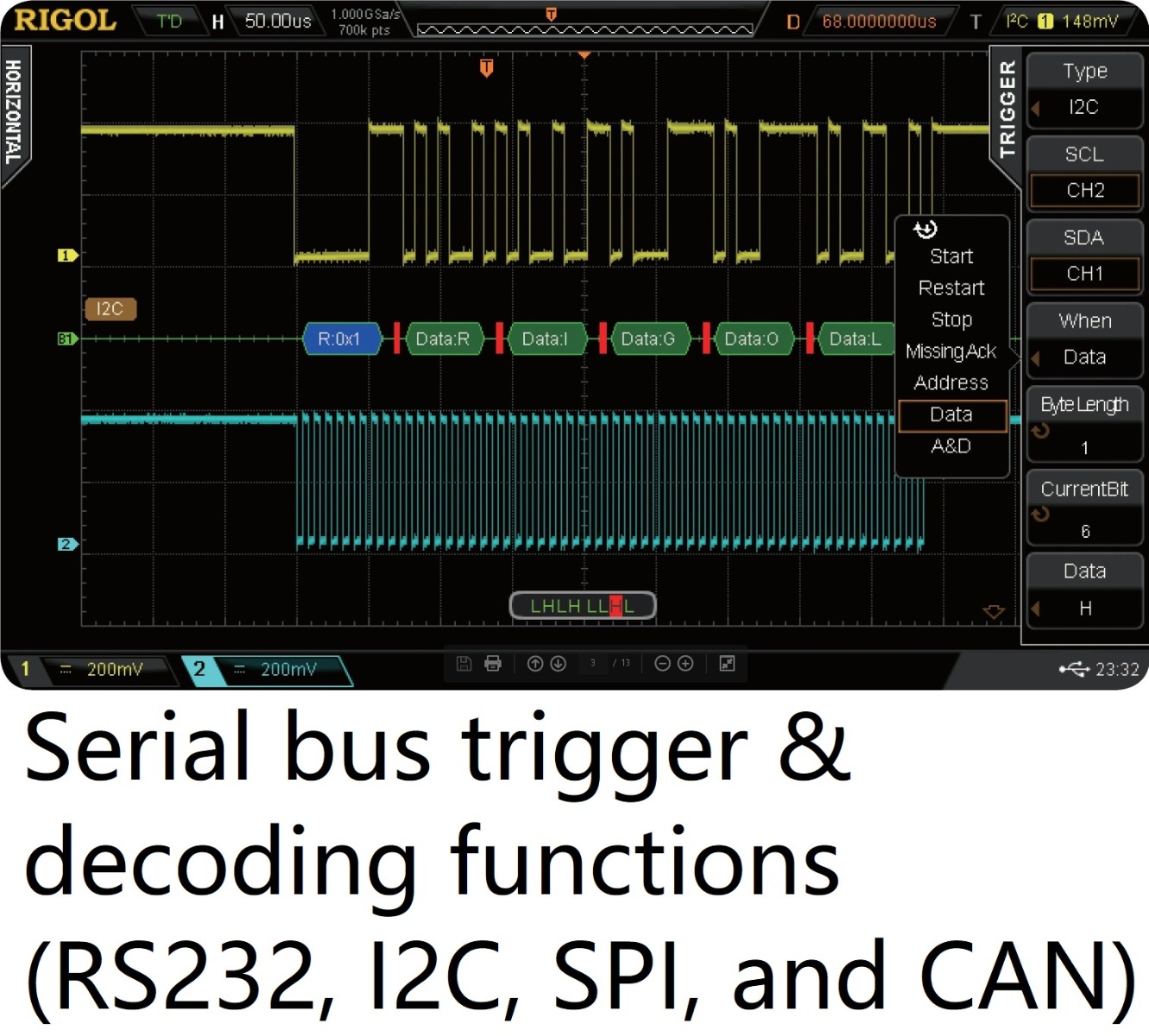

Serial bus triggering and decoding

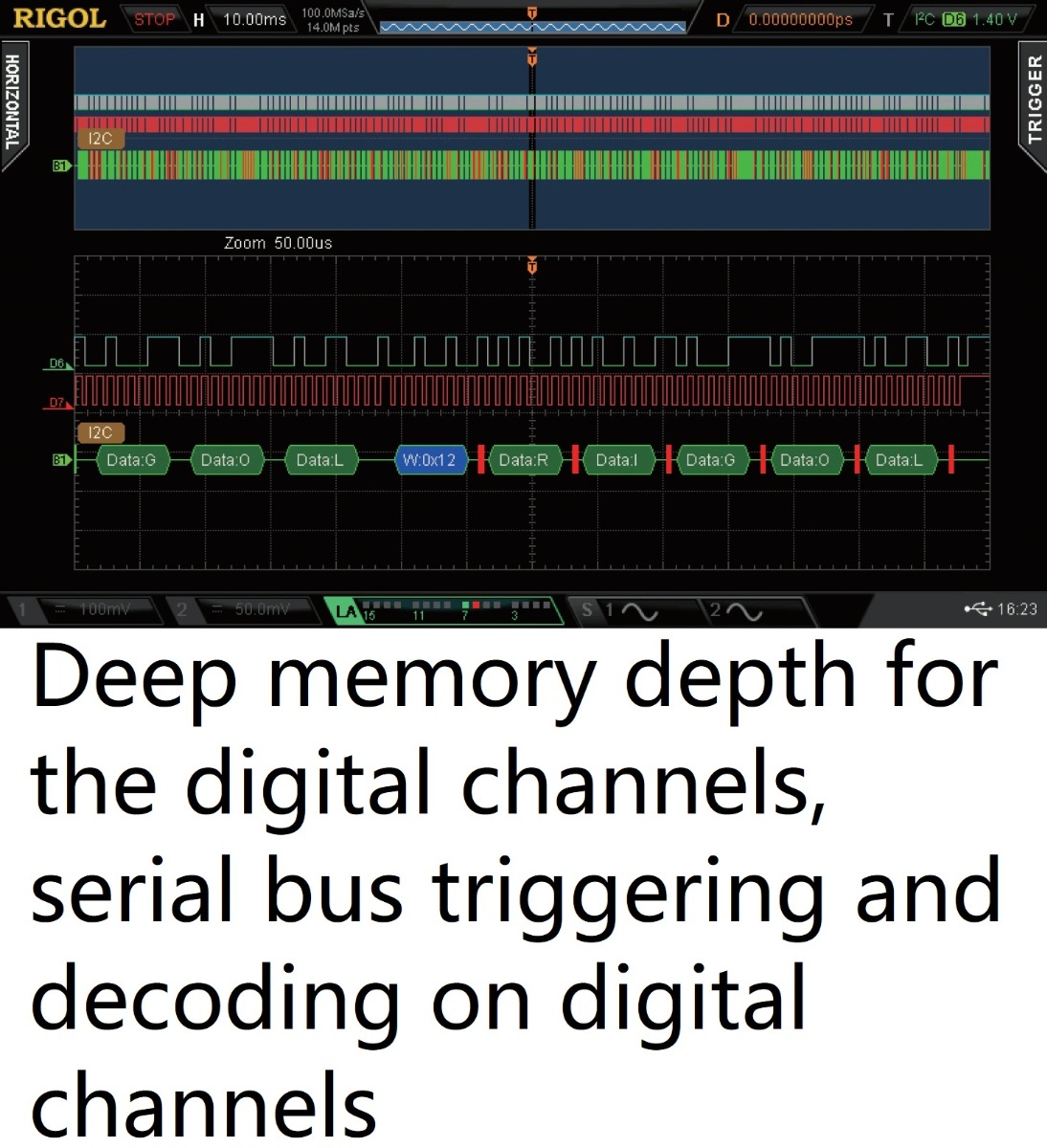

..Supports I2C, SPI, RS232/UART, CAN bus triggering and decoding as standard or optional offers.

Software Download | Description | File Size | Version | Release Date |
---|---|---|---|---|
Ultra Power Analyzer | Ultra Power Analyzer | 12.63 MB | 00.01.02.05 | 2019-10-22 |
Ultra Sigma (HelpDocument) | Ultra Sigma (HelpDocument) | 9.79 MB | V1.0 | 2019-08-22 |
Ultra Scope Software | Ultra Scope Software | 11.35 MB | 00.01.02.12 | 2019-12-13 |
Ultra Power Analyzer | Ultra Power Analyzer | 12.63 MB | 00.01.02.05 | 2019-10-22 |
Ultra Sigma(HelpDocument) | Ultra Sigma(HelpDocument) | 9.79 MB | V1.0 | 2019-08-22 |
Ultra Scope Software | Ultra Scope Software | 11.35 MB | 00.01.02.12 | 2019-12-13 |
NIVISA1500runtime | O/S: Windows 8.1 (64/32 Bit), 8 (64/32 Bit), 7 (64/32 Bit), Vista (64/32 Bit), XP (64/32 Bit) | 83.95 MB | 15.0 | 08.03.2015 |
NIVISA1700runtime | O/S: Windows 10 (64/32 Bit), 8.1 (64/32 Bit), 8 (64/32 Bit), 7 (64/32 Bit) | 123.33 MB | 17.0 | 22.05.2017 |
DS2000A IVI Driver | DS2000A IVI Driver | 569.86 KB | 1.0.13 | 1.0.13 |
Firmware Download | Description | File Size | Version | Release Date |
---|---|---|---|---|
DS2000A Firmware | DS2000A Firmware | 2.62 MB | 00.03.06.00.00 | 2019-08-29 |
DS2000A Firmware | DS2000A Firmware | 2.62 MB | 00.03.06.00.00 | 2019-08-29 |
Datasheet Download | Description | File Size | Version | Release Date |
---|---|---|---|---|
MSO2000A_DS2000A Datasheet EN | MSO2000A_DS2000A_Datasheet_EN | 5.13 MB | V1.0 | 2019-08-29 |
Manual Download | Description | File Size | Version | Release Date |
---|---|---|---|---|
MSO2000A_DS2000A_UserGuide_EN | MSO2000A_DS2000A_UserGuide_EN | 5.54 MB | V1.0 | 2019-08-29 |
MSO2000A_DS2000A ProgrammingGuide EN | MSO2000A_DS2000A_ProgrammingGuide_EN | 4.53 MB | V1.0 | 2019-08-29 |
MSO2000A_DS2000A_QuickGuide_EN | MSO2000A_DS2000A_QuickGuide_EN | 1.39 MB | V1.0 | 2019-08-29 |
rigol-software-tools | rigol-software-tools | 551.36 KB | V1.0 | 10.04.2014 |
