Data Acquisition M302

(M300 with included MC3065 DMM module and MUX)

The M301 Data Acquisition System is designed for automated multichannel measurement and switch applications. This includes environmental measurements like temperature for burn in tests as well as voltage, frequency, or resistance measurements from a wide variety of sensors used from research to production test.

Deliver in
3 weeks
€1,585.00 €1,886.15

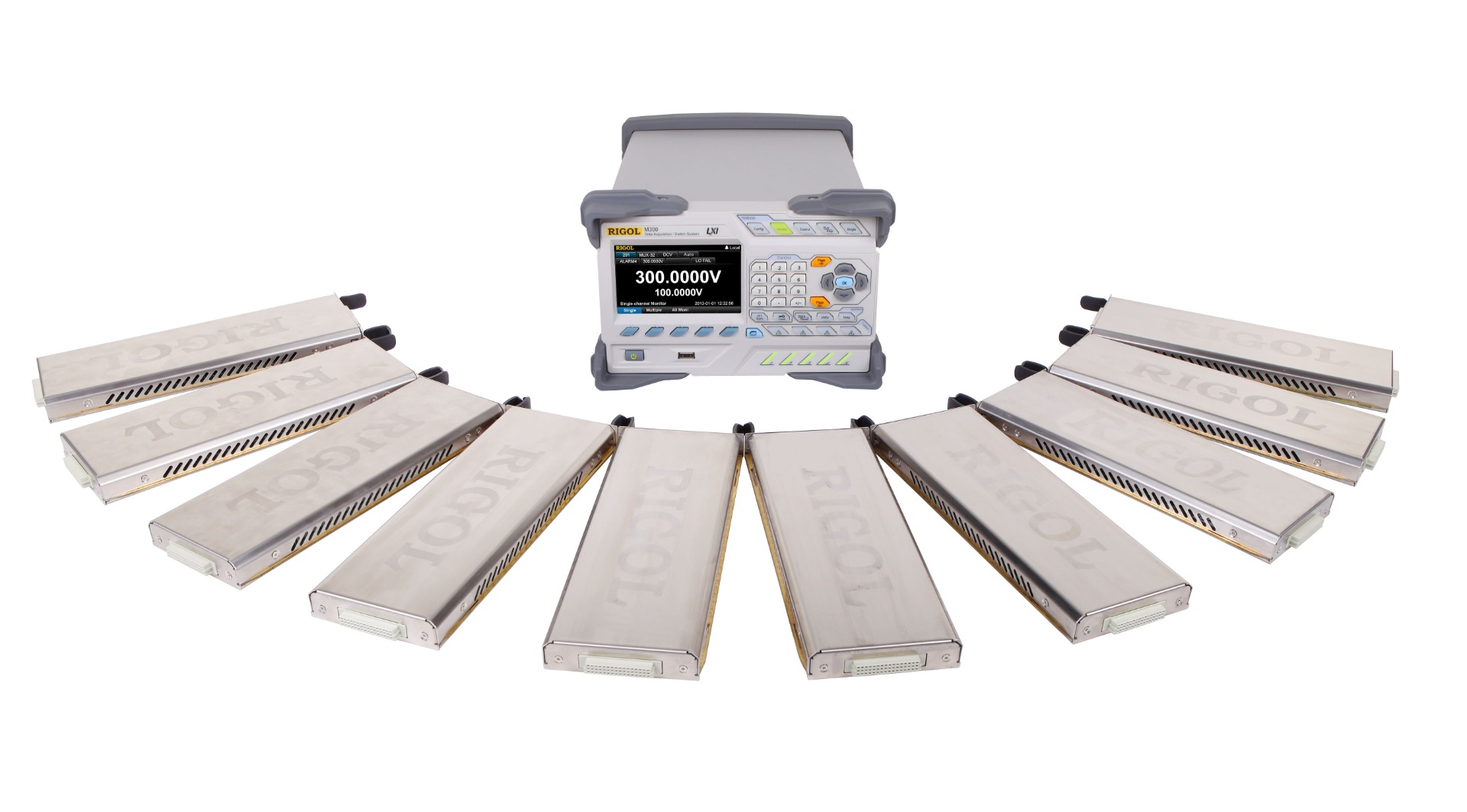

The M300 series data acquisition/switch system provides 5 slots to accept any combination of 11 kinds of plug-in modules, including a DMM module, multiple multiplexers, an actuator, a matrix switch module and a multifunction module. With its modular structure, it combines precision measurement capability with flexible signal connections and can provide versatile solutions for the applications that require multiple points or signals to be tested. This can be especially useful in product performance testing during the R&D phase, and automatic test during production process.

It comes with a 4.3 inch high-resolution color LCD, user-friendly interface design, easy-to-use keyboard layout as well as clear key backlight and operation prompts. The M300 is extremly flexible and easy to use. For remote control versatility, it comes with RS232, USB, LAN and GPIB interfaces standard.

Key Applications

  • CJC Compensated Temperature measurements
  • Voltage and 2-Wire Resistance
  • 4 Wire Resistance Measurements
  • Current Measurements
  • Matrix applications for flexible signal routing
  • Mixed and Multifunction Applications (Digital I/O, DAC, Totalizer)
  • Actuator Systems (up to 300 Vrms / 2 Arms, 60 VA, without connection to the DMM)

Special Features

  • Up to 320 switch channels per mainframe
  • Can run independently without PC
  • USB data logging
  • Interval scanning with storage of up to 100,000 time-stamped readings
  • 6½ digit DMM can be inserted into any slot. It also supports multiple measurement functions, including DCV, DCI, ACV, ACI, 2WR, 4WR, PERIOD, FREQ, TEMP (Thermocouple, Thermistor and RTD) and any sensor
  • 4.3 inch color LCD with friendly interface and built-in help system
  • Powerful PC control and analysis software
  • Standard multiple communication interface: USB Device, USB Host, GPIB, LAN(LXI Core Device 2011) and RS232

Large Screen Display & Easy to Operate

4.3-inch color LCD screen, simple and convenient function setting, no PC required, the host can independently perform the acquisition function


6.5-bit Reading resolution

AThe measurement function of the data acquisition system is completed by the 6.5-bit multimeter module, which supports the measurement functions of DCV, DCI, ACV, ACI, 2wr, 4wr, cycle, frequency, temperature (thermocouple, thermistor and RTD) and any sensor


Up to 256 Test Channels

The M300 host has five module slots One slot is generally used for DMM measurement card, and the other four are used for measurement channel According to the selected module, the slot can have up to 64 measurement channels, and each host can have 256 measurement channels.


Optional 8 Module Cards

Support up to 8 kinds of module cards, including various multiplexers, actuators, switch matrix and hybrid test modules


Provide Multiple Communication Interfaces

USB host / device, GPIB, LAN (lxi-c) and RS232 communication interfaces are provided as standard


Supporting Control Analysis Software

Ultraacquire can control up to five hosts to complete the configuration of complex systems Record and draw data after scanning Ethernet or USB PC every time Users can also set limits, alerts, and triggers for advanced system monitoring. The software provides rich data display mode, one click report generation function and data export function.

Software Download Description File Size Version Release Date
Ultra Sigma (HelpDocument) Ultra Sigma (HelpDocument) 9.79 MB V1.0 2019-08-22
Ultra Acquire (HelpDocument) Ultra Acquire (HelpDocument) 1.46 MB V1.0 2019-08-29
Ultra_Acquire(HelpDocument)-EN Ultra_Acquire(HelpDocument)-EN 1.73 MB V1.0 27.12.2018
NIVISA1500runtime O/S: Windows 8.1 (64/32 Bit), 8 (64/32 Bit), 7 (64/32 Bit), Vista (64/32 Bit), XP (64/32 Bit) 83.95 MB 15.0 08.03.2015
NIVISA1700runtime O/S: Windows 10 (64/32 Bit), 8.1 (64/32 Bit), 8 (64/32 Bit), 7 (64/32 Bit) 123.33 MB 17.0 22.05.2017
Manual Download Description File Size Version Release Date
M300_UserGuide_EN M300_UserGuide_EN 4.39 MB V1.0 2019-08-29
M300-Selection-Guide M300-Selection-Guide 2.84 MB V1.0 2019-08-29
M300_ProgrammingGuide_EN M300_ProgrammingGuide_EN 6.18 MB V1.0 2019-08-29
M300_QuickGuide_EN M300_QuickGuide_EN 3.21 MB V1.0 2019-08-29
rigol-software-tools rigol-software-tools 551.36 KB V1.0 10.04.2014
M300_DataSheet_EN M300_DataSheet_EN 7.14 MB V1.0 2019-08-29
