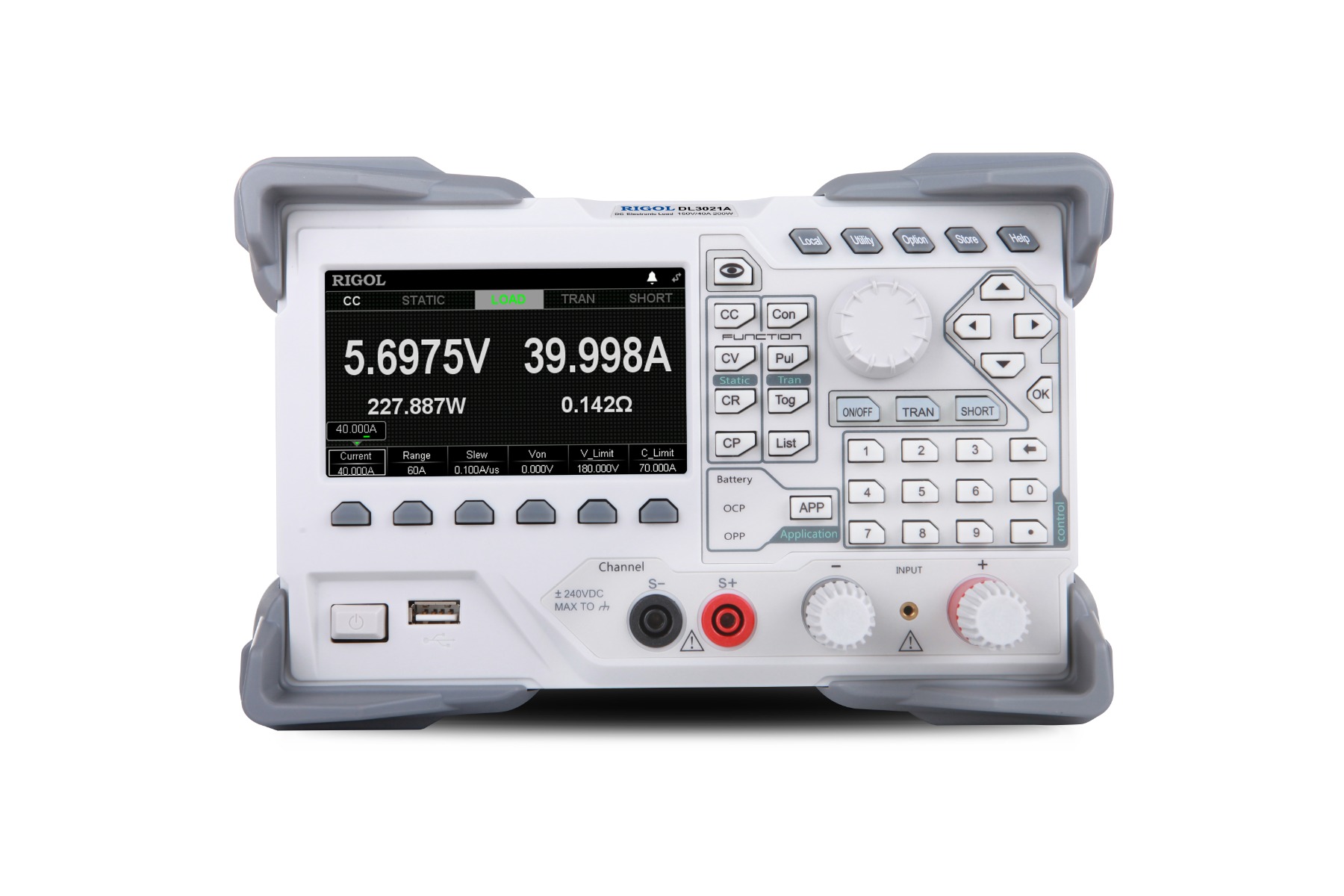

RIGOL DC Load DL3021A

RIGOL DC Load DL3021A

Voltage Readback Resolution 0.1mV

Current Readback Resolution 0.1mA

Current Slope 3.0A/us

Total Power 200W

Voltage 150V

Current 40A

Max. Frequency 30kHz

Delivery：1 Week

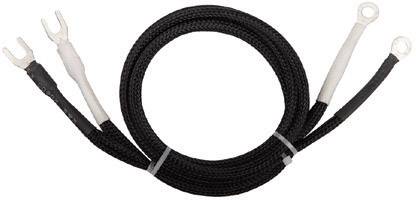

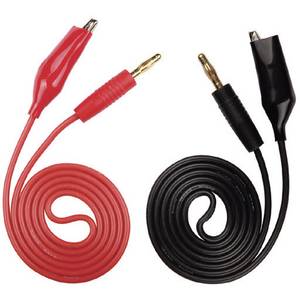

Standard Accessories

Quantity：

€607.00 excl. VAT

€722.33 incl. 19% VAT

Buy Now Add to cart Add to wish list

Description
DL3000 DC Load Model
Feature & Video
Software ＆ Firmware
Datasheet & Manual Download

Add To Cart

<source src="/images/pub/media/wysiwyg/download/video/dl3000/dl3000_video01_introduction.mp4" type="video/mp4">
 </video>
Electronic DC load for max. 150V, 40A, 200W. With USB Host, USB Device, LAN and RS232 interface，EU Cable
------
<ul>
<li>DL3021/DL3021A: single channel, DC150 V/40 A, total power up to 200 W</li>
<li>DL3031/DL3031A: single channel, DC150 V/60 A, total power up to 350 W</li>
<li>Dynamic mode: up to 30 kHz</li>

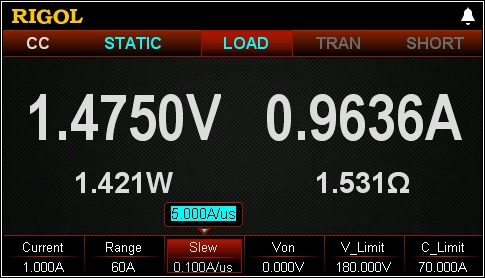

<li>Adjustable current rising speed: 0.001 A/μs to 5 A/μs</li>
<li>Min. readback resolution: 0.1 mV，0.1 mA</li>
<li>4.3-inch TFT LCD, capable of displaying multiple parameters and states simultaneously</li>
<li>Overvoltage/overcurrent/overpower/overtemperature/reverse voltage protection</li>
<li>4 static modes: CC, CV, CR, CP</li>
<li>3 dynamic modes: continuous, pulsed, toggled</li>
<li>List function supports editing as many as 512 steps</li>
<li>Battery test function, OCP test, OPP test, factory test function, etc.</li>
<li>Short-circuit test function</li>
<li>Power-off memory function</li>
<li>Built-in RS232/USB/LAN communication interface</li>
<li>USB-GPIB module (optional)</li>
</ul>

Model	Market Price	Price	Delivery	Current Readback Resolution	Voltage Readback Resolution	Current Slope	Total Power	Voltage	Current	Max. Frequency
RIGOL DC Load DL3021	€439.00	€439.00	1 Week	1mA	1mV	2.5A/us	200W	150V	40A	15kHz
RIGOL DC Load DL3021A	€607.00	€607.00	1 Week	0.1mA	0.1mV	3.0A/us	200W	150V	40A	30kHz
RIGOL DC Load DL3031A	€1143.00	€1143.00	1 Week	0.1mA	0.1mV	5.0A/us	350W	150V	60A	30kHz
RIGOL DC Load DL3031	€959.00	€959.00	about one month	1mA	1mV	2.5A/us	350W	150V	60A	15kHz

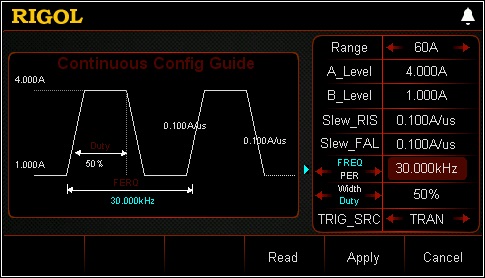

30kHz Dynamic Mode

The advanced DL3000A models provide up to 5 A/us and 30 kHz frequency settings for transient mode testing. Emulate more dynamic real world power demands with this flexibility. That ultimately results in higher reliability and known behavior for batteries and power systems.
Dynamic Load Performance and Visualization

View the actual load performance on the front panel of the DL3000 in a static or transient mode. Optimize tests with customizable slew rates and frequency adjustments in Power, Voltage, Current, or Resistance modes.
3 Built in application setups for battery testing or Current or Power optimization

Quickly characterize your device with automated battery and power step tests without any programming
Free UltraLoad Software for remote operation and monitoring

Easily reconfigure or investigate the setup of the DL3000 remotely over USB or Ethernet with the free UltraLoad software. Record captured data over time and save long term test results to characterize and better understand your power system performance.
High resolution and accuracy on voltage and current load conditions

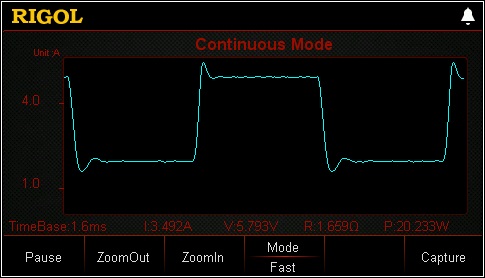

DL3000 Series provide specifications and capabilities that make measuring your power system under different conditions quick and easy. Monitor static conditions from the front panel or software interface and capture transient events with the built in waveform capture or by using an oscilloscope connected to the rear panel pulse shape outputs.

File Name	Version	Release Date	Operation
DL3000 Fiemware	00.01.05.00.01	8/22/2019	Download

File Name	Version	Release Date	Operation
S1501 Ultra Load Software	00.01.00.08	12/1/2020	Download
Ultra Sigma (HelpDocument)	00.01.05.00.01	12/1/2020	Download
Ultra Sigma (PC)lnstaller	00.01.06.01	12/1/2020	Download

Manual Download

File Name	Version	Release Date	Operation
DL3000 Datasheets	V2.0	5/21/2024	Download
DL3000 Performance Verification Manual	V2.0	5/21/2024	Download
DL3000 Programming Manual	V1.0	7/2/2020	Download
DL3000 Quick Guide	v1.0	11/23/2021	Download
DL3000 User Manual	V1.0	6/29/2020	Download
