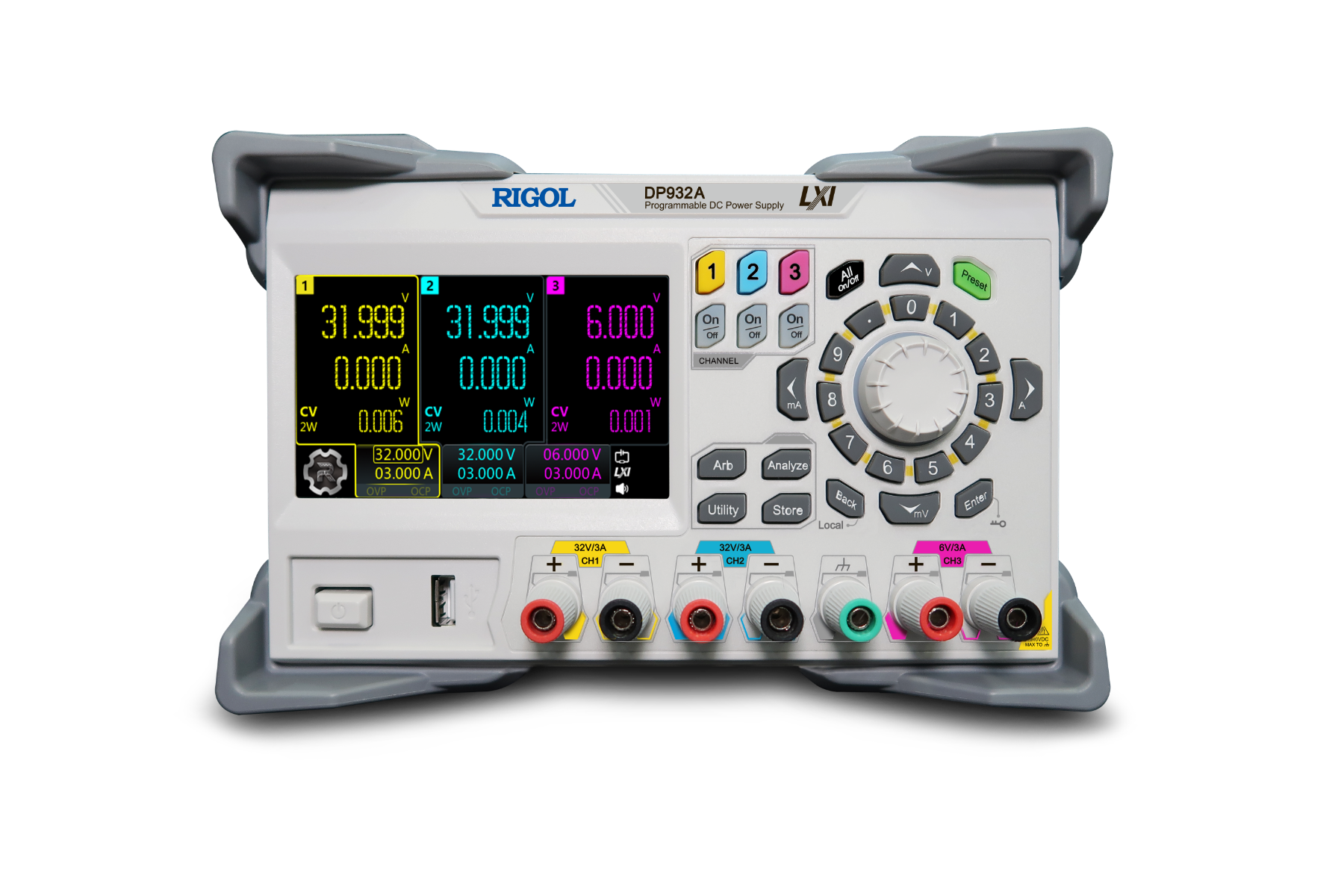

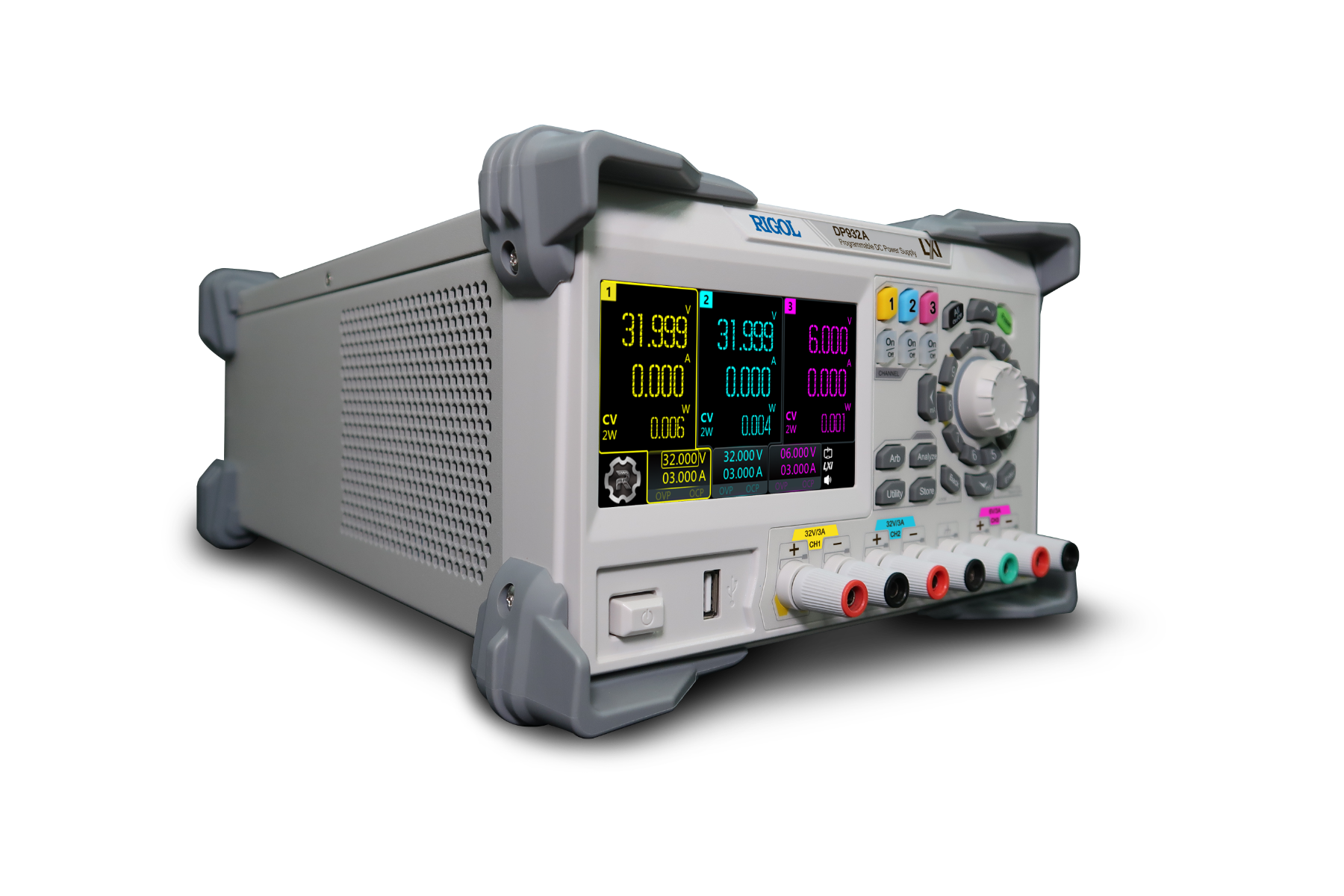

RIGOL DC Power Supply DP932A

RIGOL DC Power Supply DP932A

Programming Resolution 1mV/1mA

Line Regulation Rate Voltage: ≤0.01% + 2mV； Current : ≤0.01% + 250uA

Load Regulation Rate Voltage: ≤0.01% + 2mV； Current : ≤0.01% + 250uA

Output Ripple and Noise < 350μVrms

Readback Resolution 0.1mV/0.1mA

Channels 3CH

Total Power 210W

Display Resolution 1mV/1mA

Communication Interface USB、LAN、Digital IO

Output Per Channel 32V/3A || 32V/3A || 6V/3A

Delivery：about one month

Standard Accessories

Quantity：

€699.00 excl. VAT

€831.81 incl. 19% VAT

Buy Now Add to cart Add to wish list

Description
DP900 Power Supply Model
Feature & Video
Software ＆ Firmware
Datasheet & Manual Download

Add To Cart

NEW! DC power supply with 3 independent output channels (+32 V / 3 A, +32 V / 3 A, +6 V / 3 A, DC, max 210 W). 4.3-inch LCD color touch screen. Low output ripple and noise <350 μVrms/2 mVpp. Command processing time <10 ms. USB, LAN, and Digital I/O, EU Cable------<ul>
<li>3 electrically isolated independent channels with a maximum total power of up to 210 W</li>
<li>Voltage / Current CH1: 0 - +32 V / 0 - 3 A</li>
<li>Voltage / Current CH2: 0 - +32 V / 0 - 3 A</li>
<li>Voltage / Current CH3: 0 - +6 V / 0 - 3 A</li>
<li>4.3-inch LCD color touch screen</li>
<li>Front-panel safety sockets available on some models</li>
<li>Internal series/parallel connections for CH1 and CH2</li>
<li>Excellent programming/readback accuracy</li>
<li>Transient response time <50 μs</li>
<li>Low output ripple and noise <350 μVrms/2 mVpp</li>
<li>Command processing time <10 ms</li>
<li>Three rack-units (3U), 1/2-rack form factor</li>
<li>PC control</li>
<li>Timing output, data logging and analysis</li>
<li>A maximum of 512 arbitrary points with dwell time down to 100 ms; various built-in basic waveforms</li>
<li>Over voltage, over current, and over temperature protection</li>
<li>Various interfaces available: USB, LAN, and Digital I/O</li>
</ul>

Model	Market Price	Price	Delivery	Programming Resolution	Load Regulation Rate	Line Regulation Rate	Output Ripple and Noise	Readback Resolution	Channels	Total Power	Display Resolution	Communication Interface	Output Per Channel
RIGOL DC Power Supply DP932A	€699.00	€699.00	about one month	1mV/1mA	Voltage: ≤0.01% + 2mV； Current : ≤0.01% + 250uA	Voltage: ≤0.01% + 2mV； Current : ≤0.01% + 250uA	< 350μVrms	0.1mV/0.1mA	3CH	210W	1mV/1mA	USB、LAN、Digital IO	32V/3A \|\| 32V/3A \|\| 6V/3A
RIGOL DC Power Supply DP932E	€429.00	€429.00	1 Week	10mV/10mA	Voltage: ≤0.01% + 2mV； Current : ≤0.01% + 250uA	Voltage: ≤0.01% + 2mV； Current : ≤0.01% + 250uA	< 350μVrms	10mV/10mA	3CH	198W	10mV/10mA	USB、LAN	30V/3A \|\| 30V/3A \|\| 6V/3A
RIGOL DC Power Supply DP932U	€529.00	€529.00	1 Week	10mV/1mA	Voltage: ≤0.01% + 2mV； Current : ≤0.01% + 250uA	Voltage: ≤0.01% + 2mV； Current : ≤0.01% + 250uA	< 350μVrms	10mV/1mA	3CH	210W	10mV/1mA	USB、LAN、opt-Digital IO	32V/3A \|\| 32V/3A \|\| 6V/3A

Low Ripple Noise: <350μVrms / 2mVpp

One of the advantages of linear DC power supply is the pure output. In the 20Hz-20MHz bandwidth, the DP900 ripple and noise index is less than 350μVrms or 2 mVpp, ultra-low noise design, purer output, and minimizes any interference to the load. Provides a high-purity signal.
Fast Transient Response Time: < 50us

A high-quality power supply must be able to cope with changing loads well. The DP900 has a transient response capability of less than 50us, which meets the user's needs for rapidly changing voltage waveforms and ensures the smooth progress of the test work.
Precise Arbitrary Wave Function: 100ms

The Arb minimum dwell time of DP900 is increased to 100ms, and a variety of basic waveforms are built in, which supports free editing and generation of waveforms, and simulates different application scenarios for testing.
One-Key Series-Parallel, Flexible Testing

Channel 1 and channel 2 of the DP900 have added a one-key series-parallel function. The machine can realize serial 64V or parallel 6A output. Say goodbye to external cumbersome wiring and software switching to help your test efficiency.
A Variety of Functions, A Wide Range of Applications

DP900 series programmable linear DC power supply also provides various functions such as general analysis, pulse current analysis, monitor, trigger, etc., and is compatible with the standard SCPI command set, which can give you higher-level analysis and control capabilities, not only simple power delivery.
Colorful Appearance, Convenient Operation

The 4.3-inch color touch screen supports two working modes: touch screen and non-touch screen, and smooth touch interaction brings a better experience for your testing.
Benefit Education, Safety Terminal

The front panel of the DP932U model of the DP900 series is equipped with safety terminals without exposed metal, which can protect the user's test safety. Sincere price, reliable performance, and safety guarantee are the best choice for your purchase! Education Model: schools, universities and educational institutions can apply for a special price for €369.00 (excl. VAT)

File Name	Version	Release Date	Operation
DP900 Firmware	00.01.01	1/30/2024	Download

File Name	Version	Release Date	Operation
Ultra Sigam(HelpDocument)	V1.0	10/27/2021	Download
Ultra Sigma(PC)Installer	00.01.06.01	10/27/2021	Download

Manual Download

File Name	Version	Release Date	Operation
DP900 Datasheet	V3.0	8/23/2024	Download
DP900 Programming Manual	V2.0	8/23/2024	Download
DP900 QuickGuide	V1.0	2/23/2024	Download
DP900 User Guide	V3.0	8/23/2024	Download
