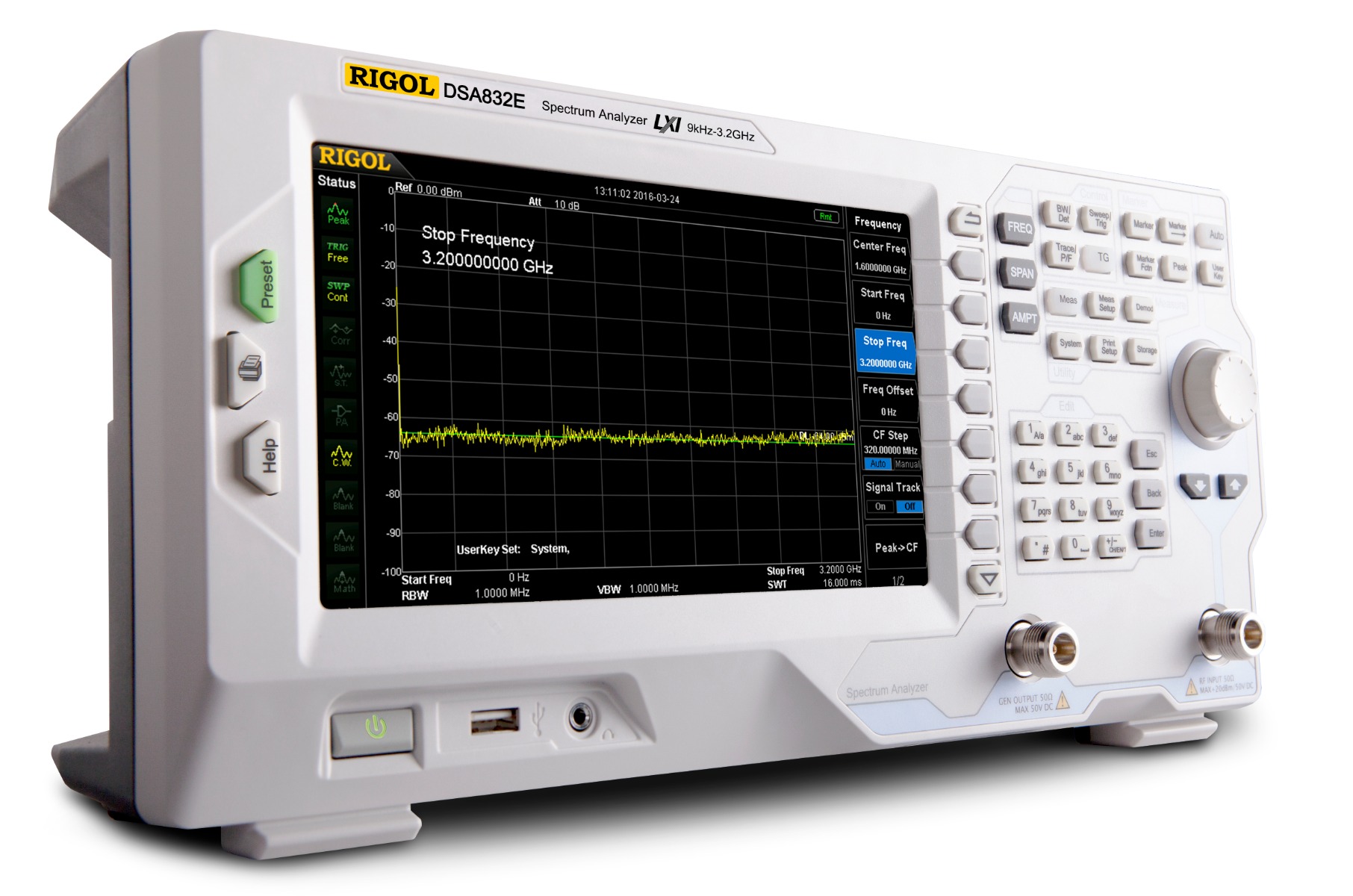

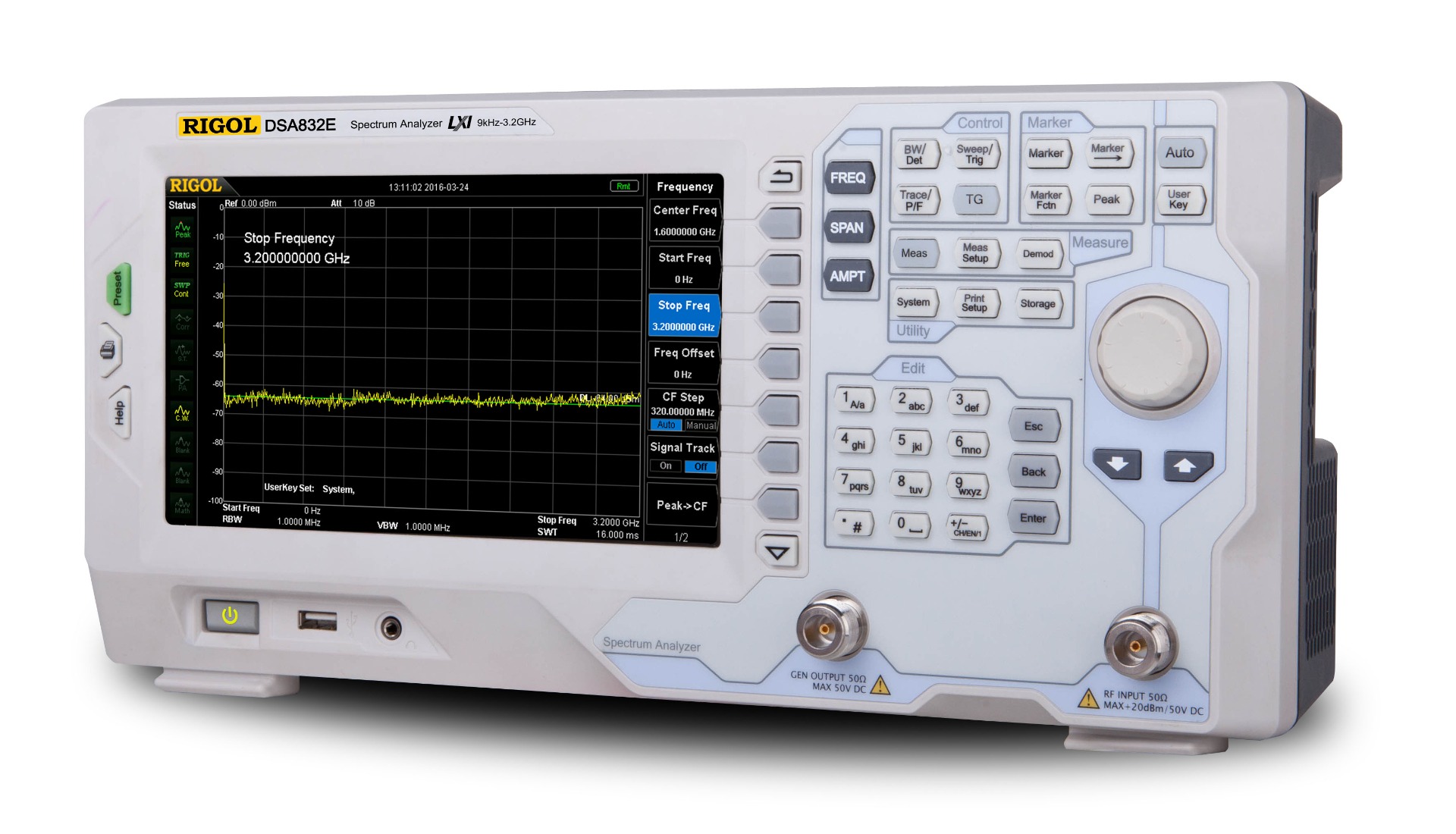

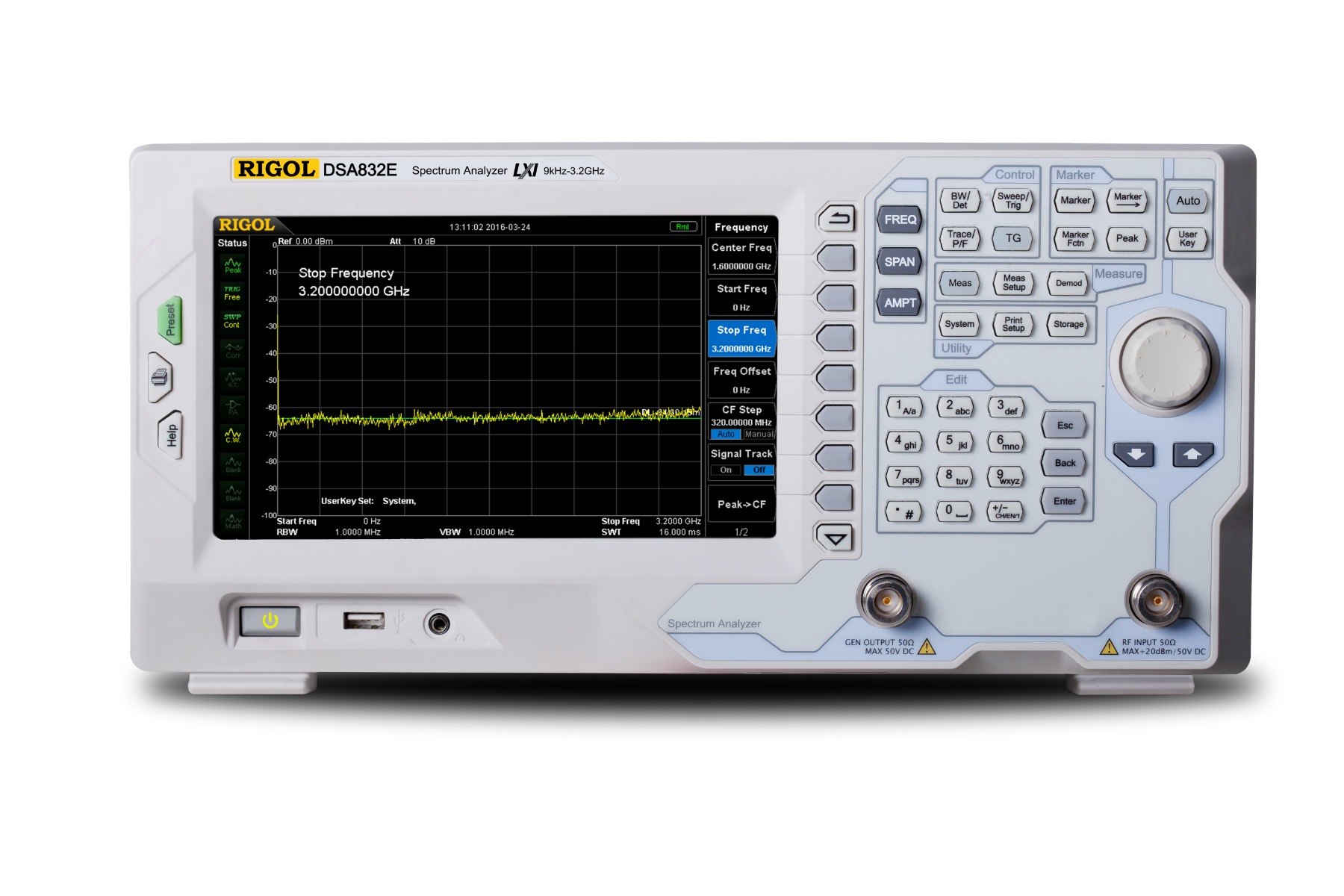

RIGOL Spectrum Analyzer DSA832E-TG

Spectrum analyzer from 9 kHz to 3.2 GHz,EU Cable

Deliver in
3 weeks
€2,395.00 €2,850.05

The highest frequency: 3.2 GHz
Displayed Average Noise Level (DANL): <-161 dBm (Typical)
Phase Noise: <-98 dBc/Hz @ 10 kHz offset (Typical)
Level Measurement Uncertainty: <0.8 dB
Minimum Resolution Bandwidth (RBW): 10 Hz
EMI Filter and Quasi-Peak Detector Kit (Option)
VSWR Measurement Kit (Option)
AM/FM Demodulation Function
Various measurement functions (option)
3.2 GHz Tracking Generator
8 inch (800×480 pixels) high-definition display with clear, vivid, and easy-to-use graphical interface
Various interfaces such as LAN, USB Host, USB Device and GPIB (option)



10Hz Resolution Bandwidth

The DSA800 with RF technology to provide a resolution bandwidth as low as 10 Hz, which can effectively distinguish adjacent equal-amplitude signals and improve signal discrimination.



DANL: -161 Dbm with Optional Preamp

View lower powered signals (harmonics, interference sources) and ease trouble-shooting in swept and real-time mode.



EMI Pre-compliance Measurement

EMI filter (6 dB) and quasi-peak detectors make EMI pre-test/diagnostics more accurate, complete with complete software and report generation



Tracking Source and VSWR Function

DSA800 series with VSWR measurement capability, with tracking source model (-TG), with VSWR bridge for voltage standing wave ratio test



UnltraSpectrum Software

The optional UltraSpectrum software can not only complete the control of the spectrum analyzer, but also provide powerful display and analysis functions such as spectrum and waterfall.




Software Download Description File Size Version Release Date
TX1000 Software TX1000 Software 2.28 MB 00.01.00.02 2019-08-29
S1210 EMI Pre-compliance Software(Help Document) S1210 EMI Pre-compliance Software(Help Document) 11.41 MB V1.0 2019-08-29
S1210 EMI Pre-compliance Software(PC)Installer S1210 EMI Pre-compliance Software(PC)Installer 25.77 MB V00.05.00.07 2019-08-29
Ultra Spectrum Software Ultra Spectrum Software 31.46 MB 00.01.00.28 2019-08-29
Ultra Sigma (HelpDocument) Ultra Sigma (HelpDocument) 9.79 MB V1.0 2019-08-22
S1210 EMI EMI Pre-compliance Software_DataSheet S1210 EMI EMI Pre-compliance Software_DataSheet 594.99 KB V1.0 2019-08-29
S1220 ASK-FSK Demodulation Analysis Setup S1220 ASK-FSK Demodulation Analysis Setup 25.77 MB V00.01.00.02 2019-08-29
Ultra Spectrum Software Ultra Spectrum Software 31.46 MB 00.01.00.23 2019-08-29
NIVISA1500runtime NIVISA1500runtime 83.95 MB Version: 15.0 08.03.2015
NI-VISA Run-Time Engine 17.0 NI-VISA Run-Time Engine 17.0 123.33 MB Version: 17.0 22.05.2017
Firmware Download Description File Size Version Release Date
DSA815 Firmware DSA815 Firmware 1.33 MB 00.01.19.00.02 2019-08-29
DSA832 Firmware DSA832 Firmware 1.42 MB 00.01.05.00.00 2019-08-29
DSA832E Firmware DSA832E Firmware 1.42 MB 00.01.05.00.00 2019-08-29
DSA875 Firmware DSA875 Firmware 1.42 MB 00.01.05.00.00 2019-08-29
Datasheet Download Description File Size Version Release Date
DSA800 EMI Test System Datenblatt (Englisch) DSA800 EMI Test System Datenblatt (Englisch) 1.30 MB V1.0 27.12.2018
Rigol DSA800/E Datenblatt Rigol DSA800/E Datenblatt 6.01 MB V1.0 27.12.2018
Rigol DSA800/E Spezifikationen Rigol DSA800/E Spezifikationen 1.95 MB V1.0 27.12.2018
Rigol DSA800-VSWR Datenblatt Rigol DSA800-VSWR Datenblatt 688.70 KB V1.0 27.12.2018
Manual Download Description File Size Version Release Date
DSA800-Rackmount Kit User Manual DSA800-Rackmount Kit User Manual 1.50 MB V1.0 2019-08-29
DSA800(E)_Options&Accessories DSA800(E)_Options&Accessories 1.19 MB V1.0 2019-08-29
DSA800(E) User Manual DSA800(E) User Manual 4.80 MB V1.0 2019-08-29
DSA800(E) Rackmount Kit Manual DSA800(E) Rackmount Kit Manual 188.09 KB V1.0 2019-08-29
EMI Test System Anleitung EMI Test System Anleitung 1.37 MB UGD03106-1110 01.08.2014
Rigol DSA800 Kurzanleitung Rigol DSA800 Kurzanleitung 566.52 KB V1.0 28.03.2014
Rigol DSA800E Kurzanleitung Rigol DSA800E Kurzanleitung 477.84 KB V1.0 28.03.2014
Rigol DSA800 SCPI Programmieranleitung Rigol DSA800 SCPI Programmieranleitung 3.36 MB PGD07104-1110 10.08.2016
Rigol DSA800(E) Anleitung-DE Rigol DSA800(E) Anleitung-DE 4.68 MB UGD03106-1110 23.05.2013
Rigol DSA800(E) Anleitung-EN Rigol DSA800(E) Anleitung-EN 4.80 MB UGD07112-1110 07.04.2017
Rigol Software Installation und Benutzung Rigol Software Installation und Benutzung 551.36 KB V1.0 10.04.2014
General Download Description File Size Version Release Date
Rigol How To: Instrument Communication VISA / USB Rigol How To: Instrument Communication VISA / USB 435.80 KB V1.0 04.08.2010
