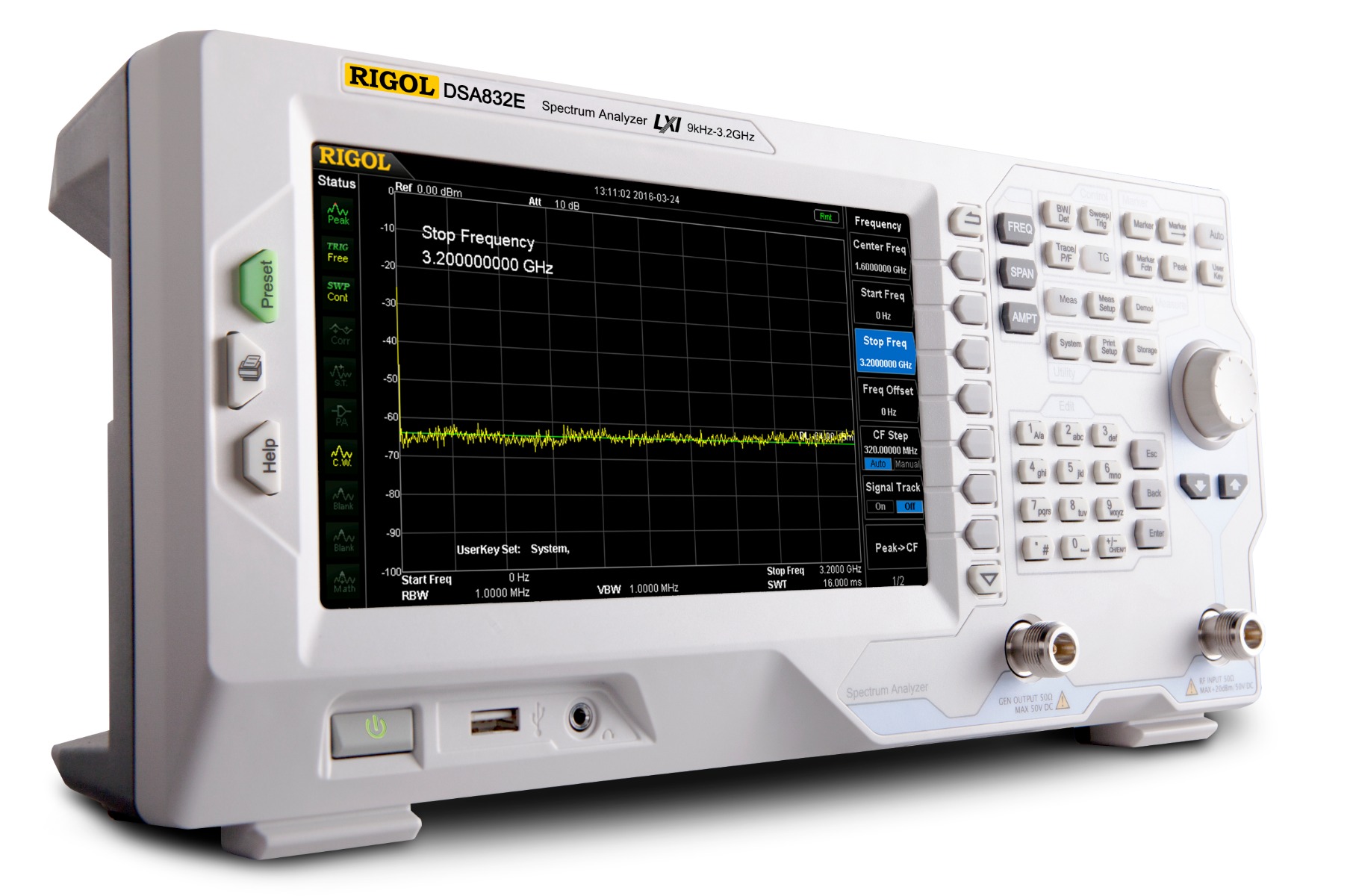

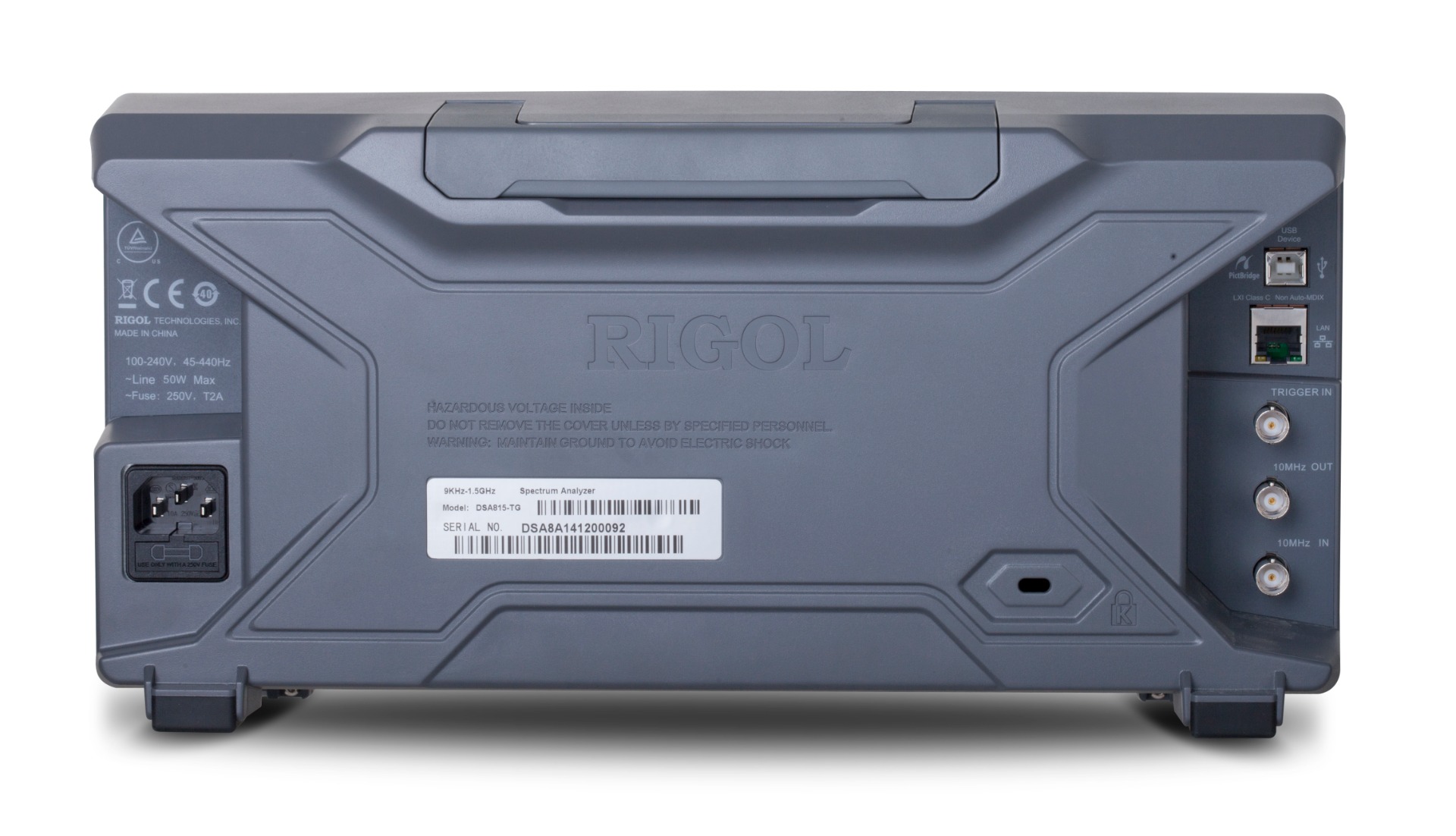

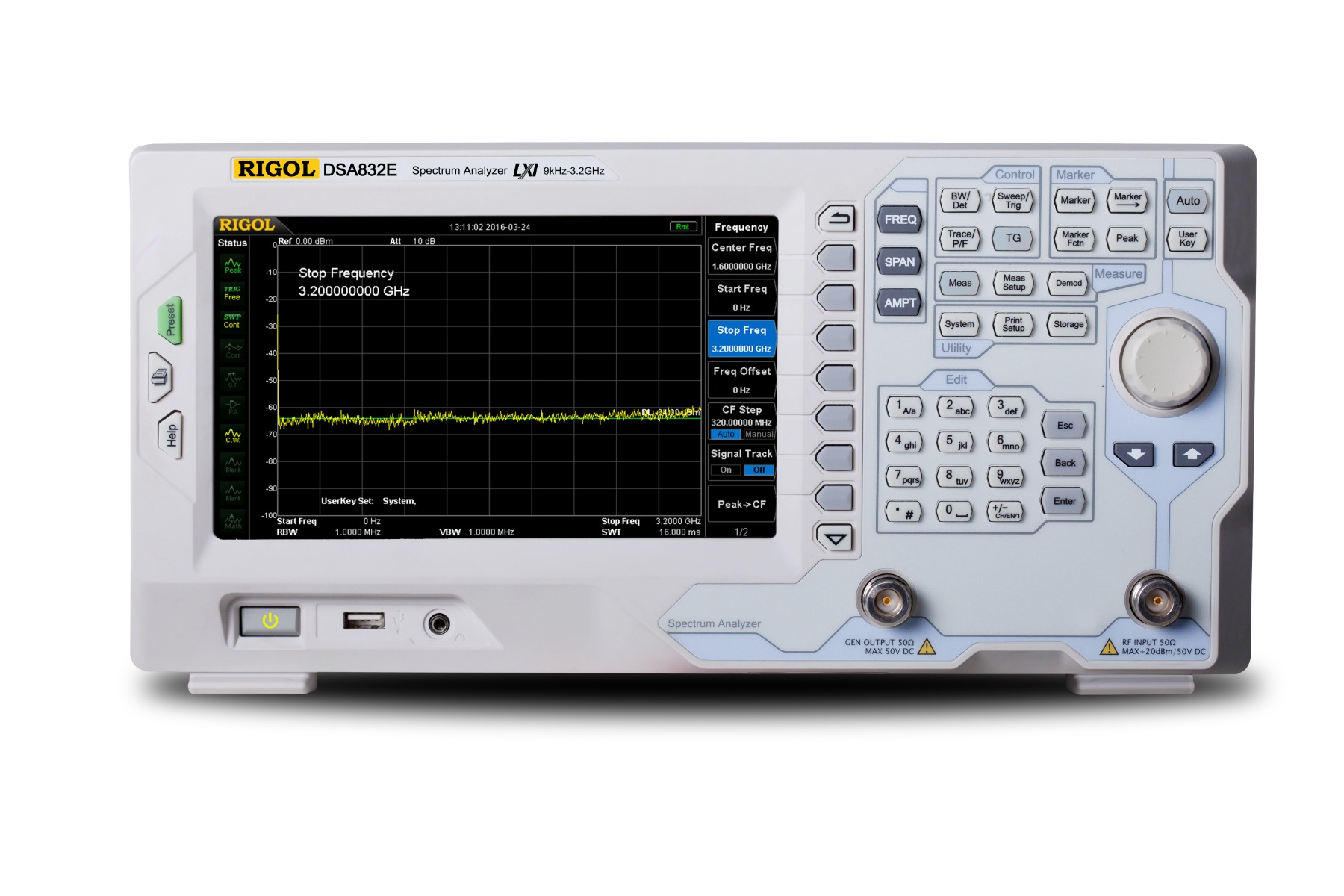

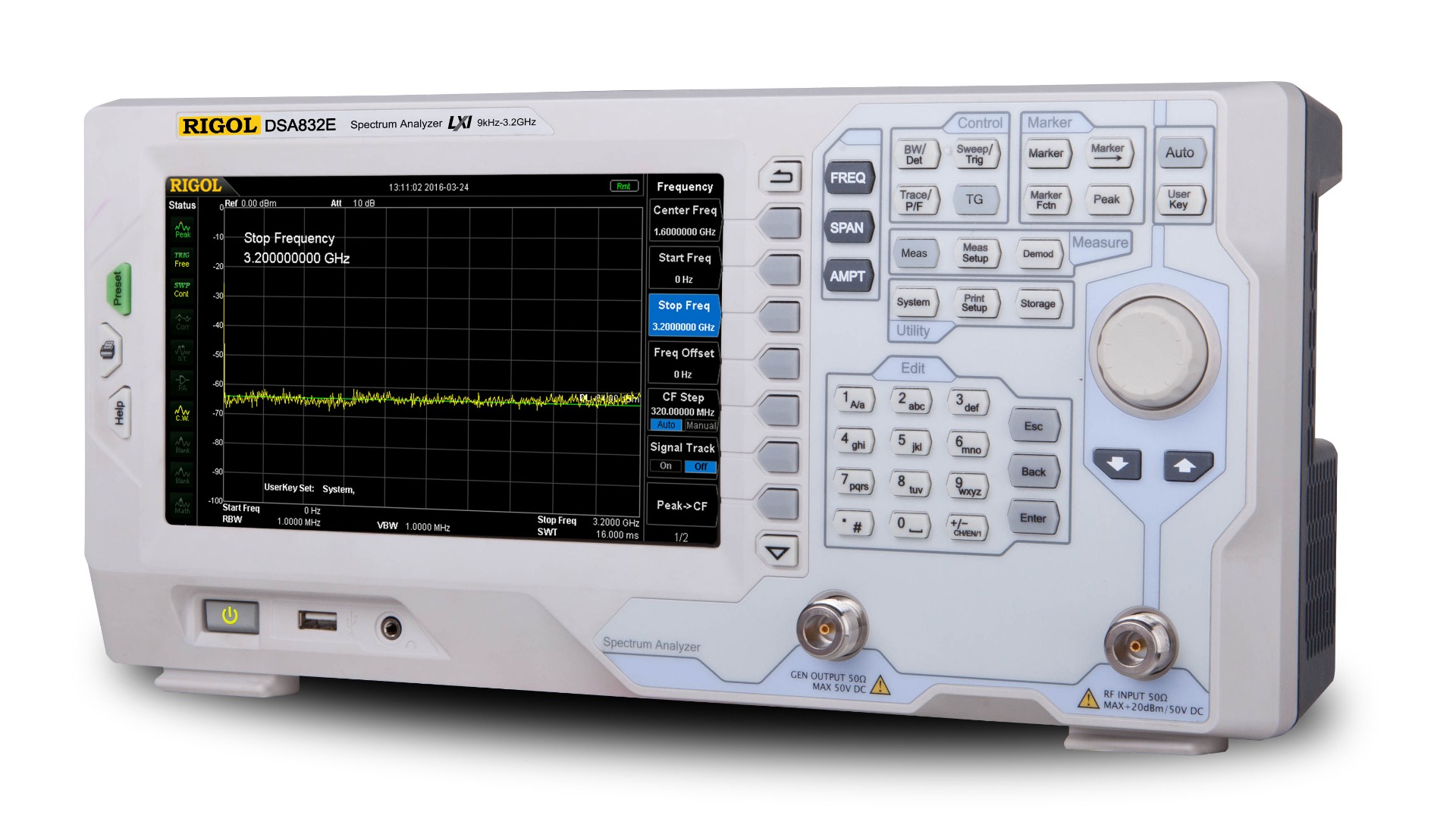

RIGOL Spectrum Analyzer DSA832E
In stock
SKU
DSA832E
Spectrum analyzer from 9 kHz to 3.2 GHz，EU Cable
Deliver in
3 weeks
The highest frequency: 3.2 GHz
Displayed Average Noise Level (DANL): <-161 dBm (Typical)
Phase Noise: <-98 dBc/Hz @ 10 kHz offset (Typical)
Level Measurement Uncertainty: <0.8 dB
Minimum Resolution Bandwidth (RBW): 10 Hz
EMI Filter and Quasi-Peak Detector Kit (Option)
VSWR Measurement Kit (Option)
AM/FM Demodulation Function
Various measurement functions (option)
8 inch (800×480 pixels) high-definition display with clear, vivid, and easy-to-use graphical interface
Various interfaces such as LAN, USB Host, USB Device and GPIB (option)
10Hz Resolution Bandwidth
The DSA800 with RF technology to provide a resolution bandwidth as low as 10 Hz, which can effectively distinguish adjacent equal-amplitude signals and improve signal discrimination.
DANL: -161 Dbm with Optional Preamp
View lower powered signals (harmonics, interference sources) and ease trouble-shooting in swept and real-time mode.
EMI Pre-compliance Measurement
EMI filter (6 dB) and quasi-peak detectors make EMI pre-test/diagnostics more accurate, complete with complete software and report generation
Tracking Source and VSWR Function
DSA800 series with VSWR measurement capability, with tracking source model (-TG), with VSWR bridge for voltage standing wave ratio test
UnltraSpectrum Software
The optional UltraSpectrum software can not only complete the control of the spectrum analyzer, but also provide powerful display and analysis functions such as spectrum and waterfall.
