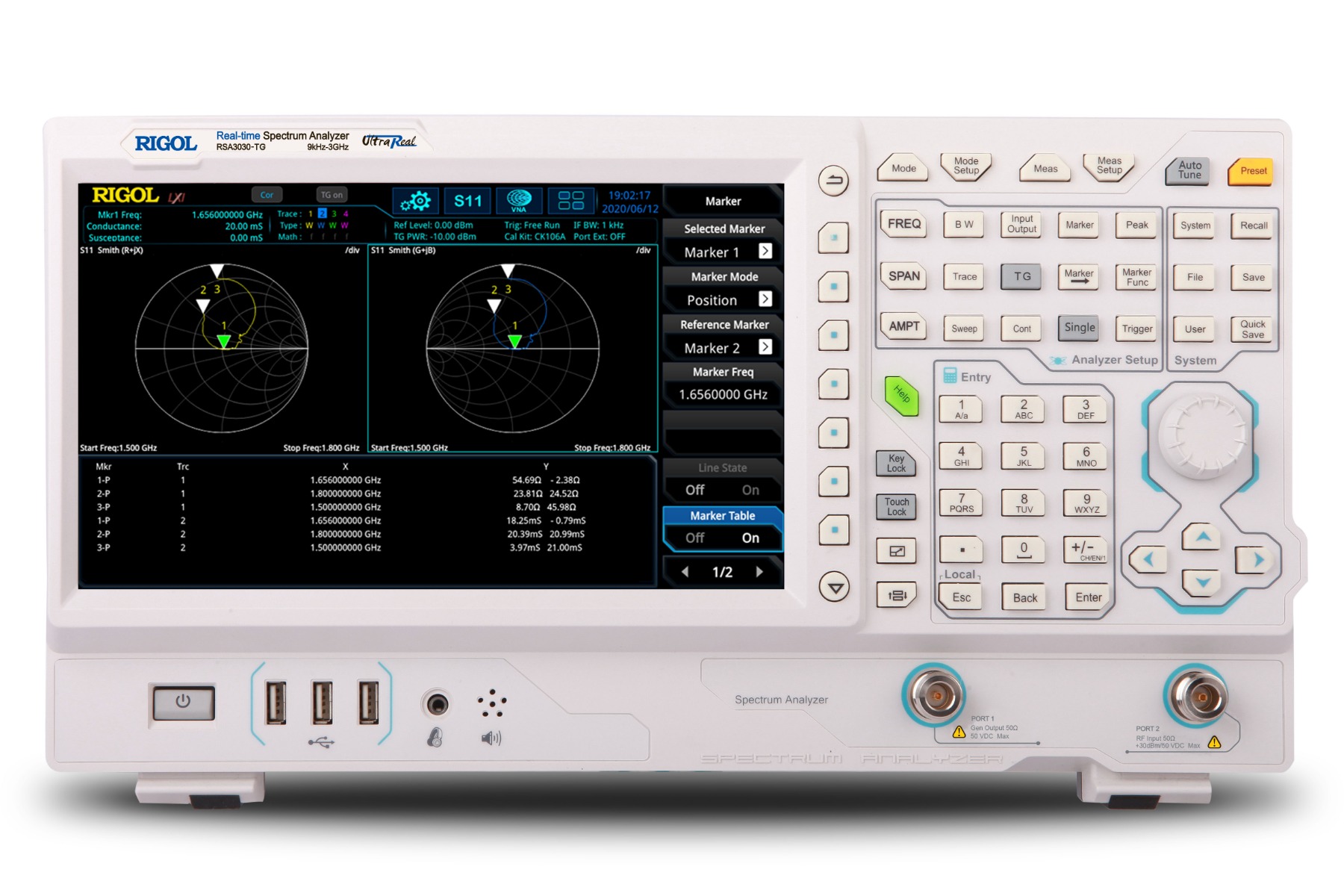

Spectrum Analyzer RSA3030E-TG

In stock
SKU
RSA3030E-TG

Real-time spectrum analyzer from 9 kHz to 3 GHz bandwidth, up to 10 MHz real-time bandwidth, 10 Hz - 10 MHz RBW and a 25.6 cm (10.1") touchdisplay with 1024x600 pixel. Incl. tracking generator.



Deliver in
3 weeks
€3,399.00 €4,044.81

The Rigol RSA3000E series is a compact and light weight spectrum analyzer series with premium performance standard spectrum analysis capabilities combined with a Real-Time Spectrum Analyzer which makes it possible to never miss any signal that is longer than 7.45 µs in duration. Engineers integrating WiFi, Bluetooth and other modern RF technologies are confronted with complex challenges like frequency hopping signals, channel conflict, and spectrum interference.

Real-Time Spectrum Analyzers bring the dimension of time to RF Analysis making it easier to monitor and characterize these complex RF systems.

The RSA3000E combines industry leading Realtime performance (7.45µs 100% POI), rich data displays, and advanced triggering options allowing the user to quickly capture, identify and analyze these complex events.

Rigol's new RSA3000E series spectrum analyzers redefines the product category of general purpose spectrum analyzer by adding Real-Time spectrum trigger and analysis capabilities and sets a new level performance and price.

The RSA3000E family features a 10.1” touchscreen display, compact design and easy-to-use interface and operations, making it ideal for benchtop or field apps in RF and wireless testing and production such as IoT, RFID, analog and digital modulated signals.

Embedded-System-Designer can cross trigger and analyze bus signals like IC2, SPI with RF Signals.

The Real-Time-Bandwidth of 10 MHz and the Frequency-Mask-Trigger let you visualize, isolate and capture signals to analyze their behavior over amplitude, frequency and time.

The new spectrum analyzer offers the ability to trigger and capture signals by 100% if longer than 7.45 µs in duration.

The RSA3000E have RBW settable down to 10 Hz, a DANL (displayed average noise level) down to -161 dBm (typical) and a 1ms Full Span Sweep in its general-purpose spectrum analyzer mode.

EMI filter and detector such as 9KHz, 120kHz and Quasi-Peak as example are standard.

Extendibility: Pre-Amplifier, High Stability Clock, Advanced Measurement Kit, EMI Pre-compliance Test Software can be added optional.

RSA3000E SERIES

  • 9 kHz to 3 or 4.5 GHz Frequency Range
  • 10.1” Capacitive touchscreen display
  • Displayed Average Noise Level as low as -161 dBm with opt. PreAmplifier
  • Real-Time Analysis Bandwidth of 10 MHz standard (40 MHz option)
  • Frequency-Mask-Trigger, IF-Power-Level-Trigger and external Trigger
  • 7 Real-Time visualization modes
  • 100 % POI as low as 7. 45 µs
  • 10 Hz Minimum Resolution Bandwidth (RBW) (1 Hz option)
  • 1 ms full span sweep speed
  • EMI RBW and Detector standard (200 Hz, 9 kHz, 120 kHz, 1 MHz)
  • Tracking Generator and VSWR measurements available
Overview RSA3000E
Frequency Range 9 kHz - 3 GHz
Frequency Resolution 10 HZ
Span 0 Hz (zero Span), 10 Hz - 3 GHz
DANL -136 dBm (-161 dBm with optional preamplifier)
Display 25,7 cm (10.1") TFT-Color-LCD Touchdisplay (1024 × 600 Pixel)
Interfaces USB-Host, USB, LAN, GPIB
Dimensions 410 mm × 224 mm × 135 mm
Weight 4.65 kg



Models Max. Bandwidth EMI/QuasiPeak Adv. Meas. Kit Preamplifier Tracking Generator
RSA3015E 1.5 GHz Option Option Option
RSA3015E-TG 1.5 GHz Option Option Option yes
RSA3030E 3 GHz Option Option Option
RSA3030E-TG 3 GHz Option Option Option yes





Conduction/Radiation Pre-compliance with Built-in Emi Test Software

The RSA3000E's built-in EMI pre-compliance application software, combined with CISPR-compliant filters, pre-tests the product for conduction and radiation to identify and improve its conduction/radiation disturbance source and accelerate time-to-market.



Resolution Bandwidth As Low As 1 Hz

Resolving signals with similar frequencies is critical to verifying many RF devices and systems. With the RSA3000E, the RBW resolution bandwidth with a scan bandwidth of only 1 Hz allows you to view more details of adjacent signals.



Danl As Low As -161 Dbm with Optional Preamp

View lower powered signals (harmonics, interference sources) and ease trouble-shooting in swept and real-time mode.



ASK/FSK Demodulation Analysis

ASK/FSK demodulation analysis software can help engineers demodulate and analyze signals such as TPMS, PKE/RKE, and obtain parameters of signal modulation quality to help products get listed quickly.



Excellent Phase Noise Metric

Excellent sweep performance, phase noise as low as -102dBc/Hz



Complete Operations with a Multi-touch Screen

RSA3000E with a 10.1-inch multi-touch capacitive screen with quick setup, and support a variety of gestures such as dragging, expanding, and zooming waveforms to provide a personalized interactive experience that maximizes your time.
