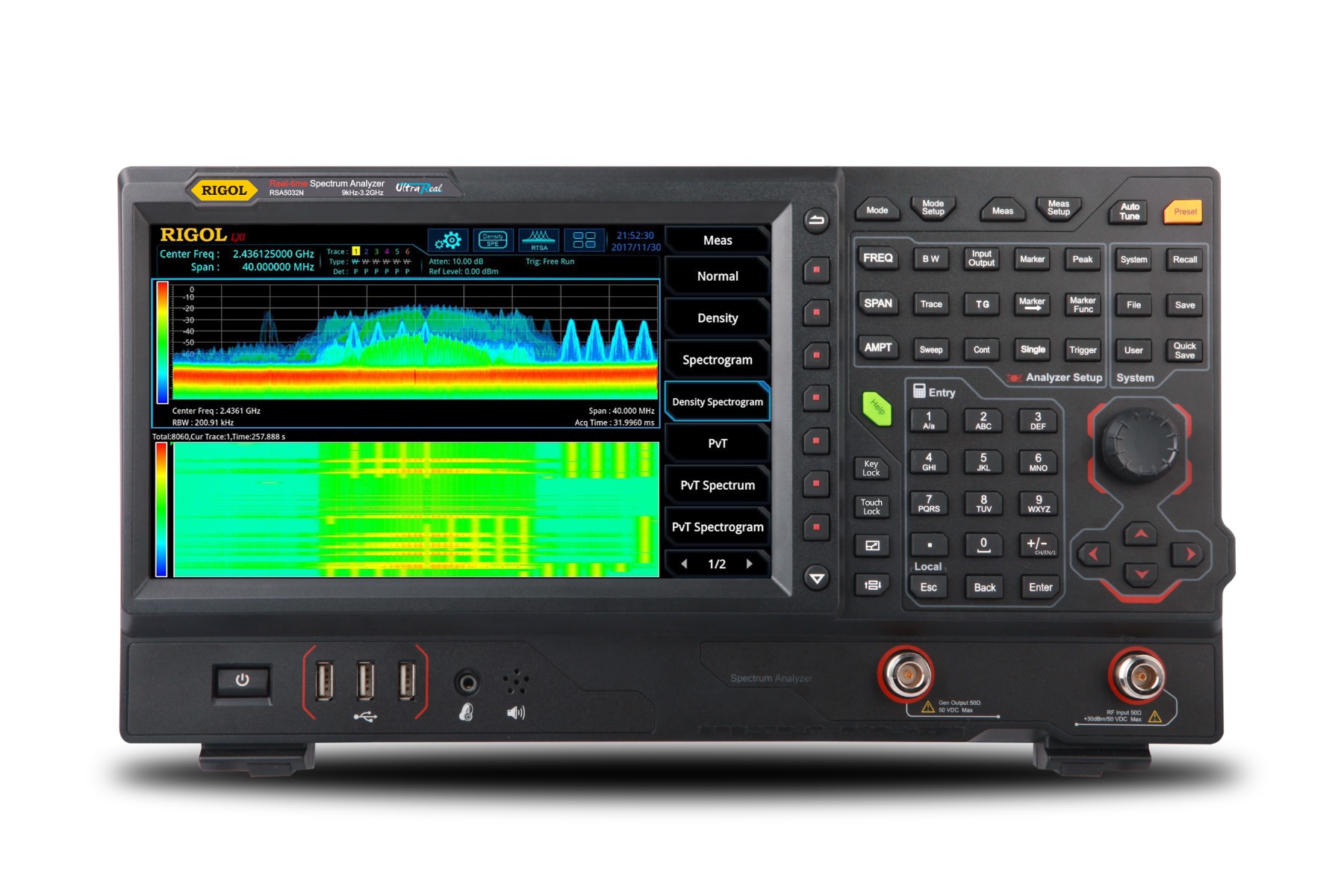

RIGOL Spectrum Analyzer RSA5032N
In stock
SKU
RSA5032N
Real-time spectrum analyzer from 9 kHz to 3.2 GHz bandwidth, up to 40 MHz real-time bandwidth, 1 Hz - 10 MHz RBW and a 25.6 cm (10.1") touchdisplay with 1024x600 pixel. Including Tracking Generator 100 kHz - 3.2 GHz and Vector Network Analyzer, EU Cable
Deliver in
1 week
- Ultra-Real technology
- Frequency: 3.2 GHz
- Displayed average noise level (DANL): <-165 dBm (typical)
- Phase noise: <-108 dBc/Hz (typical)
- Level measurement uncertainty: <0.8 dB
- 2 GHz tracking generator
- RBW 1 Hz
- EMC filter and quasi-peak detector
- Various measurement functions
- Multiple measurement modes
- Up to 40 MHz real-time analysis bandwidth
- Multiple trigger modes and trigger masks
- Density, Spectrogram, and other display modes
- PC software options
- 1'' capacitive multi-touch screen, supporting touch gestures
- USB, LAN, HDMI and other communication and display interfaces
- Vector Network Analyzer
Built-in Vector Network Analysis mode
In VNA mode, you can make S11, S21, and DTF measurements for the components and circuit networks. The network characteristics of the components under test can be accurately demonstrated in Smith chart, Polar chart, and other formats.
Discover Transient Anomalies Through Ultra Real Technology
The RSA5000 delivers up to 40MHz of real-time bandwidth using the original Ultra Real technology. In the real-time bandwidth range, transient signals exceeding 7.45us duration can be guaranteed to be 100% captured and accurately measured.
Discover Problems in Design with Vector Analysis
Vector Signal Analysis Function supports a variety of digital modulation formats such as QAM, PSK, MSK, ASK, FSK, etc. This function is used to quickly demodulate and display multi-dimensional data such as its constellation, eye diagram (baseband signal), spectrogram, demodulation data, etc., to discover problems in the design.
Conduction/radiation Pre-testing with Built-in Emi Test Software
The RSA5000's built-in EMI pre-test application software, combined with CISPR-compliant filters, pre-tests the product for conduction and radiation to identify and improve its conduction/radiation disturbance source and accelerate time-to-market.
Signal Triggering and Monitoring Via FMT Template
The FMT frequency mask trigger is a unique trigger mode for real-time spectrum analyzers. You can quickly build a template and accurately locate and trigger signals that match the template rules to detect sporadic anomalies within the monitored range. You can use the RSA5000 to provide a 10.1-inch multi-touch capacitive screen for quick setup, and support a variety of gestures such as dragging, expanding, and zooming waveforms to provide a personalized interactive experience that maximizes your time.
Excellent Phase Noise Metric
Excellent sweep performance, phase noise as low as -108dBc/Hz
Multiple interfaces to improve the connectivity of the instruments
The instrument can be connected to a larger display/monitor via the HDMI interface for better display effects. The Web Control function allows you to directly control the device by accessing the device IP address, improving the experience of remote control.
Quickly Complete Operations with a Multi-touch Screen
You can use the RSA5000 to provide a 10.1-inch multi-touch capacitive screen for quick setup, and support a variety of gestures such as dragging, expanding, and zooming waveforms to provide a personalized interactive experience that maximizes your time.
7 Real-time Display Modes
The RSA5000's seven real-time signal display modes make it easier to capture, isolate and analyze RF signals and systems. The power vs. time and spectrograms shows how the signal varies with the acquisition time or continuous acquisition time. Combining these presentations with markers and triggers in different modes makes the RSA5000 a flexible tool for real-time RF analysis and debugging.
