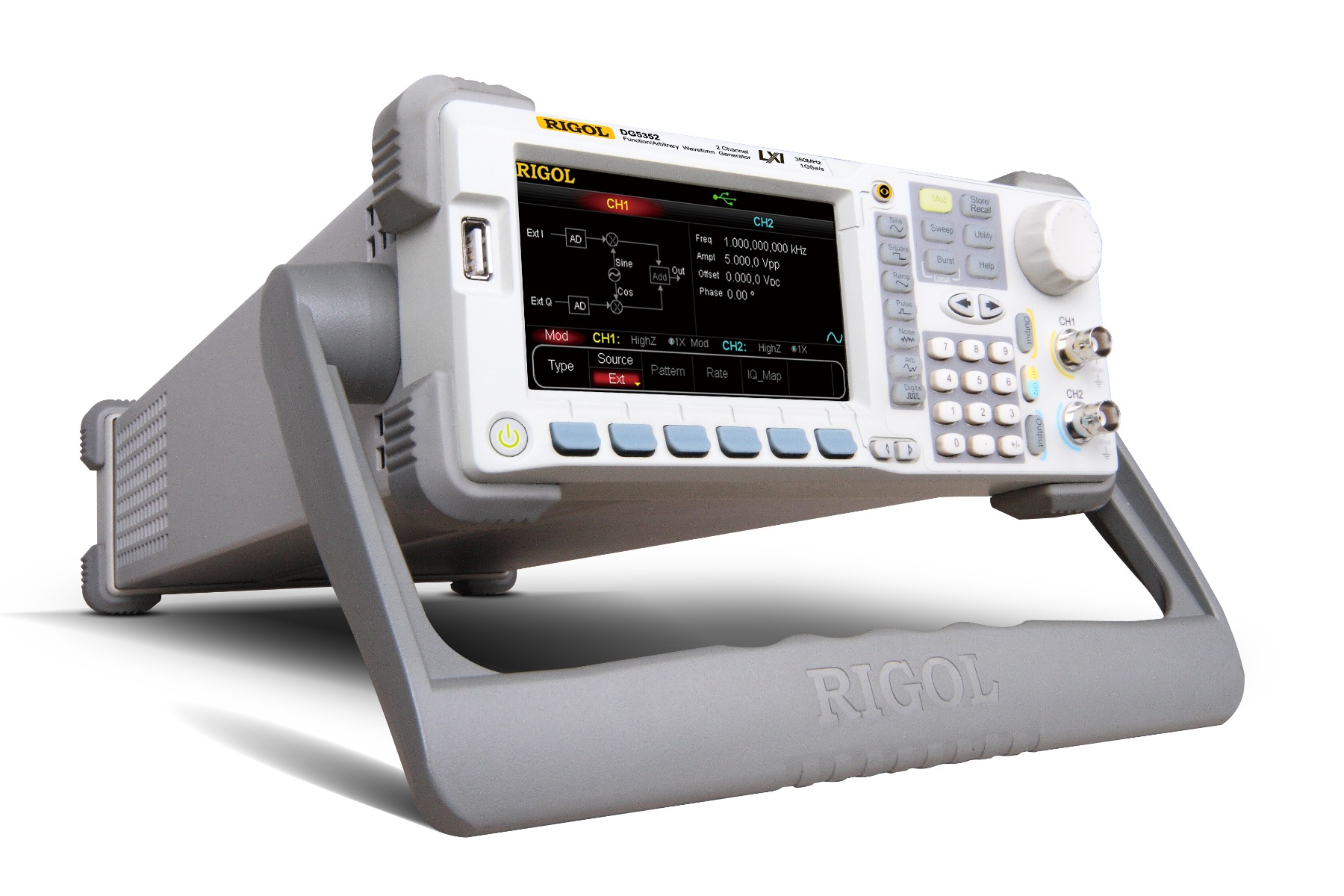

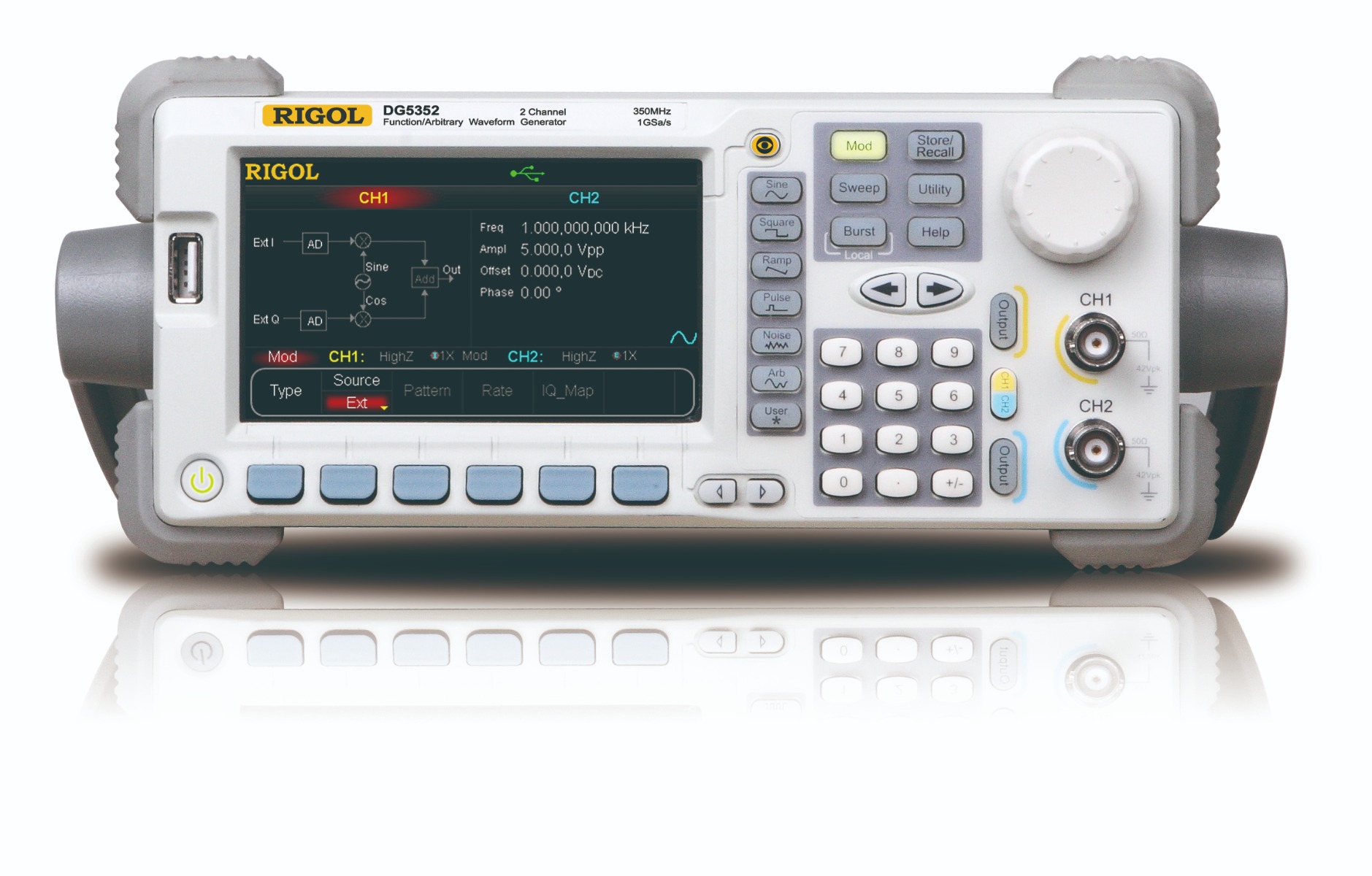

RIGOL Waveform Generator DG5352
In stock
SKU
DG5352
350MHz, 2CH, 1GSa/s, 14bits, 128Mpts Arbitrary Memory Depth,EU Cable
Deliver in
3 weeks
- 350 MHz maximum sine output frequency, 1 GSa/s sample rate, 14 bits resolution.
- Dual-channel model. The dual-channel model supports frequency and phase coupling.
- The 16+2 channels digital output module (optional) together with the analog channel can rebuild the more mixed signals in daily practice.
- Support an external power amplifier (optional) that can be configured online.
- Support frequency hopping output (optional) with hopping interval up to 80ns and arbitrary editing of frequency hopping patterns.
- 14 standard waveform functions: Sine, Square, Ramp, Pulse, Noise, Sinc, Exponential Rise, Exponential Fall, ECG, Gauss, Haversine, Lorentz, Dual Tones and DC.
- Rise/Fall Time of the Pulse could be adjusted separately.
- Enable to edit arbitrary waveform up to 512 kpts and output arbitrary waveforms up to 128 Mpts.
- Support AM, FM, PM, ASK, FSK, PSK and PWM modulations.
- Support user-defined IQ vector signal modulation and IQ baseband/IF source output.
- Support Frequency Sweep and Burst output.
- Abundant I/O: waveform output, synchronous signal output, modulation input,10 MHz clock input/output, trigger input/output.
- Enable to store and recall waveform data and instrument state, and support versatile file types. Standard configuration with 1 GBytes flash memory.
- Plenty of standard interfaces: double USB Hosts, USB Device, LAN, and GPIB (IEEE-488.2).
- Seamlessly interconnected with RIGOL USB-TMC digital oscilloscopes for loading and reappearing waveforms.
- Support USB flash device storage for FAT files.
- Support PictBridge printer.
- Provide security lock hole.
- Support remote control through 10/100M Ethernet web.
- Conform to LXI-C instrument standards (Version 1.2).
- Provide Chinese and English built-in help and input methods.
- Provide powerful waveform editing PC software.
- 4.3 inches, 16M true color TFT LCD.
1GSa/s Sampling Rate, 14Bits Vertical Resolution
The frequency of any wave is up to 50MHz, and the sampling rate can be adjusted in the playback mode. The amplitude accuracy reaches 1% ± 1mvpp of ± setting value.
Rich Sweep Function
DG5000 supports scanning output from low frequency to high frequency or from high frequency to low frequency. The scanning type includes linear, logarithmic and step. It can set the "mark" frequency to meet the needs of more amplitude frequency test applications.
Rich Analog / Digital Modulation Functions
Modulation types include am, FM, PM, ask, FSK, PSK, PWM, and support internal and external modulation sources to meet the needs of more teaching or communication system testing.
Support Frequency Hopping Function
The minimum frequency hopping interval is 80ns, and 4096 frequency hopping points can be edited at most. It can meet the common needs of FH communication teaching and related tests.
Support Internal And External IQ Modulation Function
The modulation mode includes 4QAM, 8qam, 16QAM, 32qam, 64QAM, BPSK, QPSK, OQPSK, 8PSK, 16PSK, and supports internal and external modulation sources.
Rich Interfaces
It provides standard USB, GPIB, LAN (LXI) remote communication interface and adopts standard visa driver, which is convenient for system integration customer's test requirements. 16 channels of digital signals can be output by selecting digital logic output module dg-pod-a to realize the function of analog mixed signal generator.
