| Model | Market Price | Price | Delivery | Max. Ferquency Range | Amplitude Indicators Range | SSB Phase Noise | Modulation Function | Amplitude Accuracy (Typical) | Operation |
|---|---|---|---|---|---|---|---|---|---|
| RIGOL RF Signal Generator DSG821A | €3399.00 |
€3399.00
|
9kHz~2.1GHz | -110dBm~+13dBm | <-112dBc/Hz@1GHz20KHz offset | AM/FM/ØM/Pulse/IQ | <0.5dB | ||
| RIGOL RF Signal Generator DSG830 Refurbished | €3380.00 |
€2366.00
|
2-3 Working Days | ||||||

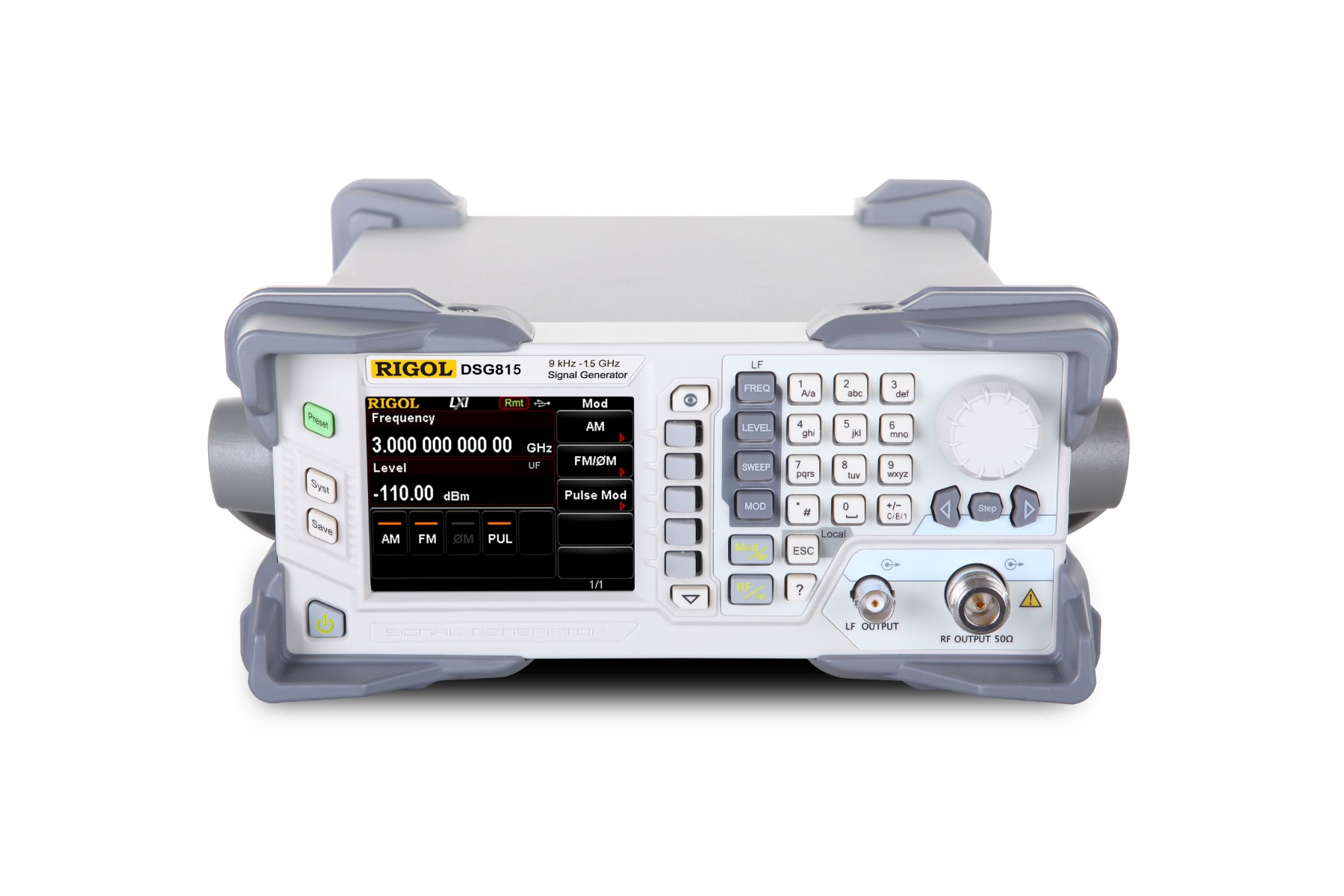

| RIGOL RF Signal Generator DSG815 | €1969.00 |
€1969.00
|
2-3 Working Days | 9kHz~1.5GHz | -110dBm~+13dBm | <-112dBc/Hz@1GHz20KHz offset | AM/FM/ØM/Pulse | <0.5dB | |
| RIGOL RF Signal Generator DSG821 | €2199.00 |
€2199.00
|
1 Week | 9kHz~2.1GHz | -110dBm~+13dBm | <-112dBc/Hz@1GHz20KHz offset | AM/FM/ØM/Pulse | <0.5dB | |
| RIGOL RF Signal Generator DSG836 | €3569.00 |
€3569.00
|
2-3 Working Days | 9kHz~3.6GHz | -110dBm~+13dBm | <-112dBc/Hz@1GHz20KHz offset | AM/FM/ØM/Pulse | <0.5dB | |
| RIGOL RF Signal Generator DSG836A | €4699.00 |
€3809.19
|
1 Week | 9kHz~3.6GHz | -110dBm~+13dBm | <-112dBc/Hz@1GHz20KHz offset | AM/FM/ØM/Pulse/IQ | <0.5dB |
-
Support Multiple Modulation MethodsStandard amplitude modulation, frequency modulation, equal modulation analog modulation and pulse modulation and pulse generator, optional user-defined pulse sequence, and I / Q modulation and IQ baseband generator can generate QAM, ASK, PSK, FSK, Various commonly used modulation signals such as MSK; all modulations support internal and external modulation sources -
Powerful Pulse ModulationIt produces high quality pulse modulated signals with rise/fall times typically less than 10 ns and on/off ratios greater than 70 dB. Support for internal and external modulation. Built-in pulse generator can generate pulse sequence and output to the outside as a separate pulse generator -
Excellent Phase NoiseHigh signal purity, phase noise typical value <-112dBc/Hz@20kHz, similar products in the United States; better high-stability clock reference can get better near-phase noise index -
Wide Range of High Power OutputMaximum output amplitude is +13dBm (nominal value), and can be set to +20dBm to meet the nonlinearity test of the amplifier. -
Amplitude Stability0.02dBExcellent repeatability provides engineers with sufficient test confidence that the 72-hour output amplitude variation is less than 0.02dB
| Picture | Product Name | Market Price | Total | Delivery | Description | Operation |
|---|---|---|---|---|---|---|
|
RM-1-DG1000Z |
€99.00
|
€99.00 | 1 Week |
Add To Cart
|
Firmware Download
| File Name | Version | Release Date | Operation |
|---|---|---|---|
| DSG800(ARM)update | 00.01.09.00.00 | 2026-04-15 | Download |
