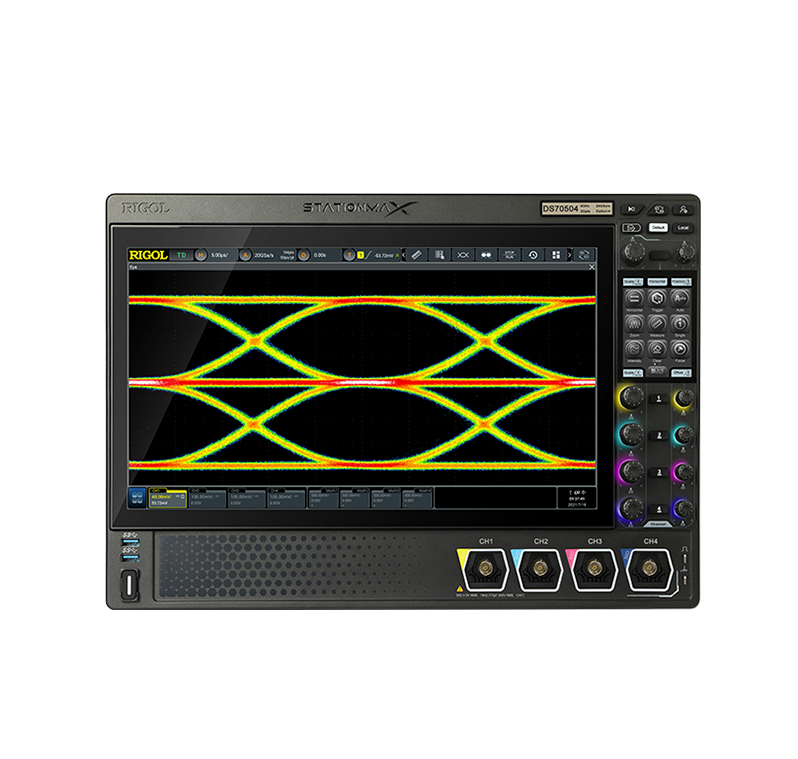

RIGOL Digital Oscilloscope DS70504

RIGOL Digital Oscilloscope DS70504

5GHz，20GSa/s，500Mpts，4 channel

Bandwidth 5GHz

Analog Channels 4

Max. Real-time Sample Rate 20GSa/s

Max. Memory Depth 2Gpts(opt.)

Waveform Capture Rate 1,000,000 wfms/s

Delivery：1 Month

Standard Accessories

Quantity：

€26490.00 excl. VAT

€31523.10 incl. 19% VAT

Buy Now Add to cart Add to wish list

Description
DS70000 Oscilloscope Model
Feature & Video
Software ＆ Firmware
Datasheet & Manual Download

Add To Cart

<strong>Product Features</strong><div><ul>
	<li>Channels: 4 analog channels, 1 EXT channel • Analog channel bandwidth: 5 GHz</li>
	<li>Maximum real-time sampling rate: 20 GSa/s • Maximum memory depth: 2 Gpts</li>
	<li>Waveform capture rate: > 1,000,000 wfms/s</li>
	<li>Vertical sensitivity range: 1mV/div to 10V/div (1MΩ), 1mV/div to 1V/div (50Ω)</li>
	<li>Time base range: 50 ps/div to 1000s/div</li>
	<li>Up to 2 million frames of hardware-based real-time waveform recording and playback</li>
	<li>Combines five independent instruments into one: oscilloscope, spectrum analyzer (optional), digital voltmeter, 8-digit frequency counter and totalizer, and protocol analyzer (optional)</li>
	<li>Comprehensive trigger functions: edge, pulse width, slope, video, pattern, duration, timeout, runt pulse, overshoot, delay, setup and hold, and Nth trigger. Edge, RS232, I2C, SPI, CAN, FlexRay, LIN, I2S, MIL-STD-1553</li>
	<li>Extensive serial bus decoding functions (optional): RS232, I2C, SPI, CAN, FlexRay, LIN, I2S, MIL-STD-1553, CAN-FD, supporting four decoding channels</li>
	<li>Automatic measurement of up to 41 waveform parameters, including full-memory hardware measurement capabilities</li>
	<li>Various math operations: Addition, subtraction, multiplication, division, FFT, AND, OR, NOT, XOR, Intg, Diff, Lg, Ln, Exp, Sqrt, Abs, AX+B, low-pass, high-pass, band-pass, and band-stop filters, with built-in FFT analysis and peak search functions</li>
	<li>Optional real-time eye diagram and jitter analysis functions (optional)</li>
	<li>Unique UltraVision III technology platform</li>
	<li>Comprehensive interfaces: USB Host & Device, LAN (LXI), HDMI, AUX OUT, and Web Control remote control support</li>
	<li>15.6 The 1.5-inch high-definition multi-touch screen features electrically adjustable tilt and flexible support for multi-window split-screen display. The knob uses a photoelectric encoder, guaranteeing a service life of over 100,000 presses and 1 million rotations, significantly extending its lifespan. The high-definition intelligent feedback keyboard allows customers to customize the shortcut menu based on their usage habits. The electronic signage displays the product model and key specifications, and updates with option upgrades, maintaining the displayed content for 20 years. Supports online version upgrades.</li>
</ul>
</div>

Model	Market Price	Price	Delivery	Bandwidth	Analog Channels	Max. Real-time Sample Rate	Max. Memory Depth	Waveform Capture Rate	Operation
RIGOL Digital Oscilloscope DS70504	€26490.00	€26490.00	1 Month	5GHz	4	20GSa/s	2Gpts(opt.)	1,000,000 wfms/s
RIGOL Digital Oscilloscope DS70304	€19590.00	€19590.00	1 Month	3GHz	4	20GSa/s	2Gpts(opt.)	1,000,000 wfms/s

Digital Oscilloscope with Real‐Time Spectrum Analysis to 5 GHz

Up to 5 GHz Bandwidth and 20 GSa/sec Sample Rate
Waveform Capture Rate

View infrequent anomalies and small signal details quickly and precisely with up to 1 Million waveforms visualized on the screen every second.
2 Billion Points of Memory

500 Mpts memory depth is standard and can be upgraded to 2 Gpts memory depth (Half-channel 1 Gpts) Full 100 millisecond capture at max sampling rate of 20 GSamples per second Capture half a Billion periods of a 5 GHz signal in one continuous data stream Memory can also be segmented to record up to 2 Million frames in record mode
16 bits Vertical Resolution

Up to 16 bit resolution High resolution mode: 9-16 bits Directly select the number of bits
Multiple Touchscreens for efficient visualization

15.6” auto-tilt primary touchscreen display Secondary touchscreen reserves main screen for analysis
Multi Window User Interface

Analysis tools and functions open in separate windows that optimize scale and axis settings Measurements open in separate sidebar

File Name	Version	Release Date	Operation
DS70000 Firmware	V00.06.01	11/26/2024	Download

File Name	Version	Release Date	Operation
Ultra Sigma (PC) Installer	V00.01.06.01	1/25/2024	Download
Ultra Sigma Help Document	V1.0	1/25/2024	Download
Ultra Sigma patch file for Screenshot	V1.1	1/25/2024	Download

Manual Download

File Name	Version	Release Date	Operation
DS70000 Datasheets	V2.0	11/26/2024	Download
DS70000 Open Source Statement	V1.0	1/25/2024	Download
DS70000 Programming Manual	V2.0	11/26/2024	Download
DS70000 QuickGuide	V1.0	2/28/2022	Download
DS70000 User Manual	V1.0	2/28/2022	Download
