Model | Market Price | Price | Delivery | Bandwidth | Analog Channels | Max. Real-time Sample Rate | Digital Channels | Built-in Signal Source | Sample Rate | Waveform Capture Rate | Operation |
---|---|---|---|---|---|---|---|---|---|---|---|

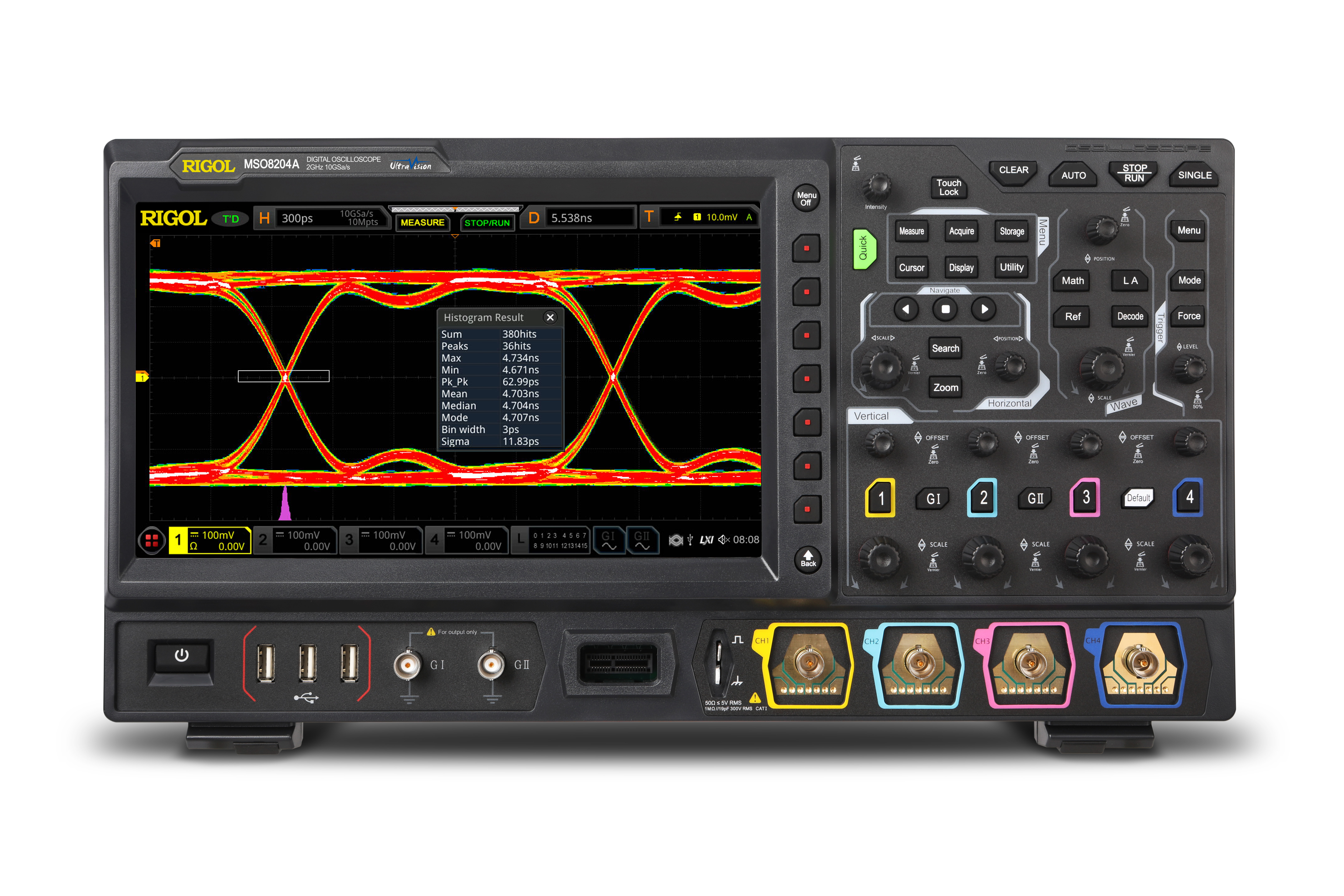

RIGOL Digital Oscilloscope MSO8204A | €9899.00 |
€9899.00
|
about one month | 2GHz | 4 | 10GSa/s | 16(Probe opt.) | 25MHz, 2CH(opt.) | 10GSa/s | 600,000 wfms/s | |
RIGOL Digital Oscilloscope MSO8154A | €7899.00 |
€7899.00
|
1 Month | 1.5GHz | 4 | 10GSa/s | 16(Probe opt.) | 25MHz, 2CH(opt.) | 10GSa/s | 600,000 wfms/s | |
RIGOL Digital Oscilloscope MSO8074A | €6399.00 |
€6399.00
|
1 Month | 750MHz | 4 | 10GSa/s | 16(Probe opt.) | 25MHz, 2CH(opt.) | 10GSa/s | 600,000 wfms/s |
-
Excellent bandwidth and sampling rate..The MSO8000A series digital oscilloscope provides you with the highest 3GHz analog bandwidth and 10GSa/s sampling rate. The low bandwidth model can be upgraded to 3GHz (single channel mode) through software at any time, ensuring you have higher signal fidelity and a resolution as low as 100ps (up to 2ps at a minimum time base) to view small waveform details.
-
Economical and practical eye chart pre testing..Using an oscilloscope for eye pattern measurement can help users visually display the transmission quality of digital signals, thereby understanding the strength of inter code interference in the system and making improvements in system design. For situations that often require quality verification of digital signals, the MSO8000A digital oscilloscope with eye graph function is undoubtedly your wise choice.
-
Jitter analysis supporting diversified displays...
-
Capture rate up to 600kwfms/s..The waveform capture rate of up to 600000 wfms/s can reduce the Dead time and make it easier to find burrs and other accidental events in the signal, thus greatly improving the debugging efficiency of engineers.
-
Full memory hardware measurement..No longer limited to the waveform effect visible on the screen, accurate results can still be obtained for multi cycle high-frequency signal testing.
-
500Mpts deep storage, up to 450000 frames of hardware waveform recording..The MSO8000A series comes standard with a storage depth of 500Mpts, and the hardware waveform recording function adopts segmented storage technology. It can selectively capture and store signals of user concern by setting triggering conditions, and mark the time on the signals. This not only ensures the efficiency of capture, but also further expands the total time for waveform observation.
Firmware Download
File Name | Version | Release Date | Operation |
---|---|---|---|
MSO8000A Firmware | v00.03.01 | 2/29/2024 | Download |
Manual Download
File Name | Version | Release Date | Operation |
---|---|---|---|
MSO8000A Datasheets | V1.0 | 2/29/2024 | Download |
MSO8&DS7000&8000 Open Source Acknowledgment | V1.0 | 11/1/2021 | Download |
MSO8000A Performance Verification Guide | V1.0 | 2/29/2024 | Download |
MSO8000A Programming Manual | V1.0 | 2/29/2024 | Download |
MSO8000A Quick Guide | V1.0 | 2/29/2024 | Download |
MSO8000A RackmountKit Manual | V1.0 | 2/29/2024 | Download |
MSO8000A User Manual | V1.0 | 2/29/2024 | Download |
