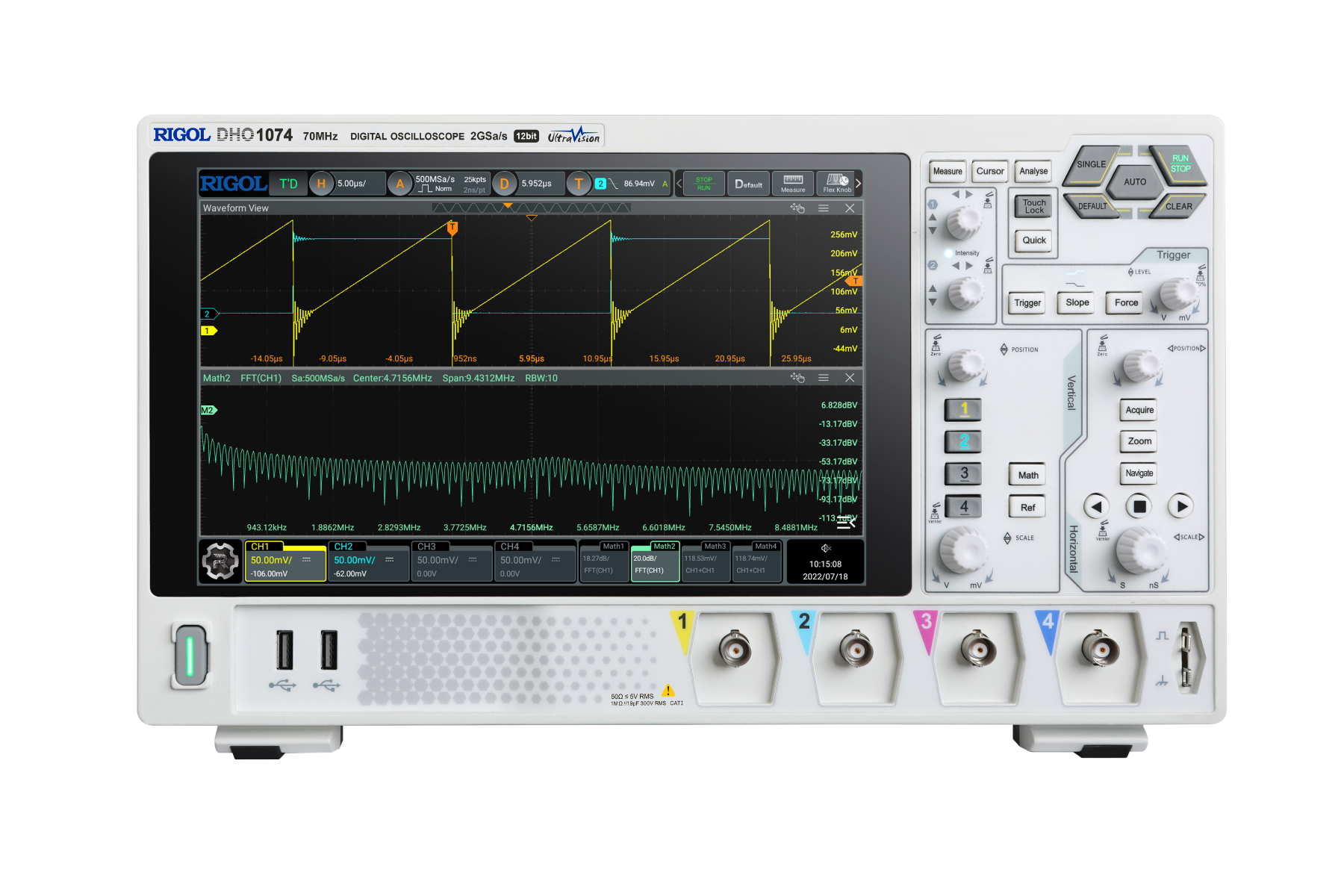

RIGOL Digital Oscilloscope DHO1074
NEW! 70 MHz, 4 analog channels and 1 EXT channel, Real-time sample rate up to 2 GSa/s, Memory Depth up to 100 Mpts (optional), 12-bit vertical resolution, Up to 1,500,000 wfms/s waveform capture rate, 10.1'' 1280*800 HD touch display,EU Cable
- Brand-new chipset "Centaurus" developed by RIGOL
- Analog channel bandwidth: 70 MHz
- 4 analog channels and 1 EXT channel
- 12-bit vertical resolution
- Real-time sample rate up to 2 GSa/s
- Ultra-low noise floor for cleaner signals, measuring small signals accurately
- Memory Depth up to 100 Mpts (optional)
- Vertical sensitivity range: 500 μV/div to 10 V/div
- Up to 1,500,000 wfms/s waveform capture rate with the UltraAcquire mode
- 10.1'' 1280*800 HD touch display
- User-friendly Flex Knobs, bringing smoother interaction
- Standard photoelectric encoder operating knobs, effectively prolonging its service life

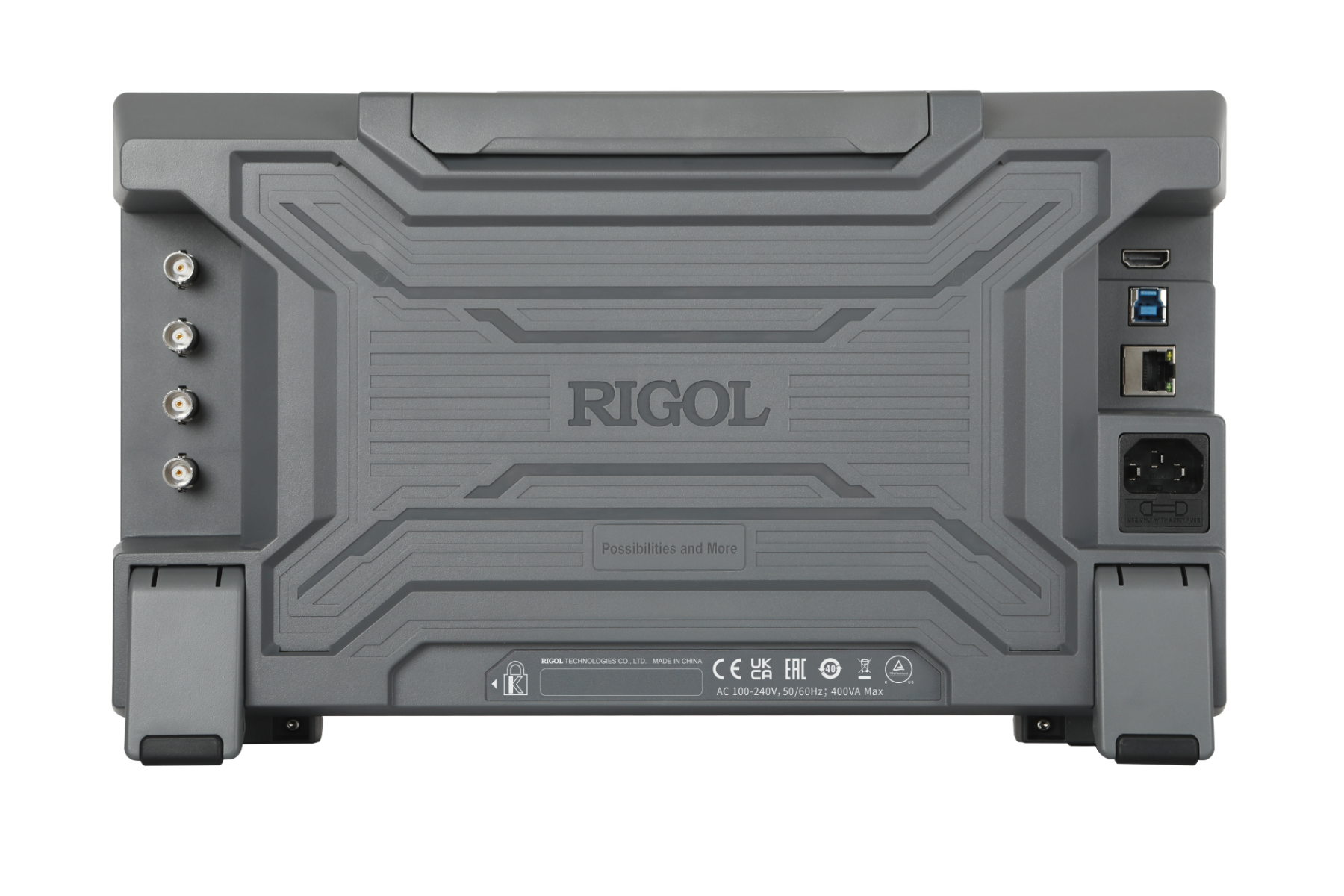

- Standard USB Device & Host, LAN, and HDMI interfaces
![](https://rigolshop.eu/pub/media/wysiwyg/product_pic/hdo1000/feature/12bit.png)
12bit High Resolution
..12bit vertical resolution 4096 levels of quantization, 16 times the quantization level of 8bit, small signal testing is handy.
![](https://rigolshop.eu/pub/media/wysiwyg/product_pic/hdo1000/feature/UltraAcquire.png)
UltraAcquire Condensation Acquisition Mode
..Provides UltraAcquire condensation acquisition mode, up to 1,500,000wfms/s high waveform capture rate, do not miss any abnormal waveform.
![](https://rigolshop.eu/pub/media/wysiwyg/product_pic/hdo1000/feature/10.1-InchScreen.png)
10.1-Inch High-Resolution Touch Screen
..Provides a 10.1-inch high-resolution touch screen, making human-computer interaction more convenient.
![](https://rigolshop.eu/pub/media/wysiwyg/product_pic/hdo1000/feature/FlexKnob.jpg)
Flex Knob
..Double multi-function knob design, no more complicated switching steps of a single knob, and achieve more efficient interaction.
![](https://rigolshop.eu/pub/media/wysiwyg/product_pic/hdo1000/feature/PhotoelectricEncoder.png)
Photoelectric Encoder
..Standard photoelectric encoder, 34-year long service life, protect your fixed assets.
![](https://rigolshop.eu/pub/media/wysiwyg/product_pic/hdo1000/feature/models.png)
Software Download | Description | File Size | Version | Release Date |
---|---|---|---|---|
DHO4000 and DHO1000 IVI PNP driver | DHO4000 and DHO1000 IVI PNP driver | 7.58 MB | latest | 05.2023 |
Firmware Download | Description | File Size | Version | Release Date |
---|---|---|---|---|
DHO1000/DHO4000_Firmware | DHO1000/DHO4000 Firmware | 74.45 MB | 00.02.04 | 12.2022 |
DHO1000/DHO4000_Firmware | DHO1000/DHO4000 Firmware | 74.66 MB | 00.02.07 | 05.2023 |
DHO1000/DHO4000_Firmware | DHO1000/DHO4000 Firmware | 71.84 MB | lower than 00.02.00, please update this first | 10.2022 |
DHO1000/DHO4000_Firmware | DHO1000/DHO4000_Firmware | 74.45 MB | 00.02.11 latest | 08.2023 |
Datasheet Download | Description | File Size | Version | Release Date |
---|---|---|---|---|
DHO1000_DataSheet_EN | DHO1000 DataSheet (English) | 7.63 MB | DSA32103-1110 | 10.2022 |
Manual Download | Description | File Size | Version | Release Date |
---|---|---|---|---|
DHO1000_UserGuide_EN | DHO1000 UserGuide (English) | 19.43 MB | V1.1 | 10.2022 |
DHO1000/DHO4000_ProgrammingGuide_EN | DHO1000/DHO4000 ProgrammingGuide (English) | 4.12 MB | V1.0 | 11.2022 |
General Download | Description | File Size | Version | Release Date |
---|---|---|---|---|
DHO1000_QuickGuide_EN | DHO1000 QuickGuide (English) | 3.72 MB | V1.1 | 10.2022 |
