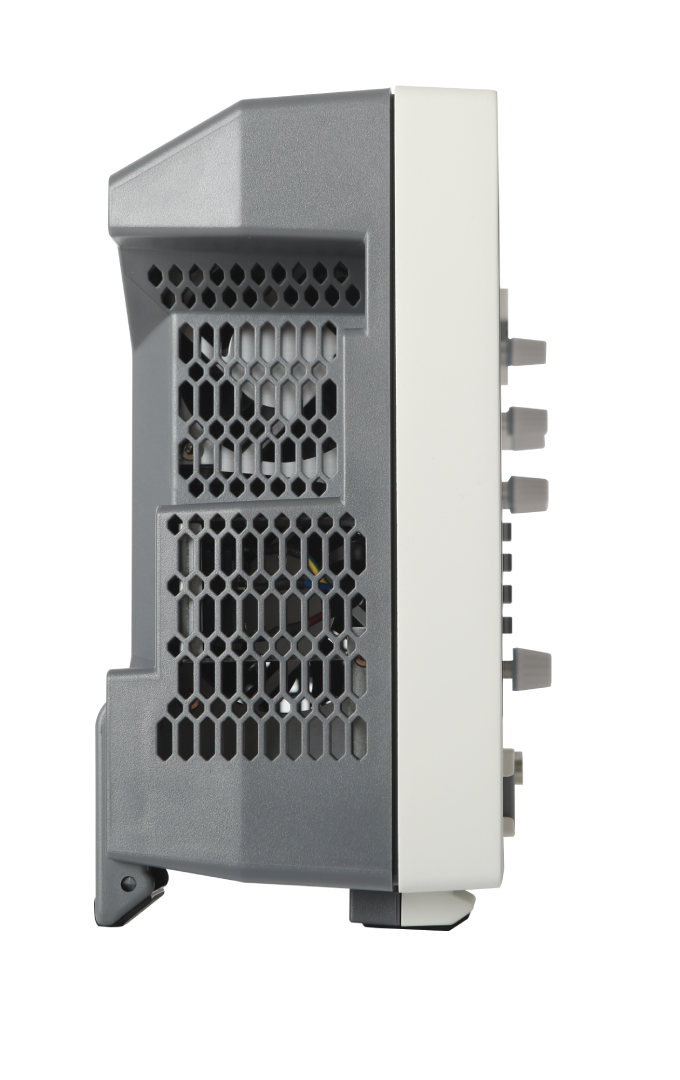

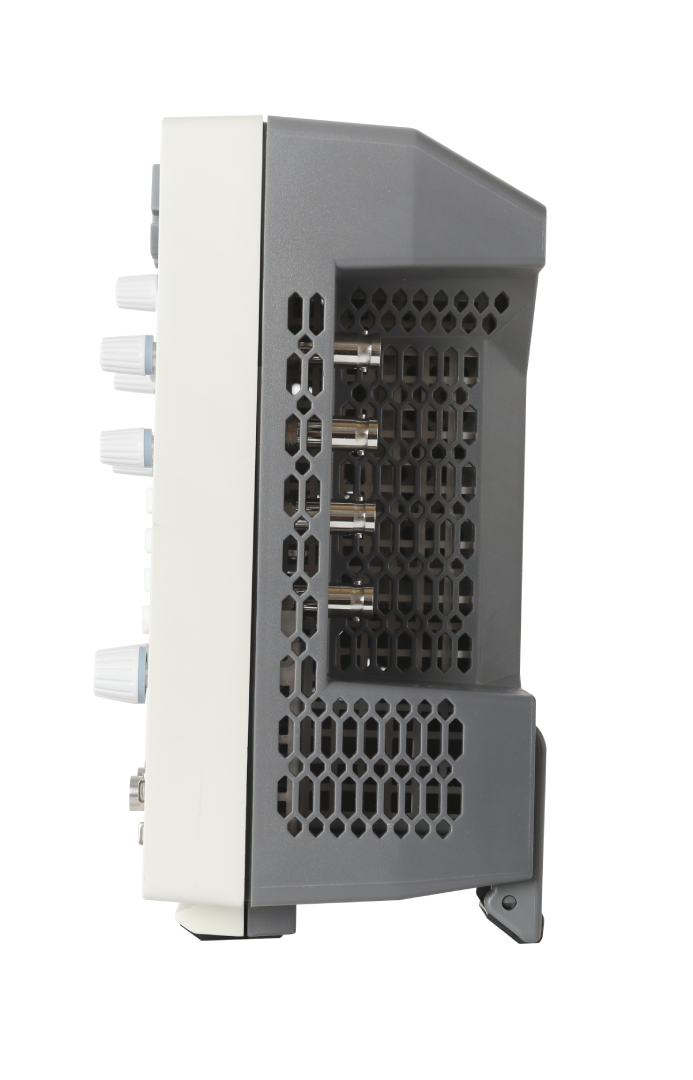

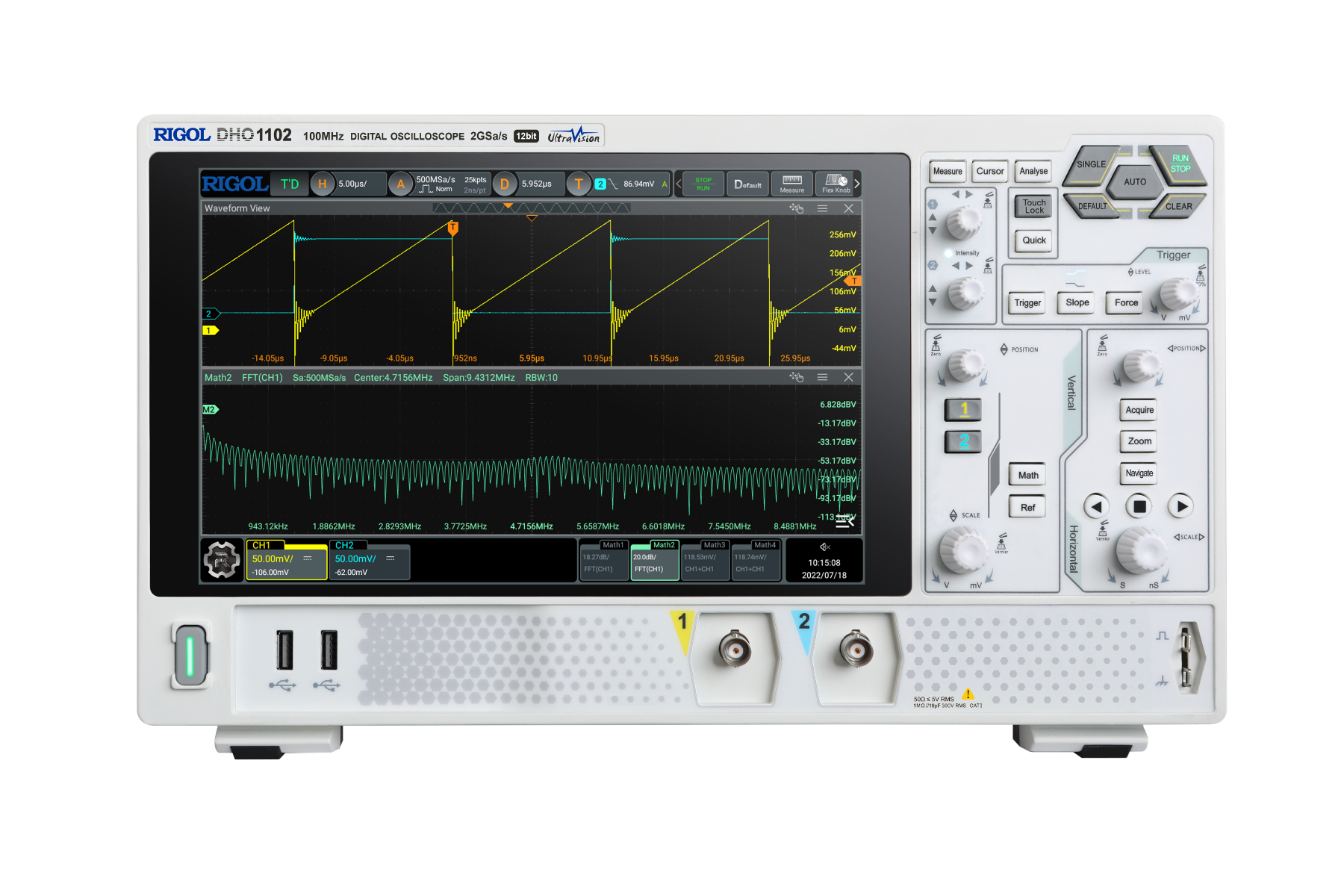

Digital Oscilloscope DHO1102

NEW! 100 MHz, 2 analog channels and 1 EXT channel, Real-time sample rate up to 2 GSa/s, Memory Depth up to 100 Mpts (optional), 12-bit vertical resolution, Up to 1,500,000 wfms/s waveform capture rate, 10.1'' 1280*800 HD touch display





Deliver in
3 weeks
€999.00 €1,188.81
  • Brand-new chipset "Centaurus" developed by RIGOL
  • Analog channel bandwidth: 100 MHz
  • 2 analog channels and 1 EXT channel
  • 12-bit vertical resolution
  • Real-time sample rate up to 2 GSa/s
  • Ultra-low noise floor for cleaner signals, measuring small signals accurately
  • Memory Depth up to 100 Mpts (optional)
  • Vertical sensitivity range: 500 μV/div to 10 V/div
  • Up to 1,500,000 wfms/s waveform capture rate with the UltraAcquire mode
  • 10.1'' 1280*800 HD touch display
  • User-friendly Flex Knobs, bringing smoother interaction
  • Standard photoelectric encoder operating knobs, effectively prolonging its service life
  • Standard USB Device & Host, LAN, and HDMI interfaces







12bit High Resolution

..12bit vertical resolution 4096 levels of quantization, 16 times the quantization level of 8bit, small signal testing is handy.



UltraAcquire Condensation Acquisition Mode

..Provides UltraAcquire condensation acquisition mode, up to 1,500,000wfms/s high waveform capture rate, do not miss any abnormal waveform.



10.1-Inch High-Resolution Touch Screen

..Provides a 10.1-inch high-resolution touch screen, making human-computer interaction more convenient.



Flex Knob

..Double multi-function knob design, no more complicated switching steps of a single knob, and achieve more efficient interaction.



Photoelectric Encoder

..Standard photoelectric encoder, 34-year long service life, protect your fixed assets.




Software Download Description File Size Version Release Date
DHO4000 and DHO1000 IVI PNP driver DHO4000 and DHO1000 IVI PNP driver 7.58 MB latest 05.2023
Firmware Download Description File Size Version Release Date
DHO1000/DHO4000_Firmware DHO1000/DHO4000 Firmware 74.45 MB 00.02.04 12.2022
DHO1000/DHO4000_Firmware DHO1000/DHO4000_Firmware 74.66 MB 00.02.07 05.2023
DHO1000/DHO4000_Firmware DHO1000/DHO4000_Firmware 71.84 MB lower than 00.02.00, please update this first 10.2022
DHO1000/DHO4000_Firmware DHO1000/DHO4000_Firmware 74.45 MB 00.02.11 latest 08.2023
Datasheet Download Description File Size Version Release Date
DHO1000_DataSheet_EN DHO1000 DataSheet (English) 7.63 MB DSA32103-1110 10.2022
Manual Download Description File Size Version Release Date
DHO1000_UserGuide_EN DHO1000 UserGuide (English) 19.43 MB V1.1 10.2022
DHO1000/DHO4000_ProgrammingGuide_EN DHO1000/DHO4000 ProgrammingGuide (English) 4.12 MB V1.0 11.2022
General Download Description File Size Version Release Date
DHO1000_QuickGuide_EN DHO1000 QuickGuide (English) 3.72 MB V1.1 10.2022
