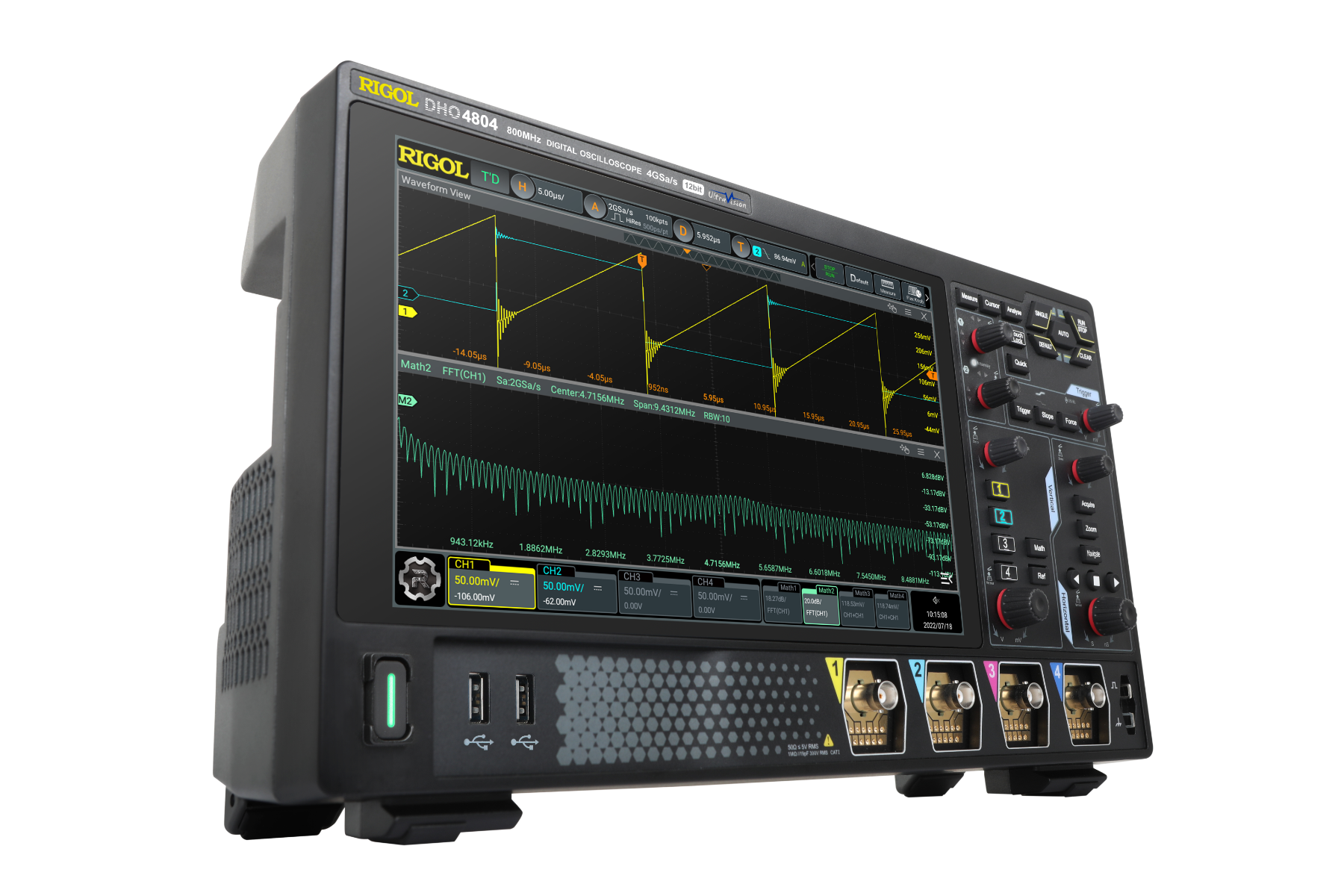

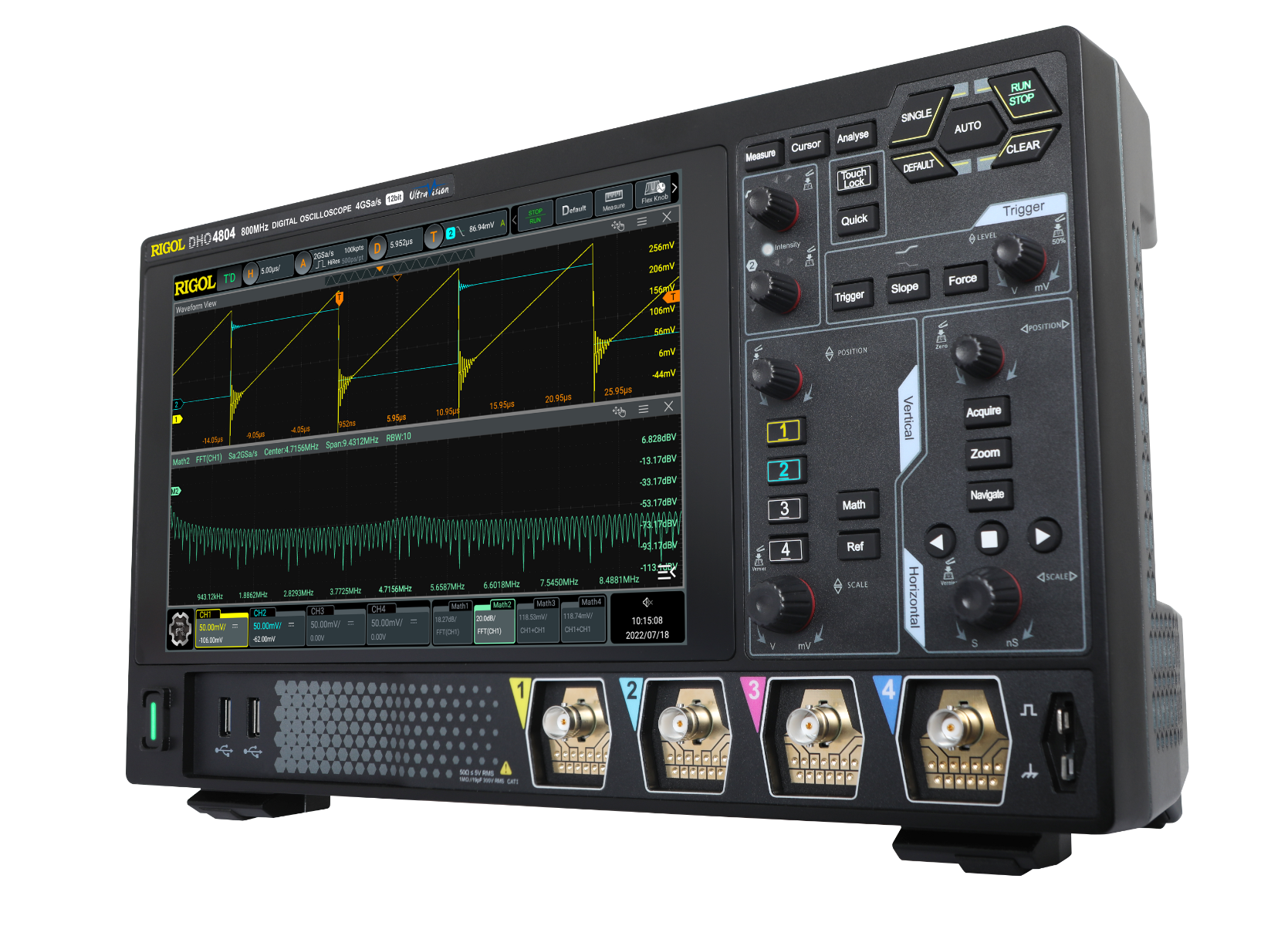

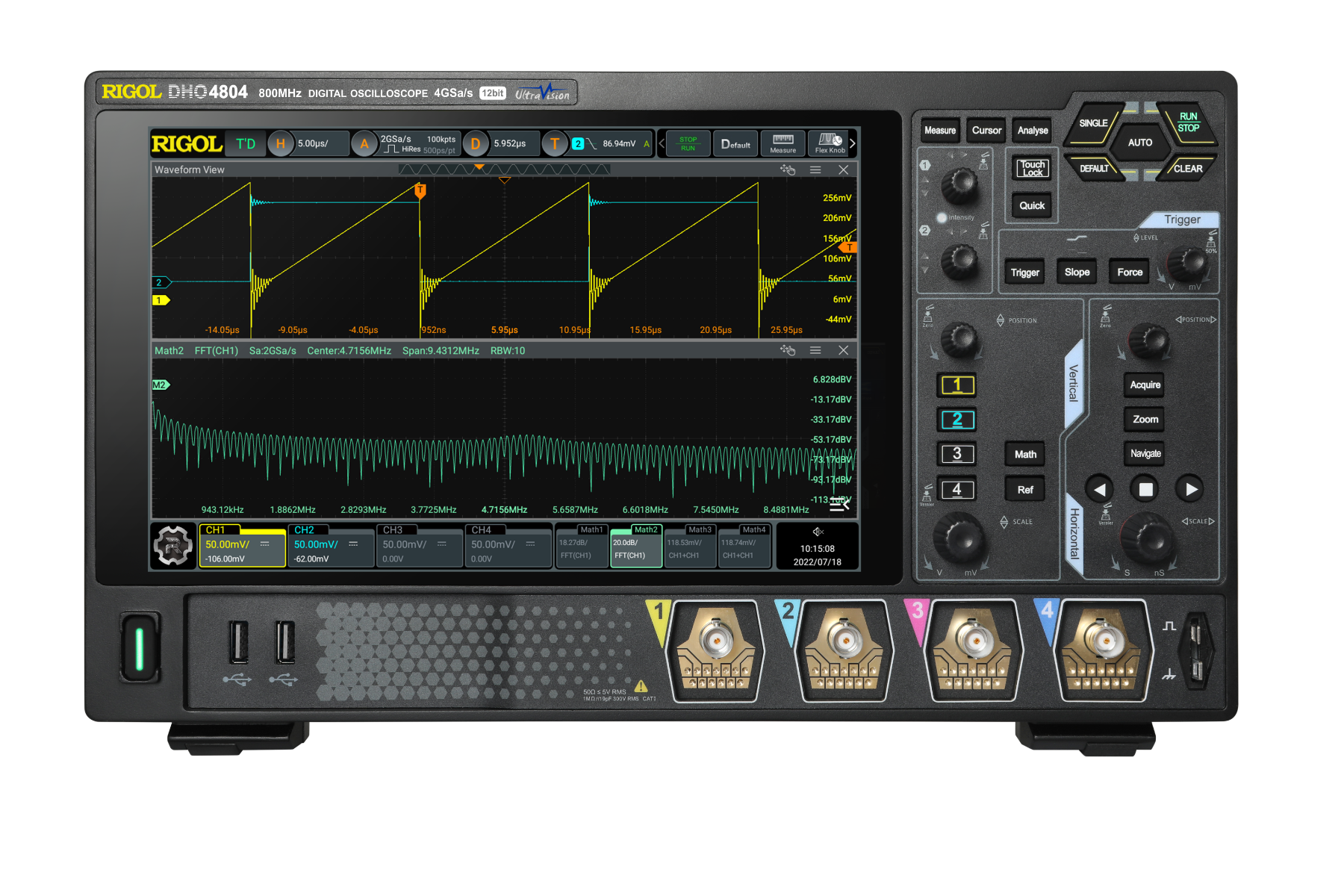

RIGOL Digital Oscilloscope DHO4804

NEW! 800 MHz, 4 analog channels and 1 EXT channel, Real-time sample rate up to 4 GSa/s, Memory Depth up to 500 Mpts (optional), Ultra-low noise floor at 18 μVrms in minimum, 12-bit vertical resolution, Up to 1,500,000 wfms/s waveform capture rate, 10.1'' 1280*800 HD touch display

Get DHO4000-BND for FREE by purchasing a new DHO4000 Oscilloscope!

Deliver in
3 weeks
€4,699.00 €5,591.81
  • Brand-new chipset "Centaurus" developed by RIGOL
  • Analog channel bandwidth: 800 MHz
  • 4 analog channels and 1 EXT channel
  • 12-bit vertical resolution
  • Real-time sample rate up to 4 GSa/s
  • Ultra-low noise floor at 18 μVrms in minimum
  • Memory Depth up to 500 Mpts (optional)
  • Min. vertical sensitivity: 100 μV/div
  • Up to 1,500,000 wfms/s waveform capture rate with the UltraAcquire mode
  • 10.1'' 1280*800 HD touch display
  • User-friendly Flex Knobs, bringing smoother interaction
  • Standard photoelectric encoder operating knobs, effectively prolonging its service life

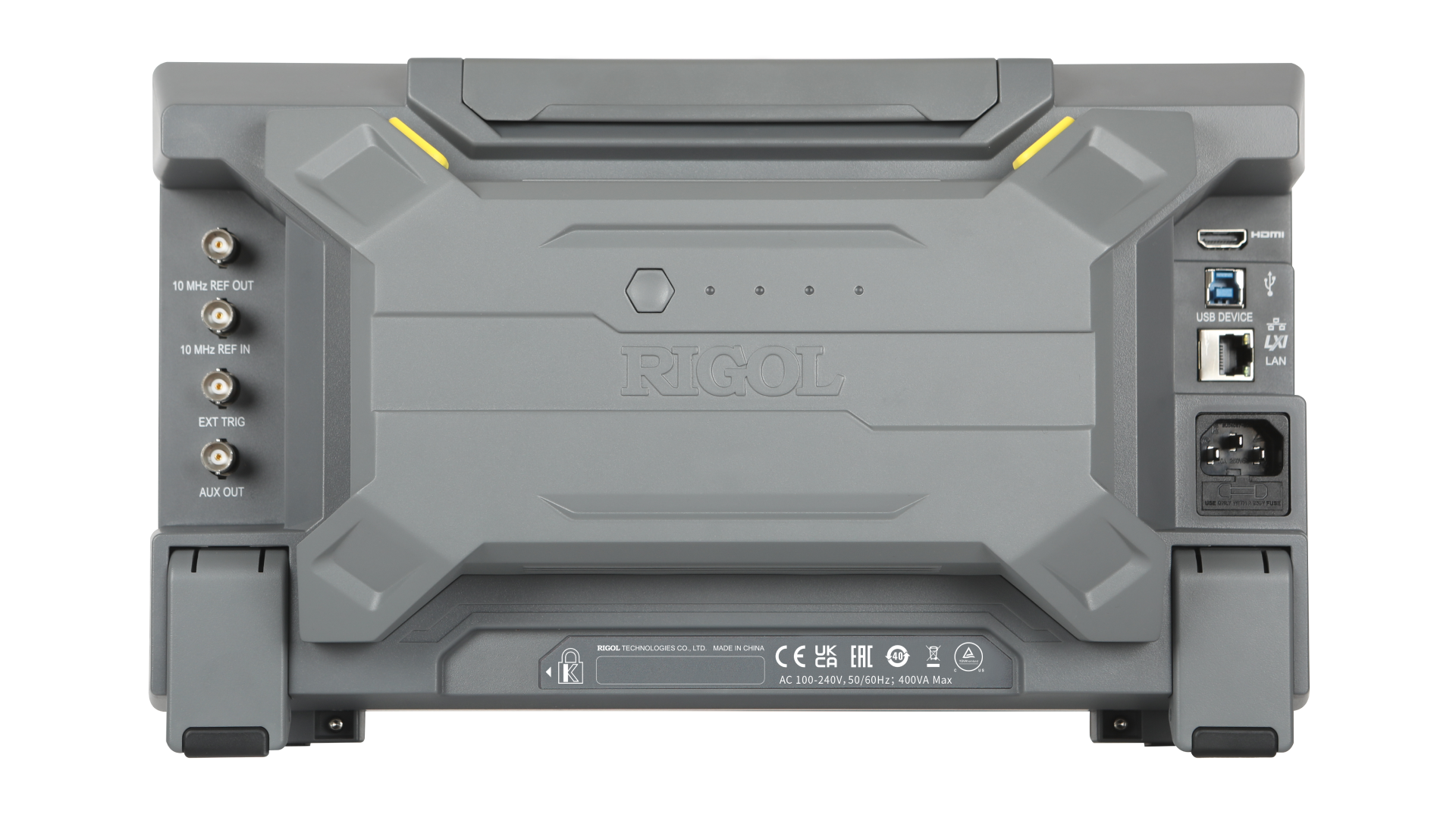

  • Standard USB Device & Host, LAN, and HDMI interfaces
  • Optional battery pack in a highly portable package for unlimited freedom
  • Support online version upgrade







Ultra-Low Noise Floor

..18uVrms ultra-low noise floor typical value, the signal is purer.



12bit High Resolution

..12bit vertical resolution 4096 levels of quantization, 16 times the quantization level of 8bit, small signal testing is handy.



100uV Ultra-High Vertical Sensitivity

..Industry-leading 100μV/div vertical sensitivity range, uV-level signals can also be accurately measured.



UltraAcquire Condensation Acquisition Mode

..Provides UltraAcquire condensation acquisition mode, up to 1,500,000wfms/s high waveform capture rate, do not miss any abnormal waveform.



Flex Knob - Double Knob Design

..Double multi-function knob design, no more complicated switching steps of a single knob, and achieve more efficient interaction.



Battery Power Support

..Provides battery pack options, anytime, anywhere, unlimited measurement!









Software Download Description File Size Version Release Date
DHO4000 and DHO1000 IVI PNP driver DHO4000 and DHO1000 IVI PNP driver 7.58 MB latest 05.2023
Firmware Download Description File Size Version Release Date
DHO1000/DHO4000_Firmware DHO1000/DHO4000 Firmware 74.45 MB 00.02.04 12.2022
DHO1000/DHO4000_Firmware DHO1000/DHO4000 Firmware 74.66 MB 00.02.07 05.2023
DHO1000/DHO4000_Firmware DHO1000/DHO4000_Firmware 71.84 MB lower than 00.02.00, please update this first 10.2022
DHO1000/DHO4000_Firmware DHO1000/DHO4000_Firmware 74.45 MB 00.02.11 latest 08.2023
Datasheet Download Description File Size Version Release Date
DHO4000_DataSheet_EN DHO4000 DataSheet (English) 10.00 MB DSA33103-1110 10.2022
Manual Download Description File Size Version Release Date
DHO4000_UserGuide_EN DHO4000 UserGuide (English) 21.50 MB V1.1 10.2022
DHO1000/DHO4000_ProgrammingGuide_EN DHO1000/DHO4000 ProgrammingGuide (English) 4.12 MB V1.0 11.2022
General Download Description File Size Version Release Date
DHO4000_QuickGuide_EN DHO4000 QuickGuide (English) 3.63 MB V1.1 10.2022
