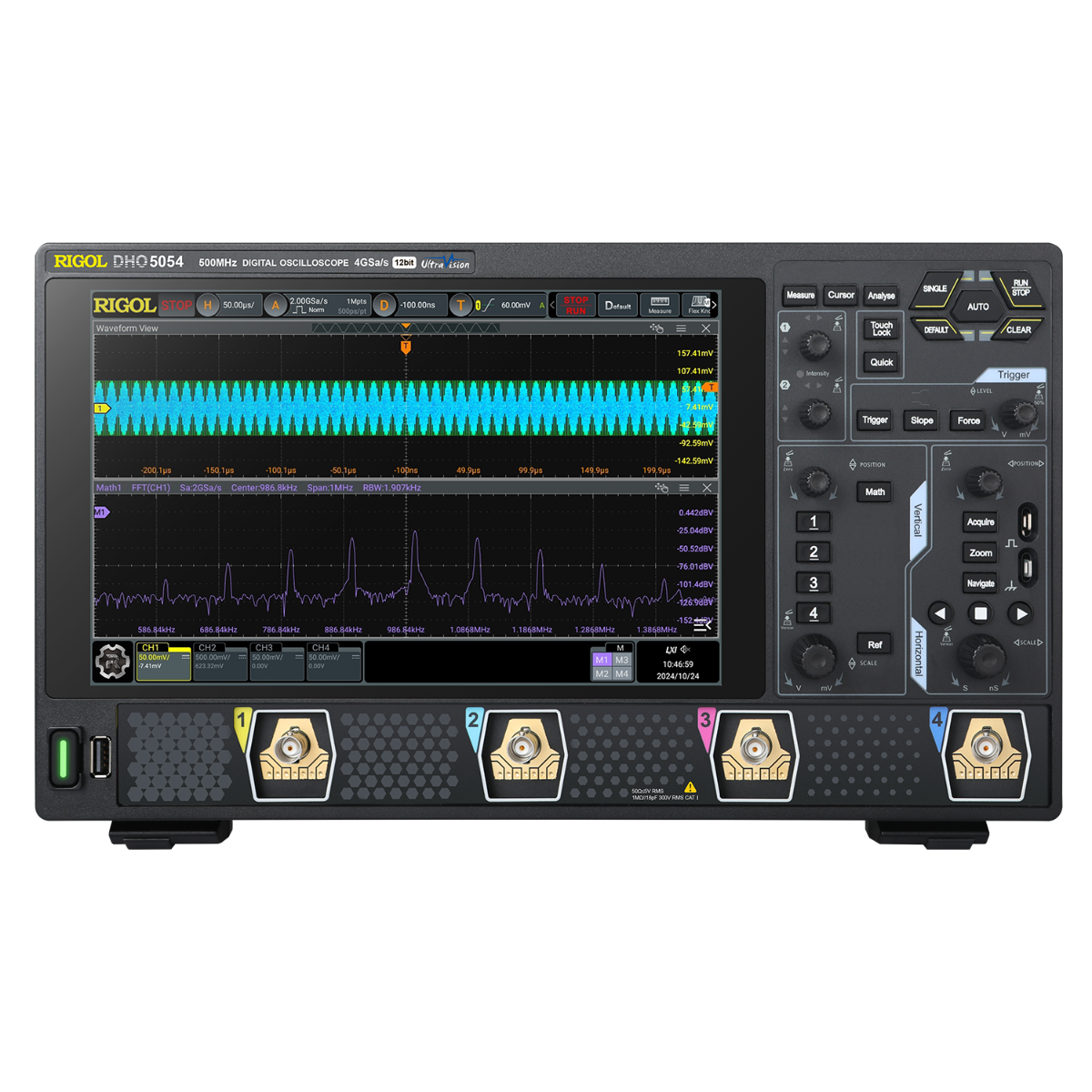

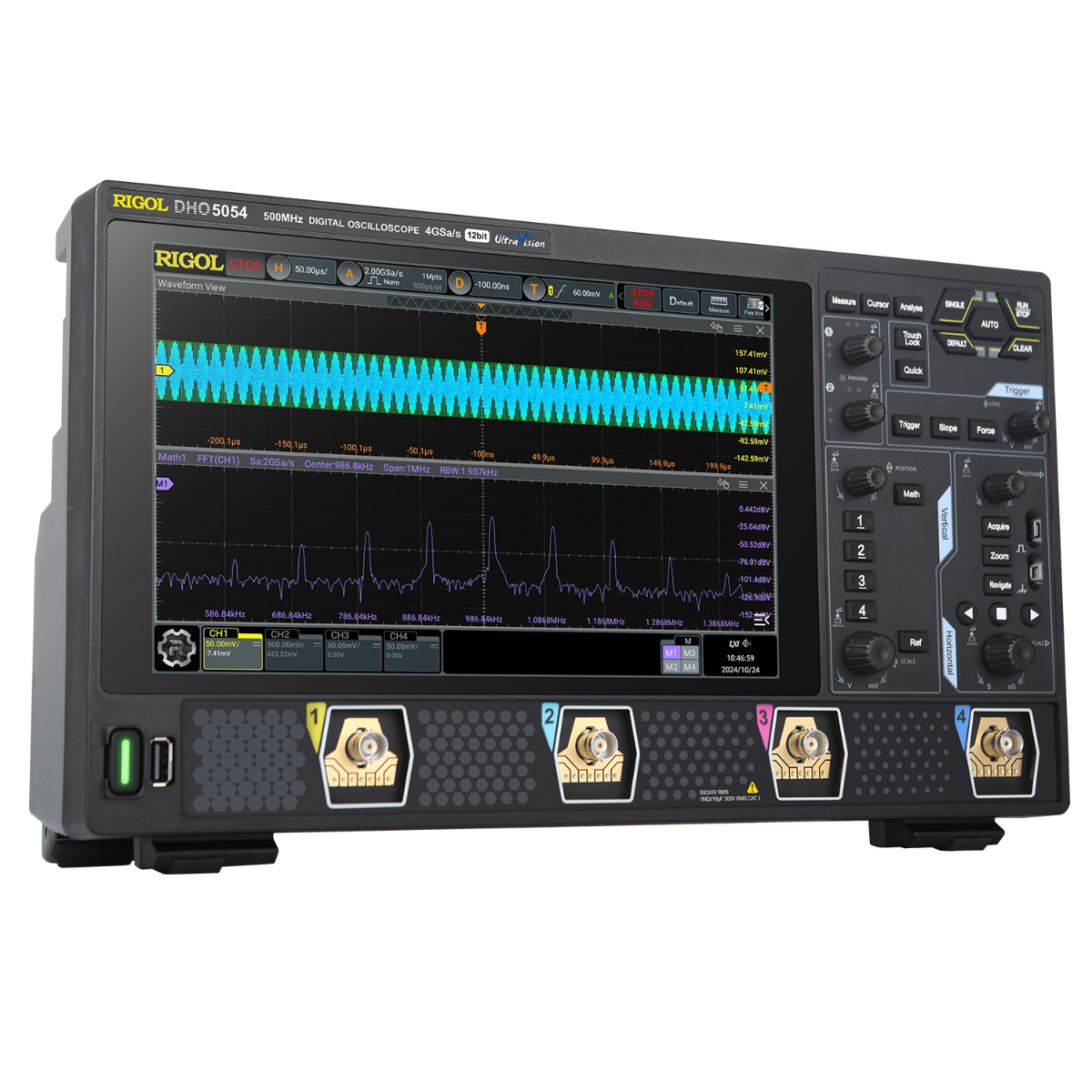

RIGOL Digital Oscilloscope DHO5054

RIGOL Digital Oscilloscope DHO5054

Bandwidth 500MHz

Analog Channels 4

Max. Real-time Sample Rate 4GSa/s

Max. Memory Depth 500Mpts

Vertical Resolution 12bits

Waveform Capture Rate 1,000,000 wfms/s

Delivery：about one month

Standard Accessories

Quantity：

€5799.00 excl. VAT

€6900.81 incl. 19% VAT

Buy Now Add to cart Add to wish list

Description
MHO/DHO5000 Oscilloscope Model
Feature & Video
Datasheet & Manual Download

Add To Cart

<span style="color: rgb(7, 6, 5); font-family: Roboto, " helvetica="" neue",="" helvetica,="" arial,="" sans-serif;="" font-size:="" 16px;="" letter-spacing:="" 0.48px;="" background-color:="" rgb(252,="" 252,="" 252);"="">• Based on RIGOL's brand new self-developed Centaurus technical platform<br style="color: rgb(7, 6, 5); font-family: Roboto, " helvetica="" neue",="" helvetica,="" arial,="" sans-serif;="" font-size:="" 16px;="" letter-spacing:="" 0.48px;="" background-color:="" rgb(252,="" 252,="" 252);"=""><span style="color: rgb(7, 6, 5); font-family: Roboto, " helvetica="" neue",="" helvetica,="" arial,="" sans-serif;="" font-size:="" 16px;="" letter-spacing:="" 0.48px;="" background-color:="" rgb(252,="" 252,="" 252);"="">• 12-bit resolution for all the series<br style="color: rgb(7, 6, 5); font-family: Roboto, " helvetica="" neue",="" helvetica,="" arial,="" sans-serif;="" font-size:="" 16px;="" letter-spacing:="" 0.48px;="" background-color:="" rgb(252,="" 252,="" 252);"=""><span style="color: rgb(7, 6, 5); font-family: Roboto, " helvetica="" neue",="" helvetica,="" arial,="" sans-serif;="" font-size:="" 16px;="" letter-spacing:="" 0.48px;="" background-color:="" rgb(252,="" 252,="" 252);"="">• Max. 1 GHz bandwidth, 8 analog channels, and 1 external trigger channel<br style="color: rgb(7, 6, 5); font-family: Roboto, " helvetica="" neue",="" helvetica,="" arial,="" sans-serif;="" font-size:="" 16px;="" letter-spacing:="" 0.48px;="" background-color:="" rgb(252,="" 252,="" 252);"=""><span style="color: rgb(7, 6, 5); font-family: Roboto, " helvetica="" neue",="" helvetica,="" arial,="" sans-serif;="" font-size:="" 16px;="" letter-spacing:="" 0.48px;="" background-color:="" rgb(252,="" 252,="" 252);"="">• Standard configuration of 16 digital channels (required to purchase the logic analyzer probe) for<br style="color: rgb(7, 6, 5); font-family: Roboto, " helvetica="" neue",="" helvetica,="" arial,="" sans-serif;="" font-size:="" 16px;="" letter-spacing:="" 0.48px;="" background-color:="" rgb(252,="" 252,="" 252);"=""><span style="color: rgb(7, 6, 5); font-family: Roboto, " helvetica="" neue",="" helvetica,="" arial,="" sans-serif;="" font-size:="" 16px;="" letter-spacing:="" 0.48px;="" background-color:="" rgb(252,="" 252,="" 252);"="">   the MHO models<br style="color: rgb(7, 6, 5); font-family: Roboto, " helvetica="" neue",="" helvetica,="" arial,="" sans-serif;="" font-size:="" 16px;="" letter-spacing:="" 0.48px;="" background-color:="" rgb(252,="" 252,="" 252);"=""><span style="color: rgb(7, 6, 5); font-family: Roboto, " helvetica="" neue",="" helvetica,="" arial,="" sans-serif;="" font-size:="" 16px;="" letter-spacing:="" 0.48px;="" background-color:="" rgb(252,="" 252,="" 252);"="">• Real-time sample rate: up to 4 GSa/s<br style="color: rgb(7, 6, 5); font-family: Roboto, " helvetica="" neue",="" helvetica,="" arial,="" sans-serif;="" font-size:="" 16px;="" letter-spacing:="" 0.48px;="" background-color:="" rgb(252,="" 252,="" 252);"=""><span style="color: rgb(7, 6, 5); font-family: Roboto, " helvetica="" neue",="" helvetica,="" arial,="" sans-serif;="" font-size:="" 16px;="" letter-spacing:="" 0.48px;="" background-color:="" rgb(252,="" 252,="" 252);"="">• Max. memory depth 500 Mpts<br style="color: rgb(7, 6, 5); font-family: Roboto, " helvetica="" neue",="" helvetica,="" arial,="" sans-serif;="" font-size:="" 16px;="" letter-spacing:="" 0.48px;="" background-color:="" rgb(252,="" 252,="" 252);"=""><span style="color: rgb(7, 6, 5); font-family: Roboto, " helvetica="" neue",="" helvetica,="" arial,="" sans-serif;="" font-size:="" 16px;="" letter-spacing:="" 0.48px;="" background-color:="" rgb(252,="" 252,="" 252);"="">• Vertical sensitivity up to 100 μV/div<br style="color: rgb(7, 6, 5); font-family: Roboto, " helvetica="" neue",="" helvetica,="" arial,="" sans-serif;="" font-size:="" 16px;="" letter-spacing:="" 0.48px;="" background-color:="" rgb(252,="" 252,="" 252);"=""><span style="color: rgb(7, 6, 5); font-family: Roboto, " helvetica="" neue",="" helvetica,="" arial,="" sans-serif;="" font-size:="" 16px;="" letter-spacing:="" 0.48px;="" background-color:="" rgb(252,="" 252,="" 252);"="">• Maximum waveform capture rate of 1,000,000 wfms/s in fast recording mode<br style="color: rgb(7, 6, 5); font-family: Roboto, " helvetica="" neue",="" helvetica,="" arial,="" sans-serif;="" font-size:="" 16px;="" letter-spacing:="" 0.48px;="" background-color:="" rgb(252,="" 252,="" 252);"=""><span style="color: rgb(7, 6, 5); font-family: Roboto, " helvetica="" neue",="" helvetica,="" arial,="" sans-serif;="" font-size:="" 16px;="" letter-spacing:="" 0.48px;="" background-color:="" rgb(252,="" 252,="" 252);"="">• Arbitrary Waveform/Function Generator (AFG), power analysis, histogram, and digital signal<br style="color: rgb(7, 6, 5); font-family: Roboto, " helvetica="" neue",="" helvetica,="" arial,="" sans-serif;="" font-size:="" 16px;="" letter-spacing:="" 0.48px;="" background-color:="" rgb(252,="" 252,="" 252);"=""><span style="color: rgb(7, 6, 5); font-family: Roboto, " helvetica="" neue",="" helvetica,="" arial,="" sans-serif;="" font-size:="" 16px;="" letter-spacing:="" 0.48px;="" background-color:="" rgb(252,="" 252,="" 252);"="">   analysis, Bode plot, and protocol decodings<br style="color: rgb(7, 6, 5); font-family: Roboto, " helvetica="" neue",="" helvetica,="" arial,="" sans-serif;="" font-size:="" 16px;="" letter-spacing:="" 0.48px;="" background-color:="" rgb(252,="" 252,="" 252);"=""><span style="color: rgb(7, 6, 5); font-family: Roboto, " helvetica="" neue",="" helvetica,="" arial,="" sans-serif;="" font-size:="" 16px;="" letter-spacing:="" 0.48px;="" background-color:="" rgb(252,="" 252,="" 252);"="">• Search and navigation function helps users quickly search for the signals with exceptions and<br style="color: rgb(7, 6, 5); font-family: Roboto, " helvetica="" neue",="" helvetica,="" arial,="" sans-serif;="" font-size:="" 16px;="" letter-spacing:="" 0.48px;="" background-color:="" rgb(252,="" 252,="" 252);"=""><span style="color: rgb(7, 6, 5); font-family: Roboto, " helvetica="" neue",="" helvetica,="" arial,="" sans-serif;="" font-size:="" 16px;="" letter-spacing:="" 0.48px;="" background-color:="" rgb(252,="" 252,="" 252);"="">   locate them accurately.<br style="color: rgb(7, 6, 5); font-family: Roboto, " helvetica="" neue",="" helvetica,="" arial,="" sans-serif;="" font-size:="" 16px;="" letter-spacing:="" 0.48px;="" background-color:="" rgb(252,="" 252,="" 252);"=""><span style="color: rgb(7, 6, 5); font-family: Roboto, " helvetica="" neue",="" helvetica,="" arial,="" sans-serif;="" font-size:="" 16px;="" letter-spacing:="" 0.48px;="" background-color:="" rgb(252,="" 252,="" 252);"="">• 256-level intensity grading display, with digital real-time fluorescence technology<br style="color: rgb(7, 6, 5); font-family: Roboto, " helvetica="" neue",="" helvetica,="" arial,="" sans-serif;="" font-size:="" 16px;="" letter-spacing:="" 0.48px;="" background-color:="" rgb(252,="" 252,="" 252);"=""><span style="color: rgb(7, 6, 5); font-family: Roboto, " helvetica="" neue",="" helvetica,="" arial,="" sans-serif;="" font-size:="" 16px;="" letter-spacing:="" 0.48px;="" background-color:="" rgb(252,="" 252,="" 252);"="">• 10.1" 1280*800 high-definition touch screen<br style="color: rgb(7, 6, 5); font-family: Roboto, " helvetica="" neue",="" helvetica,="" arial,="" sans-serif;="" font-size:="" 16px;="" letter-spacing:="" 0.48px;="" background-color:="" rgb(252,="" 252,="" 252);"=""><span style="color: rgb(7, 6, 5); font-family: Roboto, " helvetica="" neue",="" helvetica,="" arial,="" sans-serif;="" font-size:="" 16px;="" letter-spacing:="" 0.48px;="" background-color:="" rgb(252,="" 252,="" 252);"="">• Brand new Flex knob brings friendly user experience<br style="color: rgb(7, 6, 5); font-family: Roboto, " helvetica="" neue",="" helvetica,="" arial,="" sans-serif;="" font-size:="" 16px;="" letter-spacing:="" 0.48px;="" background-color:="" rgb(252,="" 252,="" 252);"=""><span style="color: rgb(7, 6, 5); font-family: Roboto, " helvetica="" neue",="" helvetica,="" arial,="" sans-serif;="" font-size:="" 16px;="" letter-spacing:="" 0.48px;="" background-color:="" rgb(252,="" 252,="" 252);"="">• Standard configuration of USB Device, USB Host, LAN, HDMI interfaces for all the series<br style="color: rgb(7, 6, 5); font-family: Roboto, " helvetica="" neue",="" helvetica,="" arial,="" sans-serif;="" font-size:="" 16px;="" letter-spacing:="" 0.48px;="" background-color:="" rgb(252,="" 252,="" 252);"=""><span style="color: rgb(7, 6, 5); font-family: Roboto, " helvetica="" neue",="" helvetica,="" arial,="" sans-serif;="" font-size:="" 16px;="" letter-spacing:="" 0.48px;="" background-color:="" rgb(252,="" 252,="" 252);"="">• Battery pack-powered, convenient to charge anytime and anywhere, providing a great feasibility<br style="color: rgb(7, 6, 5); font-family: Roboto, " helvetica="" neue",="" helvetica,="" arial,="" sans-serif;="" font-size:="" 16px;="" letter-spacing:="" 0.48px;="" background-color:="" rgb(252,="" 252,="" 252);"=""><span style="color: rgb(7, 6, 5); font-family: Roboto, " helvetica="" neue",="" helvetica,="" arial,="" sans-serif;="" font-size:="" 16px;="" letter-spacing:="" 0.48px;="" background-color:="" rgb(252,="" 252,="" 252);"="">   for measurement<br style="color: rgb(7, 6, 5); font-family: Roboto, " helvetica="" neue",="" helvetica,="" arial,="" sans-serif;="" font-size:="" 16px;="" letter-spacing:="" 0.48px;="" background-color:="" rgb(252,="" 252,="" 252);"=""><span style="color: rgb(7, 6, 5); font-family: Roboto, " helvetica="" neue",="" helvetica,="" arial,="" sans-serif;="" font-size:="" 16px;="" letter-spacing:="" 0.48px;="" background-color:="" rgb(252,="" 252,="" 252);"="">• Online upgrade<br style="color: rgb(7, 6, 5); font-family: Roboto, " helvetica="" neue",="" helvetica,="" arial,="" sans-serif;="" font-size:="" 16px;="" letter-spacing:="" 0.48px;="" background-color:="" rgb(252,="" 252,="" 252);"=""><span style="color: rgb(7, 6, 5); font-family: Roboto, " helvetica="" neue",="" helvetica,="" arial,="" sans-serif;="" font-size:="" 16px;="" letter-spacing:="" 0.48px;="" background-color:="" rgb(252,="" 252,="" 252);"="">• Standard configuration of the photoelectric encoder operating knob for all the series to improve<br style="color: rgb(7, 6, 5); font-family: Roboto, " helvetica="" neue",="" helvetica,="" arial,="" sans-serif;="" font-size:="" 16px;="" letter-spacing:="" 0.48px;="" background-color:="" rgb(252,="" 252,="" 252);"=""><span style="color: rgb(7, 6, 5); font-family: Roboto, " helvetica="" neue",="" helvetica,="" arial,="" sans-serif;="" font-size:="" 16px;="" letter-spacing:="" 0.48px;="" background-color:="" rgb(252,="" 252,="" 252);"="">   the service life of the instrument

Model	Market Price	Price	Delivery	Bandwidth	Analog Channels	Max. Real-time Sample Rate	Max. Memory Depth	Digital Channels	Built-in Signal Source	Vertical Resolution	Waveform Capture Rate
RIGOL Digital Oscilloscope DHO5054	€5799.00	€5799.00	about one month	500MHz	4	4GSa/s	500Mpts	-	-	12bits	1,000,000 wfms/s
RIGOL Digital Oscilloscope DHO5058	€11599.00	€11599.00	about one month	500MHz	8	4GSa/s	500Mpts	-	-	12bits	1,000,000 wfms/s
RIGOL Digital Oscilloscope DHO5104	€7199.00	€7199.00	about one month	1GHz	4	4GSa/s	500Mpts	-	-	12bits	1,000,000 wfms/s
RIGOL Digital Oscilloscope DHO5108	€14499.00	€14499.00	about one month	1GHz	8	4GSa/s	500Mpts	-	-	12bits	1,000,000 wfms/s
RIGOL Digital Oscilloscope MHO5054	€4399.00	€4399.00	about one month	500MHz	4	4GSa/s	500Mpts	16(Probe opt.)	2CH	12bits	1,000,000 wfms/s
RIGOL Digital Oscilloscope MHO5056	€10099.00	€10099.00	about one month	500MHz	6	4GSa/s	500Mpts	16(Probe opt.)	2CH	12bits	1,000,000 wfms/s
RIGOL Digital Oscilloscope MHO5104	€5799.00	€5799.00	about one month	1GHz	4	4GSa/s	500Mpts	16(Probe opt.)	2CH	12bits	1,000,000 wfms/s
RIGOL Digital Oscilloscope MHO5106	€12999.00	€12999.00	about one month	1GHz	6	4GSa/s	500Mpts	16(Probe opt.)	2CH	12bits	1,000,000 wfms/s

4/6/8 Analog Channel

With up to 8 analog input channels on a single device, the DHO5000 series can handle various multi-channel testing applications, such as Power Sequencing Tests, 3-Phase Power Analysis, motor testing, and third-generation semiconductor testing.
Compact Design

The DHO5000 series features a compact design with dimensions of 335 mm (W) × 235 mm (H) × 154 mm (D), minimizing desktop space usage. Its 5U rack mount height makes it an efficient solution for system integration, improving cabinet utilization and overall compactness.
Outstanding Testing Accuracy

With a 12-bit ADC and up to 4096 vertical levels, 16 times greater than an 8-bit oscilloscope, the DHO5000 significantly enhances measurement accuracy, capturing even the smallest waveform details. Whether testing power supply ripple or analyzing critical applications like medical devices, it helps you efficiently assess signal characteristics, ensuring every measurement is precise, enabling technological innovation.

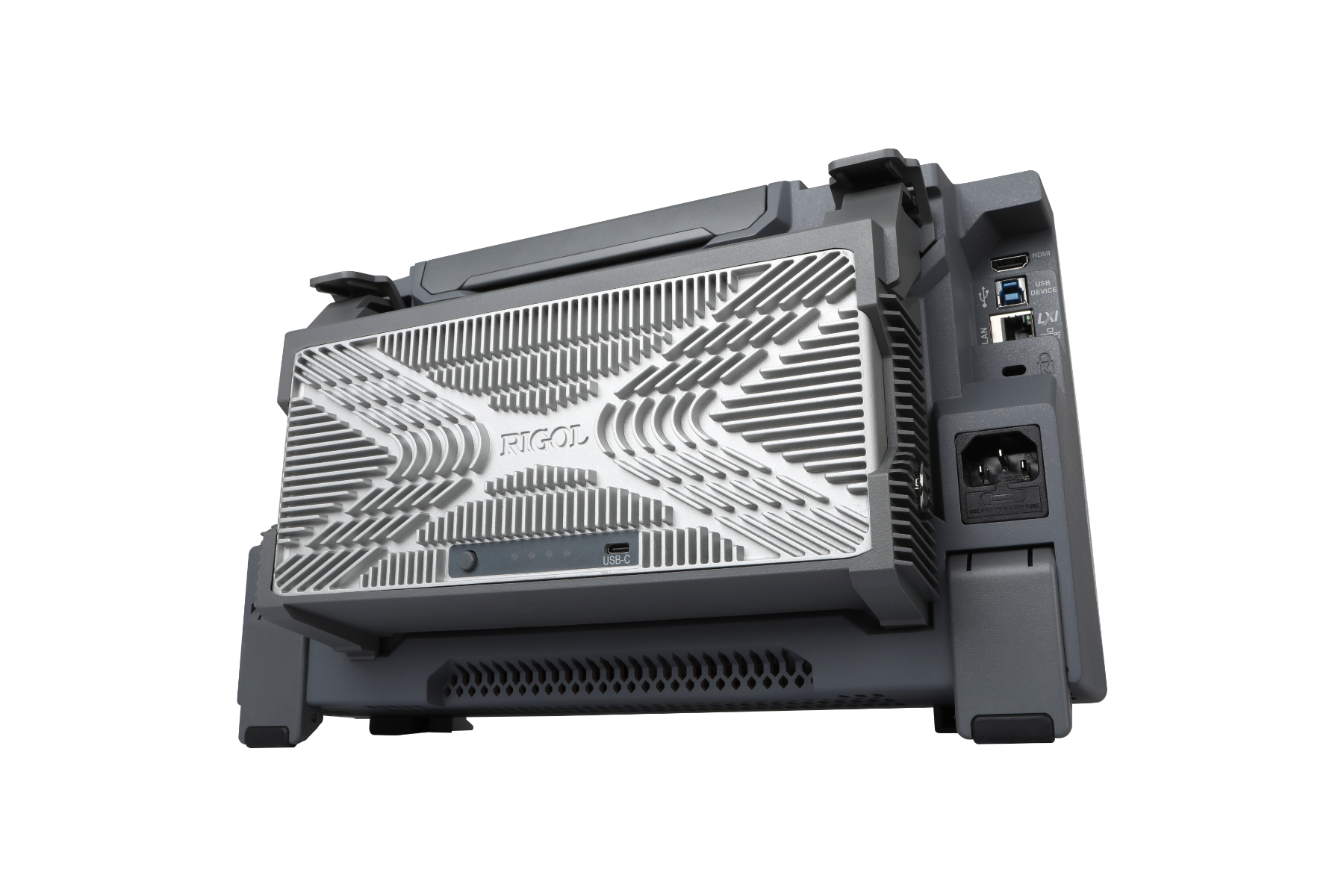

Battery Pack Support

The DHO5000 supports battery pack power, allowing for measurements in locations without AC power. This is ideal for certain outdoor or vehicle-mounted testing. The battery pack also offers clean energy in high-interference environments, minimizing environmental impact on test results.

Manual Download

File Name	Version	Release Date	Operation
MHO5000 / DHO5000 Datasheets	v1.0	11/1/2024	Download
MHO5000 / DHO5000 Programming Guide	v1.0	11/1/2024	Download
MHO5000 / DHO5000 Quick Guide	v1.0	11/1/2024	Download
MHO5000 / DHO5000 User Guide	v1.0	11/1/2024	Download

DHO5054/DHO5104/MHO5054/MHO5104: Passive HighZ Probe (500 MHz) x4	RP3500A
RP3500A MHO5056/MHO5106: Passive HighZ Probe (500 MHz) x6
DHO5058/DHO5108: Passive HighZ Probe (500 MHz) x8
