RIGOL Digital Oscilloscope DHO804

RIGOL Digital Oscilloscope DHO804

Bandwidth 70MHz

Input Impedance 1MΩ

Analog Channels 4

Max. Real-time Sample Rate 1.25GSa/s

Max. Memory Depth 25Mpts

Vertical Resolution 12bits

Waveform Capture Rate 1,000,000 wfms/s

Delivery：1 Week

Standard Accessories

Quantity：

€429.00 excl. VAT

€510.51 incl. 19% VAT

Buy Now Add to cart Add to wish list

Description
DHO800 Oscilloscope Model
Feature & Video
Software ＆ Firmware
Datasheet & Manual Download

Add To Cart

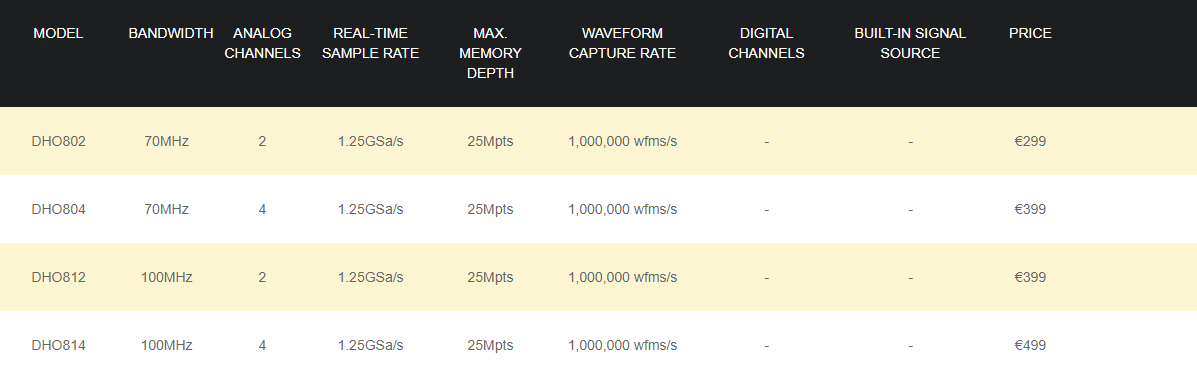

Model	Market Price	Price	Delivery	Bandwidth	Analog Channels	Input Impedance	Max. Real-time Sample Rate	Max. Memory Depth	Vertical Resolution	Waveform Capture Rate
RIGOL Digital Oscilloscope DHO814	€549.00	€549.00	1 Week	100MHz	4	1MΩ	1.25GSa/s	25Mpts	12bits	1,000,000 wfms/s
RIGOL Digital Oscilloscope DHO812	€429.00	€429.00	1 Week	100MHz	2	1MΩ	1.25GSa/s	25Mpts	12bits	1,000,000 wfms/s
RIGOL Digital Oscilloscope DHO804	€429.00	€429.00	1 Week	70MHz	4	1MΩ	1.25GSa/s	25Mpts	12bits	1,000,000 wfms/s
RIGOL Digital Oscilloscope DHO802	€379.00	€379.00	1 Week	70MHz	2	1MΩ	1.25GSa/s	25Mpts	12bits	1,000,000 wfms/s

High-resolution 12-bit

12-bit vertical resolution with 4096 levels of quantization, 16 times the quantization levels of 8-bit, adept at handling small signal testing.
Support Type-C Power

Designed with a Type-C power interface, the DHO800 can be powered by just a portable power source, enabling on-site testing.
Sleek Design

The DHO800 series features a compact form factor and also supports standard monitor stand usage, effectively reducing desktop footprint and providing you with more ample workspace.
7-inch HD Touchscreen

7-inch high-definition touchscreen for more convenient human-machine interaction.

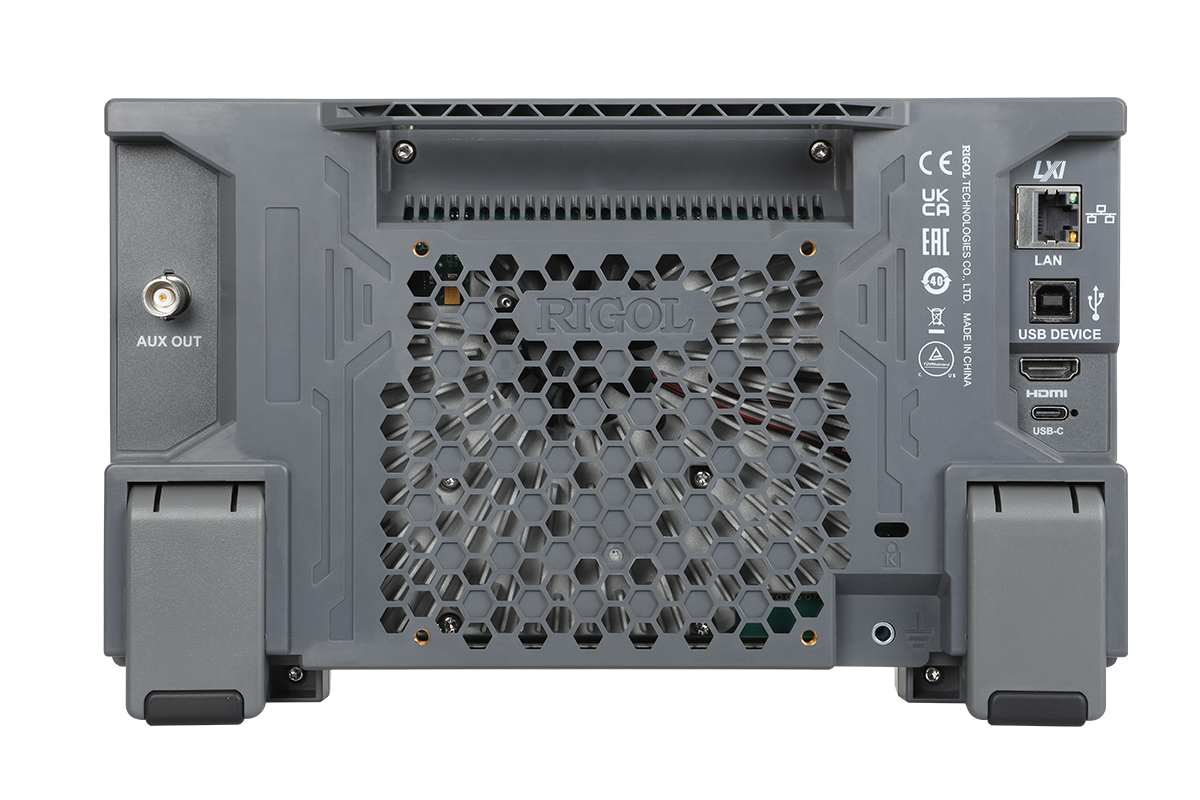

Versatile Interfaces

The DHO800 series comes standard with USB, LAN, and HDMI output interfaces, supporting remote control and conference presentations, making collaboration more convenient.

File Name	Version	Release Date	Operation
DHO800 Firmware	v00.01.04.00.02	11/22/2024	Download

File Name	Version	Release Date	Operation
Ultra Sigma (PC) Installer	V00.01.06.01	11/1/2021	Download
Ultra Sigma HelpDocument	V1.0	11/1/2021	Download

Manual Download

File Name	Version	Release Date	Operation
DHO800 Datasheet	V5.0	10/1/2024	Download
DHO800 Programming Manual	V5.0	10/1/2024	Download
DHO800 Quick Guide	V5.0	10/1/2024	Download
DHO800 User Manual	V4.0	10/1/2024	Download
