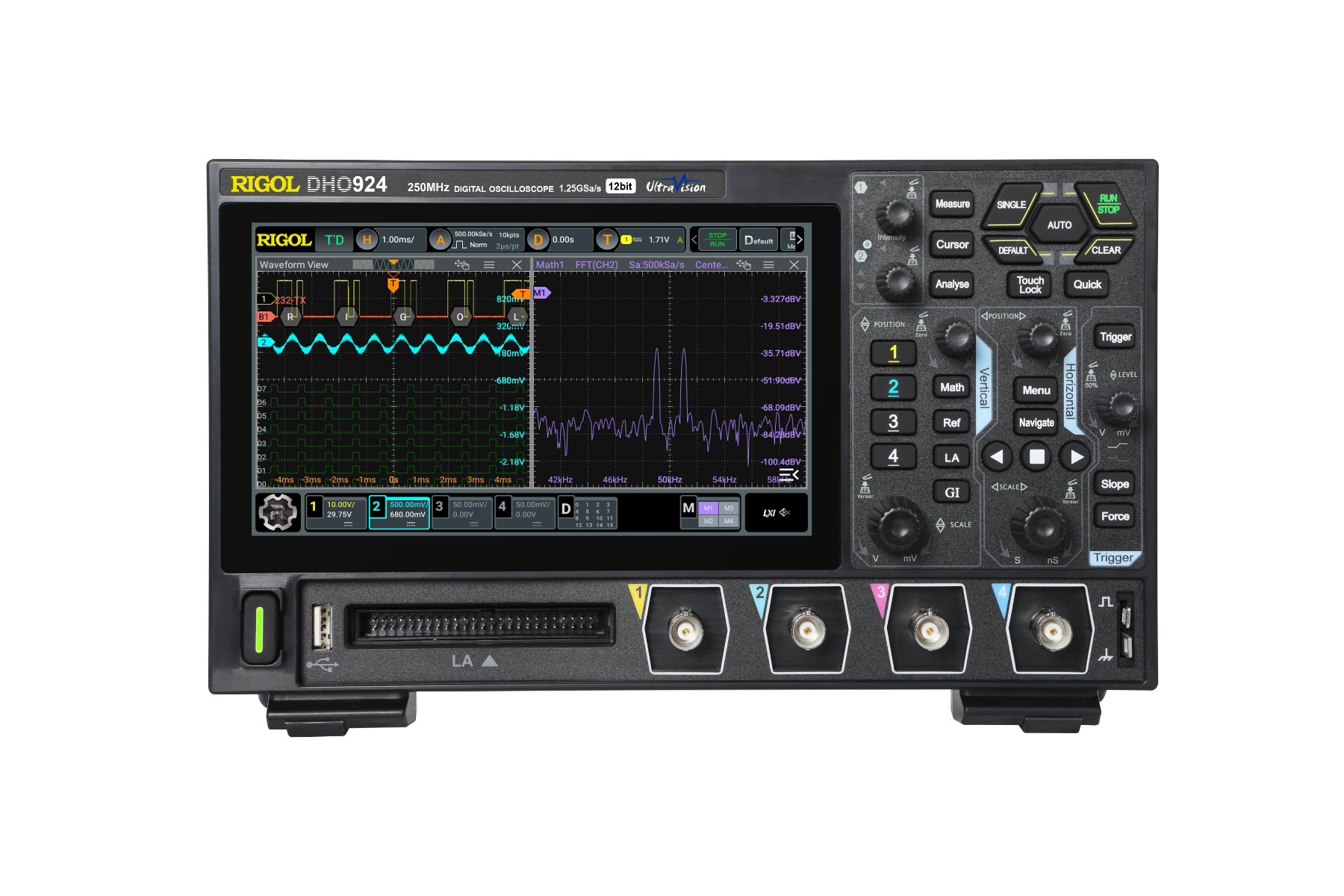

RIGOL Digital Oscilloscope DHO924

NEW! 250 MHz, 4 analog channels, 16 digital channels, Real-time sample rate up to 1.25 GSa/s, Memory Depth up to 50 Mpts, up to 12-bit vertical resolution, 7'' touch display,EU Cable



Deliver in
2 - 4 working Days
€699.00 €831.81
  • Analog channel bandwidth: 250 MHz
  • 4 analog channels, 16 digital channels
  • up to 12-bit vertical resolution
  • Real-time sample rate up to 1.25 GSa/s
  • Memory Depth up to 50 Mpts
  • Vertical sensitivity range: 200 μV/div to 10 V/div
  • Max. capture rate of 1,000,000 wfms/s (in UltraAcquire mode)
  • 7" (1024x600) capacitive multi-touch screen
  • Supports Web Control interface







High-resolution 12-bit

12-bit vertical resolution with 4096 levels of quantization, 16 times the quantization levels of 8-bit, adept at handling small signal testing.

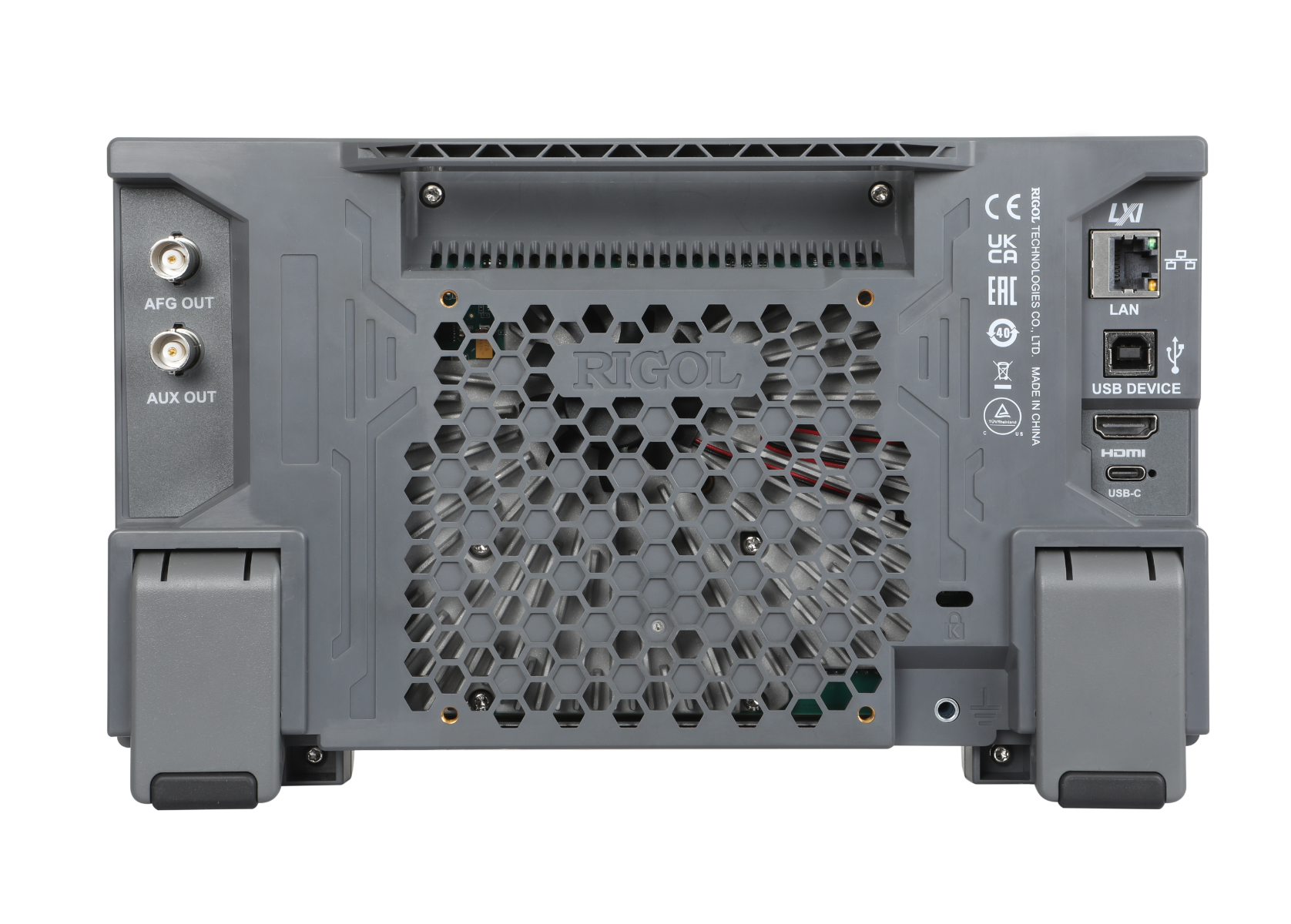

Support Type-C Power

Designed with a Type-C power interface, the DHO800 can be powered by just a portable power source, enabling on-site testing.



Sleek Design

The DHO800 series features a compact form factor and also supports standard monitor stand usage, effectively reducing desktop footprint and providing you with more ample workspace.



Supports Bode Plot Analysis

The DHO900S series comes standard with Bode plot loop analysis function, effectively addressing switching power loop response analysis.



Standard Digital Channels

The entire DHO900 series comes equipped with digital channels as standard, allowing digital signal analysis when paired with the PLA2216 logic analysis probe.




Firmware Download Description File Size Version Release Date
DHO800_DHO900_Firmware DHO800_DHO900_Firmware 89.84 MB V00.01.01 10.2023
Datasheet Download Description File Size Version Release Date
DHO900_DataSheet_EN DHO900_DataSheet_EN 4.92 MB V2.0 09.2024
Manual Download Description File Size Version Release Date
DHO900_UserGuide_EN DHO900_UserGuide_EN 20.30 MB V2.0 09.2024
General Download Description File Size Version Release Date
DHO900_QuickGuide_EN DHO900_QuickGuide_EN 5.69 MB V2.0 09.2024
DHO800900_ProgrammingGuide_EN DHO800900_ProgrammingGuide_EN 5.68 MB V2.0 09.2024
