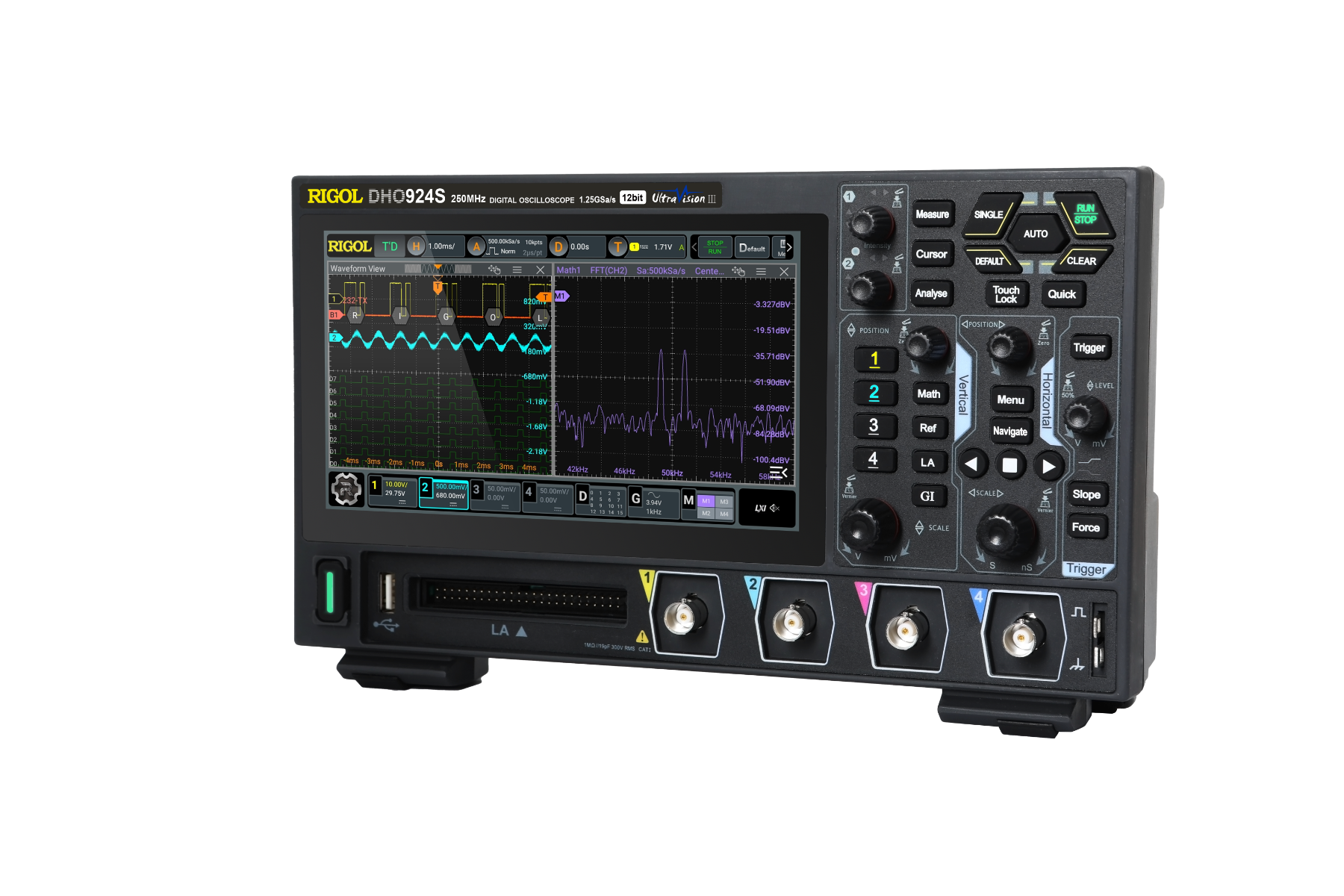

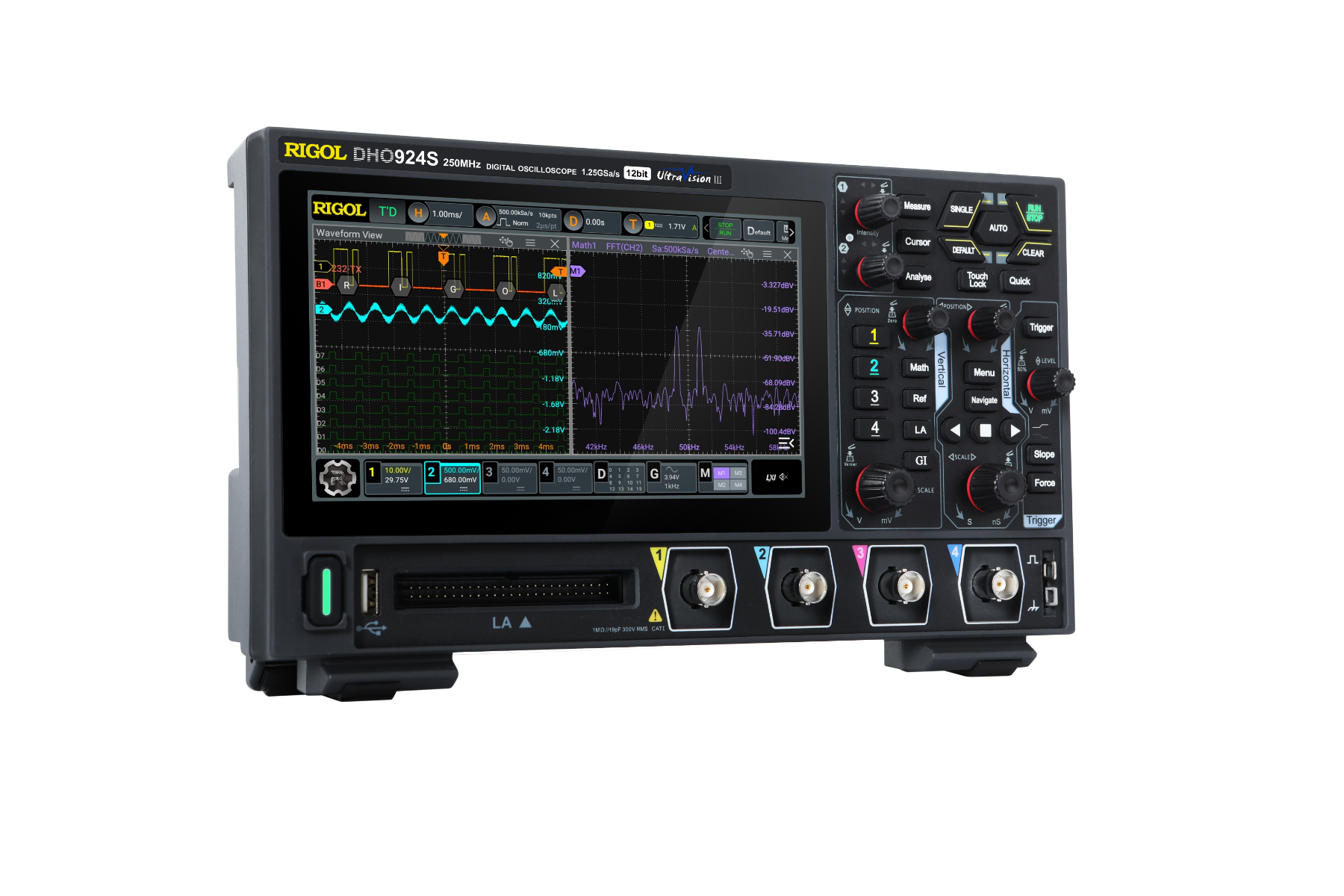

Digital Oscilloscope DHO924S
In stock
SKU
DHO924S
NEW! 250 MHz, 4 analog channels, 16 digital channels, Real-time sample rate up to 1.25 GSa/s, Memory Depth up to 50 Mpts, up to 12-bit vertical resolution, AFG function, Bode Plot, 7'' touch display
Deliver in
3 weeks
- Analog channel bandwidth: 250 MHz
- 4 analog channels, 16 digital channels
- up to 12-bit vertical resolution
- Real-time sample rate up to 1.25 GSa/s
- Memory Depth up to 50 Mpts
- Vertical sensitivity range: 200 μV/div to 10 V/div
- Max. capture rate of 1,000,000 wfms/s (in UltraAcquire mode)
- Integrates the AFG function, bode plot analysis, histogram, digital signal analysis, and etc
- 7" (1024x600) capacitive multi-touch screen
- Supports Web Control interface
High-resolution 12-bit
12-bit vertical resolution with 4096 levels of quantization, 16 times the quantization levels of 8-bit, adept at handling small signal testing.

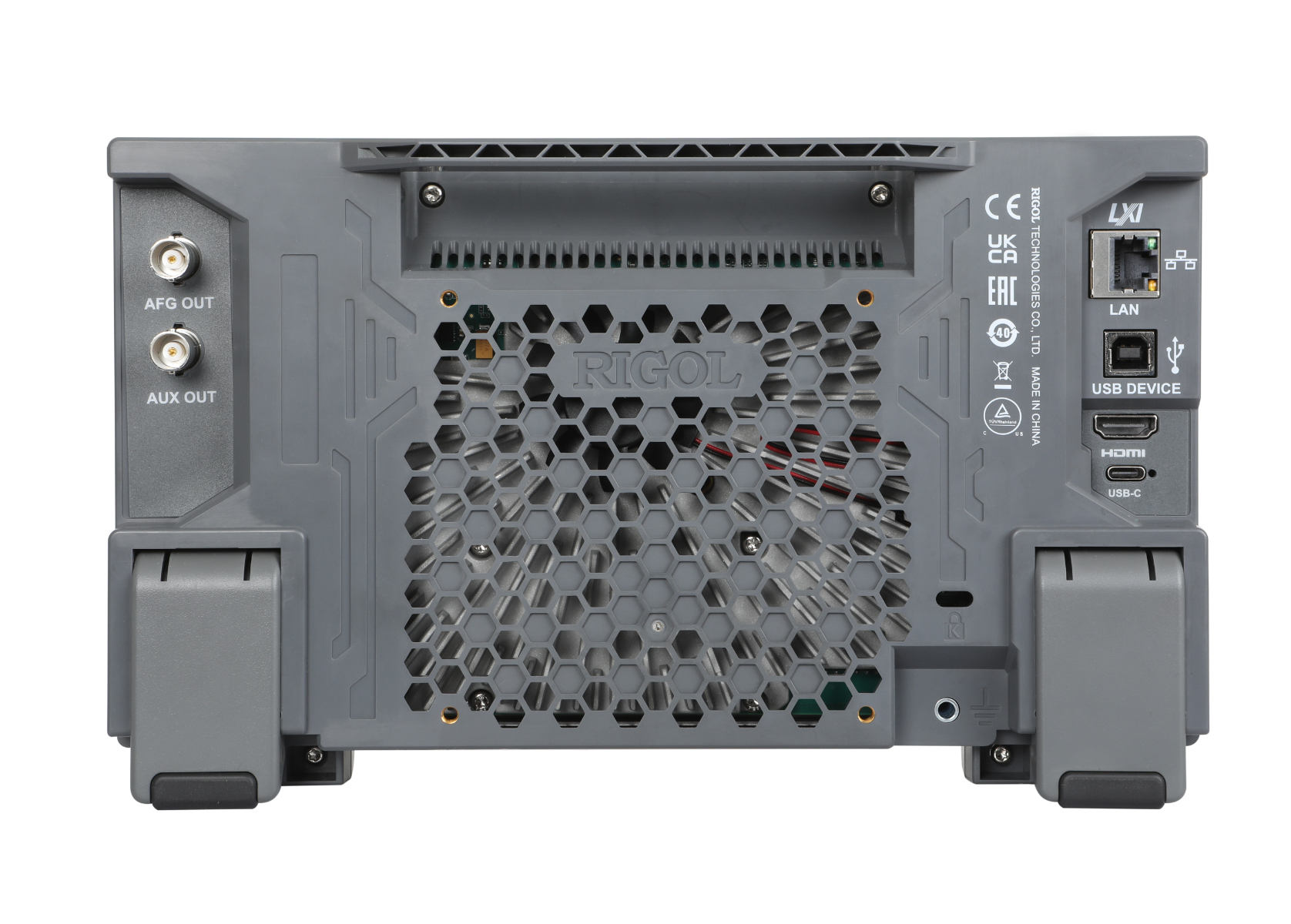

Support Type-C Power
Designed with a Type-C power interface, the DHO800 can be powered by just a portable power source, enabling on-site testing.
Sleek Design
The DHO800 series features a compact form factor and also supports standard monitor stand usage, effectively reducing desktop footprint and providing you with more ample workspace.
Supports Bode Plot Analysis
The DHO900S series comes standard with Bode plot loop analysis function, effectively addressing switching power loop response analysis.
Standard Digital Channels

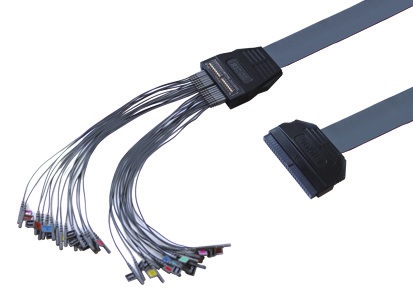

The entire DHO900 series comes equipped with digital channels as standard, allowing digital signal analysis when paired with the PLA2216 logic analysis probe.
