| Model | Market Price | Price | Delivery | Bandwidth | Analog Channels | Max. Real-time Sample Rate | Max. Memory Depth | Digital Channels | Built-in Signal Source | Channels | Sample Rate | Waveform Capture Rate | Operation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| RIGOL Oscilloscope DS1074Z Plus Refurbished | €399.00 |
€279.30
|
2 Weeks | 70MHz | 4 | 1GSa/s | 24Mpts | 16(Probe opt.) | - | 1CH | 100Msa/s | 30,000wfm/s | |
| RIGOL Digital Oscilloscope DS1054Z | €339.00 |
€339.00
|
1 Week | 50MHz | 4 | 1GSa/s | 24Mpts | 4CH | 1Gsa/s | 30,000wfm/s | |||
| RIGOL Digital Oscilloscope DS1074Z Plus | €399.00 |
€399.00
|
1 Week | 70MHz | 4 | 1GSa/s | 24Mpts | 16(Probe opt.) | 100Msa/s | 30,000wfm/s | |||
| RIGOL Digital Oscilloscope DS1074Z-S Plus | €579.00 |
€579.00
|
about one month | 70MHz | 4 | 1GSa/s | 24Mpts | 16(Probe opt.) | 2CH | 100Msa/s | 30,000wfm/s | ||
| RIGOL Digital Oscilloscope DS1104Z Plus | €439.00 |
€439.00
|
1 Week | 100MHz | 4 | 1GSa/s | 24Mpts | 16(Probe opt.) | - | 100Msa/s | 30,000wfm/s | ||
| RIGOL Digital Oscilloscope DS1104Z-S Plus | €619.00 |
€619.00
|
1 Week | 100MHz | 4 | 1GSa/s | 24Mpts | 16(Probe opt.) | 2CH | 100Msa/s | 30,000wfm/s |
-
4 Channels As Standard..The price of 2-channel can obtain 4-channel products, and 4 analog channels are configured as standard to facilitate simultaneous measurement of multiple signals -
12Mpts Storage Depth..Standard with 12M, optional with 24m super long storage depth. (Standard configuration of digital channel 6m, optional 12m) allows the user to give full consideration to the overall situation and details of the waveform, maintain the highest sampling rate in a longer period of time, without missing any waveform changes -
Hardware Waveform Recording and Playback Function..Provide waveform recording function options, record waveform changes, easily replay waveform, find out the fault location -

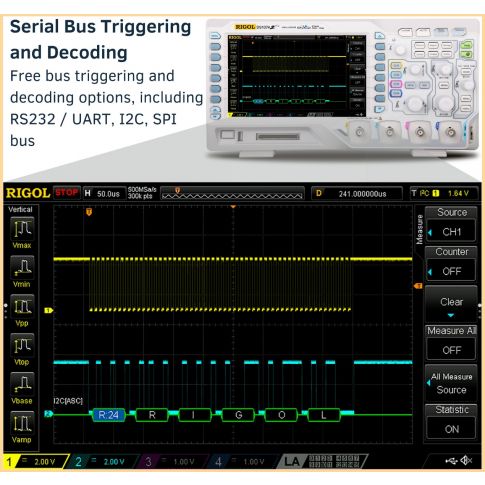

Serial Bus Triggering and Decoding..Provide bus triggering and decoding options, support RS232 / UART, I2C, SPI bus -

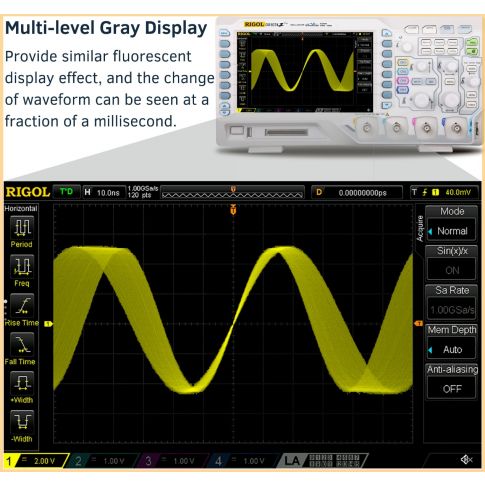

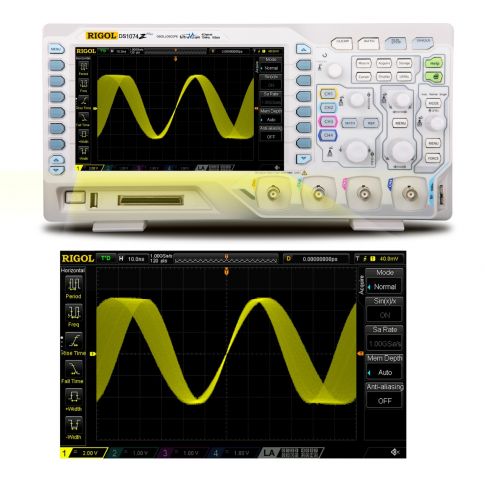

Digital Fluorescent Display..Gray level display capability, similar to fluorescent display effect, with minute change of waveform -
Mixed Signal Analysis Capability..The plus model provides 16 digital logic channels, which makes it more convenient to test multiple analog and digital signals at the same time and analyze logic signals more conveniently. DS1000z plus can be upgraded to MSO -
Two 25MHz Signal Sources..With two 25MHz arbitrary waveform generator models, the oscilloscope, logic analyzer and signal source are combined to give you a more efficient test experience
Firmware Download
| File Name | Version | Release Date | Operation |
|---|---|---|---|
| DS1000Z Firmware | v00.04.05.02.07 | 3/20/2024 | Download |
Software Download
| File Name | Version | Release Date | Operation |
|---|---|---|---|
| DS1000Z IVI Driver | 1.0.3 | 11/9/2021 | Download |
| Ultra Power Analyzer | 00.01.02.05 | 10/26/2021 | Download |
| Ultra Scope Software | 00.01.02.05 | 10/26/2021 | Download |
| Ultra Sigma (HelpDocument) | V1.0 | 10/26/2021 | Download |
| Ultra Sigma (PC)Installer | 00.01.06.01 | 10/26/2021 | Download |
