• Based on RIGOL's brand new self-developed Centaurus technical platform
• 12-bit resolution for all the series
• Max. 1 GHz bandwidth, 8 analog channels, and 1 external trigger channel
• Standard configuration of 16 digital channels (required to purchase the logic analyzer probe) for
the MHO models
• Real-time sample rate: up to 4 GSa/s
• Max. memory depth 500 Mpts
• Vertical sensitivity up to 100 μV/div
• Maximum waveform capture rate of 1,000,000 wfms/s in fast recording mode
• Arbitrary Waveform/Function Generator (AFG), power analysis, histogram, and digital signal
analysis, Bode plot, and protocol decodings
• Search and navigation function helps users quickly search for the signals with exceptions and
locate them accurately.
• 256-level intensity grading display, with digital real-time fluorescence technology
• 10.1" 1280*800 high-definition touch screen
• Brand new Flex knob brings friendly user experience
• Standard configuration of USB Device, USB Host, LAN, HDMI interfaces for all the series
• Battery pack-powered, convenient to charge anytime and anywhere, providing a great feasibility
for measurement
• Online upgrade
• Standard configuration of the photoelectric encoder operating knob for all the series to improve
the service life of the instrument
• 12-bit resolution for all the series
• Max. 1 GHz bandwidth, 8 analog channels, and 1 external trigger channel
• Standard configuration of 16 digital channels (required to purchase the logic analyzer probe) for
the MHO models
• Real-time sample rate: up to 4 GSa/s
• Max. memory depth 500 Mpts
• Vertical sensitivity up to 100 μV/div
• Maximum waveform capture rate of 1,000,000 wfms/s in fast recording mode
• Arbitrary Waveform/Function Generator (AFG), power analysis, histogram, and digital signal
analysis, Bode plot, and protocol decodings
• Search and navigation function helps users quickly search for the signals with exceptions and
locate them accurately.
• 256-level intensity grading display, with digital real-time fluorescence technology
• 10.1" 1280*800 high-definition touch screen
• Brand new Flex knob brings friendly user experience
• Standard configuration of USB Device, USB Host, LAN, HDMI interfaces for all the series
• Battery pack-powered, convenient to charge anytime and anywhere, providing a great feasibility
for measurement
• Online upgrade
• Standard configuration of the photoelectric encoder operating knob for all the series to improve
the service life of the instrument
| Model | Market Price | Price | Delivery | Bandwidth | Analog Channels | Max. Real-time Sample Rate | Max. Memory Depth | Digital Channels | Built-in Signal Source | Vertical Resolution | Waveform Capture Rate | Operation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| RIGOL Digital Oscilloscope DHO5054 | €5799.00 |
€5799.00
|
1 Week | 500MHz | 4 | 4GSa/s | 500Mpts | - | - | 12bits | 1,000,000 wfms/s | |
| RIGOL Digital Oscilloscope DHO5058 | €11599.00 |
€11599.00
|
1 Week | 500MHz | 8 | 4GSa/s | 500Mpts | - | - | 12bits | 1,000,000 wfms/s | |
| RIGOL Digital Oscilloscope DHO5104 | €7199.00 |
€7199.00
|
1 Week | 1GHz | 4 | 4GSa/s | 500Mpts | - | - | 12bits | 1,000,000 wfms/s | |
| RIGOL Digital Oscilloscope DHO5108 | €14499.00 |
€14499.00
|
1 Week | 1GHz | 8 | 4GSa/s | 500Mpts | - | - | 12bits | 1,000,000 wfms/s | |
| RIGOL Digital Oscilloscope MHO5054 | €4399.00 |
€4399.00
|
1 Week | 500MHz | 4 | 4GSa/s | 500Mpts | 16(Probe opt.) | 2CH | 12bits | 1,000,000 wfms/s | |
| RIGOL Digital Oscilloscope MHO5056 | €10099.00 |
€10099.00
|

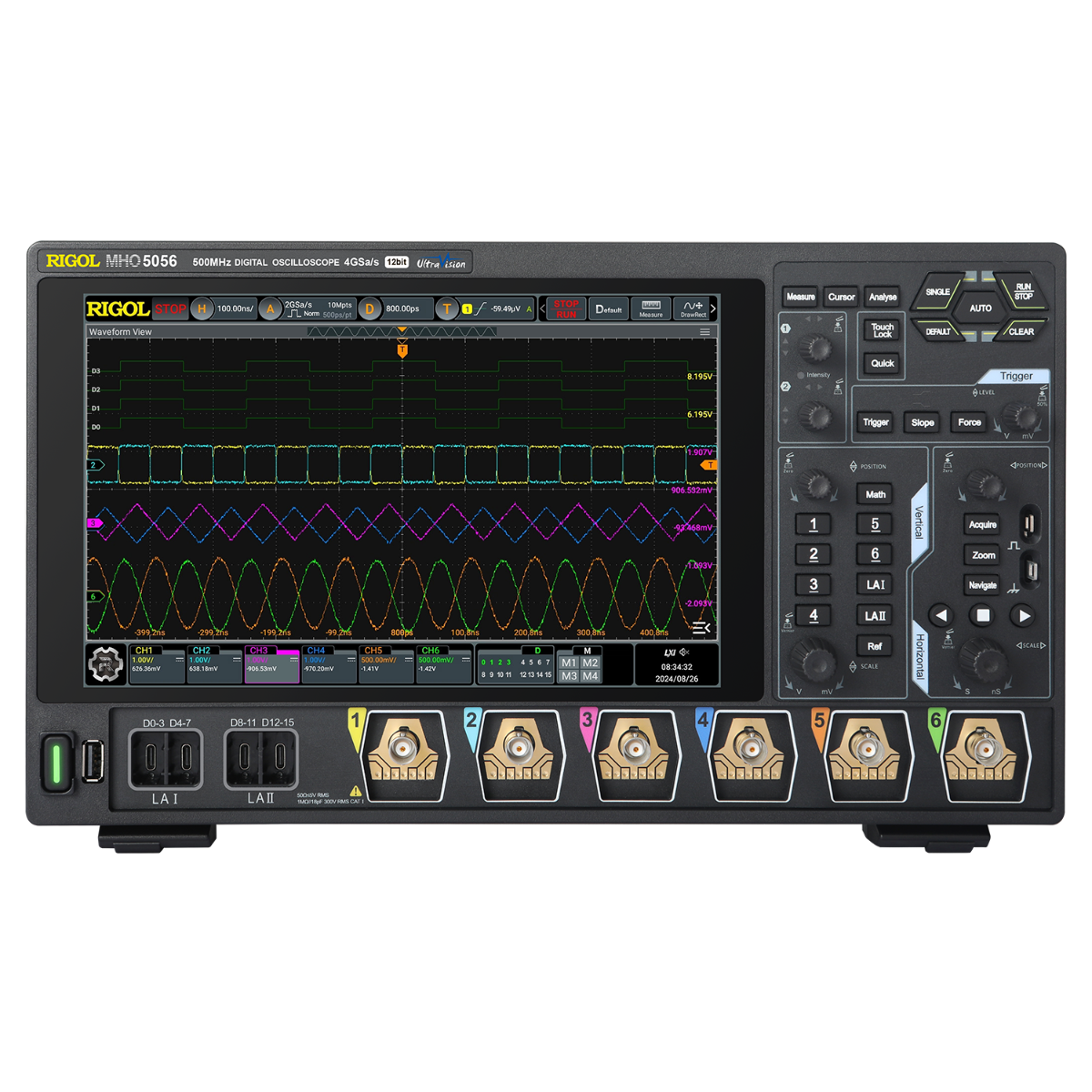

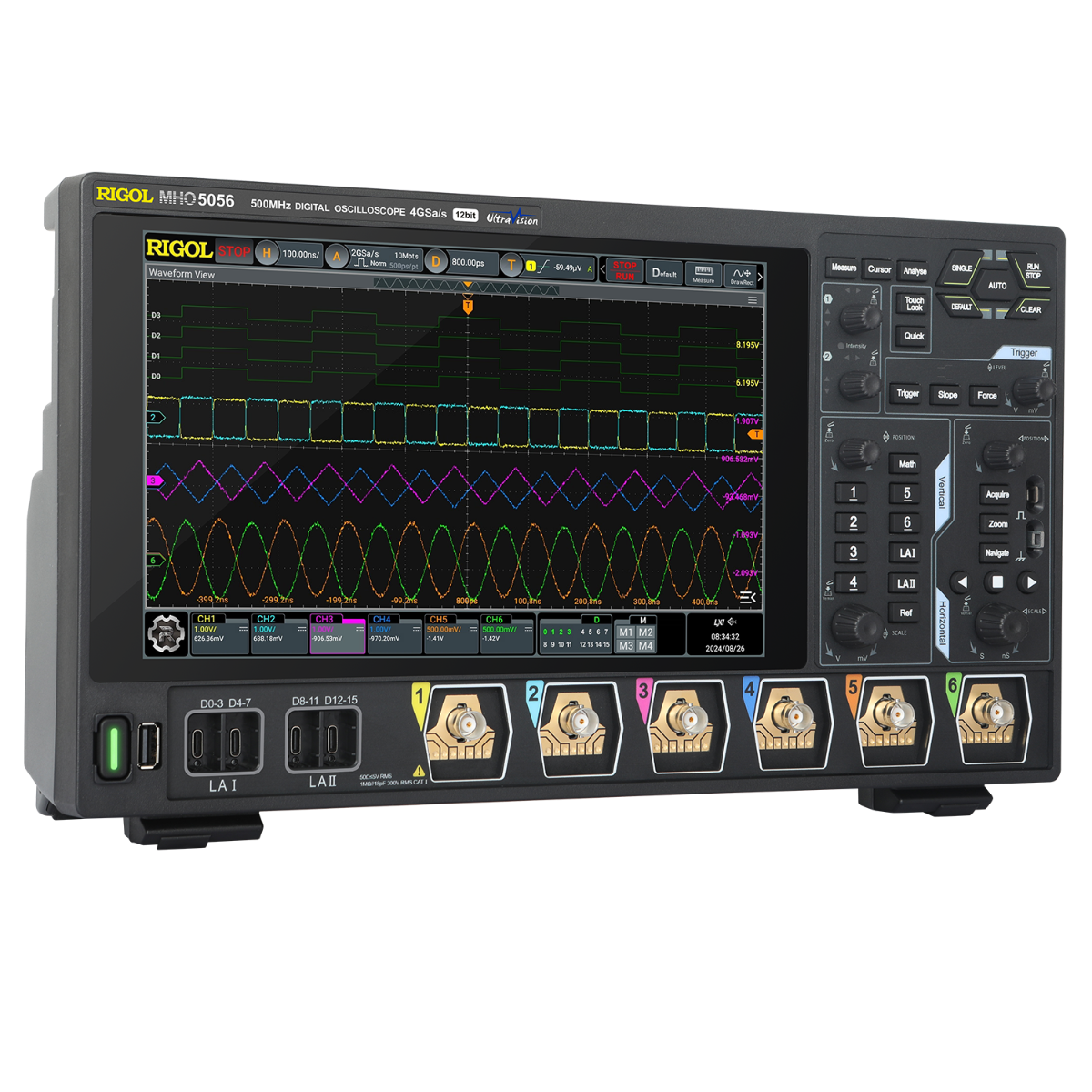

1 Week | 500MHz | 6 | 4GSa/s | 500Mpts | 16(Probe opt.) | 2CH | 12bits | 1,000,000 wfms/s | |
| RIGOL Digital Oscilloscope MHO5104 | €5799.00 |
€5799.00
|
1 Week | 1GHz | 4 | 4GSa/s | 500Mpts | 16(Probe opt.) | 2CH | 12bits | 1,000,000 wfms/s | |
| RIGOL Digital Oscilloscope MHO5106 | €12999.00 |
€12999.00
|
1 Week | 1GHz | 6 | 4GSa/s | 500Mpts | 16(Probe opt.) | 2CH | 12bits | 1,000,000 wfms/s |
-
4/6/8 Analog ChannelWith up to 8 analog input channels on a single device, the DHO5000 series can handle various multi-channel testing applications, such as Power Sequencing Tests, 3-Phase Power Analysis, motor testing, and third-generation semiconductor testing. -
Compact DesignThe DHO5000 series features a compact design with dimensions of 335 mm (W) × 235 mm (H) × 154 mm (D), minimizing desktop space usage. Its 5U rack mount height makes it an efficient solution for system integration, improving cabinet utilization and overall compactness. -
Outstanding Testing AccuracyWith a 12-bit ADC and up to 4096 vertical levels, 16 times greater than an 8-bit oscilloscope, the DHO5000 significantly enhances measurement accuracy, capturing even the smallest waveform details. Whether testing power supply ripple or analyzing critical applications like medical devices, it helps you efficiently assess signal characteristics, ensuring every measurement is precise, enabling technological innovation. -
Battery Pack SupportThe DHO5000 supports battery pack power, allowing for measurements in locations without AC power. This is ideal for certain outdoor or vehicle-mounted testing. The battery pack also offers clean energy in high-interference environments, minimizing environmental impact on test results.
