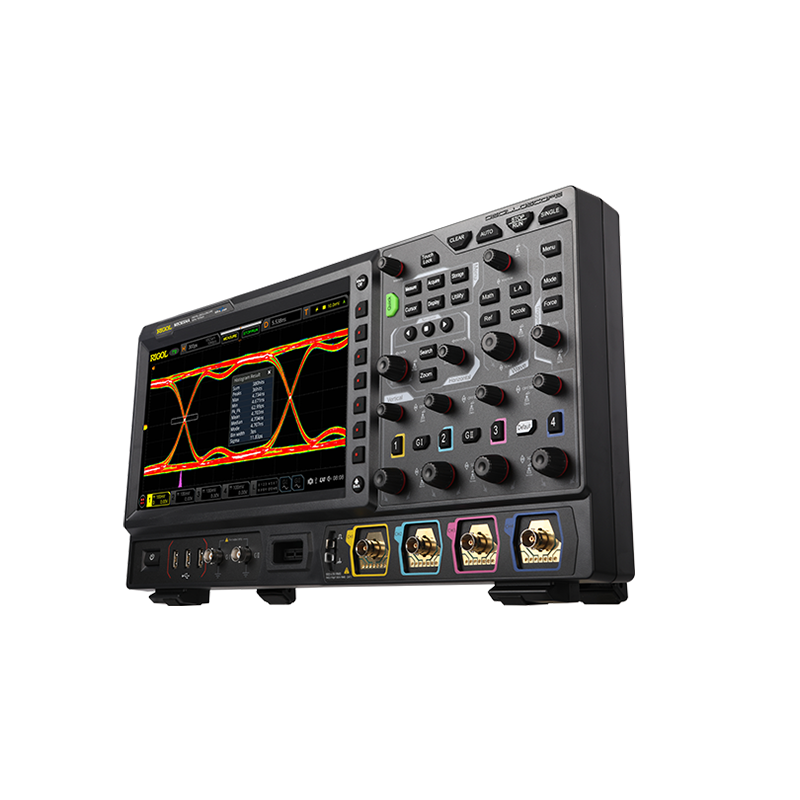

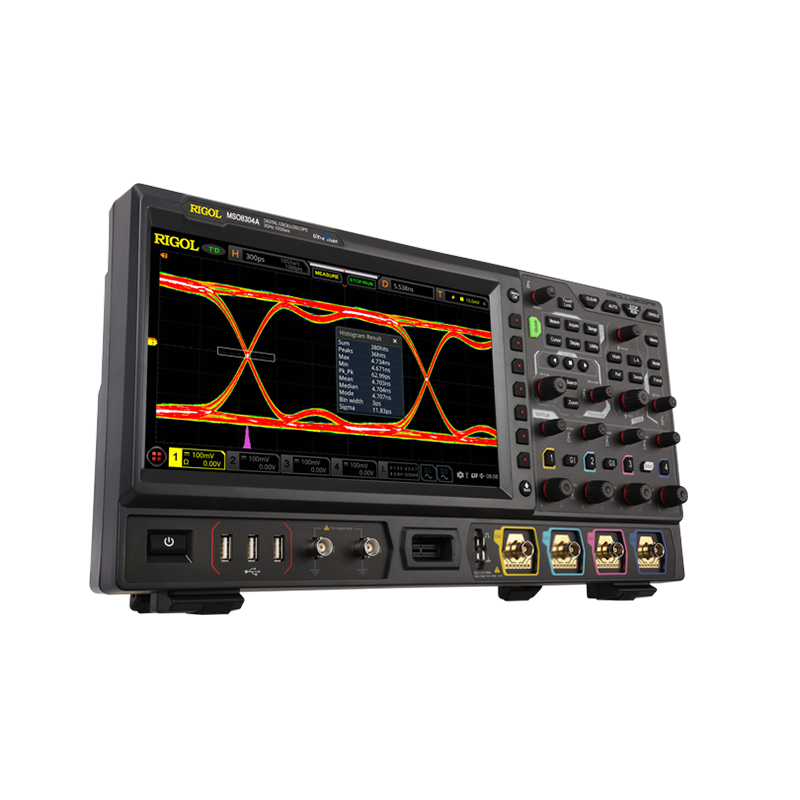

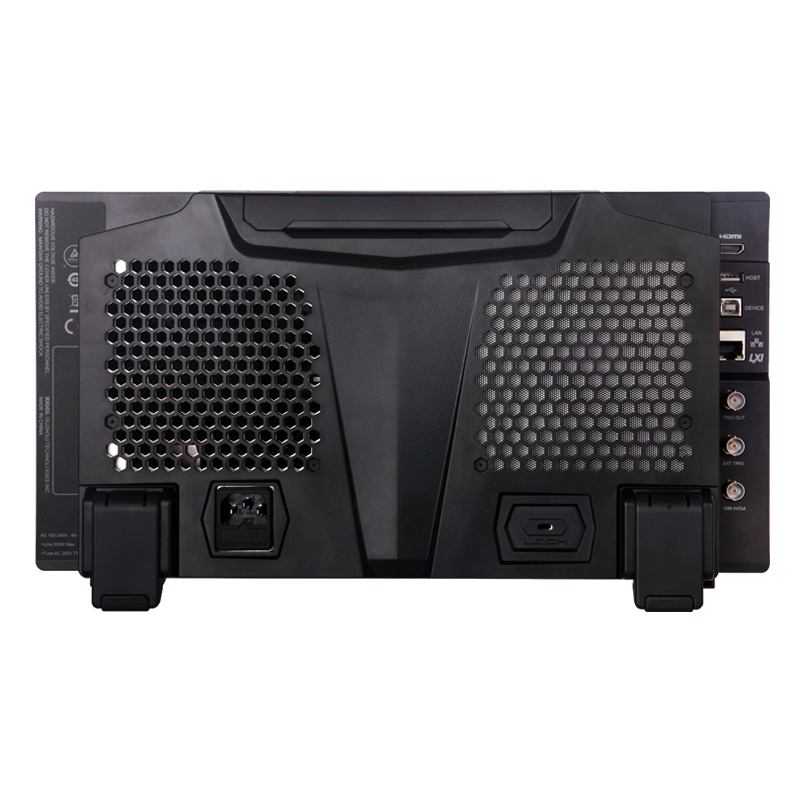

Digital Oscilloscope MSO8154A
In stock
SKU
MSO8154A
NEW! 1.5 GHz (50 Ω), 500MHz (1 MΩ), 4 analog channels, 1 EXT channel, 16 digital channels, Real-time sample rate up to 10 GSa/s, Memory Depth up to 500 Mpts, Built-in dual-channel function/arbitrary waveform generator (optional), up to 12-bit vertical resolution, 10.1'' HD touch display
Deliver in
about one month
- Analog channel bandwidth: 1.5 GHz (50 Ω), 500MHz (1 MΩ)
- 4 analog channels, 1 EXT channel, 16 digital channels
- Built-in dual-channel function/arbitrary waveform generator (optional)
- up to 12-bit vertical resolution
- Real-time sample rate up to 10 GSa/s
- Memory Depth up to 500 Mpts
- 10.1'' 1024*600 HD touch display
- Web Control and VNC remote command
- Waveform histogram analysis (standard)
- Auto measurement of 41 waveform parameters
Excellent bandwidth and sampling rate
..The MSO8000A series digital oscilloscope provides you with the highest 3GHz analog bandwidth and 10GSa/s sampling rate. The low bandwidth model can be upgraded to 3GHz (single channel mode) through software at any time, ensuring you have higher signal fidelity and a resolution as low as 100ps (up to 2ps at a minimum time base) to view small waveform details.
Economical and practical eye chart pre testing
..Using an oscilloscope for eye pattern measurement can help users visually display the transmission quality of digital signals, thereby understanding the strength of inter code interference in the system and making improvements in system design. For situations that often require quality verification of digital signals, the MSO8000A digital oscilloscope with eye graph function is undoubtedly your wise choice.
Jitter analysis supporting diversified displays
...
Capture rate up to 600kwfms/s
..The waveform capture rate of up to 600000 wfms/s can reduce the Dead time and make it easier to find burrs and other accidental events in the signal, thus greatly improving the debugging efficiency of engineers.
Full memory hardware measurement
..No longer limited to the waveform effect visible on the screen, accurate results can still be obtained for multi cycle high-frequency signal testing.
500Mpts deep storage, up to 450000 frames of hardware waveform recording
..The MSO8000A series comes standard with a storage depth of 500Mpts, and the hardware waveform recording function adopts segmented storage technology. It can selectively capture and store signals of user concern by setting triggering conditions, and mark the time on the signals. This not only ensures the efficiency of capture, but also further expands the total time for waveform observation.
