RIGOL Digital Oscilloscope DS1102Z-E

RIGOL Digital Oscilloscope DS1102Z-E

Bandwidth 100MHz

Analog Channels 2

Max. Real-time Sample Rate 1GSa/s

Max. Memory Depth 24Mpts

Waveform Capture Rate 30,000wfm/s

Delivery：1 Week

Standard Accessories

Quantity：

€259.00 excl. VAT

€308.21 incl. 19% VAT

Buy Now Add to cart Add to wish list

Description
DS1000Z-E Oscilloscope Model
Feature & Video
Oscilloscope Accessories
Software ＆ Firmware
Datasheet & Manual Download

Add To Cart

<source src="/images/pub/media/wysiwyg/download/video/ds1000z-e/ds1000z-e_video01_digital_oscilloscope_introduction.mp4" type="video/mp4">
 </video>

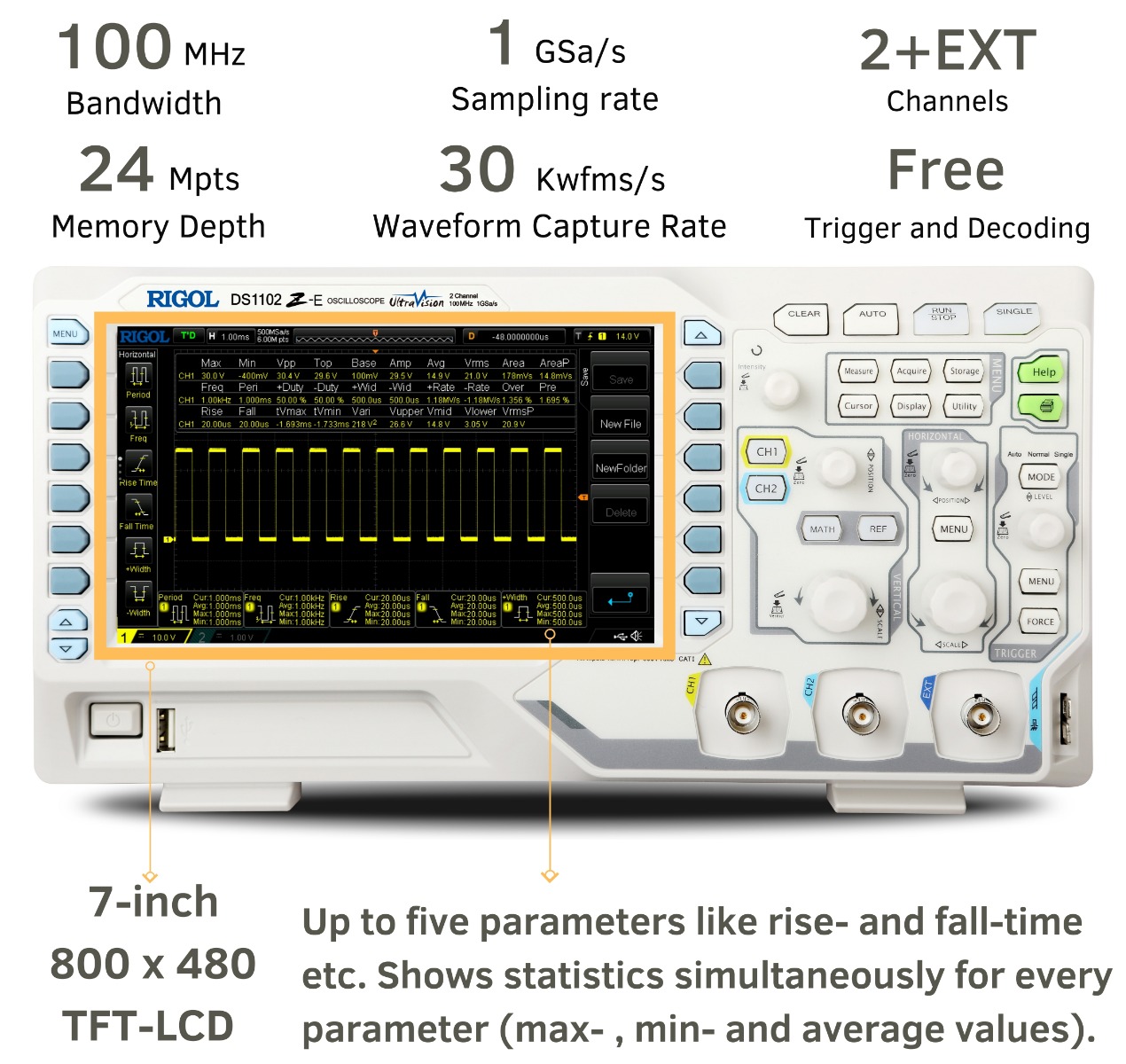

Analog channel bandwidth: 100 MHz, 2 analog channel, 1 GSa/s, Memory depth up to 24 Mpts, Up to 30,000 wfms/s waveform capture rate, Trigger and Decoding options are permanent free installed,EU Cable
All options were preinstalled.

------
<ul>
<li>Analog channel bandwidth: 100 MHz</li>
<li>2 analog channels</li>
<li>Real-time sample rate up to 1 GSa/s</li>
<li>Memory Depth up to 24 Mpts</li>
<li>Up to 30,000 wfms/s waveform capture rate</li>
<li>Up to 60,000 frames hardware real-time waveform recording and playback functions</li>
<li>Innovative "UltraVision" technology</li>

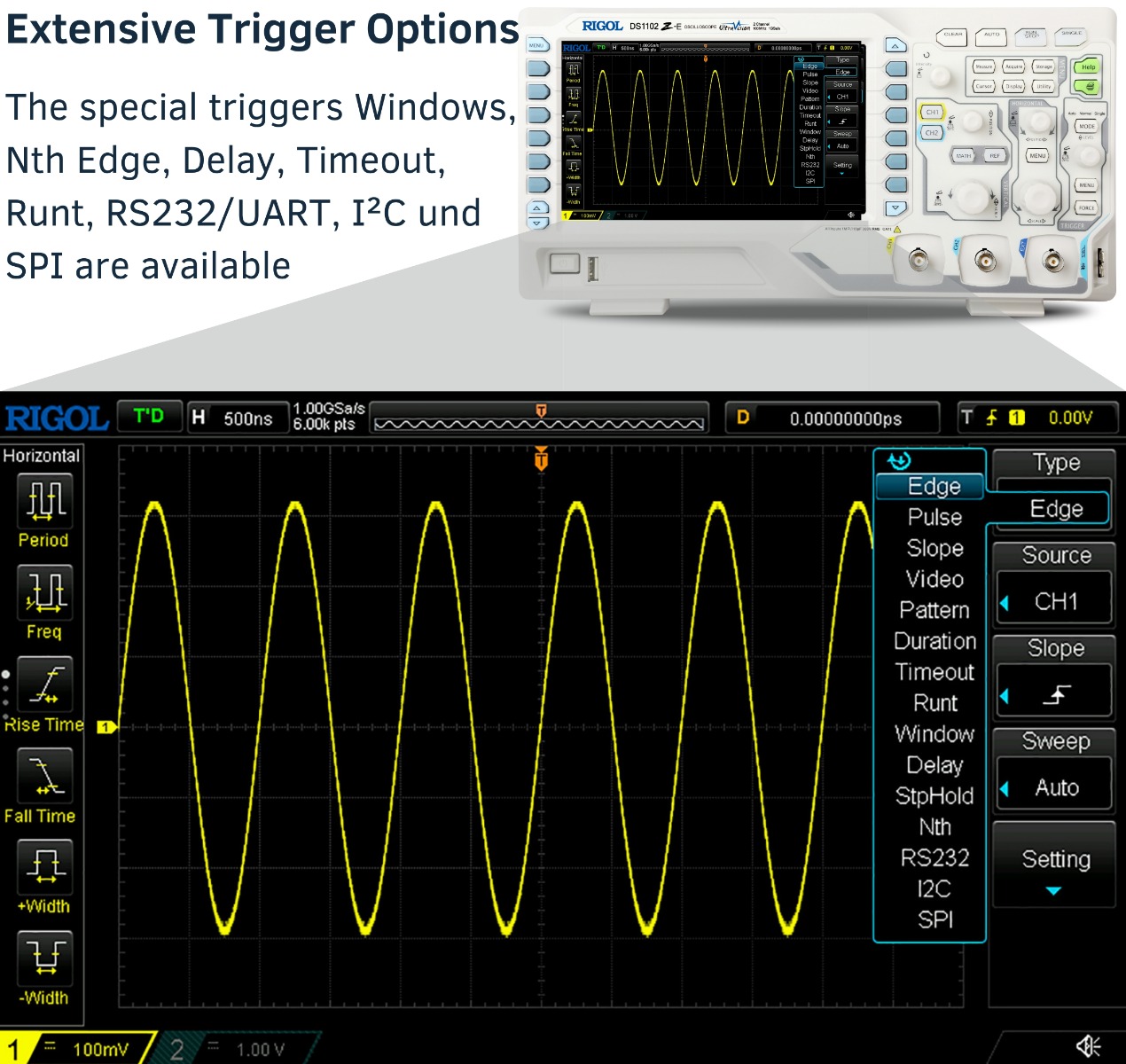

<li>Various trigger and bus decoding functions</li>
<li>Low noise floor, vertical scale range: 1 mV/div to 10 V/div</li>
<li>Various interfaces: USB Host&Device, LAN (LXI), AUX</li>
<li>Compact size, lightweight, easy to use</li>
<li>7-inch WVGA (800x480) TFT LCD, intensity graded color display</li>
</ul>

Model	Market Price	Price	Delivery	Bandwidth	Analog Channels	Max. Real-time Sample Rate	Max. Memory Depth	Waveform Capture Rate	Operation
RIGOL Digital Oscilloscope DS1102Z-E	€259.00	€259.00	1 Week	100MHz	2	1GSa/s	24Mpts	30,000wfm/s
RIGOL Digital Oscilloscope DS1202Z-E	€339.00	€339.00	1 Week	200MHz	2	1GSa/s	24Mpts	30,000wfm/s

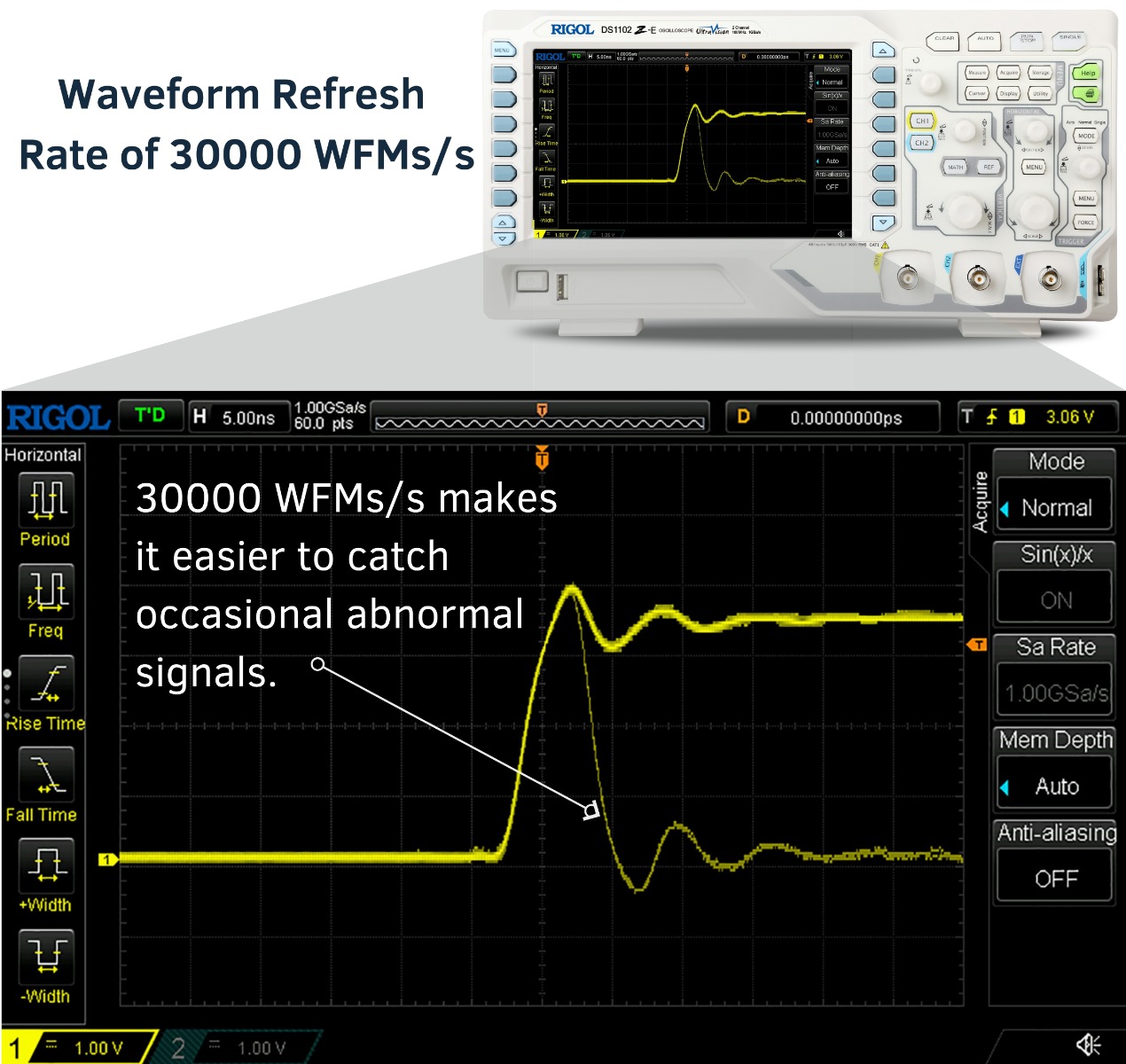

Waveform Refresh Rate of 30000 WFMS / S

30000 WFMS / s waveform refresh rate makes it easier to catch occasional abnormal signals.

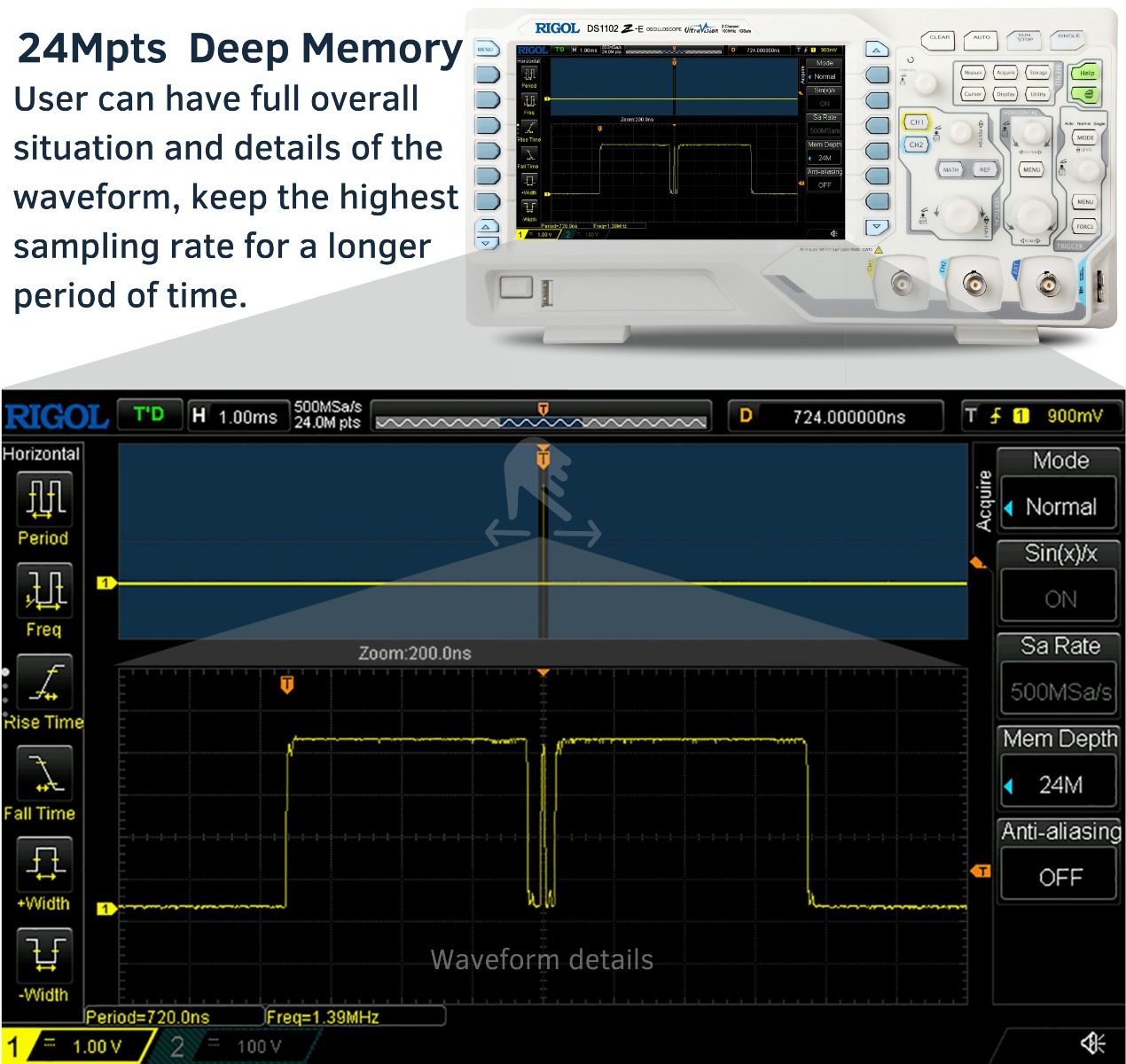

24m Storage Depth

Standard 24m ultra-long storage depth. It allows the user to give full consideration to the overall situation and details of the waveform, maintain the highest sampling rate for a longer period of time, without missing any waveform change.
Hardware Waveform Recording and Playback Function

Provide waveform recording function options, record waveform changes, easily replay waveform, find out the fault location

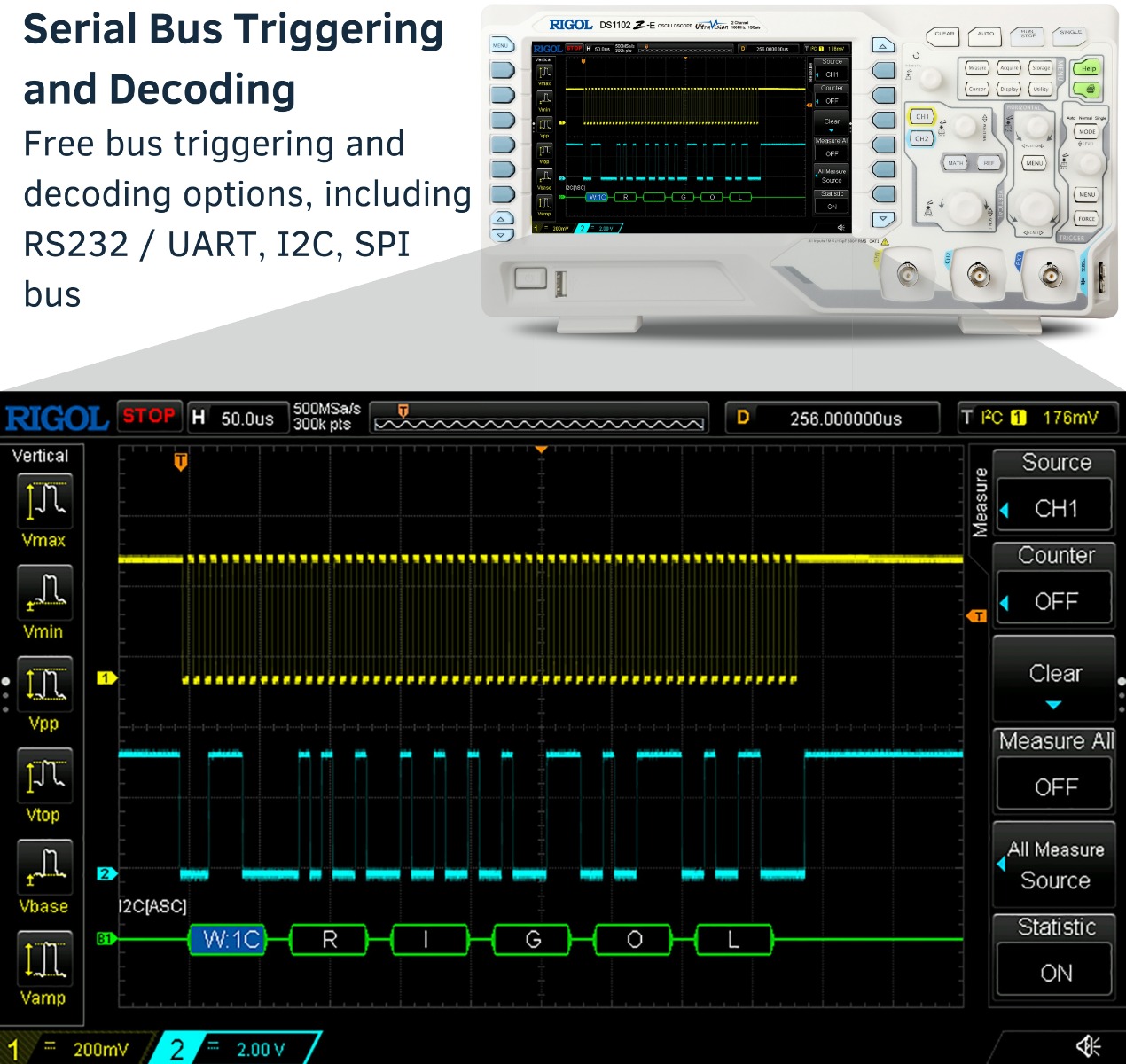

Serial Bus Triggering and Decoding

Provide bus triggering and decoding options, support RS232 / UART, I2C, SPI bus

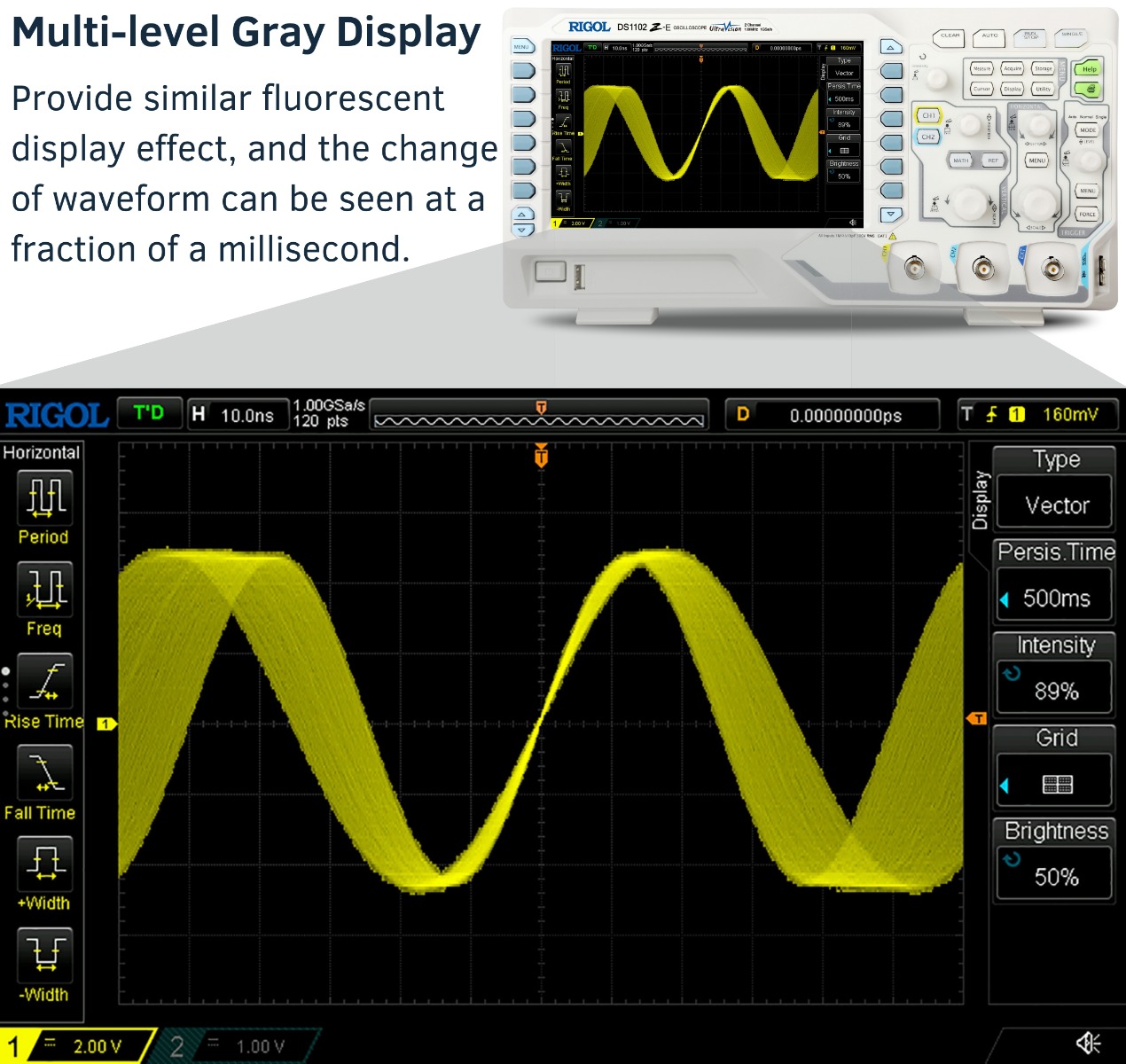

Digital Fluorescent Display

Multi-level gray level display capability, providing similar fluorescent display effect, and the change of waveform can be seen at a fraction of a millisecond.

Product Name	Market Price	Total	Delivery	Operation
RIGOL RP1025D	€449.00	€449.00	1 Week	Add To Cart
RIGOL High Voltage Probe RP1050D	€539.00	€539.00	about one month	Add To Cart
RIGOL RP1100D	€749.00	€749.00	about one month	Add To Cart
RIGOL RP1001C	€829.00	€829.00	about one month	Add To Cart
RIGOL RP1002C	€1585.00	€1585.00	about one month	Add To Cart
RIGOL RP1003C	€3295.00	€3295.00	about one month	Add To Cart
RIGOL RP1004C	€4635.00	€4635.00	about one month	Add To Cart
RIGOL RP1005C	€4515.00	€4515.00	about one month	Add To Cart
RIGOL RP1000P	€1465.00	€1465.00	about one month	Add To Cart
RIGOL Passive Probe PVP2150	€37.00	€37.00	1 Week	Add To Cart
RIGOL Passive Probe PVP2350	€59.00	€59.00	1 Week	Add To Cart
RIGOL Passive Probe PVP3150	€32.00	€32.00	1 Week	Add To Cart
RIGOL Differential Voltage PHA0150	€759.00	€759.00	about one month	Add To Cart
RIGOL Differential Voltage Probe PHA1150	€939.00	€939.00	about one month	Add To Cart
RP1006C	€4895.00	€4895.00	about one month	Add To Cart
RM-DG4000/DS1000Z	€139.00	€139.00	about one month	Add To Cart
Differential Voltage Probe PHA2150	€1395.00	€1395.00	about one month	Add To Cart

File Name	Version	Release Date	Operation
DS1000Z-E Firmware	v00.06.03.02.02	1/26/2024	Download

File Name	Version	Release Date	Operation
Ultra Power Analyzer	00.01.02.05	10/26/2021	Download
Ultra Scope Software	00.01.02.05	10/26/2021	Download
Ultra Sigma (HelpDocument)	V1.0	10/26/2021	Download
Ultra Sigma (PC)Installer	00.01.06.01	10/26/2021	Download

Manual Download

File Name	Version	Release Date	Operation
DS1000Z-E Datasheets	V1.2	10/26/2021	Download
DS1000Z-E PerformanceVerificationGuide	V1.1	10/26/2021	Download
DS1000Z-E Programming Manual	v1.1	10/29/2021	Download
DS1000Z-E Quick Guide	v1.1	10/29/2021	Download
DS1000Z-E User Manual	V1.1	10/26/2021	Download
