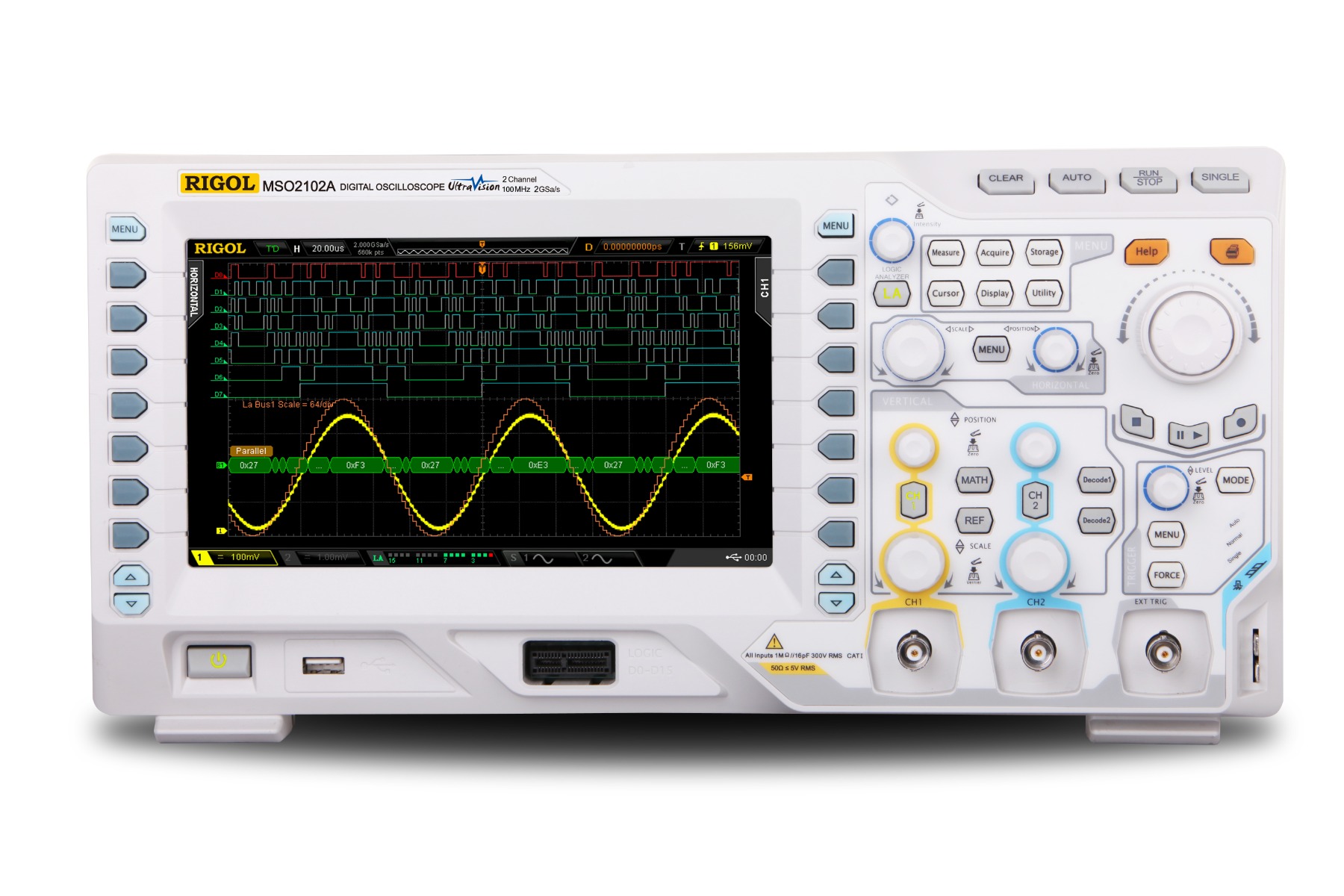

RIGOL Digital Oscilloscope MSO2102A-S

RIGOL Digital Oscilloscope MSO2102A-S

Bandwidth 100MHz

Analog Channels 2

Max. Real-time Sample Rate 2GSa/s

Max. Memory Depth 56Mpts

Digital Channels 16(Probe opt.)

Built-in Signal Source 2CH

Waveform Capture Rate 52,000wfms/s

Delivery：about one month

Standard Accessories

Quantity：

€1149.00 excl. VAT

€1367.31 incl. 19% VAT

Buy Now Add to cart Add to wish list

Description
MSO/DS2000 Oscilloscope Model
Feature & Video
Oscilloscope Accessories
Software ＆ Firmware
Datasheet & Manual Download

Add To Cart

<video id="video-1" poster="/images/pub/media/wysiwyg/download/video/mso2000a/ds_mso2000_cover.png
" preload="none" controls="controls" width="100%" height="auto">
<source src="/images/pub/media/wysiwyg/download/video/mso2000a/mso2000a_video01.mp4" type="video/mp4">
 </video>
<style type="text/css"></style>
<span data-sheets-value="{"1":2,"2":"100 MHz, standard 50 Ω input, 2 analog channel, 16 digital channel, 2 GSa/s, Memory depth up to 56 Mpts, Up to 52,000 wfms/s, Up to 65,000 frames hardware real-time waveform record, playback and analysis functions (standard), UltraVision, USB Host&Device, LAN (LXI), AUX, USB-GPIB (optional), 8 inch TFT (800x480) WVGA, Up to 256 levels intensity grading waveform display, Built-in 25 MHz AWGnnAll MSO/DS2000-BND options are preinstalled!"}" data-sheets-userformat="{"2":8961,"3":{"1":0},"11":4,"12":0,"16":10}">100 MHz, standard 50 Ω input, 2 analog channel, 16 digital channel, 2 GSa/s, Memory depth up to 56 Mpts, Up to 52,000 wfms/s, Up to 65,000 frames hardware real-time waveform record, playback and analysis functions (standard), UltraVision, USB Host&Device, LAN (LXI), AUX, USB-GPIB (optional), 8 inch TFT (800x480) WVGA, Up to 256 levels intensity grading waveform display, Built-in 25 MHz AWG,EU Cable
<span style="color: #ff9900;" data-sheets-value="{"1":2,"2":"100 MHz, standard 50 Ω input, 2 analog channel, 16 digital channel, 2 GSa/s, Memory depth up to 56 Mpts, Up to 52,000 wfms/s, Up to 65,000 frames hardware real-time waveform record, playback and analysis functions (standard), UltraVision, USB Host&Device, LAN (LXI), AUX, USB-GPIB (optional), 8 inch TFT (800x480) WVGA, Up to 256 levels intensity grading waveform display, Built-in 25 MHz AWGnnAll MSO/DS2000-BND options are preinstalled!"}" data-sheets-userformat="{"2":8961,"3":{"1":0},"11":4,"12":0,"16":10}">All MSO/DS2000-BND options are preinstalled!------<ul>
<li>Analog channel bandwidth: 100 MHz</li>
<li>2 analog channels, 16 digital channels</li>
<li>Real-time Sample Rate: analog channel up to 2 GSa/s, digital channel up to 1 GSa/s (MSO)</li>

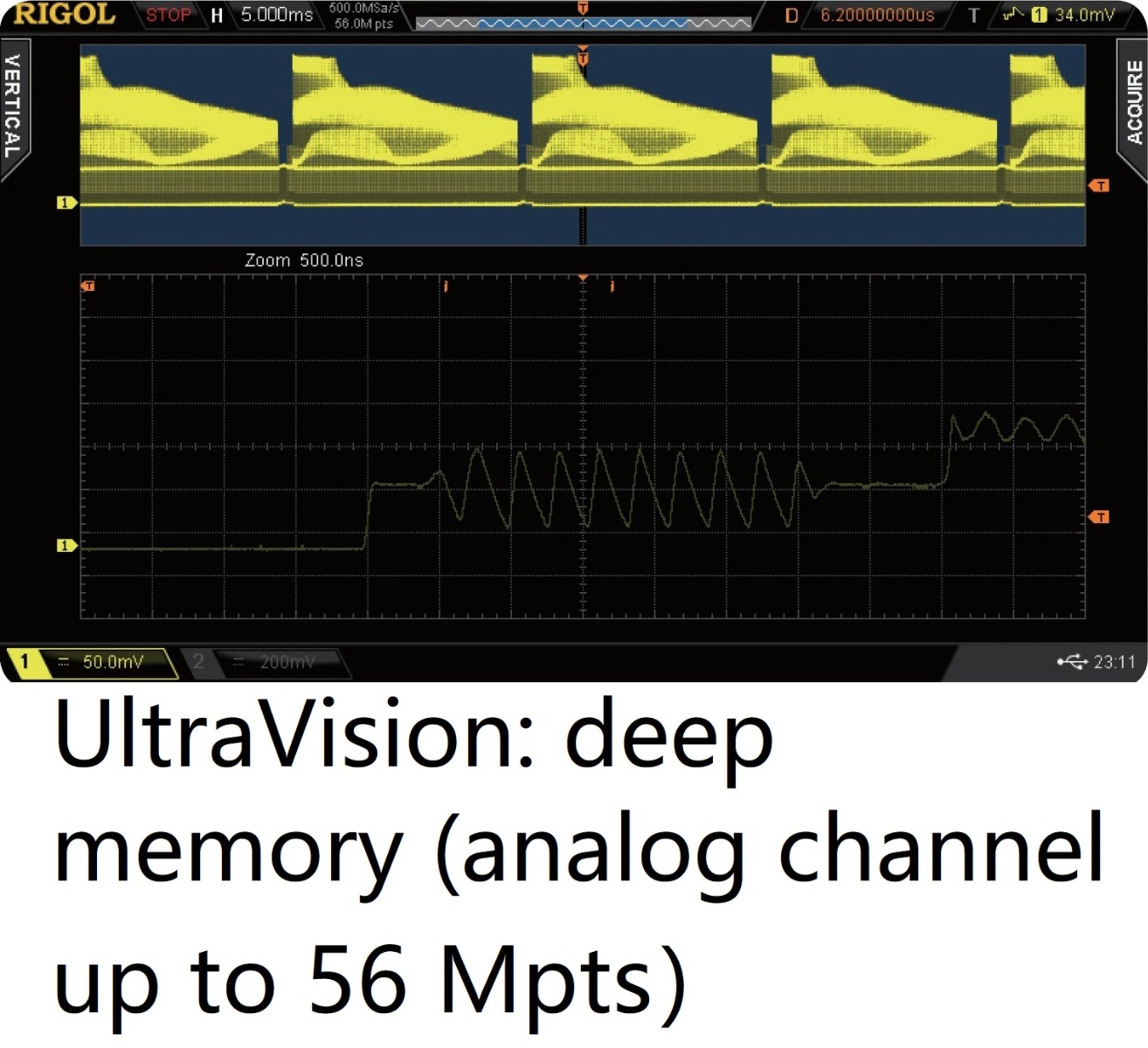

<li>Memory Depth: analog channel up to 14 Mpts (standard)/56 Mpts (optional), digital channel up to 14 Mpts (standard)/28 Mpts (optional, MSO)</li>
<li>Up to 52,000 wfms/s waveform capture rate</li>
<li>Up to 65,000 frames hardware real-time waveform record, playback and analysis functions (standard)</li>
<li>Innovative "UltraVision" technology</li>

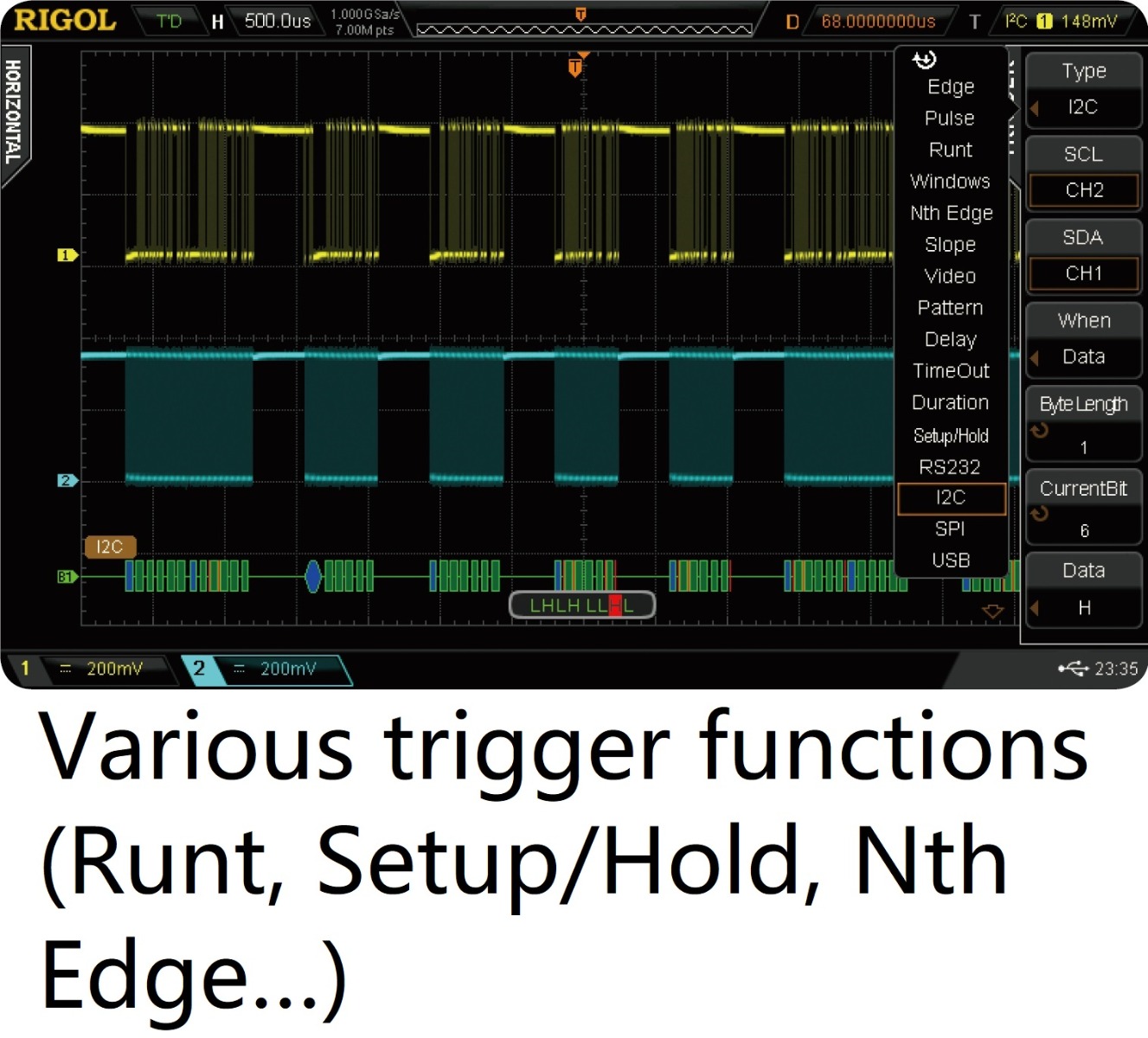

<li>A variety of trigger and bus decoding functions (Parallel, RS232, I2C, SPI, CAN)</li>
<li>Low noise floor, vertical scale range: 1 mV/div to 10 V/div</li>
<li>Complete connectivity: USB Host&Device, LAN (LXI), AUX, USB-GPIB (optional)</li>
<li>Compact size, lightweight, easy to use</li>

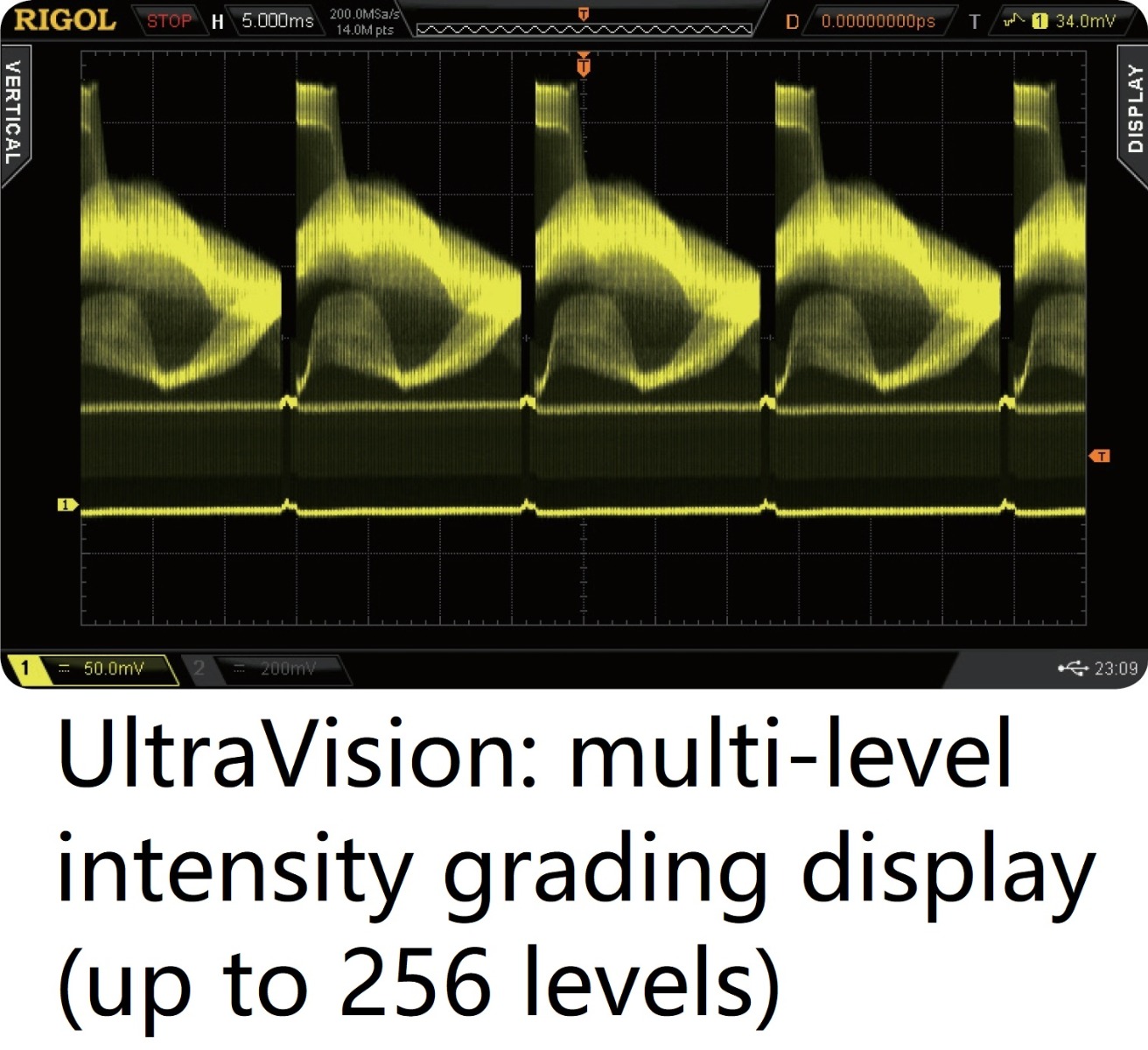

<li>8 inch TFT (800x480) WVGA, Up to 256 levels intensity grading waveform display</li>
<li>Built-in dual-channel 25 MHz function/arbitrary waveform generator</li>
</ul>

Model	Market Price	Price	Delivery	Bandwidth	Analog Channels	Max. Real-time Sample Rate	Max. Memory Depth	Digital Channels	Built-in Signal Source	Waveform Capture Rate
RIGOL Digital Oscilloscope DS2302A	€719.00	€719.00	about one month	300MHz	2	2GSa/s	56Mpts	-	-	52,000wfms/s
RIGOL Digital Oscilloscope DS2202A	€599.00	€599.00	1 Month	200MHz	2	2GSa/s	56Mpts	-	-	52,000wfms/s
RIGOL Digital Oscilloscope DS2102A	€569.00	€569.00	about one month	100MHz	2	2GSa/s	56Mpts	-	-	52,000wfms/s
RIGOL Digital Oscilloscope MSO2102A	€909.00	€909.00	about one month	100MHz	2	2GSa/s	56Mpts	16(Probe opt.)	-	52,000wfms/s
RIGOL Digital Oscilloscope MSO2102A-S	€1149.00	€1149.00	about one month	100MHz	2	2GSa/s	56Mpts	16(Probe opt.)	2CH	52,000wfms/s
RIGOL Digital Oscilloscope MSO2202A	€959.00	€959.00	1 Week	200MHz	2	2GSa/s	56Mpts	16(Probe opt.)	-	52,000wfms/s
RIGOL Digital Oscilloscope MSO2202A-S	€1259.00	€1259.00	about one month	200MHz	2	2GSa/s	56Mpts	16(Probe opt.)	2CH	52,000wfms/s
RIGOL Digital Oscilloscope MSO2302A	€1139.00	€1139.00	1 Week	300MHz	2	2GSa/s	56Mpts	16(Probe opt.)	-	52,000wfms/s
RIGOL Digital Oscilloscope MSO2302A-S	€1379.00	€1379.00	about one month	300MHz	2	2GSa/s	56Mpts	16(Probe opt.)	2CH	52,000wfms/s

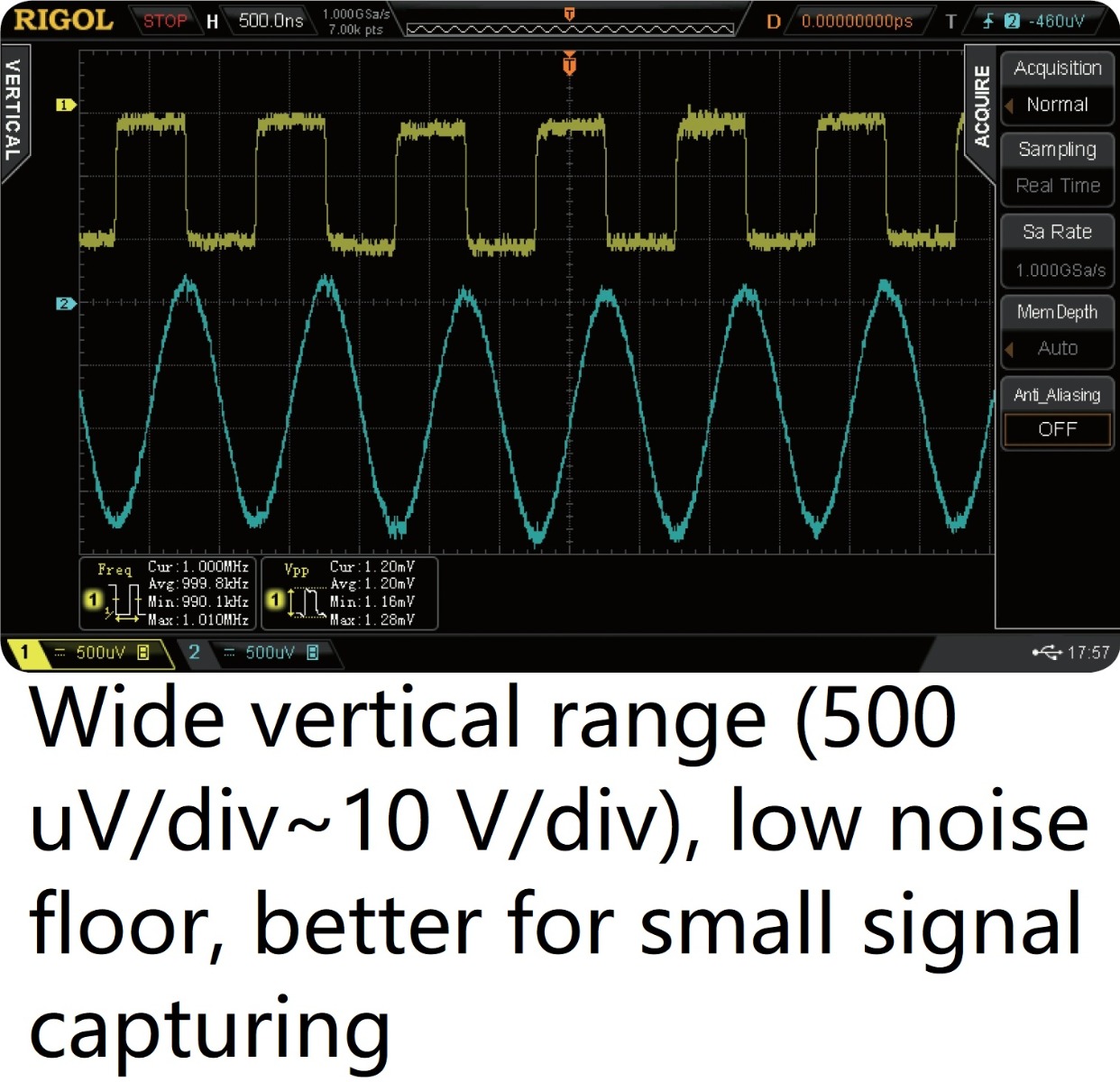

Low Noise floor with wide vertical range (500uV/div ~ 10V/div)

..With a lower noise range setting at 500uV/div as well as included 50 Ohm termination and a clean frequency response design, the 2000 Series oscilloscope enables more sophisticated analysis of low level signal artifacts that can affect your design.

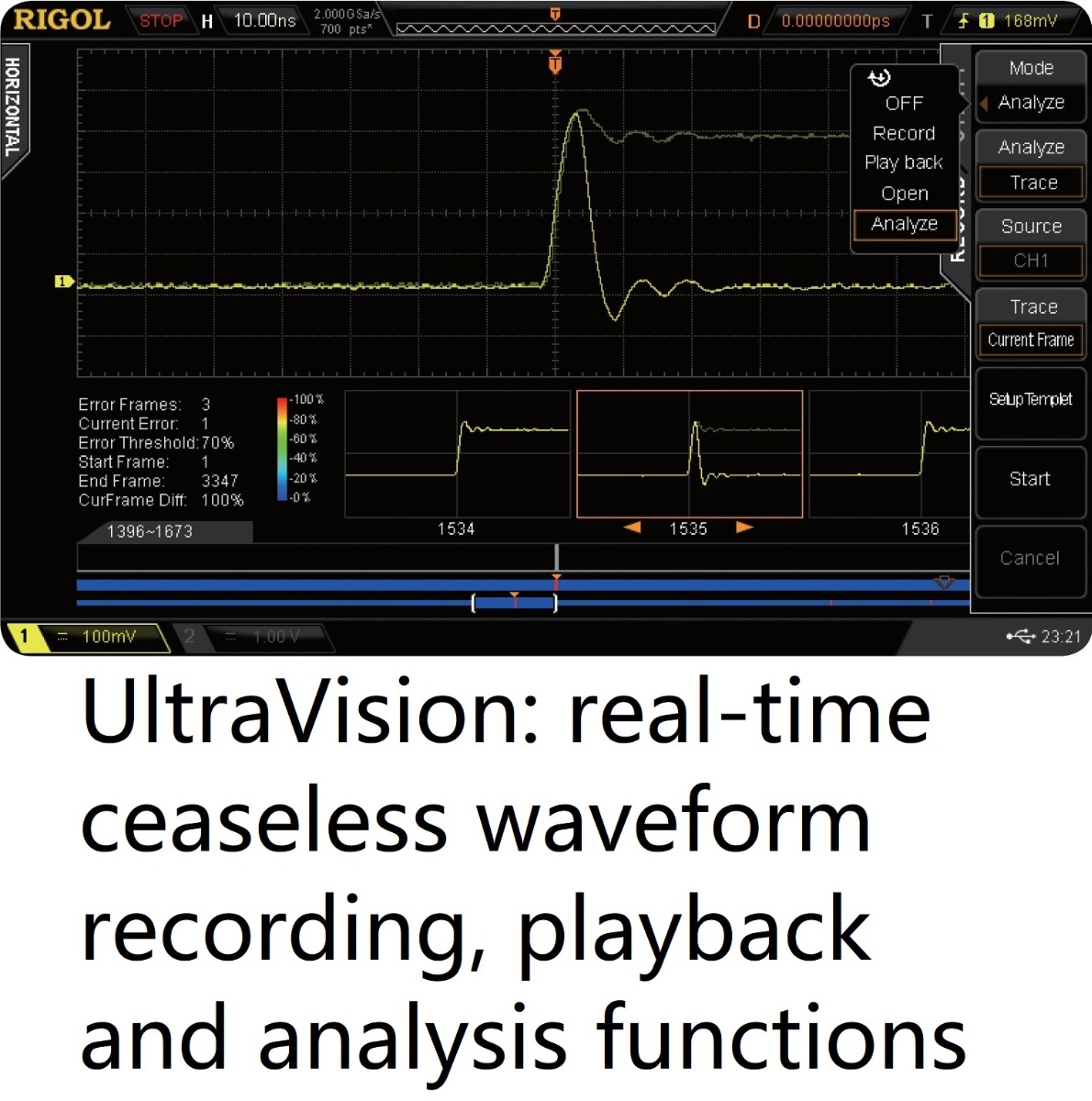

Waveform Record and Playback

..Debug occasional and random glitches using our fast capture, playback, and onboard analysis capabilities.

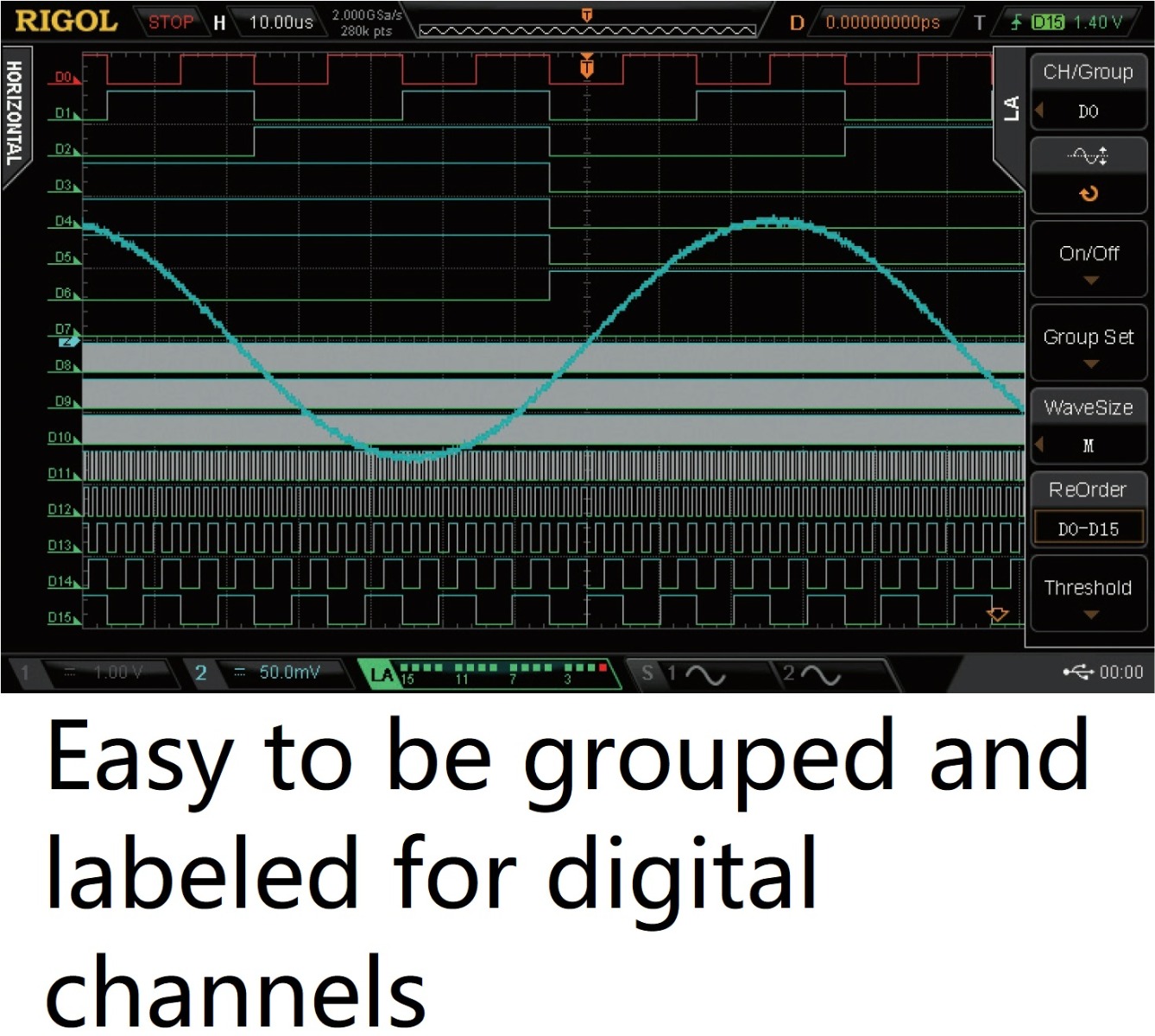

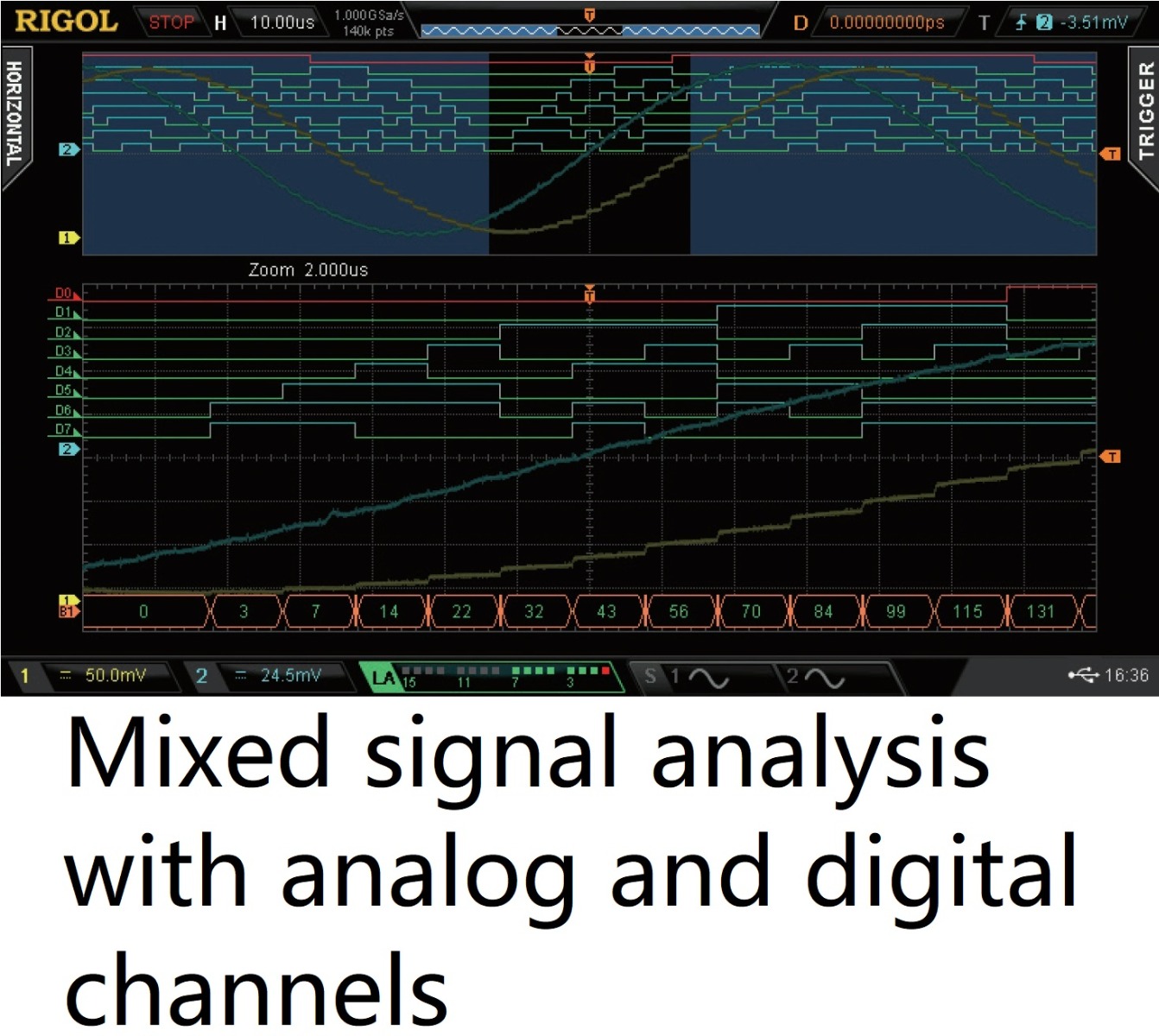

16 Digital Channels (MSO Models)

.. The MSO2000A models add Mixed Signal Capabilities allowing users to not only look at the analog behavior of up to 4 channels but also trigger, capture, and analyze the behavior of up to 16 digital channels at the same time.
Integrated 2 Channel full function 25MHz generator

..Create standard waves from the front panel, convert captured waves to emulated signals, or build arbitrary waves in the UltraStation PC Software. The embedded waveform generators included in the "-S" models adds value and capability to the bench for a variety of applications.

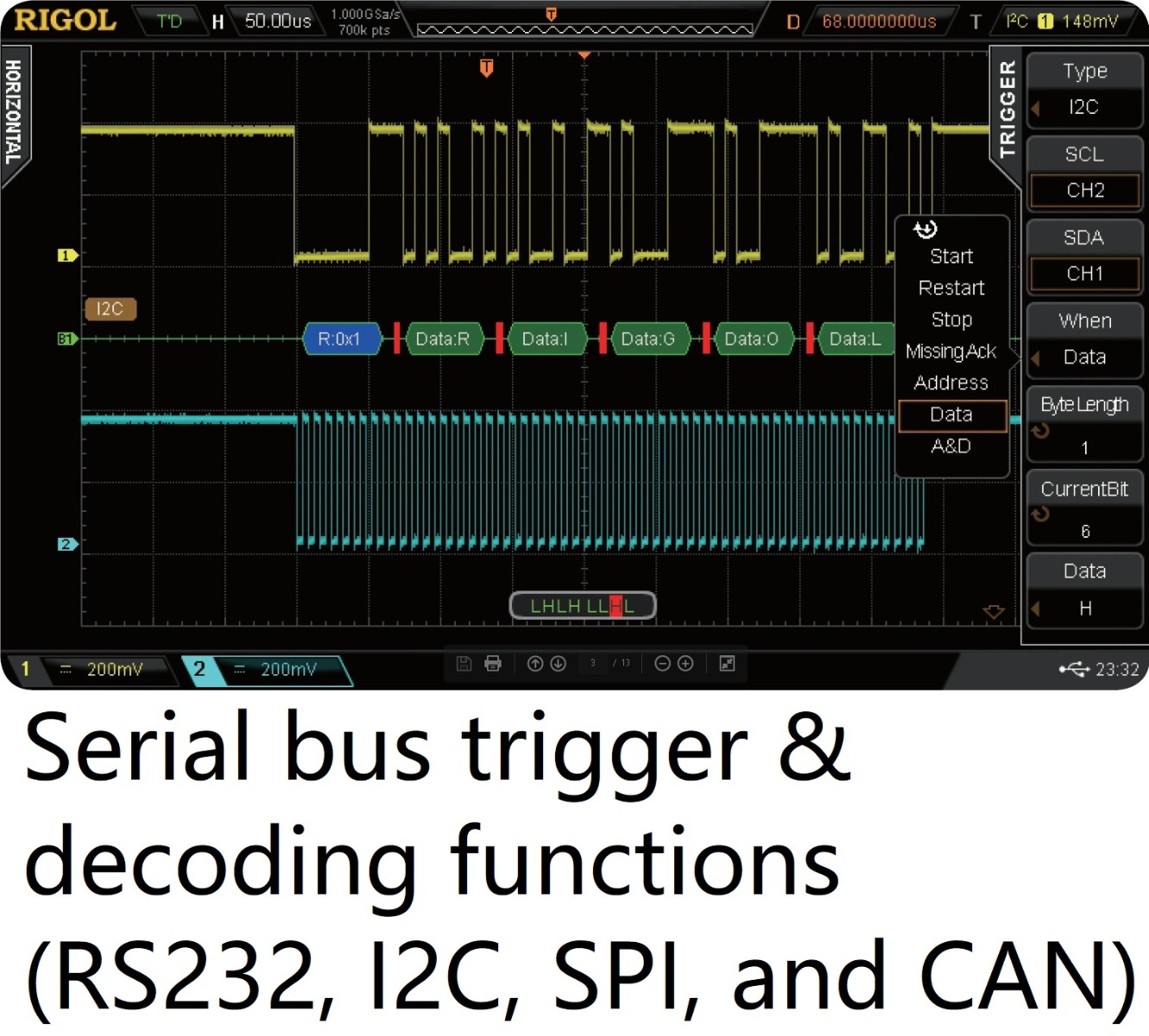

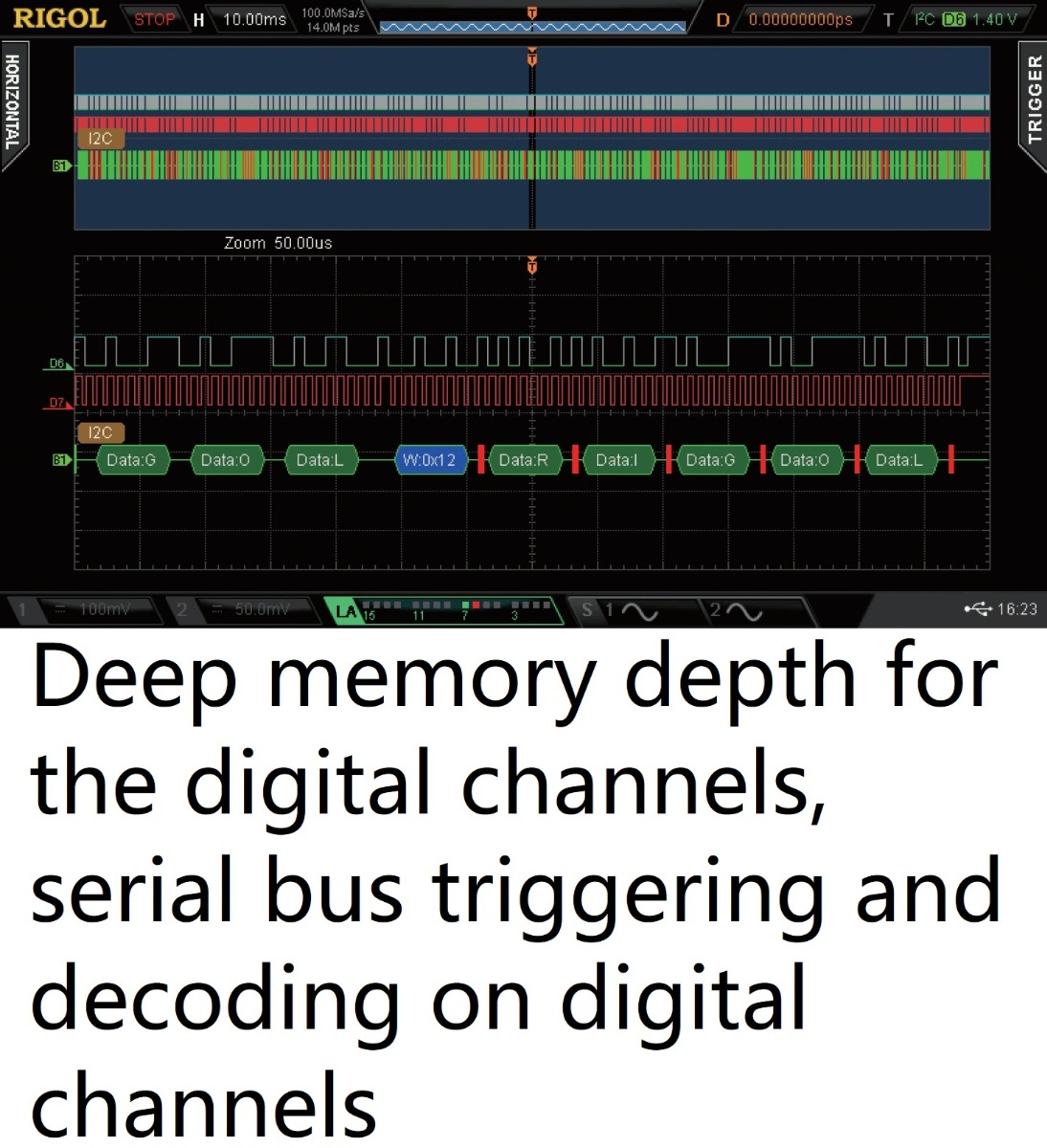

Serial bus triggering and decoding

..Supports I2C, SPI, RS232/UART, CAN bus triggering and decoding as standard or optional offers.

Product Name	Market Price	Total	Delivery	Operation
RM-DS2000	€179.00	€179.00	about one month	Add To Cart
RIGOL RP1025D	€449.00	€449.00	1 Week	Add To Cart
RIGOL High Voltage Probe RP1050D	€539.00	€539.00	about one month	Add To Cart
RIGOL RP1100D	€749.00	€749.00	about one month	Add To Cart
RIGOL RP1001C	€829.00	€829.00	about one month	Add To Cart
RIGOL RP1002C	€1585.00	€1585.00	about one month	Add To Cart
RIGOL RP1003C	€3295.00	€3295.00	about one month	Add To Cart
RIGOL RP1004C	€4635.00	€4635.00	about one month	Add To Cart
RIGOL RP1005C	€4515.00	€4515.00	about one month	Add To Cart
RIGOL RP1000P	€1465.00	€1465.00	about one month	Add To Cart
RIGOL RP1010H	€479.00	€479.00	about one month	Add To Cart
RIGOL RP1018H	€869.00	€869.00	about one month	Add To Cart
RIGOL Power analyzer software UPA-DS	€699.00	€699.00	1 Working Day	Add To Cart
RIGOL Digital Oscilloscope Probe RPL2316	€369.00	€369.00	1 Week	Add To Cart
RIGOL Passive Probe PVP2150	€37.00	€37.00	1 Week	Add To Cart
RIGOL Passive Probe PVP2350	€59.00	€59.00	1 Week	Add To Cart
RIGOL Differential Voltage PHA0150	€759.00	€759.00	about one month	Add To Cart
RIGOL Differential Voltage Probe PHA1150	€939.00	€939.00	about one month	Add To Cart
RP1006C	€4895.00	€4895.00	about one month	Add To Cart
CB-DB9-DB9-F-F-150	€12.00	€12.00	about one month	Add To Cart
RIGOL CB-BNC-BNC-MM-100	€15.00	€15.00	1 Week	Add To Cart
Differential Voltage Probe PHA2150	€1395.00	€1395.00	about one month	Add To Cart

Firmware Download

File Name	Version	Release Date	Operation
DS2000A Firmware	00.03.06.00.00	10/26/2021	Download

Software Download

File Name	Version	Release Date	Operation
DS2000A IVI Driver	1.0.13	10/26/2021	Download
Ultra Power Analyzer	00.01.02.05	10/26/2021	Download
Ultra Scope Software	00.01.02.13	10/26/2021	Download
Ultra Sigma (HelpDocument)	V1.0	10/26/2021	Download
Ultra Sigma (PC)Installer	00.01.06.01	10/26/2021	Download

Manual Download

File Name	Version	Release Date	Operation
MSO/DS2000A Datasheets	V1.0	10/26/2021	Download
MSO/DS2000A Programming Manual	V1.0	10/26/2021	Download
MSO/DS2000A Quick Guide	V1.0	10/26/2021	Download
MSO/DS2000A User Manual	V1.0	10/26/2021	Download
