RIGOL Digital Oscilloscope MSO5354
In stock
SKU
MSO5354
Get MSO5000-BND with a 90% discount when you buy MSO5354! Code: 90D5BND
Get PLA2216 for FREE by purchasing a new MSO5354!

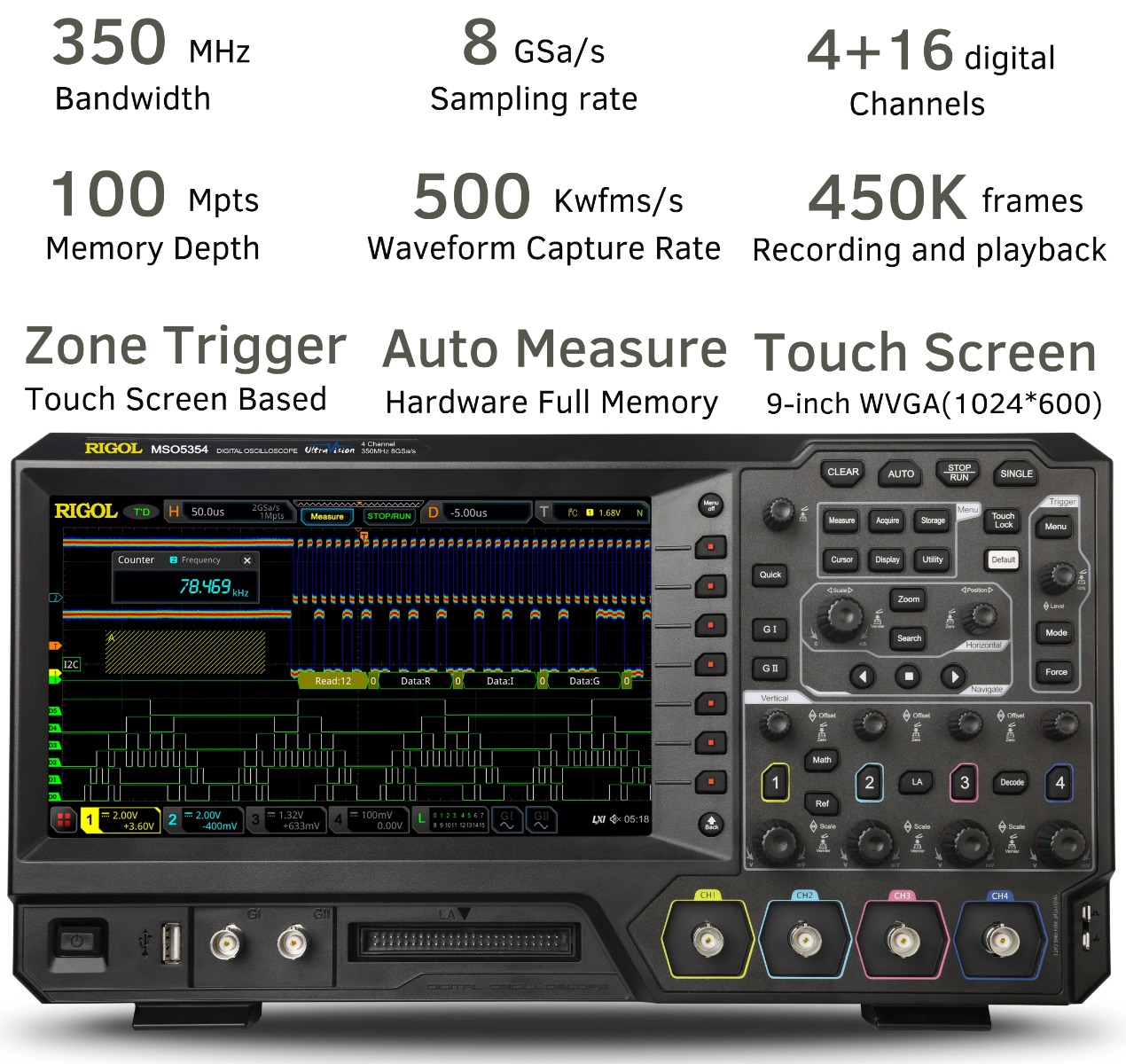

350MHz BW,4 Channel+ 16 digital Channel,8GSa/s, up to 200 Mpts,500.000 wfms/s, touchdisplay 1024x600 pixel, MSO Upgradable with purchase of logic probe PLA2216,EU Cable
Deliver in
2 - 4 working Days
- Analog bandwidth: 350 MHz, 200 MHz, 100 MHz, and 70 MHz; bandwidth upgrade
- option supported
- 4 analog channels，standard 16 digital channels(LA probe required)
- Up to 8 GSa/s real-time sample rate

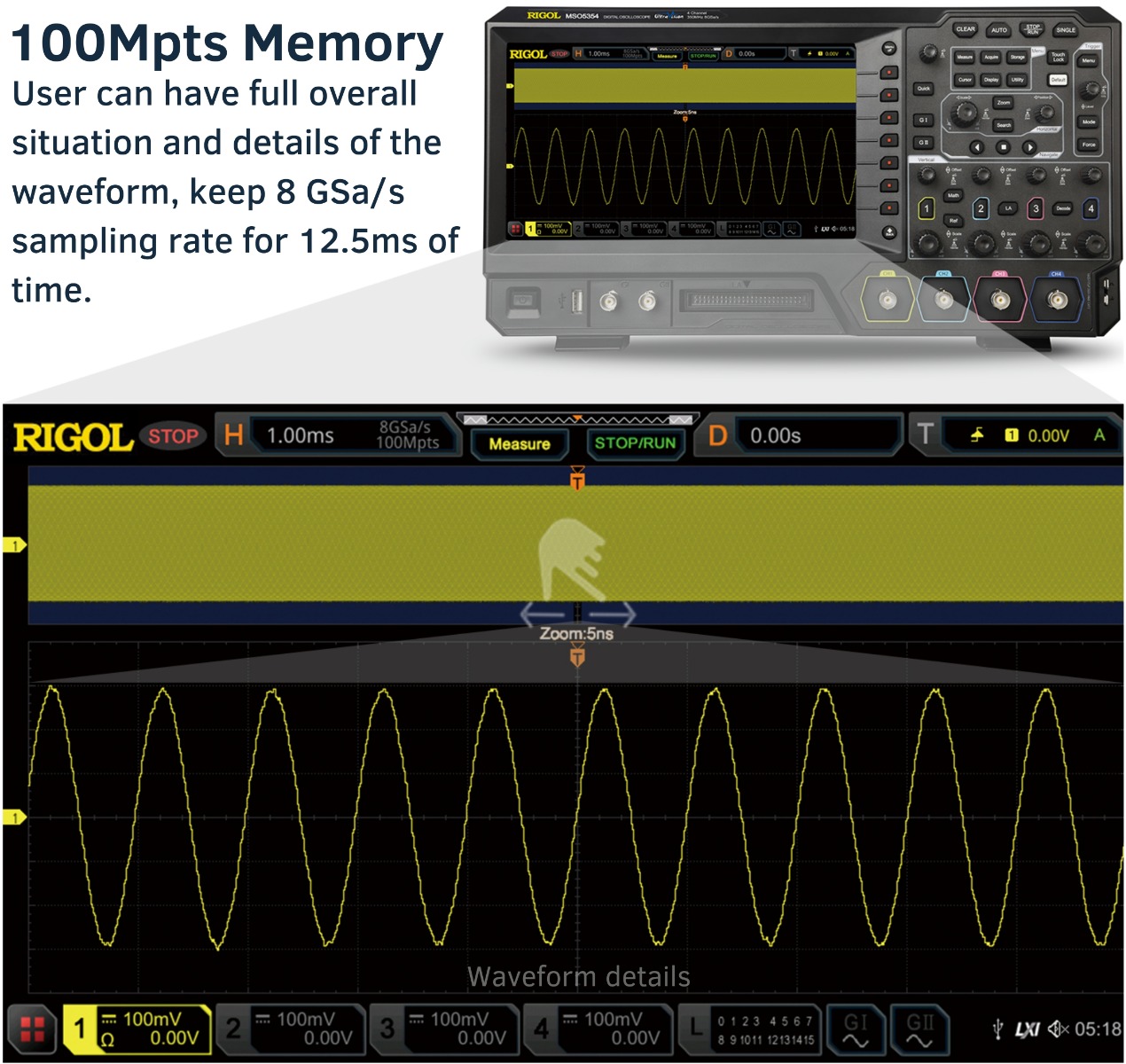

- Up to 200 Mpts memory depth (option)
- High waveform capture rate (over 500,000 wfm/s)
- Auto measurement of 41 waveform parameters; full-memory hardware measurement
- function

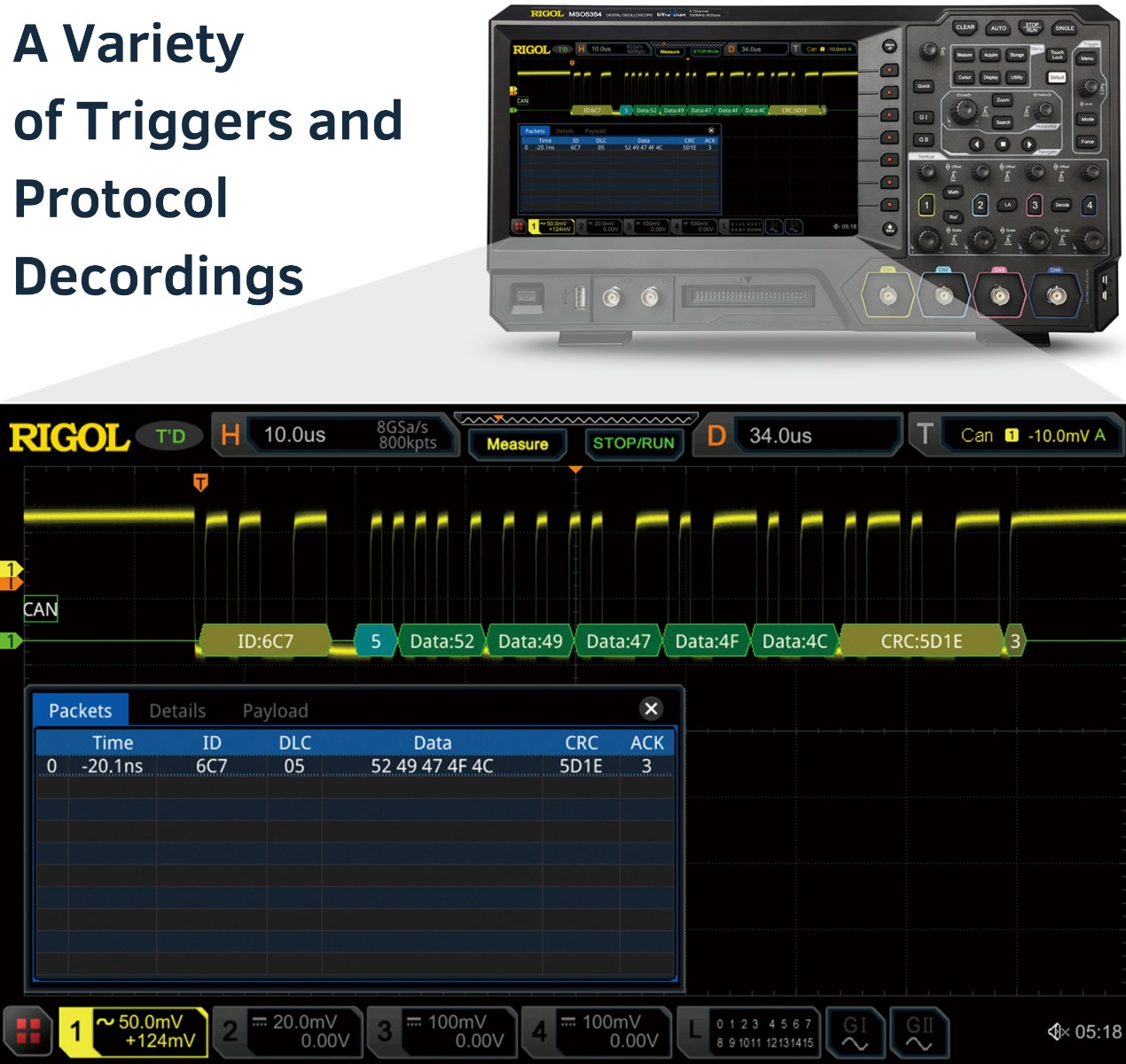

- A variety of serial protocol triggers and decodes
- Up to 450,000 frames of hardware real-time and ceaseless waveforms recording and
- playback functions
- Independent search, navigation keys, and event table
- Built-in advanced power analysis software (option)
- Integrates 7 independent instruments into 1, including a digital oscilloscope, a logic

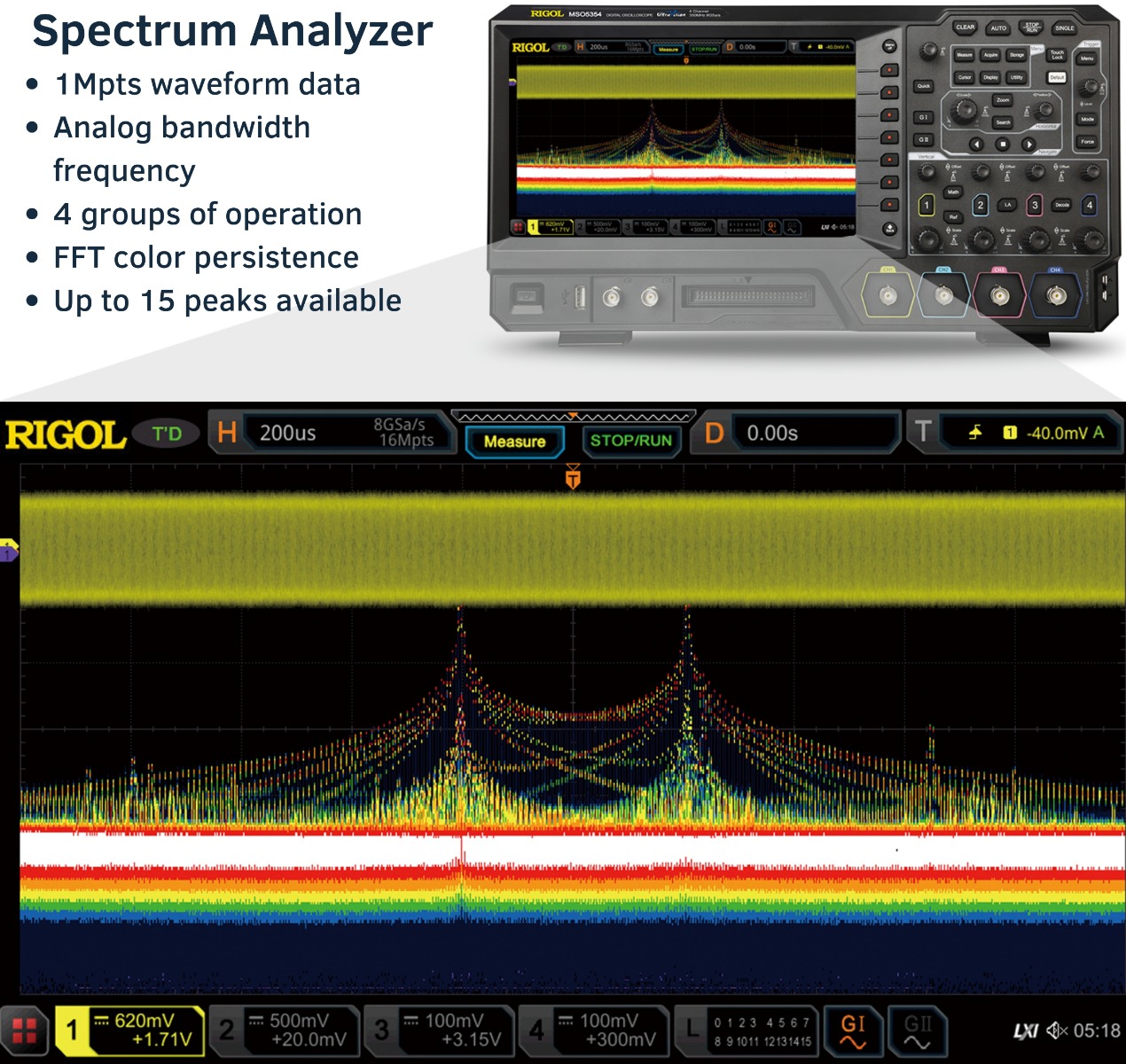

- analyzer, a spectrum analyzer, an arbitrary waveform generator, a digital voltmeter,
- a frequency counter and totalizer, and a protocol analyzer
- 9-inch capacitive multi-touch screen, 256-level intensity grading display, with color
- persistence
- Multiple interfaces available: USB HOST&DEVICE, LAN(LXI), HDMI, TRIG OUT, and
- USB-GPIB
- Web Control remote command
- Unique online version upgrade
- Novel and delicate industrial design, easy to operate
Bode Plot: Switching Power Supply Loop Analysis
..The RIGOL MSO5000 Series Oscilloscope comes with a Bode plot function, which intuitively shows test curve and data. This can help engineers quickly determine system stability by analyzing parameters such as phase margin and gain margin.
7 in 1 Product Design
..It integrates 7 independent instruments, including an oscilloscope, a 16 channel logic analyzer, a spectrum analyzer, an arbitrary wave generator, a digital voltmeter, a high-precision frequency meter and accumulator, and a protocol analyzer.
9" multi-Touch Capacitive Screen
..9-inch multi touch capacitive screen, supporting a variety of gesture operations, providing users with the most optimized interaction experience
Convenient Web Control Remote Control
..The user only needs to input the IP address of the oscilloscope in the address bar of the web browser, then he can open the web control control software and easily handle the remote control.

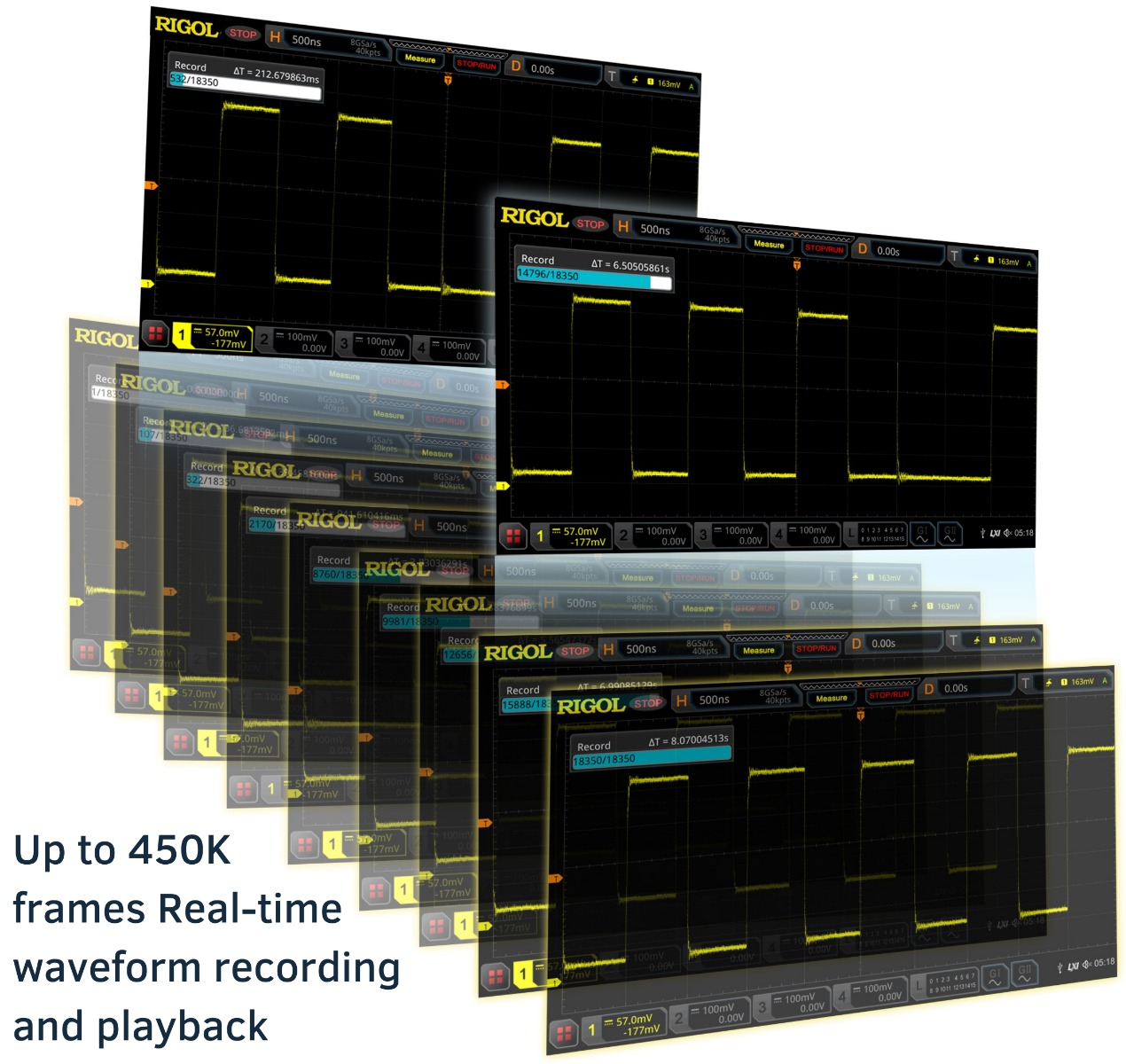

Support Up to 450000 Frames of Hardware Waveform Recording Analysis
..The hardware waveform recording function adopts the segmented storage technology, which can selectively capture and store the user's concerned signal by setting the trigger conditions, and mark the time on the signal, which not only ensures the efficiency of acquisition, but also further expands the total time of waveform observation.

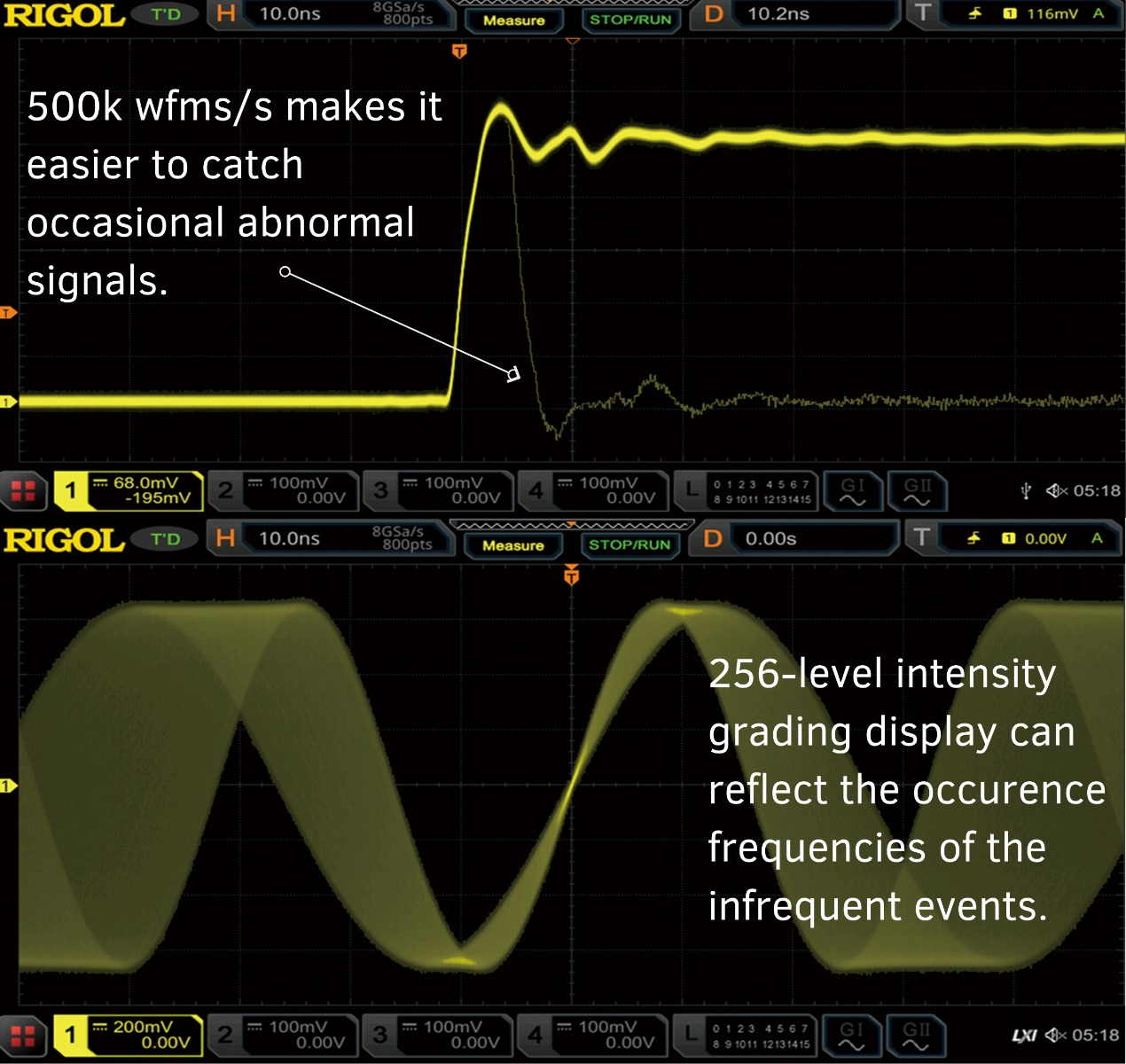

Waveform Capture Rate Up to 500000 Times Per Second
..With a waveform capture rate of up to 500000 WFMS / s, the burr and other accidental events in the signal can be found quickly, which greatly improves the debugging efficiency of engineers
Super High Sampling Bandwidth Ratio
..The mso5000 series provides a real-time sampling rate of up to 8 GSa / s at 350 MHz bandwidth, with a sampling bandwidth ratio of about 23 times, which makes it a leader in the oscilloscope products of the same level, and has an ultra long waveform storage depth of 200 mpts.

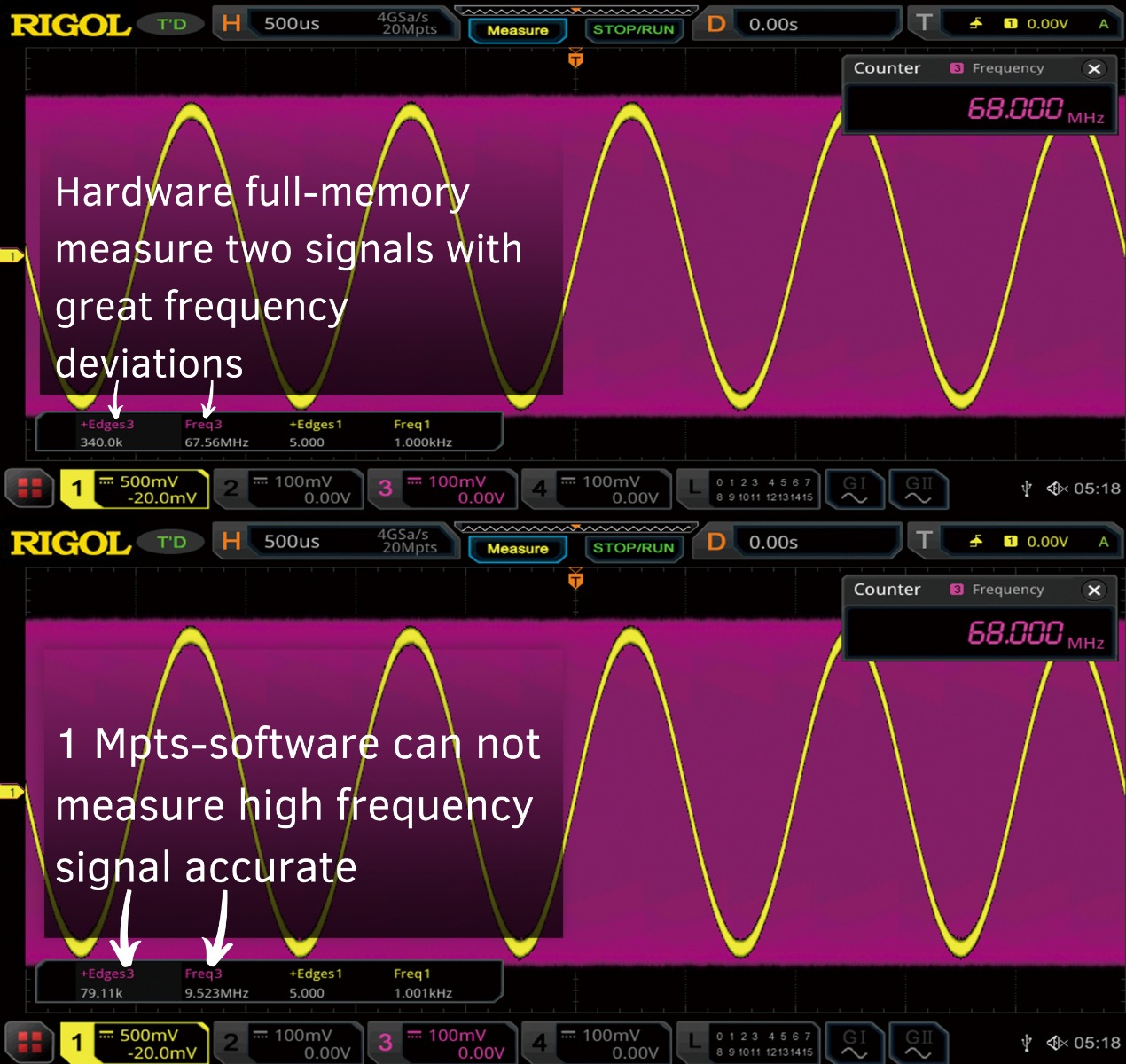

Full Memory Hardware Measurement
..At the same time, observe and accurately measure the signals with large frequency difference between the two channels. The full memory hardware measurement can measure the accurate frequency value in the waveform with 340k rising edges
