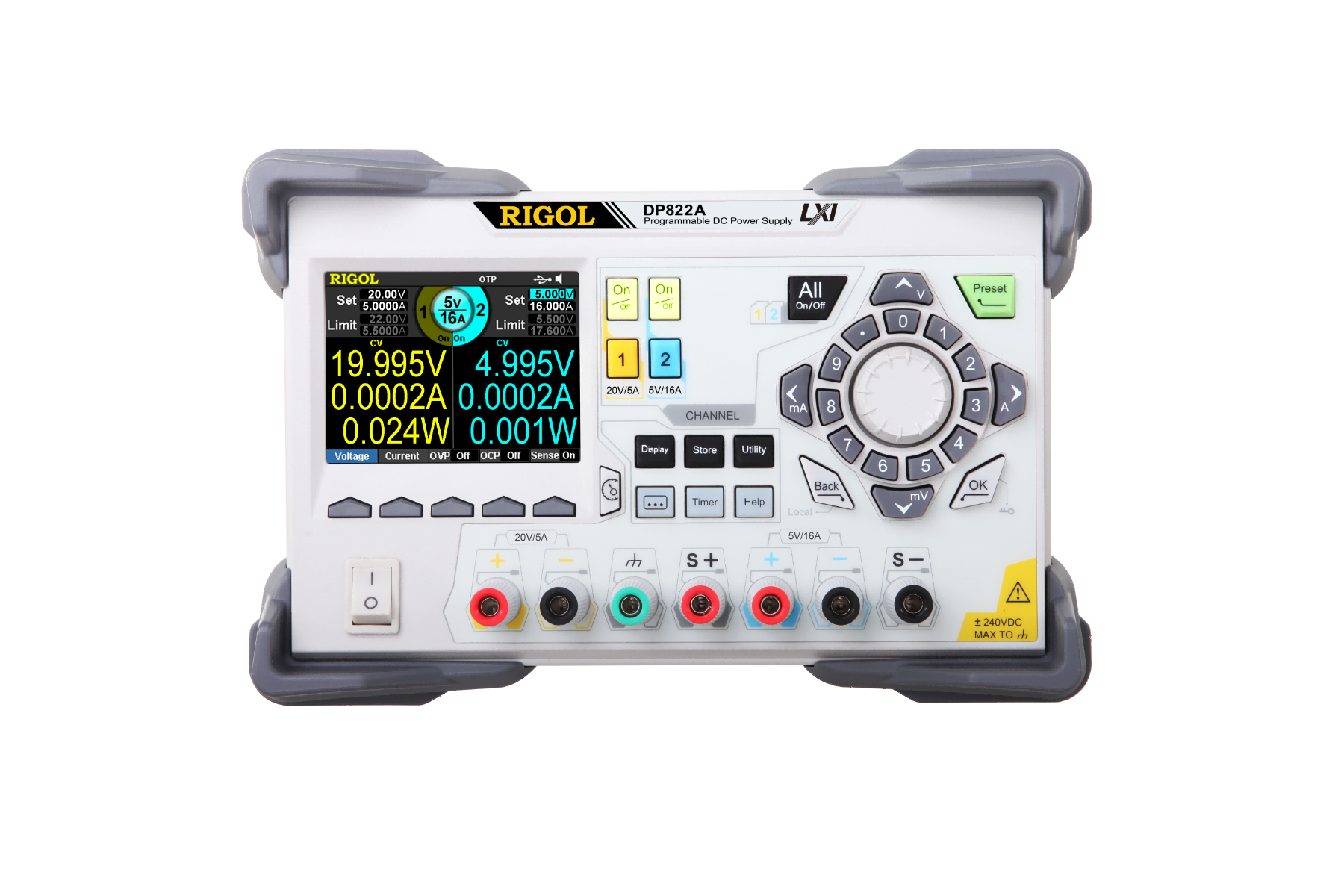

RIGOL DC Power Supply DP822
In stock
SKU
DP822
DC power supply with 2 outputs, 20V/5A || 5V/16A, with remote Sense, total power up to 180W，EU Cable
Deliver in
2 - 4 working Days
- DP822A/DP822: 2 outputs, 20V/5A || 5V/16A, with remote Sense, total power up to 180W
- Low ripple and noise:
- DP832A/DP832/DP831A/DP831/DP822A/DP822/DP821A/DP821: <350uVrms/2mVpp
- Excellent linear regulation rate and load regulation rate
- Fast transient response time: <50μs
- Some channels are isolated
- Standard OVP/OCP/OTP protection functions
- Standard timing output
- Built-in V,A,W measurements and waveform display
- Independent control for each channel
- Support more advanced functions: timer and delay output(standard),
- recorder/analyzer/monitor/trigger(standard for "+A" models and optional for other models)
- 5-inch TFT display
- Various interfaces: USB Host&Device(standard), USB-GPIB (optional),
- LAN/RS232/Digital IO(standard for "+A" models and optional for other models)
- For DP822, the high-resolution setting, trigger, monitor, analyzer as well as the RS232 and LAN
communication functions are all optional functions.
Low Ripple Noise: <350uvrms / 2mvpp
Ultra low noise design to meet the user's demand for high purity power supply
Fast Transient Response Time: < 50us
The response time of the power supply shall not exceed 50uS, so as to meet the user's demand for rapidly changing voltage waveform.
Standard Timing Output
When the timer is on, the instrument will output preset voltage and current (up to 2048 groups). The user can set the number of output groups of the timer, and set the output voltage, current and timing time of each group. (take dp831a as an example)
Built in V / A / W Measurement and Waveform Display
Real time measurement and display the change trend of V / A / W parameters at the same time. (take dp831a as an example)
Output Analysis, Monitoring, Setting Preset and Other Functions
Wt has the functions of output analysis, monitoring, setting preset, etc. to realize all-round monitoring analysis (take dp831a as an example)
Original 3.5-inch Tft Wide Screen Display
Traditional numerical interface and instrument panel interface can be switched, easy to operate, intuitive and clear
