RIGOL Spectrum Analyzer DSA815-TG

RIGOL Spectrum Analyzer DSA815-TG

Max. Ferquency Range 9kHz~1.5GHz

Description 10Hz~1MHz

Phase Noise -80dBc/Hz@10kHz

Tracking Source Yes

DANL -155dBm

Max. Real-time Bandwidth 40MHz

Delivery：about one month

Standard Accessories

Quantity：

€895.00 excl. VAT

€1065.05 incl. 19% VAT

Buy Now Add to cart Add to wish list

Description
DSA800 Spectrum-Analyzers Model
Feature & Video
Software ＆ Firmware
Datasheet & Manual Download

Add To Cart

<video id="video-1" poster="/images/pub/media/wysiwyg/download/video/cover/dsa800_cover.png
" preload="none" controls="controls" width="100%" height="auto">
<source src="/images/pub/media/wysiwyg/download/video/dsa800/dsa800_video01_overview.mp4" type="video/mp4">
 </video>
Spectrum analyzer from 9 kHz to 1.5 GHz with Tracking Generator, EU Cable
 ------The highest frequency: 1.5 GHz Displayed Average Noise Level (DANL): <-161 dBm (Typical) Phase Noise: <-98 dBc/Hz @ 10 kHz offset (Typical) Level Measurement Uncertainty: <0.8 dB Minimum Resolution Bandwidth (RBW): 10 Hz EMI Filter and Quasi-Peak Detector Kit (Option) VSWR Measurement Kit (Option) AM/FM Demodulation Function Various measurement functions (option) 8 inch (800×480 pixels) high-definition display with clear, vivid, and easy-to-use graphical interface Various interfaces such as LAN, USB Host, USB Device and GPIB (option)

Model	Market Price	Price	Delivery	Max. Ferquency Range	Description	Phase Noise	Tracking Source	DANL	Max. Real-time Bandwidth
RIGOL Spectrum Analyzer DSA875-TG	€4995.00	€4995.00	about one month	9kHz~7.5GHz	10Hz~1MHz	-98dBc/Hz@10kHz	Yes	-161dBm	40MHz
RIGOL Spectrum Analyzer DSA832-TG	€2895.00	€2895.00	about one month	9kHz~3.2GHz	10Hz~1MHz	-98dBc/Hz@10kHz	Yes	-161dBm	40MHz
RIGOL Spectrum Analyzer DSA815-TG	€895.00	€895.00	about one month	9kHz~1.5GHz	10Hz~1MHz	-80dBc/Hz@10kHz	Yes	-155dBm	40MHz
RIGOL Spectrum Analyzer DSA832E	€1855.00	€1855.00	about one month	9kHz~3.2GHz	10Hz~1MHz	-90dBc/Hz@10kHz	No	-161dBm (Normalized to 1Hz)	40MHz
RIGOL Spectrum Analyzer DSA832E-TG	€2395.00	€2395.00	about one month	9kHz~3.2GHz	10Hz~1MHz	-90dBc/Hz@10kHz	Yes	-161dBm (Normalized to 1Hz)	40MHz

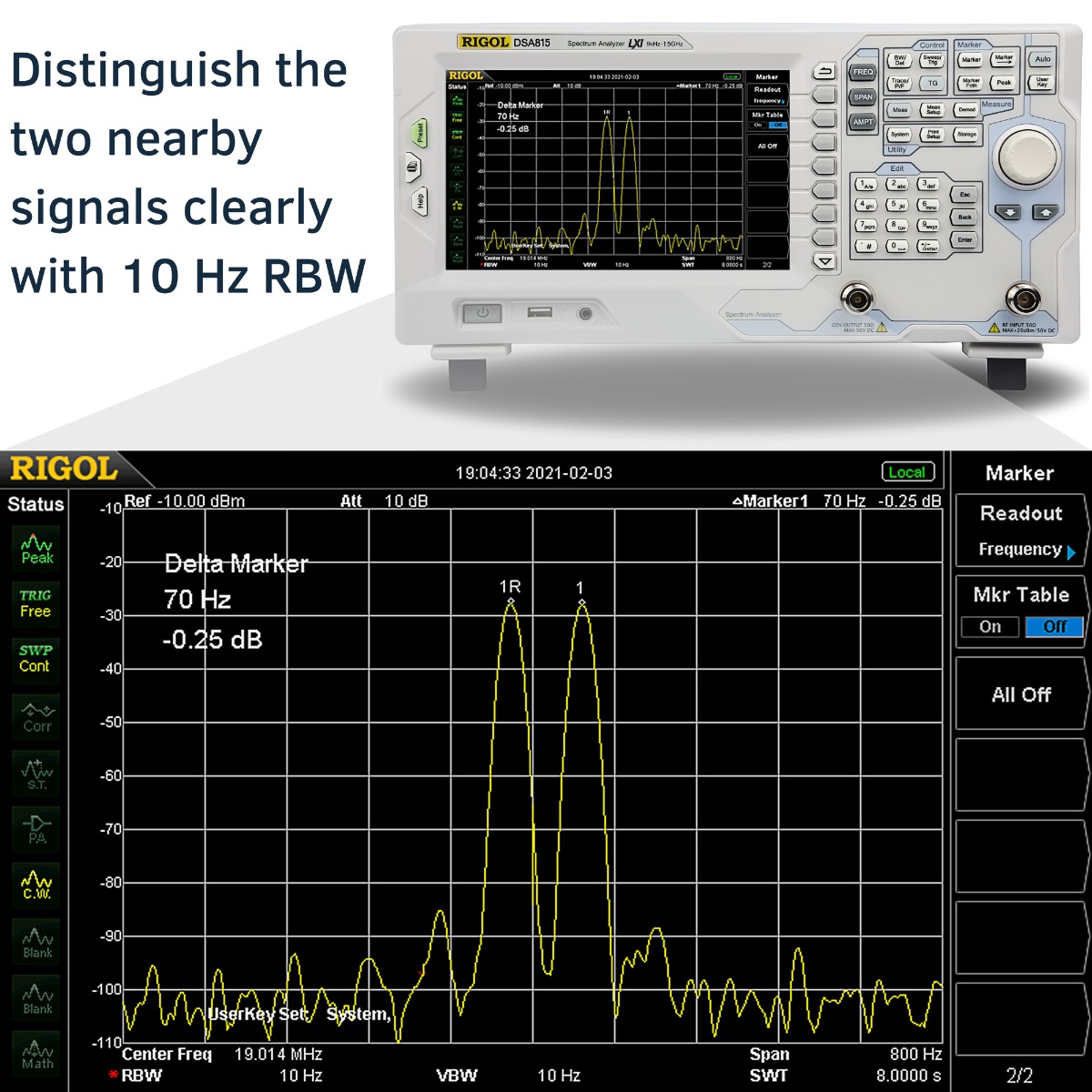

10Hz Resolution Bandwidth

The DSA800 with RF technology to provide a resolution bandwidth as low as 10 Hz, which can effectively distinguish adjacent equal-amplitude signals and improve signal discrimination.
DANL: -161 Dbm with Optional Preamp

View lower powered signals (harmonics, interference sources) and ease trouble-shooting in swept and real-time mode.
EMI Pre-compliance Measurement

EMI filter (6 dB) and quasi-peak detectors make EMI pre-test/diagnostics more accurate, complete with complete software and report generation
Tracking Source and VSWR Function

DSA800 series with VSWR measurement capability, with tracking source model (-TG), with VSWR bridge for voltage standing wave ratio test
UnltraSpectrum Software

The optional UltraSpectrum software can not only complete the control of the spectrum analyzer, but also provide powerful display and analysis functions such as spectrum and waterfall.

Firmware Download

File Name	Version	Release Date	Operation
DSA815 Firmware	00.01.19.00.02	2/25/2020	Download
DSA832 Firmware	00.01.06.00.04	2/25/2020	Download
DSA832E Firmware	00.01.05.00.00	2/25/2020	Download
DSA875 Firmware	00.01.06.00.04	2/25/2020	Download

Software Download

File Name	Version	Release Date	Operation
DSA800 IVI DRIVER	1.0.4	10/22/2021	Download
S1210 EMI Pre-compliance Software(Help Document)	V1.0	10/22/2021	Download
S1210 EMI Pre-compliance Software(PC)lnstaller	V00.06.00.02	10/22/2021	Download
S1220 ASK-FSK Demodulation Analysis	V00.01.00.02	10/22/2021	Download
TX1000 Software	00.01.00.02	10/22/2021	Download
Ultra Sigma (PC)lnstaller	00.01.06.01	10/22/2021	Download
Ultra Sigma(Help Document)	V1.0	10/22/2021	Download
Ultra Spectrum Software	00.01.00.29	10/22/2021	Download

Manual Download

File Name	Version	Release Date	Operation
DSA800 Datasheets	DSD03000-2020-12	10/22/2021	Download
DSA800 Programming Manual	v1.0	10/22/2021	Download
DSA800E Quick Guide	v1.0	10/22/2021	Download
DSA800/E User Manual	V2.0	2/29/2024	Download
DSA800E Datasheets	DSD03000-2020-12	10/22/2021	Download
DSA800E-Options&Accessories	V1.0	10/22/2021	Download
DSA800E Rackmount Kit User Manual	V1.0	10/26/2021	Download
DSA800E Programming Manual	v1.0	10/22/2021	Download
NFP-3	V1.0	10/22/2021	Download
