- Description
- DSA800 Spectrum-Analyzers Model
- Feature & Video
- Software ＆ Firmware
- Datasheet & Manual Download
| Model | Market Price | Price | Delivery | Max. Ferquency Range | Description | Phase Noise | Tracking Source | DANL | Max. Real-time Bandwidth | Operation |
|---|---|---|---|---|---|---|---|---|---|---|

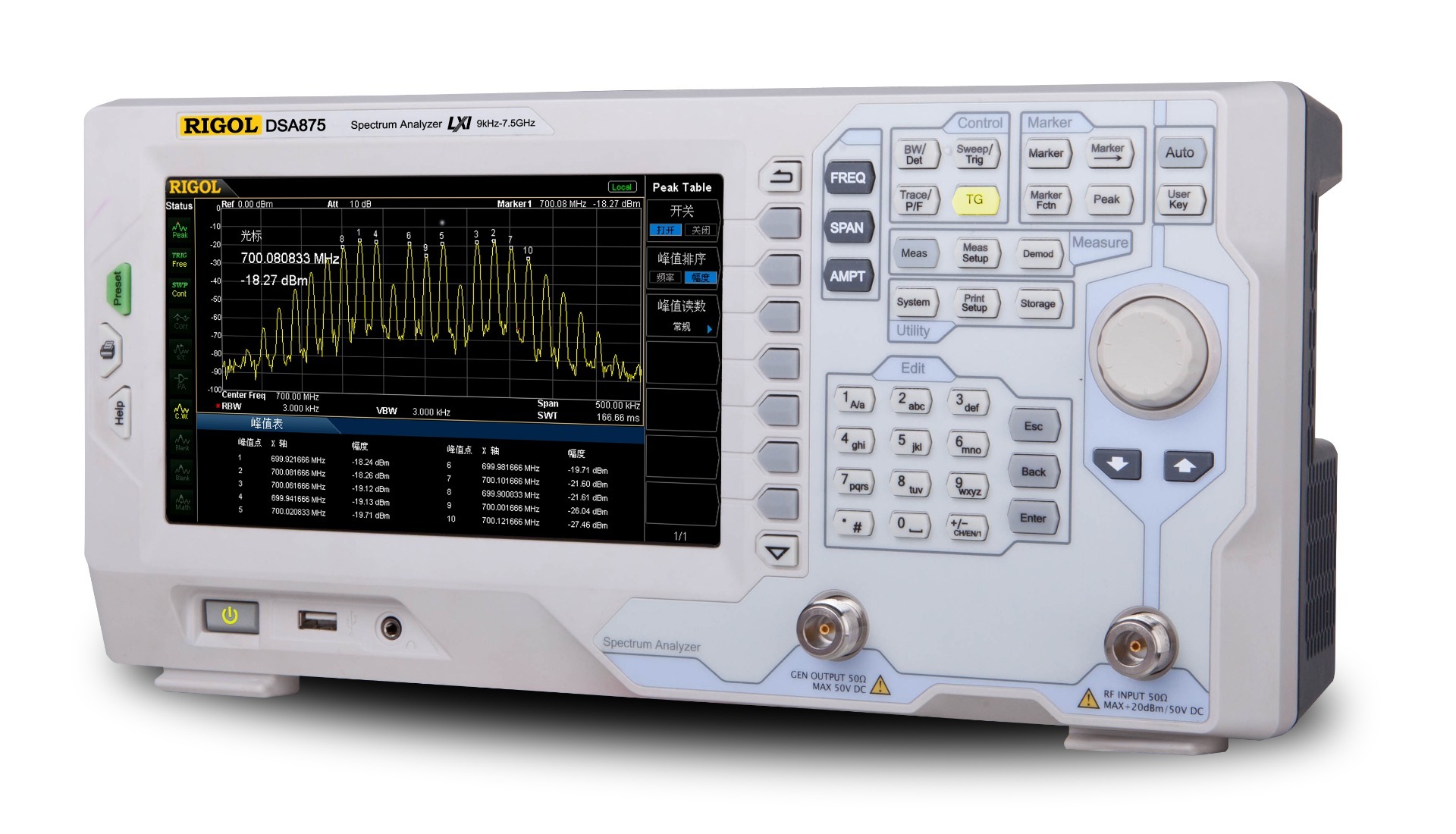

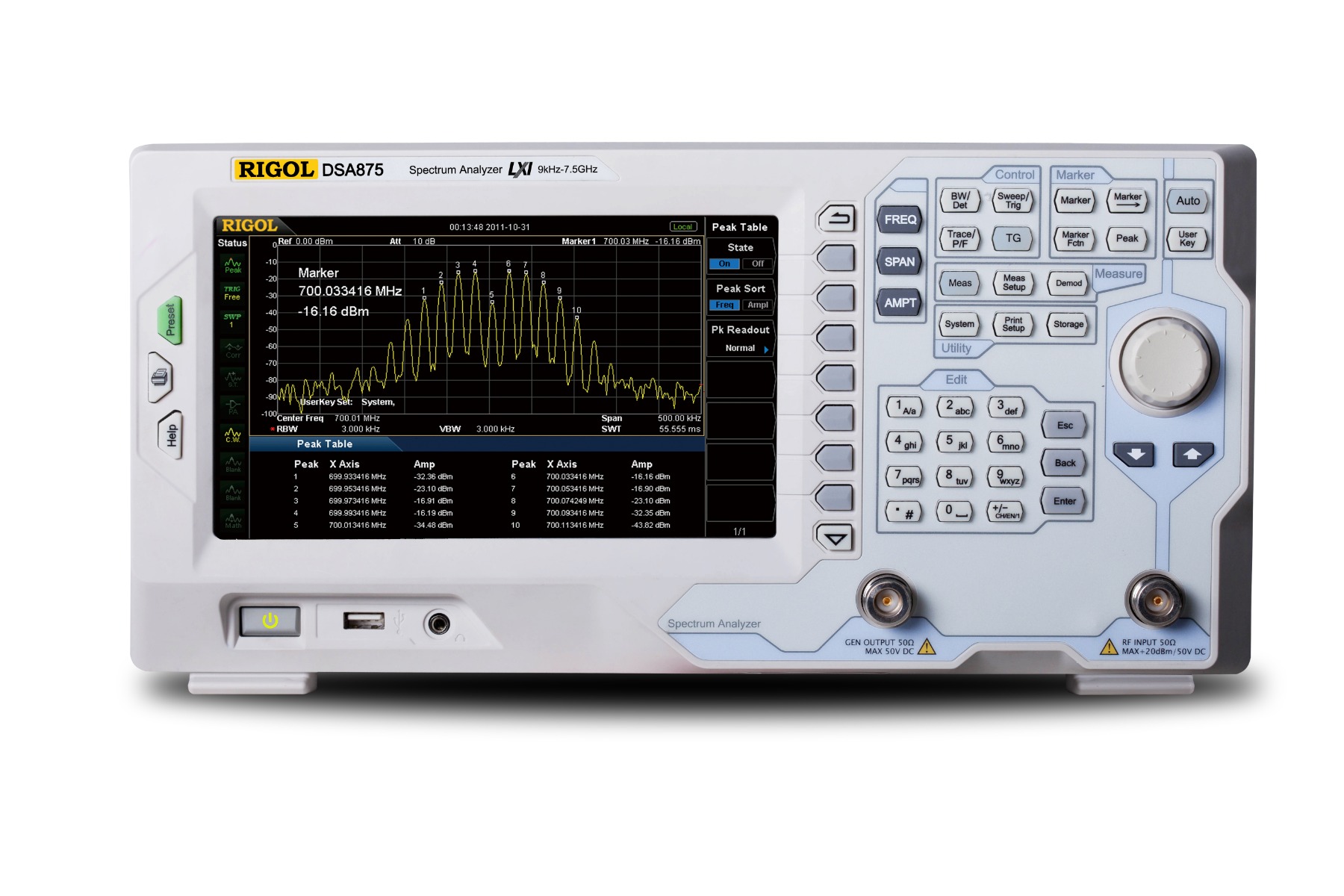

| RIGOL Spectrum Analyzer DSA875-TG | €6495.00 |
€6495.00
|
about one month | 9kHz~7.5GHz | 10Hz~1MHz | -98dBc/Hz@10kHz | Yes | -161dBm | 40MHz | |
| RIGOL Spectrum Analyzer DSA832-TG | €4909.00 |
€4909.00
|
about one month | 9kHz~3.2GHz | 10Hz~1MHz | -98dBc/Hz@10kHz | Yes | -161dBm | 40MHz | |
| RIGOL Spectrum Analyzer DSA815-TG | €1195.00 |
€1195.00
|
about one month | 9kHz~1.5GHz | 10Hz~1MHz | -80dBc/Hz@10kHz | Yes | -155dBm | 40MHz | |
| RIGOL Spectrum Analyzer DSA832E | €1855.00 |
€1855.00
|
about one month | 9kHz~3.2GHz | 10Hz~1MHz | -90dBc/Hz@10kHz | No | -161dBm (Normalized to 1Hz) | 40MHz | |
| RIGOL Spectrum Analyzer DSA832E-TG | €2395.00 |
€2395.00
|
about one month | 9kHz~3.2GHz | 10Hz~1MHz | -90dBc/Hz@10kHz | Yes | -161dBm (Normalized to 1Hz) | 40MHz |
-

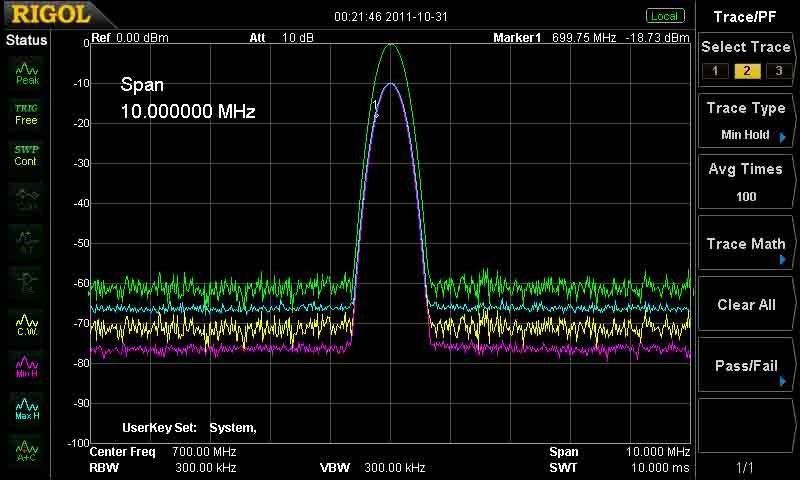

10Hz Resolution BandwidthThe DSA800 with RF technology to provide a resolution bandwidth as low as 10 Hz, which can effectively distinguish adjacent equal-amplitude signals and improve signal discrimination. -
DANL: -161 Dbm with Optional PreampView lower powered signals (harmonics, interference sources) and ease trouble-shooting in swept and real-time mode. -

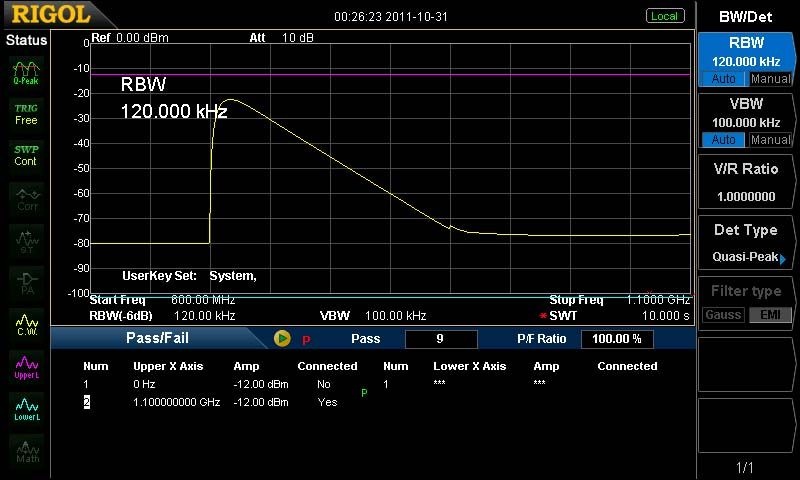

EMI Pre-compliance MeasurementEMI filter (6 dB) and quasi-peak detectors make EMI pre-test/diagnostics more accurate, complete with complete software and report generation -
Tracking Source and VSWR FunctionDSA800 series with VSWR measurement capability, with tracking source model (-TG), with VSWR bridge for voltage standing wave ratio test -
UnltraSpectrum SoftwareThe optional UltraSpectrum software can not only complete the control of the spectrum analyzer, but also provide powerful display and analysis functions such as spectrum and waterfall.
Firmware Download
| File Name | Version | Release Date | Operation |
|---|---|---|---|
| DSA815 Firmware | 00.01.19.00.02 | 2/25/2020 | Download |
| DSA832 Firmware | 00.01.06.00.04 | 2/25/2020 | Download |
| DSA832E Firmware | 00.01.05.00.00 | 2/25/2020 | Download |
| DSA875 Firmware | 00.01.06.00.04 | 2/25/2020 | Download |
Software Download
| File Name | Version | Release Date | Operation |
|---|---|---|---|
| DSA800 IVI DRIVER | 1.0.4 | 10/22/2021 | Download |
| S1210 EMI Pre-compliance Software(Help Document) | V1.0 | 10/22/2021 | Download |
| S1210 EMI Pre-compliance Software(PC)lnstaller | V00.06.00.02 | 10/22/2021 | Download |

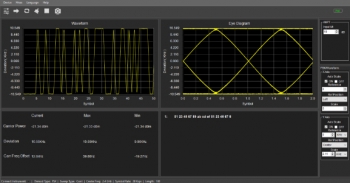

| S1220 ASK-FSK Demodulation Analysis | V00.01.00.02 | 10/22/2021 | Download |

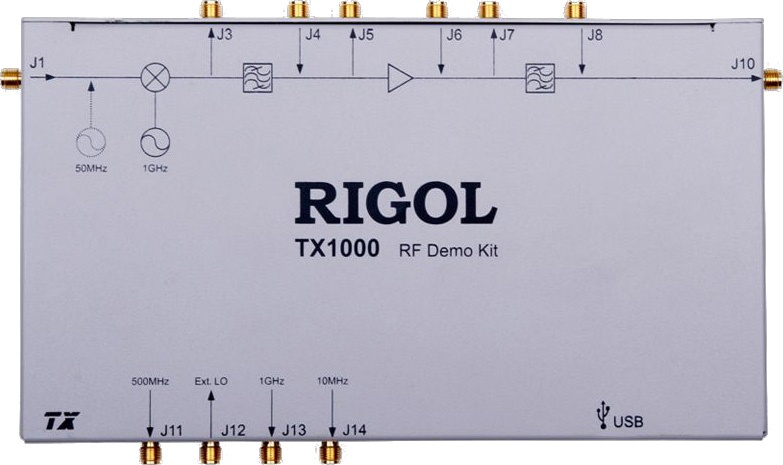

| TX1000 Software | 00.01.00.02 | 10/22/2021 | Download |
| Ultra Sigma (PC)lnstaller | 00.01.06.01 | 10/22/2021 | Download |
| Ultra Sigma(Help Document) | V1.0 | 10/22/2021 | Download |
| Ultra Spectrum Software | 00.01.00.29 | 10/22/2021 | Download |
Manual Download
| File Name | Version | Release Date | Operation |
|---|---|---|---|
| DSA800 Datasheets | DSD03000-2020-12 | 10/22/2021 | Download |
| DSA800 Programming Manual | v1.0 | 10/22/2021 | Download |
| DSA800E Quick Guide | v1.0 | 10/22/2021 | Download |
| DSA800/E User Manual | V2.0 | 2/29/2024 | Download |
| DSA800E Datasheets | DSD03000-2020-12 | 10/22/2021 | Download |
| DSA800E-Options&Accessories | V1.0 | 10/22/2021 | Download |
| DSA800E Rackmount Kit User Manual | V1.0 | 10/26/2021 | Download |
| DSA800E Programming Manual | v1.0 | 10/22/2021 | Download |
| NFP-3 | V1.0 | 10/22/2021 | Download |
