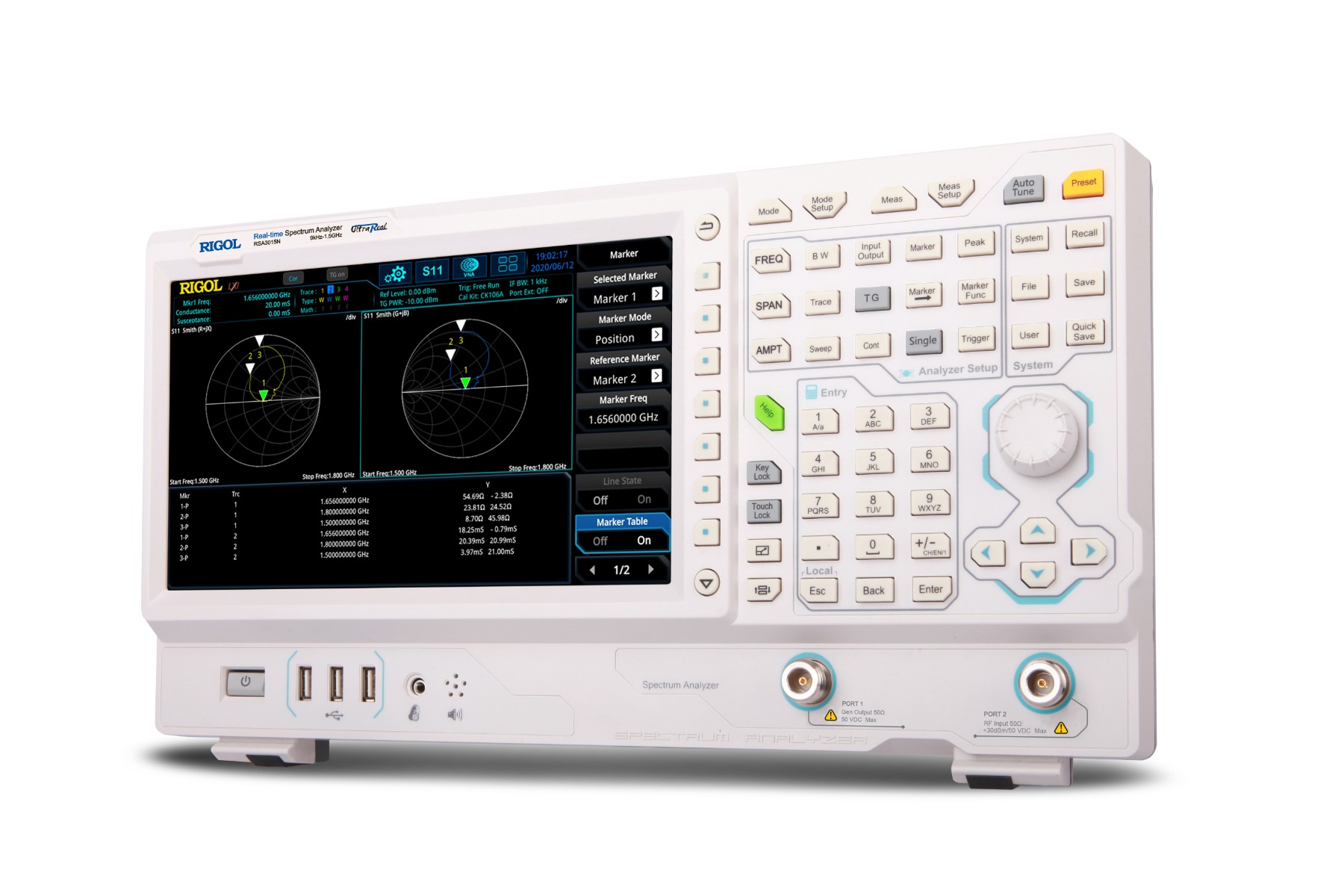

Spectrum Analyzer RSA3015N

Real-time spectrum analyzer from 9 kHz to 1.5 GHz bandwidth, up to 40 MHz real-time bandwidth, 10 Hz - 10 MHz RBW and a 25.6 cm (10.1") touchdisplay with 1024x600 pixel. Including Tracking Generator 100 kHz - 1.5 GHz and Vector Network Analyzer.

RSA3000N Promotion
Get the preamplifier and the EMI option for free with the purchase of a new device.

Deliver in
1 - 2 working Days
Special Price €1,899.00 €2,259.81 Regular Price €2,497.81


The Rigol RSA3000 series is a compact and light weight spectrum analyzer series with premium performance standard spectrum analysis capabilities combined with a Real-Time Spectrum Analyzer which makes it possible to never miss any signal that is longer than 7.45 µs in duration. Engineers integrating WiFi, Bluetooth and other modern RF technologies are confronted with complex challenges like frequency hopping signals, channel conflict, and spectrum interference.

Real-Time Spectrum Analyzers bring the dimension of time to RF Analysis making it easier to monitor and characterize these complex RF systems. The RSA5000 combines industry leading Realtime performance (7.45µs 100% POI), rich data displays, and advanced triggering options allowing the user to quickly capture, identify and analyze these complex events. With the RSA3000N, Rigol is expanding a vector network analysis function (VNA).

In VNA mode, you can make S11, S21, and DTF measurements for the components and circuit networks. The network characteristics of the components under test can be accurately demonstrated in Smith chart, Polar chart, and other formats.

Rigol's new RSA3000 series spectrum analyzers redefines the product category of general purpose spectrum analyzer by adding Real-Time spectrum trigger and analysis capabilities and sets a new level performance and price.

The RSA3000 family features a 10.1” touchscreen display, compact design and easy-to-use interface and operations, making it ideal for benchtop or field apps in RF and wireless testing and production such as IoT, RFID, analog and digital modulated signals. Embedded-System-Designer can cross trigger and analyze bus signals like IC2, SPI with RF Signals.

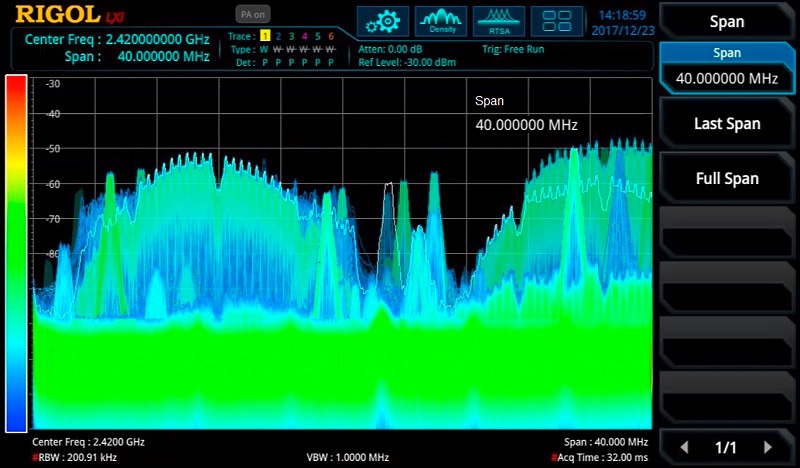

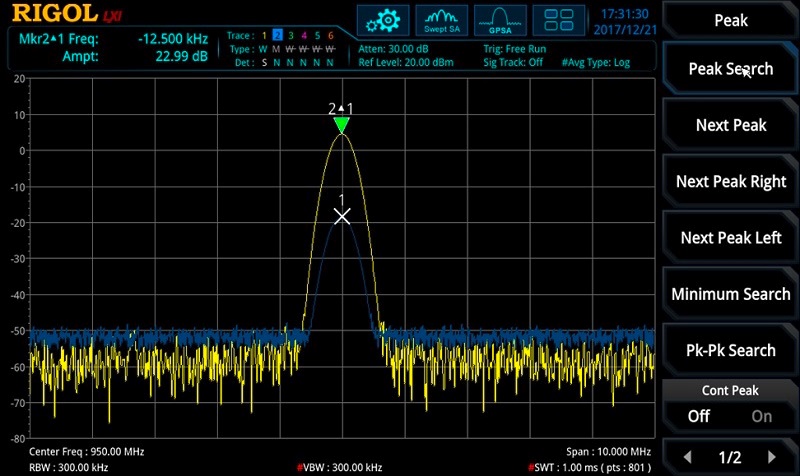

The Real-Time-Bandwidth of 10 MHz (25 MHz and 40 MHz optional) and the Frequency-Mask-Trigger let you visualize, isolate and capture signals to analyze their behavior over amplitude, frequency and time. The new spectrum analyzer offers the ability to trigger and capture signals by 100% if longer than 7.45 µs in duration. The RSA3000 have RBW settable down to 10 Hz, a DANL (displayed average noise level) down to -161 dBm (typical) and a 1ms Full Span Sweep in its general-purpose spectrum analyzer mode.

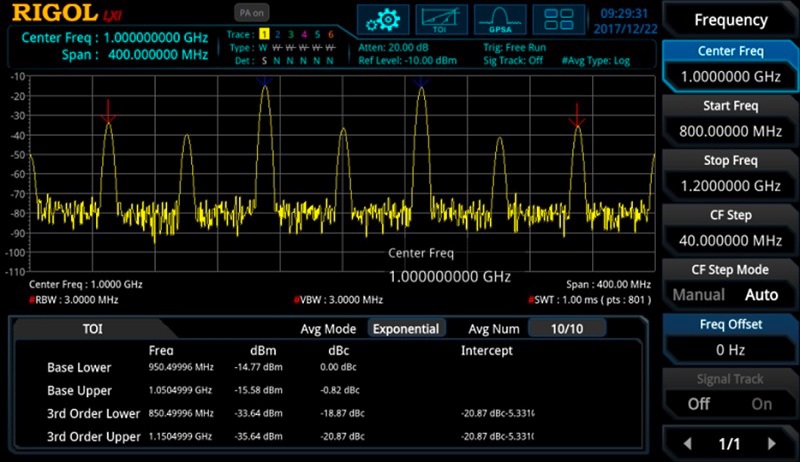

EMI filter and detector such as 9KHz, 120kHz and Quasi-Peak as example are standard. Extendibility: 40MHz Real-Time-Bandwidth, Pre-Amplifier, High Stability Clock, Advanced Measurement Kit, EMI Pre-compliance Test Software can be added optional.

RSA3000 SERIES

  • 9 kHz to 3 or 4.5 GHz Frequency Range
  • 10.1” Capacitive touchscreen display
  • Displayed Average Noise Level as low as -161 dBm with opt. PreAmplifier
  • Real-Time Analysis Bandwidth of 10 MHz standard (40 MHz option)
  • Frequency-Mask-Trigger, IF-Power-Level-Trigger and external Trigger
  • 7 Real-Time visualization modes
  • 100 % POI as low as 7. 45 µs
  • 10 Hz Minimum Resolution Bandwidth (RBW) (1 Hz option)
  • 1 ms full span sweep speed
  • EMI RBW and Detector standard (200 Hz, 9 kHz, 120 kHz, 1 MHz)

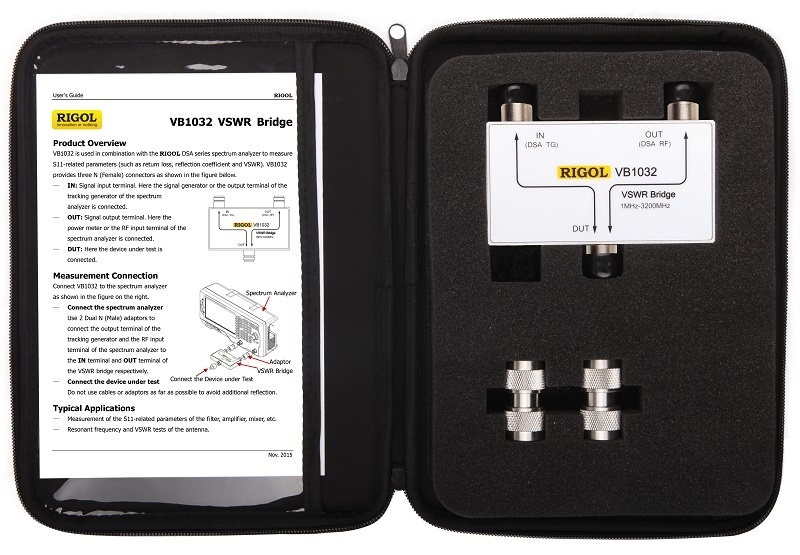

  • Tracking Generator and VSWR measurements available
  • Vector Network Analyzer
Overview RSA3000-(N)
Frequency Range 9 kHz - 3 / 4.5 GHz
Frequency Resolution 10 HZ (1 Hz option)
Span 0 Hz (zero Span), 100 Hz - 3 / 4.5 GHz
DANL -136 dBm (-161 dBm with optional preamplifier)
Display 25,7 cm (10.1") TFT-Color-LCD Touchdisplay (1024 × 600 Pixel)
Interfaces USB-Host, USB, LAN, GPIB
Dimensions 410 mm × 224 mm × 135 mm
Weight 4.65 kg



Models Max. Bandwidth

EMI/

QuasiPeak

Adv. Meas. Kit

Pre

amplifier

Tracking Generator Vector Network Analyzer
RSA3015N 1.5 GHz Option Option Option yes yes
RSA3030 3 GHz Option Option Option
RSA3030-TG 3 GHz Option Option Option yes
RSA3030N 3 GHz Option Option Option yes yes
RSA3045 4.5 GHz Option Option Option
RSA3045-TG 4.5 GHz Option Option Option yes
RSA3045N 4.5 GHz Option Option Option yes yes

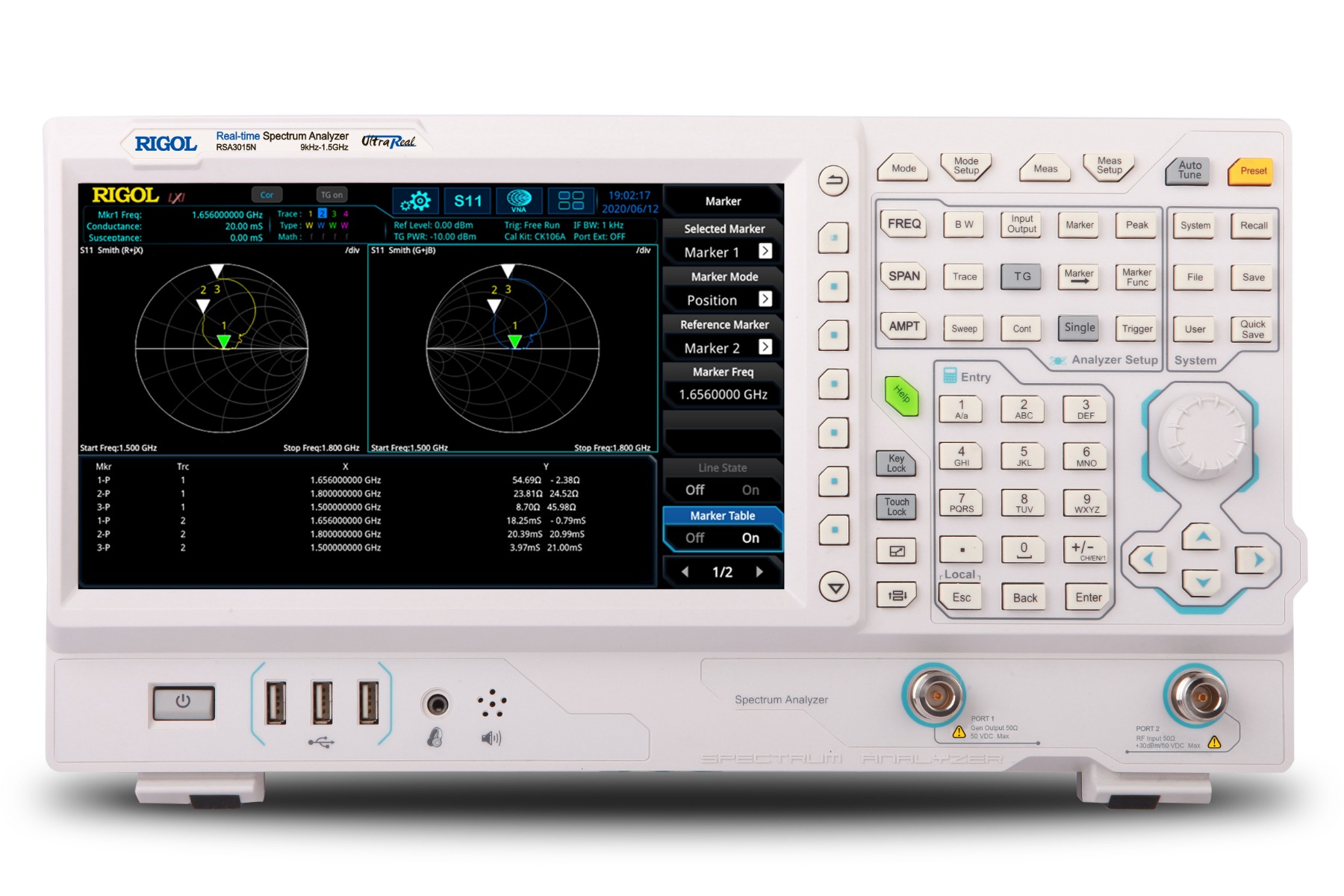

Built-in Vector Network Analysis mode

In VNA mode, you can make S11, S21, and DTF measurements for the components and circuit networks. The network characteristics of the components under test can be accurately demonstrated in Smith chart, Polar chart, and other formats.

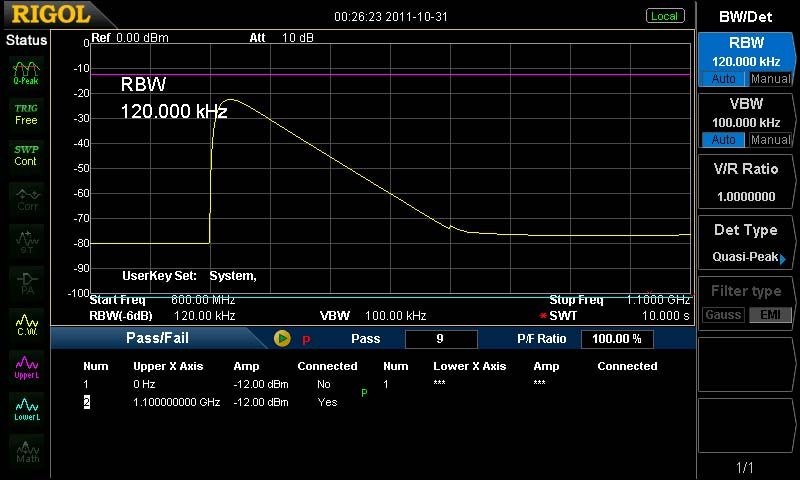

Conduction/Radiation Pre-compliance with Built-in Emi Test Software

The RSA3000's built-in EMI pre-compliance application software, combined with CISPR-compliant filters, pre-tests the product for conduction and radiation to identify and improve its conduction/radiation disturbance source and accelerate time-to-market.



Signal Triggering and Monitoring Via Fmt Mode

The FMT frequency mask trigger is a unique trigger mode for real-time spectrum analyzers. You can quickly build a template and accurately locate and trigger signals that match the template rules to detect sporadic anomalies within the monitored range.



Resolution Bandwidth As Low As 1 Hz

Resolving signals with similar frequencies is critical to verifying many RF devices and systems. With the RSA3000, the RBW resolution bandwidth with a scan bandwidth of only 1 Hz allows you to view more details of adjacent signals.



Danl As Low As -161 Dbm with Optional Preamp

View lower powered signals (harmonics, interference sources) and ease trouble-shooting in swept and real-time mode.



Excellent Phase Noise Metric

Excellent sweep performance, phase noise as low as -102dBc/Hz



Multiple interfaces to improve the connectivity of the instruments

The instrument can be connected to a larger display/monitor via the HDMI interface for better display effects. The Web Control function allows you to directly control the device by accessing the device IP address, improving the experience of remote control.





Complete Operations with a Multi-touch Screen

RSA3000 with a 10.1-inch multi-touch capacitive screen with quick setup, and support a variety of gestures such as dragging, expanding, and zooming waveforms to provide a personalized interactive experience that maximizes your time.












Software Download Description File Size Version Release Date
RSA3000&3000E&5000 Open Source Acknowledgment RSA3000&3000E&5000 Open Source Acknowledgment 245.21 KB V1.0 2020-01-17
RSA3000 Firmware RSA3000 Firmware 61.96 MB 00.02.00 2019-08-29
TX1000 Software TX1000 Software 61.96 MB 00.01.00.02 2019-08-29
S1210 EMI Pre-compliance Software(Help Document) S1210 EMI Pre-compliance Software(Help Document) 11.41 MB V1.0 2019-08-29
S1210 EMI Pre-compliance Software(PC)Installer S1210 EMI Pre-compliance Software(PC)Installer 25.77 MB V00.05.00.07 2019-08-29

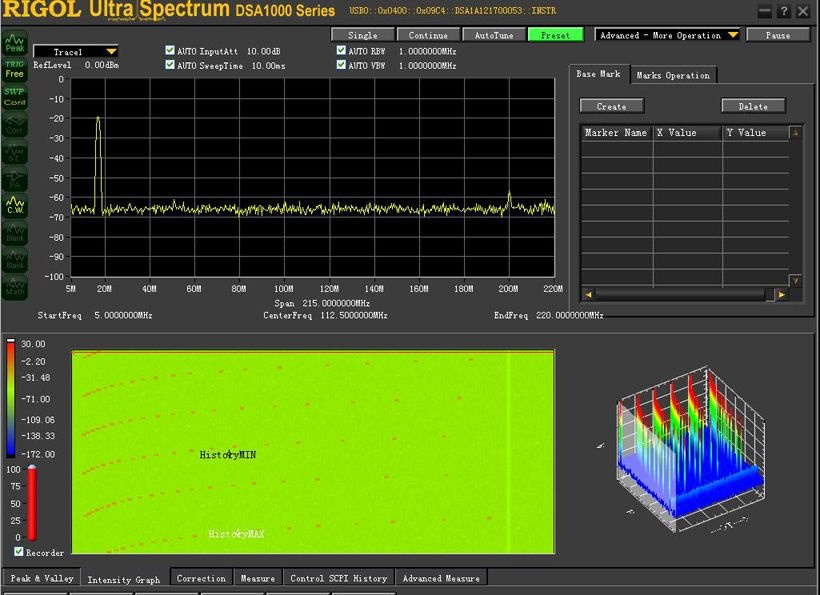

Ultra Spectrum Software Ultra Spectrum Software 31.46 MB 00.01.00.28 2019-08-29
Ultra Sigma (HelpDocument) Ultra Sigma (HelpDocument) 9.79 MB V1.0 2019-08-22
S1210 EMI EMI Pre-compliance Software_DataSheet S1210 EMI EMI Pre-compliance Software_DataSheet 594.99 KB V1.0 2019-08-29
Ultra Sigma patch for RSA Ultra Sigma patch for RSA 31.46 MB V1.0 2019-08-29
Datasheet Download Description File Size Version Release Date
RSA3000 Datenblatt RSA3000 Datenblatt 7.49 MB V1.0 27.12.2018
S1210 EMI Pre-compliance Software_DataSheet S1210 EMI Pre-compliance Software_DataSheet 594.99 KB V1.0 2019-08-29
RSA3000 Datasheets RSA3000 Datasheets 4.88 MB V1.1 2020-01-10
Manual Download Description File Size Version Release Date
RSA3000/5000N Anleitung RSA3000/5000N Anleitung 1.50 MB V1.0 14.08.2020
RSA3000 Rackmount Kit Manual RSA3000 Rackmount Kit Manual 286.75 KB V1.0 2019-08-29
RSA3000 User Manual RSA3000 User Manual 4.75 MB V1.0 2019-08-29
EMI User Manual EMI User Manual 1.43 MB V1.0 2019-08-29
RSA3000 Programming Manual RSA3000 Programming Manual 3.43 MB V1.0 2019-08-29
EMI Programming Manual EMI Programming Manual 1.82 MB V1.0 2019-08-29
RSA3000 Quick Guide RSA3000 Quick Guide 1.55 MB V1.0 2019-08-29
Vector Network Analyzer User Guide for RSA5000N/RSA3000N Vector Network Analyzer User Guide for RSA5000N/RSA3000N 1.50 MB latest 2020-07-01
General Download Description File Size Version Release Date
RSA3000&3000E&5000 Open Source Acknowledgment RSA3000&3000E&5000 Open Source Acknowledgment 245.21 KB V1.0 2019-08-29
RSA series - EMI information for license RSA series - EMI information for license 1.47 MB V1.0 09.09.2021
RSA series - EMI option Getting started RSA series - EMI option Getting started 1.13 MB V1.0 09.09.2021
