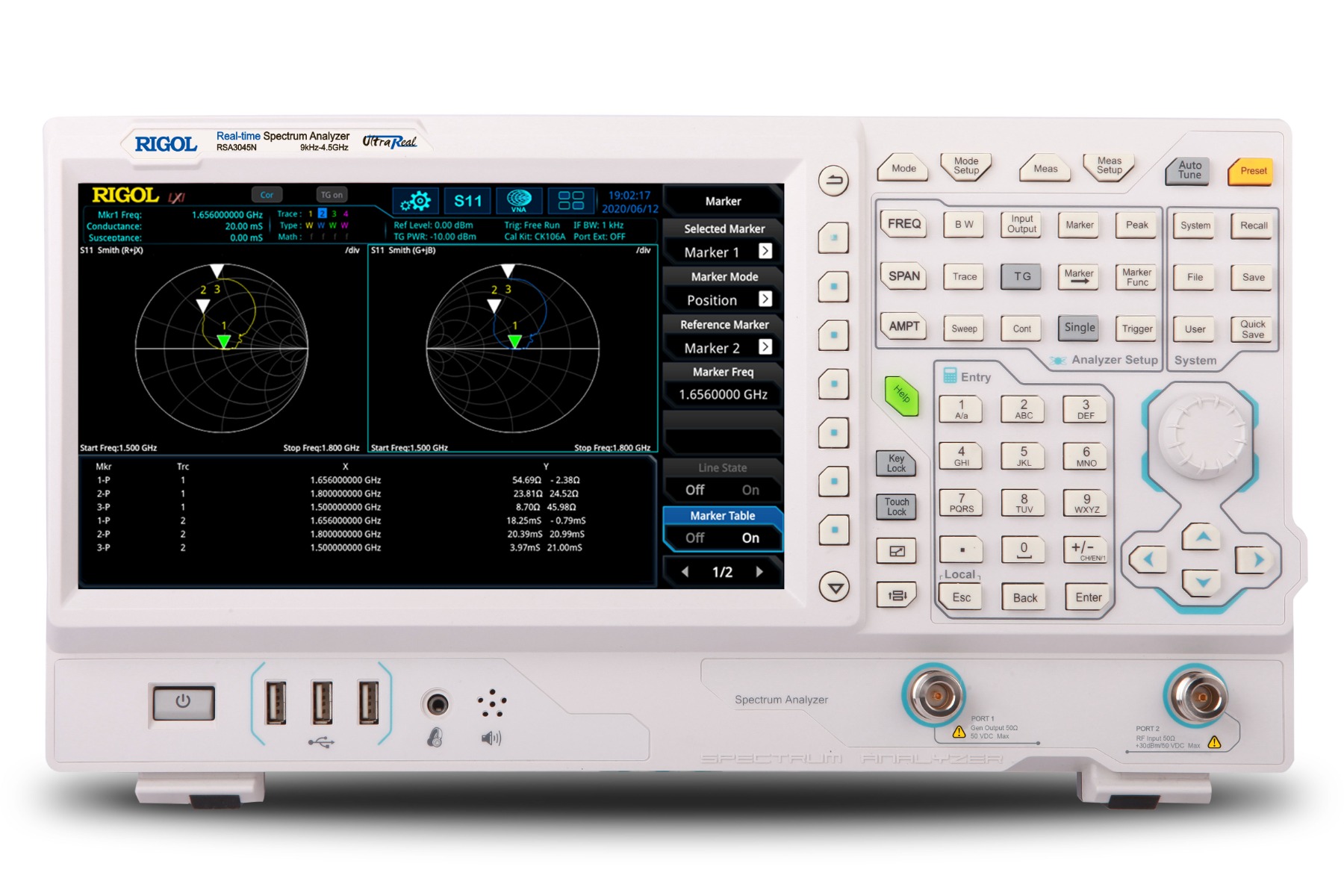

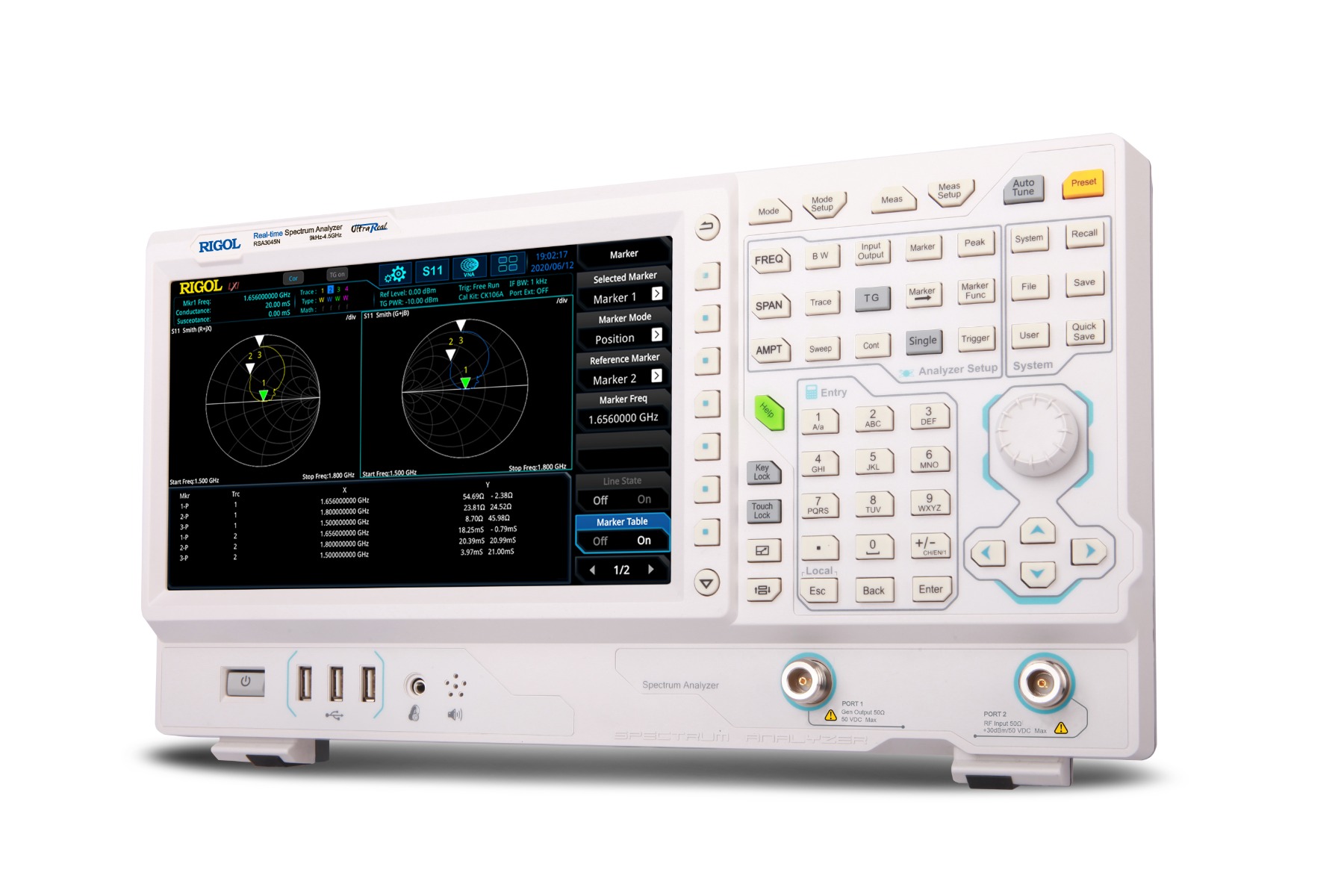

RIGOL Spectrum Analyzer RSA3045N

RIGOL Spectrum Analyzer RSA3045N

Measurement Mod RTSA/EMI/VNA

Max. Ferquency Range 9kHz～4.5GHz

Description 1Hz~3MHz(10MHz opt.)

Phase Noise -102dBc/Hz@10kHz

Tracking Source Yes

DANL -161dBm

Max. Real-time Bandwidth 40MHz

Delivery：about one month

Standard Accessories

Quantity：

€4995.00 excl. VAT

€5644.35 incl. 13.000% VAT

Buy Now Add to cart Add to wish list

Description
RSA3000 Spectrum-Analyzers Model
Feature & Video
Software ＆ Firmware
Datasheet & Manual Download

Add To Cart

<p><video id="video-1" poster="/images/pub/media/wysiwyg/download/video/cover/rsa3000_cover_10.2022.png" preload="none" controls="controls" width="100%" height="auto">
<source src="/images/pub/media/wysiwyg/download/video/rsa3000n_rsa5000n/rsa3000n_rsa5000n_video01_introduction.mp4" type="video/mp4">
 </video></p>
<p>Real-time spectrum analyzer from 9 kHz to 4.5 GHz bandwidth, up to 40 MHz real-time bandwidth, 10 Hz - 10 MHz RBW and a 25.6 cm (10.1") touchdisplay with 1024x600 pixel. Including Tracking Generator 100 kHz - 4.5 GHz and Vector Network Analyzer，EU Cable</p>
<p><br><br></p><p>------</p><p>The Rigol RSA3000 series is a compact and light weight spectrum analyzer series with premium performance standard spectrum analysis capabilities combined with a Real-Time Spectrum Analyzer which makes it possible to never miss any signal that is longer than 7.45 µs in duration. Engineers integrating WiFi, Bluetooth and other modern RF technologies are confronted with complex challenges like frequency hopping signals, channel conflict, and spectrum interference.</p>
<p>Real-Time Spectrum Analyzers bring the dimension of time to RF Analysis making it easier to monitor and characterize these complex RF systems. The RSA5000 combines industry leading Realtime performance (7.45µs 100% POI), rich data displays, and advanced triggering options allowing the user to quickly capture, identify and analyze these complex events. With the RSA3000N, Rigol is expanding a vector network analysis function (VNA).</p>
<p>In VNA mode, you can make S11, S21, and DTF measurements for the components and circuit networks. The network characteristics of the components under test can be accurately demonstrated in Smith chart, Polar chart, and other formats.</p>
<p>Rigol's new RSA3000 series spectrum analyzers redefines the product category of general purpose spectrum analyzer by adding Real-Time spectrum trigger and analysis capabilities and sets a new level performance and price.</p>
<p>The RSA3000 family features a 10.1” touchscreen display, compact design and easy-to-use interface and operations, making it ideal for benchtop or field apps in RF and wireless testing and production such as IoT, RFID, analog and digital modulated signals. Embedded-System-Designer can cross trigger and analyze bus signals like IC2, SPI with RF Signals.</p>
<p>The Real-Time-Bandwidth of 10 MHz (25 MHz and 40 MHz optional) and the Frequency-Mask-Trigger let you visualize, isolate and capture signals to analyze their behavior over amplitude, frequency and time. The new spectrum analyzer offers the ability to trigger and capture signals by 100% if longer than 7.45 µs in duration. The RSA3000 have RBW settable down to 10 Hz, a DANL (displayed average noise level) down to -161 dBm (typical) and a 1ms Full Span Sweep in its general-purpose spectrum analyzer mode.</p>
<p>EMI filter and detector such as 9KHz, 120kHz and Quasi-Peak as example are standard. Extendibility: 40MHz Real-Time-Bandwidth, Pre-Amplifier, High Stability Clock, Advanced Measurement Kit, EMI Pre-compliance Test Software can be added optional.</p>
<h2>RSA3000 SERIES</h2>
<ul>
<ul>
<ul>
<li>9 kHz to 3 or 4.5 GHz Frequency Range</li>
<li>10.1” Capacitive touchscreen display</li>
<li>Displayed Average Noise Level as low as -161 dBm with opt. PreAmplifier</li>
<li>Real-Time Analysis Bandwidth of 10 MHz standard (40 MHz option)</li>
<li>Frequency-Mask-Trigger, IF-Power-Level-Trigger and external Trigger</li>
<li>7 Real-Time visualization modes</li>
<li>100 % POI as low as 7. 45 µs</li>
<li>10 Hz Minimum Resolution Bandwidth (RBW) (1 Hz option)</li>
<li>1 ms full span sweep speed</li>
<li>EMI RBW and Detector standard (200 Hz, 9 kHz, 120 kHz, 1 MHz)</li>
<li>Tracking Generator and VSWR measurements available</li>
<li>Vector Network Analyzer</li>
</ul>
</ul>
</ul>
<table class="table table-striped js-responsive-table"><colgroup><col><col></colgroup>
<thead class="thead-light">
<tr>
<th>Overview</th>
<th>RSA3000-(N)</th>
</tr>
</thead>
<tbody>
<tr class="accordion-opened no-pointer">
<td>Frequency Range</td>
<td>9 kHz - 3 / 4.5 GHz</td>
</tr>
<tr class="accordion-opened no-pointer">
<td>Frequency Resolution</td>
<td>10 HZ (1 Hz option)</td>
</tr>
<tr class="accordion-opened no-pointer">
<td>Span</td>
<td>0 Hz (zero Span), 100 Hz - 3 / 4.5 GHz</td>
</tr>
<tr class="accordion-opened no-pointer">
<td>DANL</td>
<td>-136 dBm (-161 dBm with optional preamplifier)</td>
</tr>
<tr class="accordion-opened no-pointer">
<td>Display</td>
<td>25,7 cm (10.1") TFT-Color-LCD Touchdisplay (1024 × 600 Pixel)</td>
</tr>
<tr class="accordion-opened no-pointer">
<td>Interfaces</td>
<td>USB-Host, USB, LAN, GPIB</td>
</tr>
<tr class="accordion-opened no-pointer">
<td>Dimensions</td>
<td>410 mm × 224 mm × 135 mm</td>
</tr>
<tr class="accordion-opened no-pointer">
<td>Weight</td>
<td>4.65 kg</td>
</tr>
</tbody>
</table>
<p> </p>
<table class="table table-striped js-responsive-table"><colgroup><col><col><col><col><col><col><col></colgroup>
<thead class="thead-light">
<tr>
<th style="width: 100.8px;">Models</th>
<th style="width: 84.8px;">Max. Bandwidth</th>
<th style="width: 123.2px;">EMI/QuasiPeak</th>
<th style="width: 51.2px;">Adv. Meas. Kit</th>
<th style="width: 78.4px;">
<p>Pre</p>
<p>amplifier</p>
</th>
<th style="width: 80px;">Tracking Generator</th>
<th style="width: 68.8px;">Vector Network Analyzer</th>
</tr>
</thead>
<tbody>
<tr class="accordion-opened">
<td style="width: 100.8px;">RSA3015N</td>
<td style="width: 84.8px;">1.5 GHz</td>
<td style="width: 123.2px;">Option</td>
<td style="width: 51.2px;">Option</td>
<td style="width: 78.4px;">Option</td>
<td style="width: 80px;">yes</td>
<td style="width: 68.8px;">yes</td>
</tr>
<tr class="accordion-opened">
<td style="width: 100.8px;">RSA3030</td>
<td style="width: 84.8px;">3 GHz</td>
<td style="width: 123.2px;">Option</td>
<td style="width: 51.2px;">Option</td>
<td style="width: 78.4px;">Option</td>
<td style="width: 80px;"> </td>
<td style="width: 68.8px;"> </td>
</tr>
<tr class="accordion-opened">
<td style="width: 100.8px;">RSA3030-TG</td>
<td style="width: 84.8px;">3 GHz</td>
<td style="width: 123.2px;">Option</td>
<td style="width: 51.2px;">Option</td>
<td style="width: 78.4px;">Option</td>
<td style="width: 80px;">yes</td>
<td style="width: 68.8px;"> </td>
</tr>
<tr class="accordion-opened">
<td style="width: 100.8px;">RSA3030N</td>
<td style="width: 84.8px;">3 GHz</td>
<td style="width: 123.2px;">Option</td>
<td style="width: 51.2px;">Option</td>
<td style="width: 78.4px;">Option</td>
<td style="width: 80px;">yes</td>
<td style="width: 68.8px;">yes</td>
</tr>
<tr class="accordion-opened">
<td style="width: 100.8px;">RSA3045</td>
<td style="width: 84.8px;">4.5 GHz</td>
<td style="width: 123.2px;">Option</td>
<td style="width: 51.2px;">Option</td>
<td style="width: 78.4px;">Option</td>
<td style="width: 80px;"> </td>
<td style="width: 68.8px;"> </td>
</tr>
<tr class="accordion-opened">
<td style="width: 100.8px;">RSA3045-TG</td>
<td style="width: 84.8px;">4.5 GHz</td>
<td style="width: 123.2px;">Option</td>
<td style="width: 51.2px;">Option</td>
<td style="width: 78.4px;">Option</td>
<td style="width: 80px;">yes</td>
<td style="width: 68.8px;"> </td>
</tr>
<tr class="accordion-opened">
<td style="width: 100.8px;">RSA3045N</td>
<td style="width: 84.8px;">4.5 GHz</td>
<td style="width: 123.2px;">Option</td>
<td style="width: 51.2px;">Option</td>
<td style="width: 78.4px;">Option</td>
<td style="width: 80px;">yes</td>
<td style="width: 68.8px;">yes</td>
</tr>
</tbody>
</table>

Model	Market Price	Price	Delivery	Measurement Mod	Max. Ferquency Range	Description	Phase Noise	Tracking Source	DANL	Max. Real-time Bandwidth
RIGOL Spectrum Analyzer RSA3015N	€1995.00	€1995.00	2 Weeks	RTSA/EMI/VNA	9kHz~1.5GHz	1Hz~3MHz(10MHz opt.)	-102dBc/Hz@10kHz	Yes	-161dBm	40MHz
RIGOL Spectrum Analyzer RSA3030N	€3695.00	€3695.00	about one month	RTSA/EMI/VNA	9kHz~3GHz	1Hz~3MHz(10MHz opt.)	-102dBc/Hz@10kHz	Yes	-161dBm	40MHz
RIGOL Spectrum Analyzer RSA3045N	€4995.00	€4995.00	about one month	RTSA/EMI/VNA	9kHz～4.5GHz	1Hz~3MHz(10MHz opt.)	-102dBc/Hz@10kHz	Yes	-161dBm	40MHz

Built-in Vector Network Analysis mode

In VNA mode, you can make S11, S21, and DTF measurements for the components and circuit networks. The network characteristics of the components under test can be accurately demonstrated in Smith chart, Polar chart, and other formats.
Conduction/Radiation Pre-compliance with Built-in Emi Test Software

The RSA3000's built-in EMI pre-compliance application software, combined with CISPR-compliant filters, pre-tests the product for conduction and radiation to identify and improve its conduction/radiation disturbance source and accelerate time-to-market.
Signal Triggering and Monitoring Via FMT Mode

The FMT frequency mask trigger is a unique trigger mode for real-time spectrum analyzers. You can quickly build a template and accurately locate and trigger signals that match the template rules to detect sporadic anomalies within the monitored range.
Resolution Bandwidth As Low As 1 Hz

Resolving signals with similar frequencies is critical to verifying many RF devices and systems. With the RSA3000, the RBW resolution bandwidth with a scan bandwidth of only 1 Hz allows you to view more details of adjacent signals.
Danl As Low As -161 Dbm with Optional Preamp

View lower powered signals (harmonics, interference sources) and ease troubleshooting in swept and real-time mode.
Excellent Phase Noise Metric

Excellent sweep performance, phase noise as low as -102dBc/Hz
Multiple interfaces to improve the connectivity of the instruments

The instrument can be connected to a larger display/monitor via the HDMI interface for better display effects. The Web Control function allows you to directly control the device by accessing the device IP address, improving the experience of remote control.
Complete Operations with a Multi-touch Screen

RSA3000 with a 10.1-inch multi-touch capacitive screen with quick setup, and support a variety of gestures such as dragging, expanding, and zooming waveforms to provide a personalized interactive experience that maximizes your time.

Firmware Download

File Name	Version	Release Date	Operation
RSA3000 Firmware	V00.03.07	9/3/2024	Download

Software Download

File Name	Version	Release Date	Operation
TX1000 Software	00.01.00.02	8/29/2019	Download
Ultra Sigma (HelpDocument)	V1.0	8/29/2019	Download
Ultra Sigma patch for RSA	V1.0	8/29/2019	Download
Ultra Sigma （PC）Installer	00.01.06.01	8/29/2019	Download
Ultra Spectrum Software	00.01.00.29	8/29/2019	Download

Manual Download

File Name	Version	Release Date	Operation
RSA3000 Datasheets	V2.0	10/12/2024	Download
RSA3000&3000E&5000 series Open Source Acknowledgment	v1.0	8/29/2019	Download
VNA Programming Manual	v1.0	7/16/2020	Download
NFP-3	V1.0	5/14/2020	Download
S1210 EMI Pre-compliance Software DataSheet	V1.0	7/16/2020	Download
RSA3000 Programming Manual	V1.0	8/29/2019	Download
EMI Programming Manual	V1.0	8/29/2019	Download
RSA3000 User Manual	V1.0	12/23/2020	Download
RSA3000 Quick Guide	V2.0	7/6/2020	Download
EMI User Manual	V1.0	8/29/2019	Download
RSA3000 Rackmount Kit Manual	V1.0	12/3/2021	Download
