Spectrum Analyzer RSA5065N

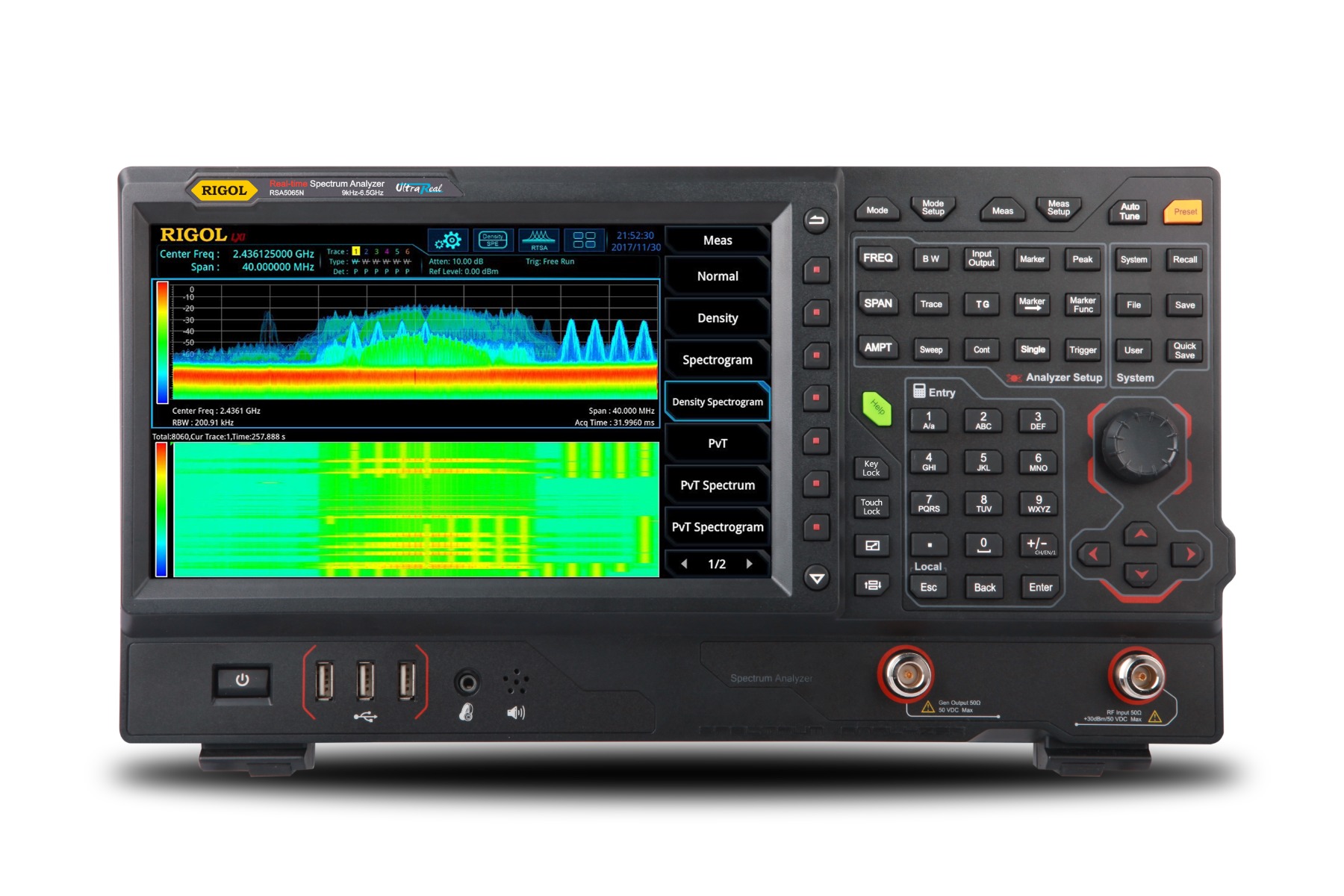

Real-time spectrum analyzer from 9 kHz to 6.5 GHz bandwidth, up to 40 MHz real-time bandwidth, 1 Hz - 10 MHz RBW and a 25.6 cm (10.1") touchdisplay with 1024x600 pixel. Including Tracking Generator 100 kHz - 6.5 GHz and Vector Network Analyzer.

RSA5000N Promotion
Get the preamplifier and the realtime bandwidth upgrade for free with the purchase of a new device.

Deliver in
2 - 3 working Days
€9,595.00 €11,418.05

  • Ultra-Real technology
  • Frequency: 6.5 GHz
  • Displayed average noise level (DANL): <-165 dBm (typical)
  • Phase noise: <-108 dBc/Hz (typical)
  • Level measurement uncertainty: <0.8 dB
  • 5 GHz tracking generator
  • RBW 1 Hz
  • EMC filter and quasi-peak detector

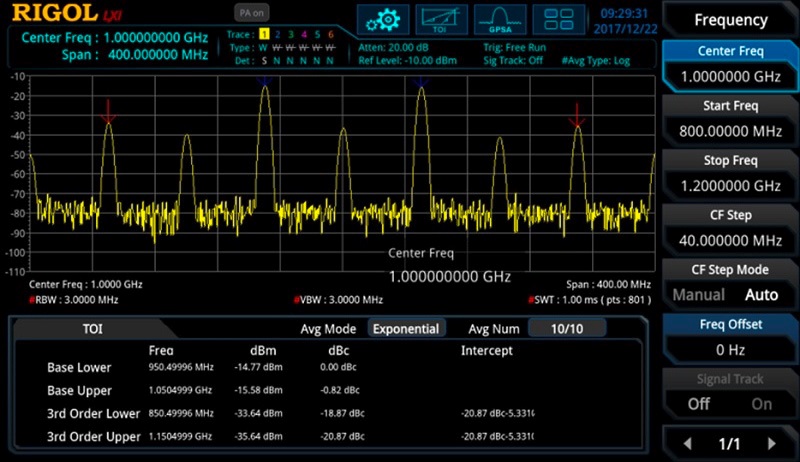

  • Various measurement functions

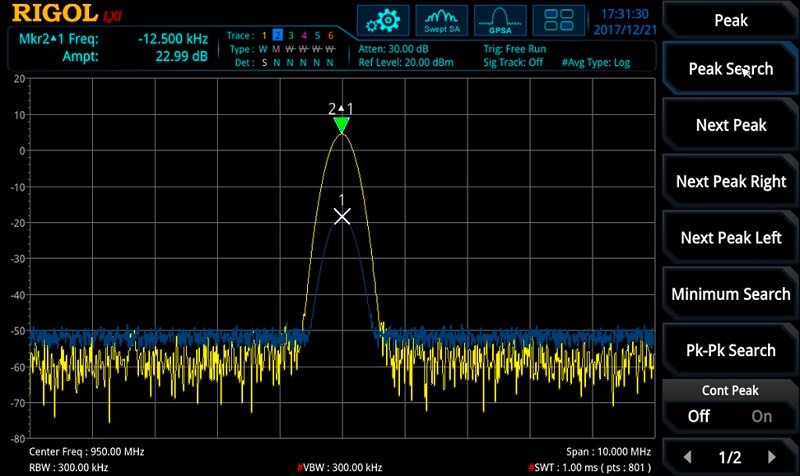

  • Multiple measurement modes
  • Up to 40 MHz real-time analysis bandwidth
  • Multiple trigger modes and trigger masks
  • Density, Spectrogram, and other display modes
  • PC software options
  • 1'' capacitive multi-touch screen, supporting touch gestures
  • USB, LAN, HDMI and other communication and display interfaces
  • Vector Network Analyzer


Built-in Vector Network Analysis mode

In VNA mode, you can make S11, S21, and DTF measurements for the components and circuit networks. The network characteristics of the components under test can be accurately demonstrated in Smith chart, Polar chart, and other formats.



Discover Transient Anomalies Through Ultra Real Technology

The RSA5000 delivers up to 40MHz of real-time bandwidth using the original Ultra Real technology. In the real-time bandwidth range, transient signals exceeding 7.45us duration can be guaranteed to be 100% captured and accurately measured.



Discover Problems in Design with Vector Analysis

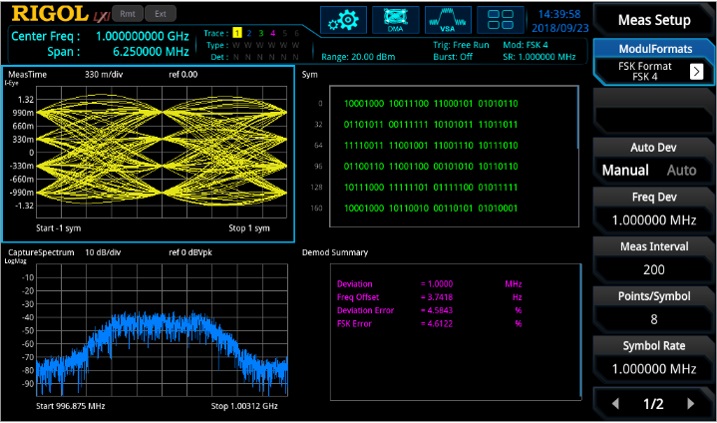

Vector Signal Analysis Function The VSA supports a variety of digital modulation formats such as QAM, PSK, MSK, ASK, FSK, etc. This function is used to quickly demodulate and display multi-dimensional data such as its constellation, eye diagram (baseband signal), spectrogram, demodulation data, etc., to discover problems in the design.



Conduction/radiation Pre-testing with Built-in Emi Test Software

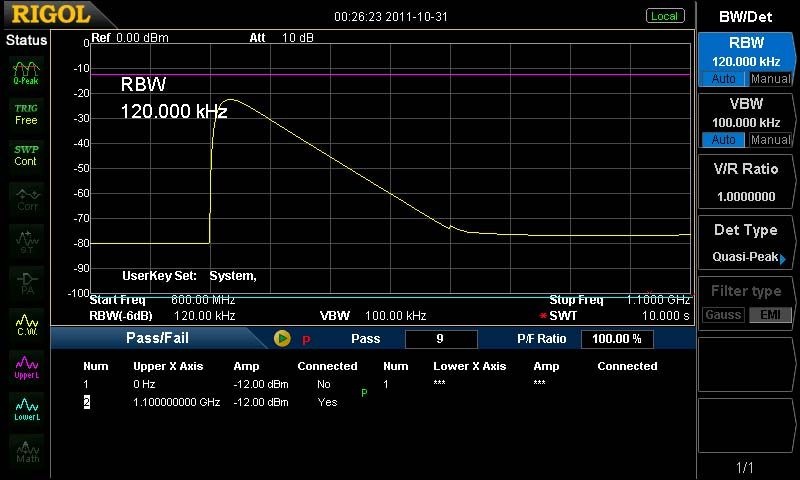

The RSA5000's built-in EMI pre-test application software, combined with CISPR-compliant filters, pre-tests the product for conduction and radiation to identify and improve its conduction/radiation disturbance source and accelerate time-to-market.



Signal Triggering and Monitoring Via FMT Template

The FMT frequency mask trigger is a unique trigger mode for real-time spectrum analyzers. You can quickly build a template and accurately locate and trigger signals that match the template rules to detect sporadic anomalies within the monitored range. You can use the RSA5000 to provide a 10.1-inch multi-touch capacitive screen for quick setup, and support a variety of gestures such as dragging, expanding, and



Excellent Phase Noise Metric

Excellent sweep performance, phase noise as low as -108dBc/Hz



Multiple interfaces to improve the connectivity of the instruments

The instrument can be connected to a larger display/monitor via the HDMI interface for better display effects. The Web Control function allows you to directly control the device by accessing the device IP address, improving the experience of remote control.





Quickly Complete Operations with a Multi-touch Screen

You can use the RSA5000 to provide a 10.1-inch multi-touch capacitive screen for quick setup, and support a variety of gestures such as dragging, expanding, and zooming waveforms to provide a personalized interactive experience that maximizes your time.

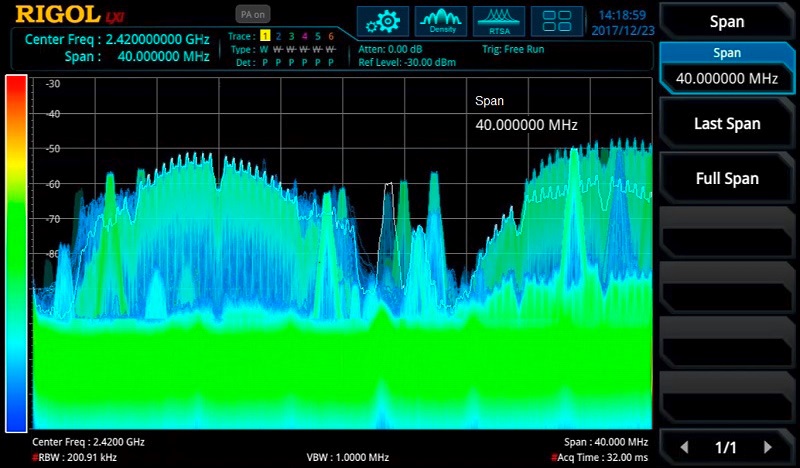

7 Real-time Display Modes

The RSA5000's seven real-time signal display modes make it easier to capture, isolate and analyze RF signals and systems. The power vs. time and spectrograms show how the signal varies with the acquisition time or continuous acquisition time. Combining these presentations with markers and triggers in different modes makes the RSA5000 a flexible tool for real-time RF analysis and debugging.
