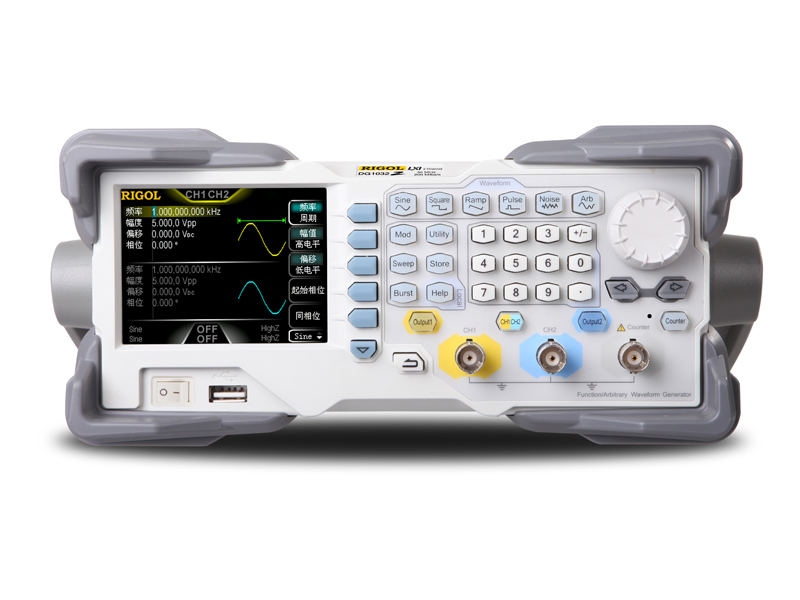

RIGOL Function Generator DG1032Z

30MHz, 2CH, 200MSa/s, 14bits, 8Mpts Arbitrary Memory Depth, 7digits/s Frequency Counter

Deliver in
2 - 4 working Days
€469.00 €558.11
  • SiFi (Signal Fidelity) for 100% waveform replication
  • 8Mpts/CH(std.), 16Mpts/CH (opt.) arbitrary waveform length
  • Standard 2 full functional independent channels
  • ±1ppm frequency stability, -125dBc/Hz phase noise, 200ps low jitter
  • Built-in 8 orders harmonics generator
  • Built-in 7 digits/s counter up to 200MHz
  • 160 built-in pre-edited waveforms
  • Intuitive arbitrary waveform editing software
  • Full modulation supported: AM, FM, PM, ASK, FSK, PSK and PWM



DG1000Z series function/arbitrary waveform generator is a multifunctional generator that combines many functions in one, including Function Generator, Arbitrary Waveform Generator, Noise Generator, Pulse Generator, Harmonics Generator, Analog/Digital Modulator and Counter. As a multi-functional, high performance and portable generator, it will be a new selection in education, R&D, production, test and etc.



SiFi Technology

RIGOL's innovative Sifi technology can generate any waveform point by point, undistorted restore signal, accurate and adjustable sampling rate, reduce the signal jitter generated by traditional DDS signal source, and the jitter can be as low as 200ps.



Built-in 160 arbitrary waves

As we all know, RIGOL's waveform generator includes many popular custom waveform types, which can limit waveform creation to any real application. The dg1000z continues this trend by including more than 160 different signal shapes, all of which are accessible from the front panel selection menu.



Sweep function & burst mode

It supports scanning output from low frequency to high frequency or from high frequency to low frequency. The scanning type includes linear, logarithmic and step. It can set the "mark" frequency to meet the needs of more amplitude frequency test applications. Burst mode function provides N-cycle, infinite and gating three types of pulse strings.



Multiple analog & digital modulation

Modulation types include am, FM, PM, ask, FSK, PSK and PWM, and support internal and external modulation sources to meet the needs of more teaching or communication system testing.



Harmonic generator

Built in 8-th harmonic generator function, output the harmonic with specified times, amplitude and phase, which is usually used in the test of harmonic detection equipment or harmonic filter equipment.



Waveform Overlay & Channel Tracking

It can stack the specified frequency and percentage amplitude waveform on the basic wave for output; when the channel tracking function is turned on, all parameters of the dual channel can be updated according to the user's configuration at the same time








Built-in 7-bit frequency meter

It provides 7-bit frequency meter measurement function, which can measure the frequency, period, duty cycle, positive pulse width, negative pulse width and other parameters of external input signal, and supports the statistics of measurement results. The frequency meter can work simultaneously with the dual channel output.









Software Download Description File Size Version Release Date
Ultra Sigma (HelpDocument) Ultra Sigma (HelpDocument) 9.79 MB V1.0 2019-08-22
UltraStation O/S: Windows 10 (64 Bit), 8.1 (64/32 Bit), 8 (64/32 Bit), 7 (64/32 Bit), Vista (64/32 Bit), XP (64/32 Bit) 15.23 MB 00.01.04.06 10.09.2018
NIVISA1500runtime O/S: Windows 8.1 (64/32 Bit), 8 (64/32 Bit), 7 (64/32 Bit), Vista (64/32 Bit), XP (64/32 Bit) 83.95 MB 15.0 08.03.2015
NIVISA1700runtime O/S: Windows 10 (64/32 Bit), 8.1 (64/32 Bit), 8 (64/32 Bit), 7 (64/32 Bit) 123.33 MB 17.0 22.05.2017
DG1000Z IVI Driver DG1000Z IVI Driver 474.91 KB 1.0.0 2019-08-29
Firmware Download Description File Size Version Release Date
DG1000Z Firmware DG1000Z Firmware 2.57 MB 03.01.12.00.00 2019-08-29
Datasheet Download Description File Size Version Release Date
DG1000Z_DataSheet_EN DG1000Z_DataSheet_EN 3.02 MB V1.0 2019-08-29
Manual Download Description File Size Version Release Date
DG1000Z_UserGuide_EN DG1000Z_UserGuide_EN 2.09 MB V1.0 2019-08-29
DG1000Z-UserGuide_DE DG1000Z-UserGuide_DE 2.67 MB UGB09105-1112 01.10.2014
DG1000Z Rackmount Kit Manual DG1000Z Rackmount Kit Manual 256.06 KB V1.0 2019-08-29
DG1000Z_ProgrammingGuide_EN DG1000Z_ProgrammingGuide_EN 2.49 MB V1.0 2019-08-29
DG1000Z_QuickGuide_EN DG1000Z_QuickGuide_EN 1.07 MB V1.0 2019-08-29
rigol-software-tools rigol-software-tools 551.36 KB V1.0 10.04.2014
VISA_TMC_Driver_information VISA_TMC_Driver_information 435.80 KB V1.0 04.08.2010
