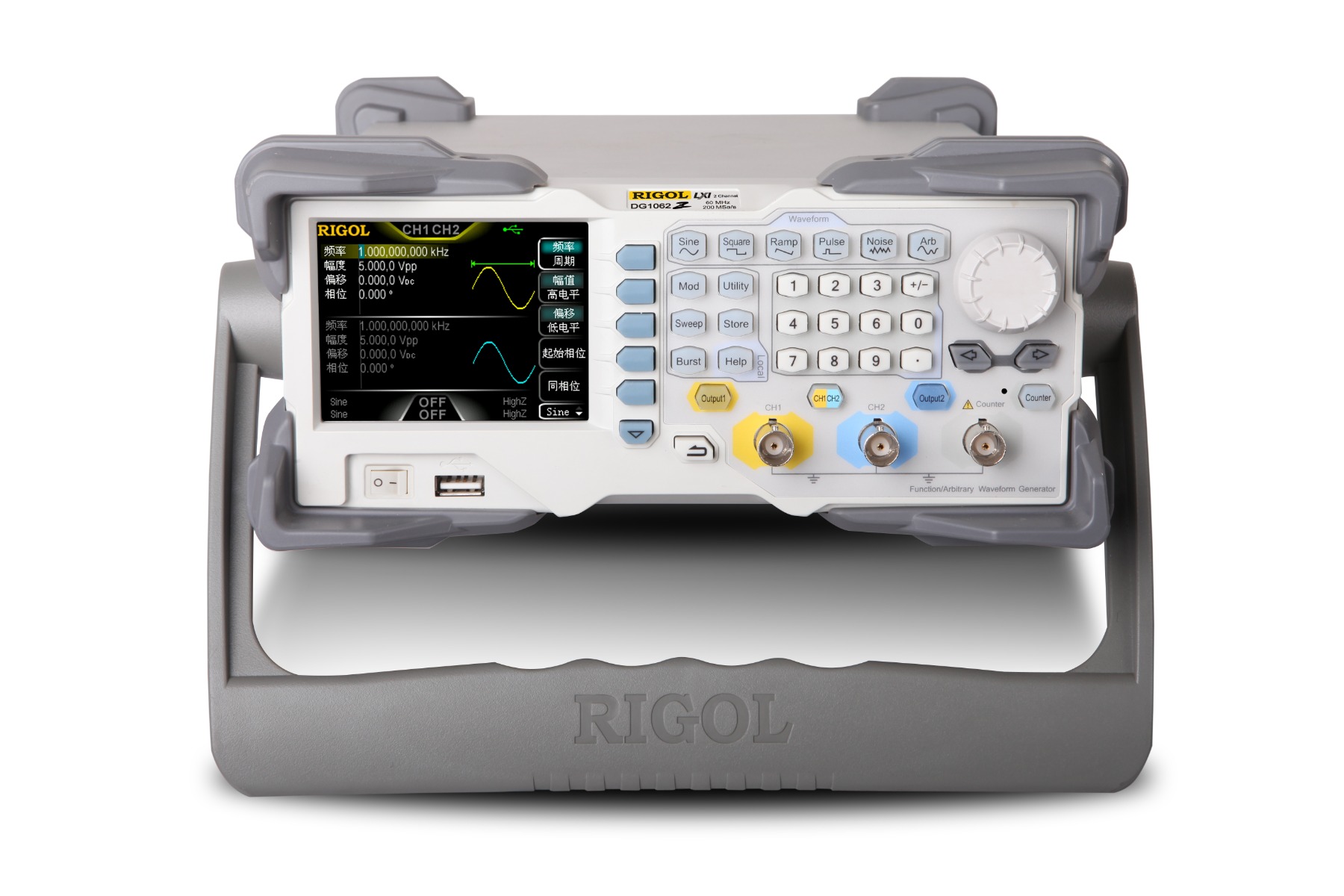

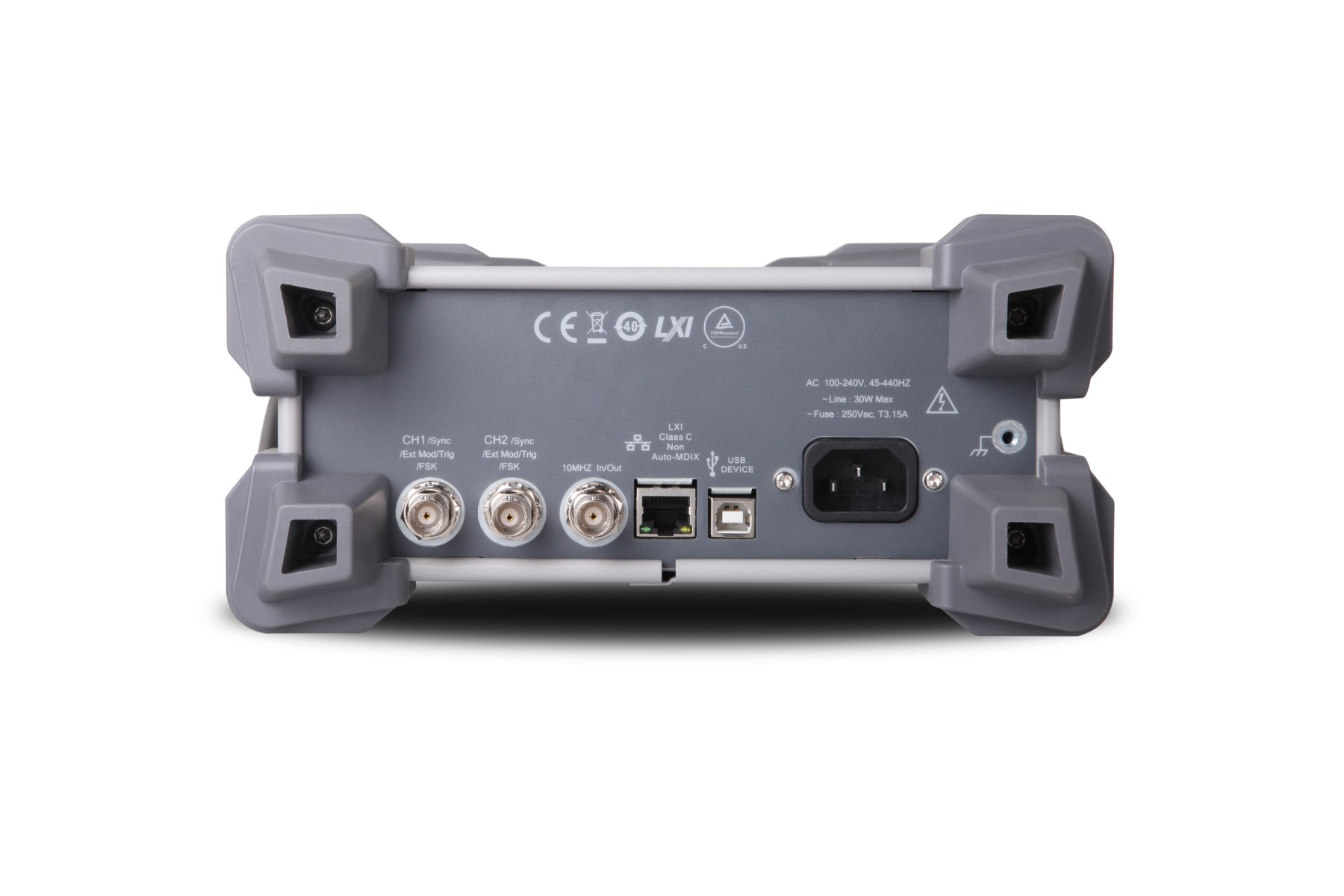

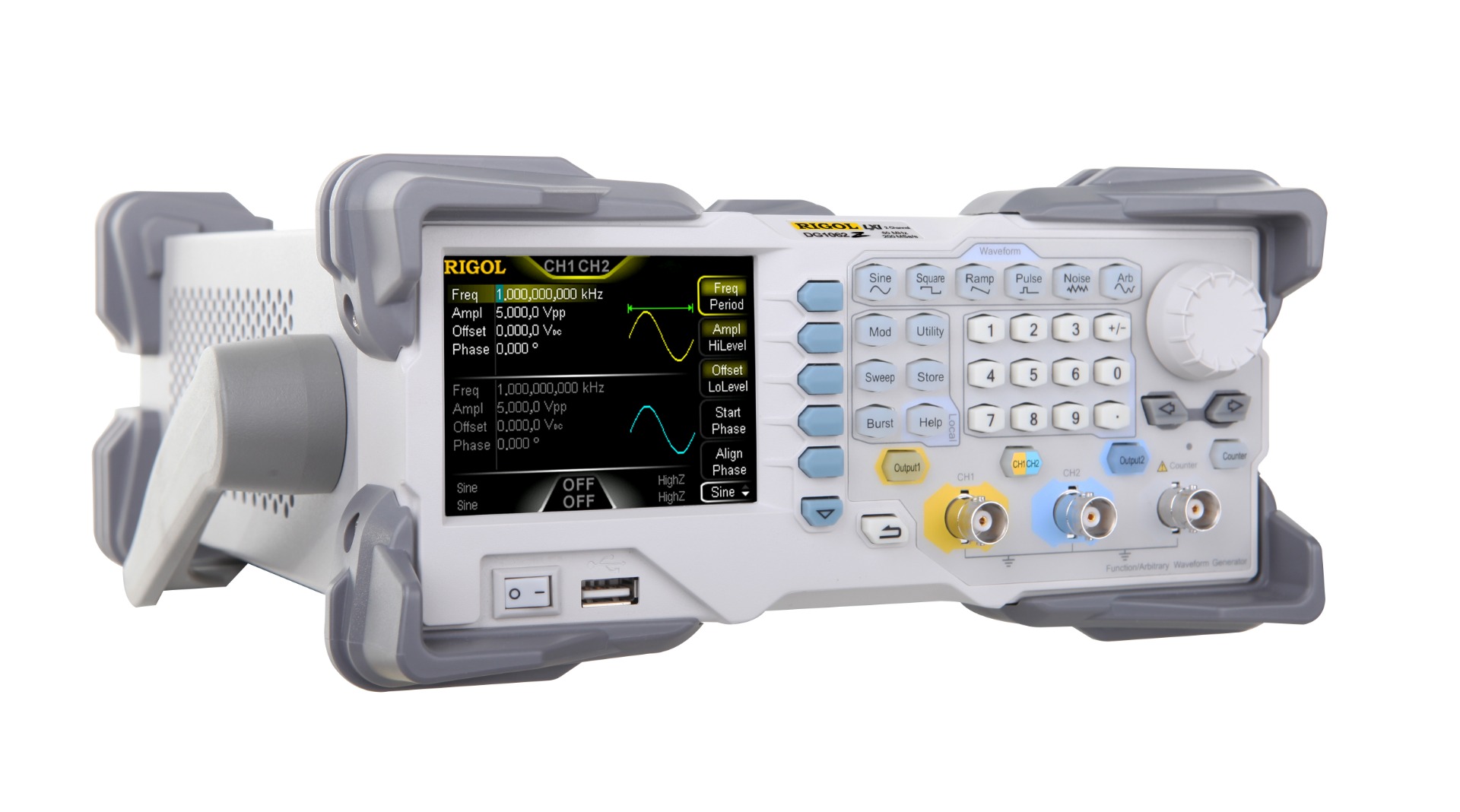

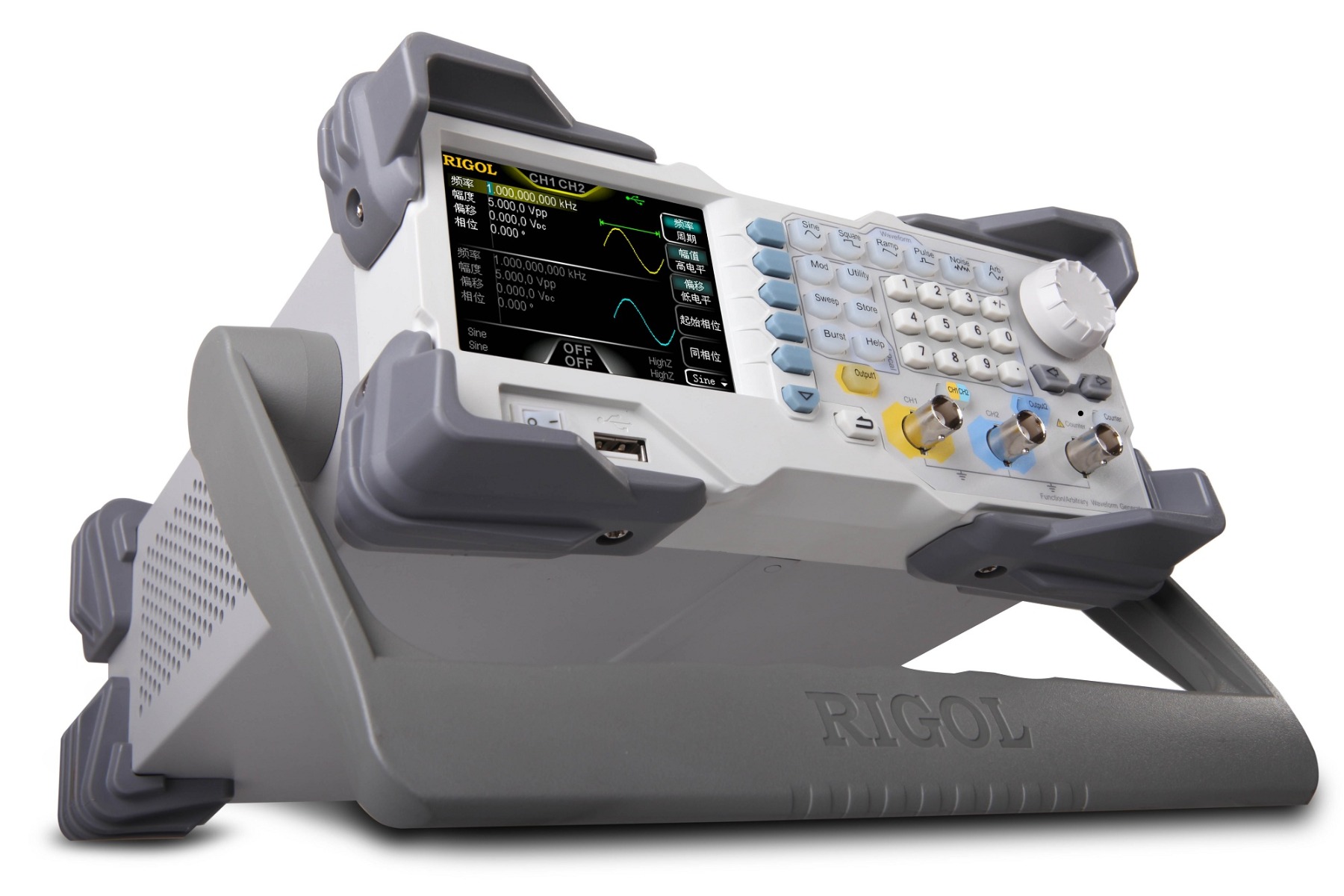

RIGOL Function Generator DG1062Z

RIGOL Function Generator DG1062Z

Max. Output Frequency 60MHz

Channels 2CH

Vertical Resolution 14bits

Sample Rate 200Msa/s

Waveform Length 8M(16M opt.)

Delivery：about one month

Standard Accessories

Quantity：

€599.00 excl. VAT

€712.81 incl. 19% VAT

Buy Now Add to cart Add to wish list

Description
DG1000Z Waveform-Generators Model
Feature & Video
Software ＆ Firmware
Datasheet & Manual Download

Add To Cart

<video id="video-1" poster="/images/pub/media/wysiwyg/download/video/cover/dg1000z_cover_10.2022.png
" preload="none" controls="controls" width="100%" height="auto">
<source src="/images/pub/media/wysiwyg/download/video/dg1000z/dg1000z_video01_introduction.mp4" type="video/mp4">
 </video>
60MHz, 2CH, 250MSa/s, 14bits, 8Mpts Arbitrary Memory Depth, 7digits/s Frequency Counter,EU Cable------<ul>
<li>SiFi (Signal Fidelity) for 100% waveform replication</li>
<li>8Mpts/CH(std.), 16Mpts/CH (opt.) arbitrary waveform length</li>
<li>Standard 2 full functional independent channels</li>
<li>±1ppm frequency stability, -125dBc/Hz phase noise, 200ps low jitter</li>
<li>Built-in 8 orders harmonics generator</li>
<li>Built-in 7 digits/s counter up to 200MHz</li>
<li>160 built-in pre-edited waveforms</li>
<li>Intuitive arbitrary waveform editing software</li>
<li>Full modulation supported: AM, FM, PM, ASK, FSK, PSK and PWM</li>
</ul>

DG1000Z series function/arbitrary waveform generator is a multifunctional generator that combines many functions in one, including Function Generator, Arbitrary Waveform Generator, Noise Generator, Pulse Generator, Harmonics Generator, Analog/Digital Modulator and Counter. As a multi-functional, high performance and portable generator, it will be a new selection in education, R&D, production, test and etc.

Model	Market Price	Price	Delivery	Max. Output Frequency	Channels	Vertical Resolution	Sample Rate	Waveform Length
RIGOL Function Generator DG1062Z	€599.00	€599.00	about one month	60MHz	2CH	14bits	200Msa/s	8M(16M opt.)
RIGOL Function Generator DG1032Z	€469.00	€469.00	1 Week	30MHz	2CH	14bits	200Msa/s	8M(16M opt.)
RIGOL Function Generator DG1022Z	€339.00	€339.00	1 Week	25MHz	2CH	14bits	200Msa/s	2M(16M opt.)

SiFi Technology

RIGOL's innovative Sifi technology can generate any waveform point by point, undistorted restore signal, accurate and adjustable sampling rate, reduce the signal jitter generated by traditional DDS signal source, and the jitter can be as low as 200ps.
Built-in 160 arbitrary waves

As we all know, RIGOL's waveform generator includes many popular custom waveform types, which can limit waveform creation to any real application. The dg1000z continues this trend by including more than 160 different signal shapes, all of which are accessible from the front panel selection menu.
Sweep function & burst mode

It supports scanning output from low frequency to high frequency or from high frequency to low frequency. The scanning type includes linear, logarithmic and step. It can set the "mark" frequency to meet the needs of more amplitude frequency test applications. Burst mode function provides N-cycle, infinite and gating three types of pulse strings.
Multiple analog & digital modulation

Modulation types include am, FM, PM, ask, FSK, PSK and PWM, and support internal and external modulation sources to meet the needs of more teaching or communication system testing.
Harmonic generator

Built in 8-th harmonic generator function, output the harmonic with specified times, amplitude and phase, which is usually used in the test of harmonic detection equipment or harmonic filter equipment.
Waveform Overlay & Channel Tracking

It can stack the specified frequency and percentage amplitude waveform on the basic wave for output; when the channel tracking function is turned on, all parameters of the dual channel can be updated according to the user's configuration at the same time
Built-in 7-bit frequency meter

It provides 7-bit frequency meter measurement function, which can measure the frequency, period, duty cycle, positive pulse width, negative pulse width and other parameters of external input signal, and supports the statistics of measurement results. The frequency meter can work simultaneously with the dual channel output.

File Name	Version	Release Date	Operation
DG1000Z Firmware	03.01.12.00.00	10/28/2021	Download

File Name	Version	Release Date	Operation
DG1000Z IVI Driver	V1.0	10/28/2021	Download
Ultra Sigma (HelpDocument)	V1.0	10/28/2021	Download
Ultra Sigma Software	V00.01.06.01	10/28/2021	Download
Ultra Station (PC) Software & UserGuide	00.02.00.00.14	10/10/2024	Download

Manual Download

File Name	Version	Release Date	Operation
DG1000Z Datasheet	V1.0	10/26/2021	Download
DG1000Z Programming Manual	V1.0	10/26/2021	Download
DG1000 RackmountKit Manual	v1.0	10/26/2021	Download
DG1000Z User Manual	V1.0	10/26/2021	Download
DG1000Z_QuickGuide	v1.0	10/26/2021	Download
