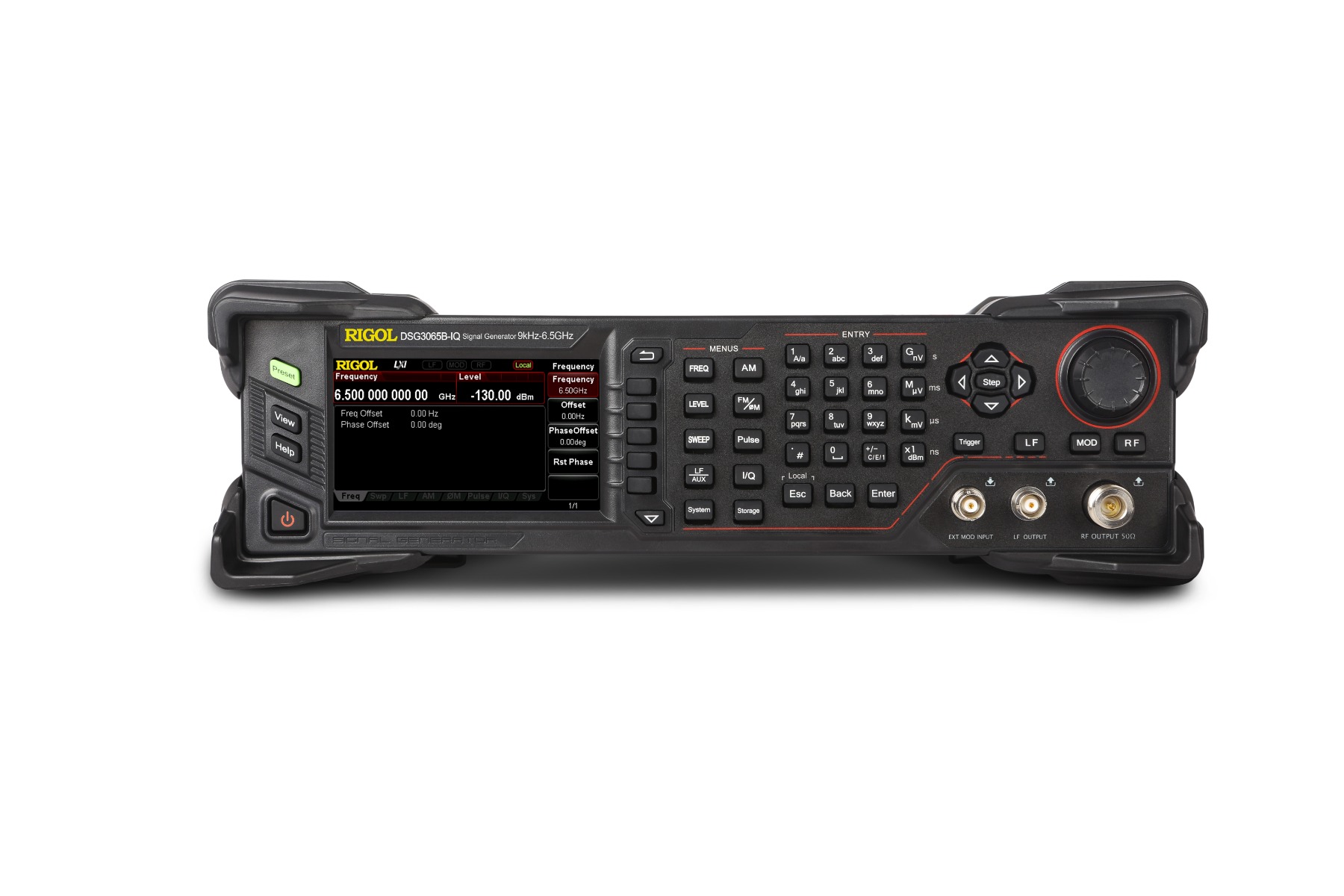

RIGOL RF Signal Generator DSG3065B-IQ
In stock
SKU
DSG3065B-IQ
9kHz - 6.5GHz frequency range, output amplitude range: -130 dBm to +13 dBm, amplitude accuracy: <0.5dB (typical), and standard AM/FM/ΦM analog modulation，EU Cable
Deliver in
3 weeks
- The highest frequency: 6.5 GHz
- Amplitude accuracy: <0.5dB (typical)
- Output amplitude range: -130 dBm to +27 dBm
- High signal purity, phase noise: <-110dBc/Hz@20kHz (typical)
- Standard 0.5ppm internal clock; 5ppb high stable clock for option
- Standard AM/FM/ΦM analog modulation
- Standard pulse modulation; on/off ratio up to 80dB; pulse train generator (optional)
- I/Q modulation and I/Q baseband output
- All modulation schemes support internal and external modulation modes
- Standard 2U height design to save rack space. Rack mount kit is available
- Standard USB/LAN/GPIB remote control interfaces. SCPI command set for remote control
- Wear-free electronic attenuator design
- Well-designed automatic flatness calibration function (Cables, attenuators, amplifiers and so on) for test systems with power meter control
High Power Signal Generation Capability
The maximum output amplitude is +27dBm，which meets the non-linearity test of the amplifier.
Phase Noise Metric
High signal purity, phase noise typical value <-116dBc/Hz@20kHz ; better high-stability clock reference can get better near-phase noise index
Support pulse modulation; on/off ratio up to 70 dB
Support pulse modulation; on/off ratio up to 70 dB
Internal and External IQ Modulation
Users can choose both internal and external IQ modulation modes, internal I+Q modulation bandwidth up to 60MHz, EVM <0.7%, external I+Q modulation bandwidth 240MHz, EVM <2% (typical), and Ultra IQ Station for convenience Generated vector signal waveform
