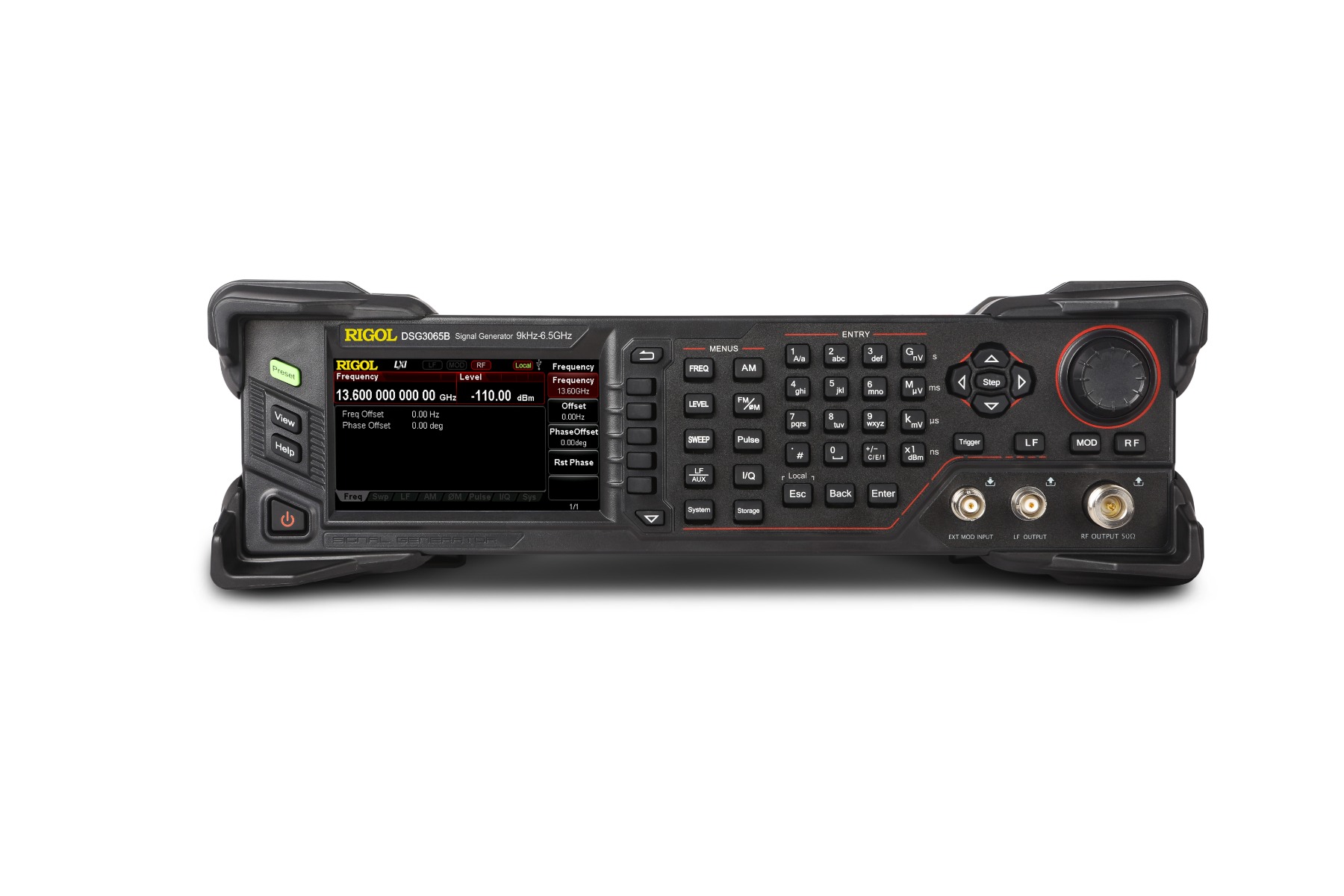

RIGOL RF Signal Generator DSG3065B

9kHz - 6.5GHz frequency range, output amplitude range: -130 dBm to +13 dBm, amplitude accuracy: <0.5dB (typical), and standard AM/FM/ΦM analog modulation,EU Cable

Deliver in
3 weeks
€7,299.00 €8,685.81
  • The highest frequency: 6.5 GHz
  • Amplitude accuracy: <0.5dB (typical)
  • Output amplitude range: -130 dBm to +27 dBm
  • High signal purity, phase noise: <-110dBc/Hz@20kHz (typical)
  • Standard 0.5ppm internal clock; 5ppb high stable clock for option
  • Standard AM/FM/ΦM analog modulation
  • Standard pulse modulation; on/off ratio up to 80dB; pulse train generator (optional)
  • All modulation schemes support internal and external modulation modes
  • Standard 2U height design to save rack space. Rack mount kit is available
  • Standard USB/LAN/GPIB remote control interfaces. SCPI command set for remote control
  • Wear-free electronic attenuator design
  • Well-designed automatic flatness calibration function (Cables, attenuators, amplifiers and so on) for test systems with power meter control


High Power Signal Generation Capability

The maximum output amplitude is +27dBm,which meets the non-linearity test of the amplifier.



Phase Noise Metric

High signal purity, phase noise typical value <-116dBc/Hz@20kHz ; better high-stability clock reference can get better near-phase noise index



Support pulse modulation; on/off ratio up to 70 dB

Support pulse modulation; on/off ratio up to 70 dB



Internal and External IQ Modulation

Users can choose both internal and external IQ modulation modes, internal I+Q modulation bandwidth up to 60MHz, EVM <0.7%, external I+Q modulation bandwidth 240MHz, EVM <2% (typical), and Ultra IQ Station for convenience Generated vector signal waveform




Software Download Description File Size Version Release Date
S1210 EMI Pre-compliance Software(Help Document) S1210 EMI Pre-compliance Software(Help Document) 11.41 MB V1.0 2019-08-29
RX1000 Software RX1000 Software 2.78 MB V1.0 2019-08-29
Ultra Sigma (HelpDocument) Ultra Sigma (HelpDocument) 9.79 MB V1.0 2019-08-22
Ultra IQ Station Software Ultra IQ Station Software 17.19 MB 00.01.02.00 2019-08-29
Ultra IQ Station (HelpDocument) Ultra IQ Station (HelpDocument) 17.19 MB V1.0 2019-08-29
DSG3000 IVI Driver DSG3000 IVI Driver 492.73 KB 1.0.3 2019-08-29
NI-VISA Run-Time Engine 15.0 NI-VISA Run-Time Engine 15.0 83.95 MB V15.0 08.03.2015
Firmware Download Description File Size Version Release Date
DSG3000 Firmware DSG3000 Firmware 1.39 MB V00.01.07.00.00 2019-08-29
Datasheet Download Description File Size Version Release Date
DSG3000B Datasheets DSG3000B Datasheets (English) 2.35 MB V2.0 2020-08-01
Manual Download Description File Size Version Release Date
DSG3000 Rackmount Kit Manual DSG3000 Rackmount Kit Manual 173.00 KB V1.0 2019-08-29
DSG3000 User Manual DSG3000 User Manual 2.49 MB V1.0 2019-08-29
Rigol DSG3000 SCPI Programmieranleitung Rigol DSG3000 SCPI Programmieranleitung 3.48 MB PGG01104-1110 2019-08-29
Rigol Software Installation und Benutzung Rigol Software Installation und Benutzung 551.36 KB V1.0 10.04.2014
DSG3000 Quick Guide DSG3000 Quick Guide 1.87 MB V1.0 2019-08-29
General Download Description File Size Version Release Date
NI-VISA Run-Time Engine 17.0 NI-VISA Run-Time Engine 17.0 123.33 MB V17.0 22.05.2017
