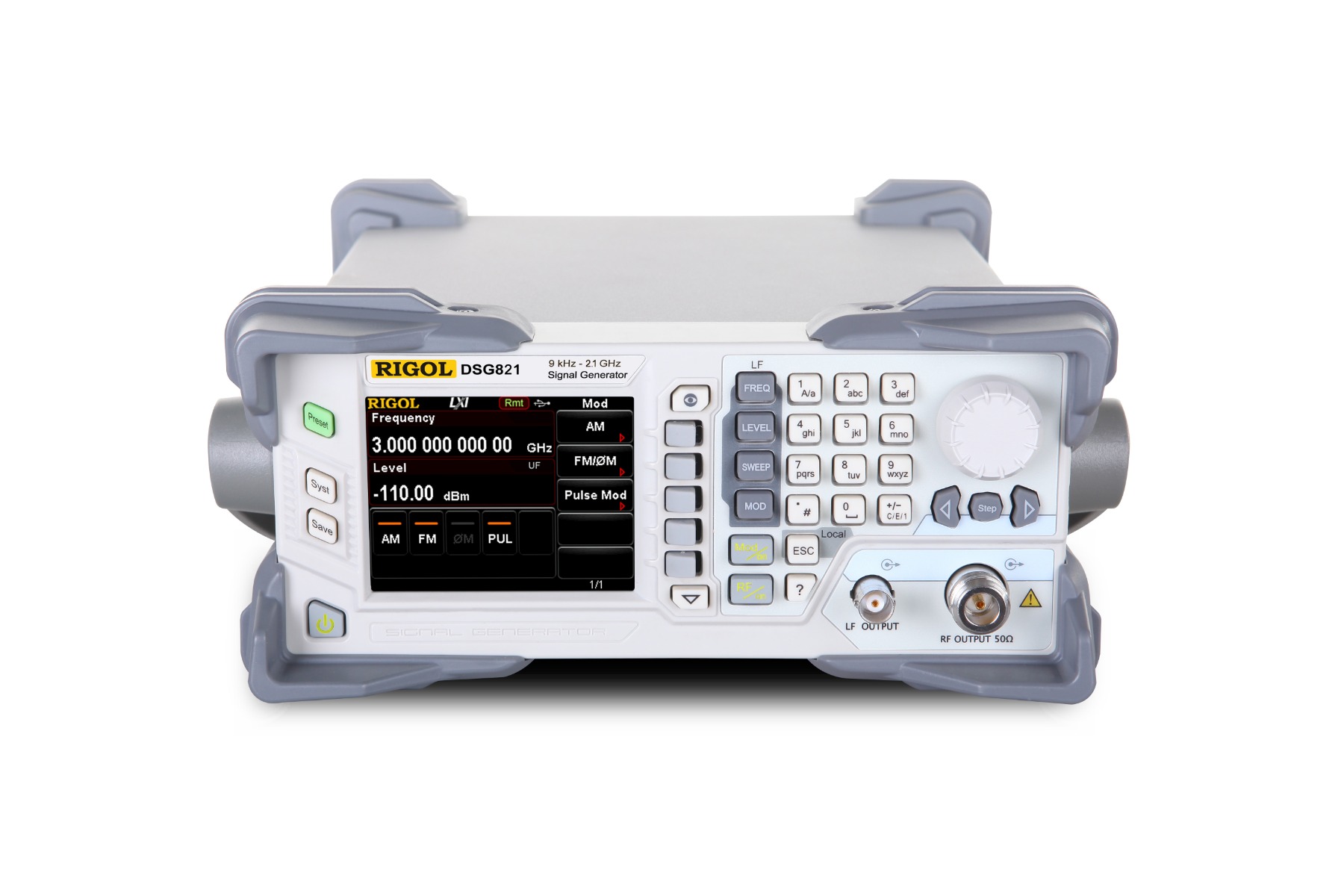

RF Signal Generator DSG821

The DSG821 RF signal generator offers standard AM/FM/ØM analog modulation with a maximum frequency 2.1 GHz.



Deliver in
3 weeks
€2,099.00 €2,497.81
  • Up to 2.1 GHz frequency
  • The typical value of amplitude precision is not greater than 0.5 dB
  • -110 dBm to +20 dBm output power
  • High signal purity; the typical value of phase noise is lower than -112dBc/Hz@20kHz
  • Provide 2 ppm internal clock (standard) as well as an optional 5 ppb highly stable clock
  • Provide AM/FM/ØM analog modulation functions (standard)
  • Provide optional pulse modulation with up to 70 dB on/off ratio; it also provides optional pulse train generator
  • All the modulation functions support both internal and external modulation modes
  • It is designed with a height of 2U which saves the rack space; it also provides the rack mount kit
  • Provide USB/LAN remote control interfaces (standard) and standard SCPIcommand set
  • Provide the system flatness calibration (cable, attenuator, amplifier and etc.) function


Support Multiple Modulation Methods

Standard amplitude modulation, frequency modulation, equal modulation analog modulation and pulse modulation and pulse generator, optional user-defined pulse sequence, and I / Q modulation and IQ baseband generator can generate QAM, ASK, PSK, FSK, Various commonly used modulation signals such as MSK; all modulations support internal and external modulation sources



Powerful Pulse Modulation

It produces high quality pulse modulated signals with rise/fall times typically less than 10 ns and on/off ratios greater than 70 dB. Support for internal and external modulation. Built-in pulse generator can generate pulse sequence and output to the outside as a separate pulse generator



Excellent Phase Noise

High signal purity, phase noise typical value <-112dBc/Hz@20kHz, similar products in the United States; better high-stability clock reference can get better near-phase noise index



Wide Range of High Power Output

Maximum output amplitude is +13dBm (nominal value), and can be set to +20dBm to meet the nonlinearity test of the amplifier.



Amplitude Stability

0.02dBExcellent repeatability provides engineers with sufficient test confidence that the 72-hour output amplitude variation is less than 0.02dB




Software Download Description File Size Version Release Date
Ultra IQ Station Software Ultra IQ Station Software 17.19 MB 00.01.02.00 2019-08-29
Ultra IQ Station (HelpDocument) Ultra IQ Station (HelpDocument) 6.94 MB V1.0 2019-08-29
NI-VISA Run-Time Engine 15.0 NI-VISA Run-Time Engine 15.0 83.95 MB V15.0 08.03.2015
NI-VISA Run-Time Engine 17.0 NI-VISA Run-Time Engine 17.0 123.33 MB V17.0 22.05.2017
Rigol Ultra Sigma Software Download Rigol Ultra Sigma Software Download 488.33 KB 00.01.06.01 30.10.2015
Firmware Download Description File Size Version Release Date
DSG800 Firmware DSG800 Firmware 1.53 MB 00.01.06.00.01 2019-08-29
Datasheet Download Description File Size Version Release Date
DSG800 Datasheets DSG800 Datasheets 3.47 MB V1.0 2019-09-30
Manual Download Description File Size Version Release Date
DSG800A User Manual DSG800A User Manual 1.64 MB V1.0 2019-09-30
DSG800 Rackmount Kit Manual DSG800 Rackmount Kit Manual 637.85 KB V1.0 2019-08-29
Rigol DSG800 SCPI Programmieranleitung Rigol DSG800 SCPI Programmieranleitung 2.72 MB PGG02102-1110 01.07.2015
Rigol Software Installation und Benutzung Rigol Software Installation und Benutzung 551.36 KB V1.0 10.04.2014
DSG800A Programming Manual DSG800A Programming Manual 2.72 MB V1.0 2019-09-30
DSA800 Quick Guide DSA800 Quick Guide 861.21 KB V1.0 2019-08-29
