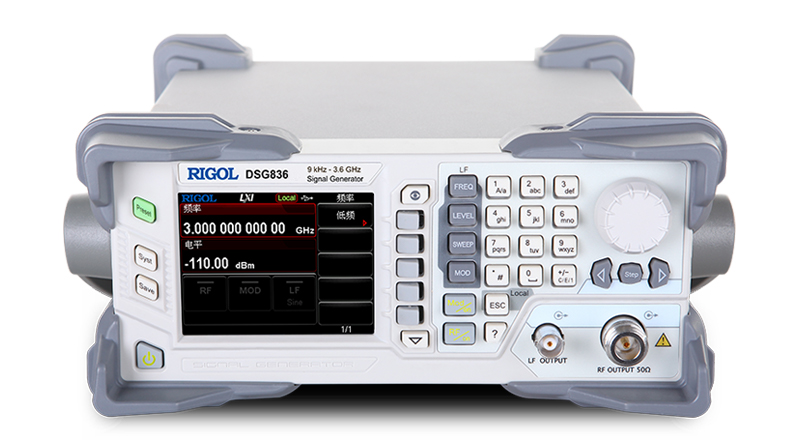

RIGOL RF Signal Generator DSG836

RIGOL RF Signal Generator DSG836

Max. Ferquency Range 9kHz~3.6GHz

Amplitude Indicators Range -110dBm~+13dBm

SSB Phase Noise <-112dBc/Hz@1GHz20KHz offset

Modulation Function AM/FM/ØM/Pulse

Amplitude Accuracy （Typical） <0.5dB

Delivery：1 Week

Standard Accessories

Quantity：

€3399.00 excl. VAT

€4044.81 incl. 19% VAT

Buy Now Add to cart Add to wish list

Description
DSG800 RF Signal Generator Model
Feature & Video
RF Signal Generator Accessories
Software ＆ Firmware
Datasheet & Manual Download

Add To Cart

<video id="video-1" poster="/images/pub/media/wysiwyg/download/video/cover/dsg800_cover.png
" preload="none" controls="controls" width="100%" height="auto">
<source src="/images/pub/media/wysiwyg/download/video/dsg800/dsg800a_video01_introduction.mp4" type="video/mp4">
 </video>
The DSG836 RF signal generator offers standard AM/FM/ØM analog modulation with a maximum frequency 3.6 GHz，EU Cable
 ------<ul>
<li>Up to 3.6 GHz frequency</li>
<li>The typical value of amplitude precision is not greater than 0.5 dB</li>
<li>-110 dBm to +20 dBm output power</li>
<li>High signal purity; the typical value of phase noise is lower than -112dBc/Hz@20kHz</li>
<li>Provide 2 ppm internal clock (standard) as well as an optional 5 ppb highly stable clock</li>
<li>Provide AM/FM/ØM analog modulation functions (standard)</li>
<li>Provide optional pulse modulation with up to 70 dB on/off ratio; it also provides optional pulse train generator</li>
<li>All the modulation functions support both internal and external modulation modes</li>
<li>It is designed with a height of 2U which saves the rack space; it also provides the rack mount kit</li>
<li>Provide USB/LAN remote control interfaces (standard) and standard SCPIcommand set</li>
<li>Provide the system flatness calibration (cable, attenuator, amplifier and etc.) function</li>
</ul>

Model	Market Price	Price	Delivery	Max. Ferquency Range	Amplitude Indicators Range	SSB Phase Noise	Modulation Function	Amplitude Accuracy （Typical）
RIGOL RF Signal Generator DSG821A	€3399.00	€3399.00		9kHz~2.1GHz	-110dBm~+13dBm	<-112dBc/Hz@1GHz20KHz offset	AM/FM/ØM/Pulse/IQ	<0.5dB
RIGOL RF Signal Generator DSG815	€1880.00	€1880.00	1 Week	9kHz~1.5GHz	-110dBm~+13dBm	<-112dBc/Hz@1GHz20KHz offset	AM/FM/ØM/Pulse	<0.5dB
RIGOL RF Signal Generator DSG821	€2099.00	€2099.00	1 Week	9kHz~2.1GHz	-110dBm~+13dBm	<-112dBc/Hz@1GHz20KHz offset	AM/FM/ØM/Pulse	<0.5dB
RIGOL RF Signal Generator DSG836	€3399.00	€3399.00	1 Week	9kHz~3.6GHz	-110dBm~+13dBm	<-112dBc/Hz@1GHz20KHz offset	AM/FM/ØM/Pulse	<0.5dB
RIGOL RF Signal Generator DSG836A	€4699.00	€4699.00	1 Week	9kHz~3.6GHz	-110dBm~+13dBm	<-112dBc/Hz@1GHz20KHz offset	AM/FM/ØM/Pulse/IQ	<0.5dB

Support Multiple Modulation Methods

Standard amplitude modulation, frequency modulation, equal modulation analog modulation and pulse modulation and pulse generator, optional user-defined pulse sequence, and I / Q modulation and IQ baseband generator can generate QAM, ASK, PSK, FSK, Various commonly used modulation signals such as MSK; all modulations support internal and external modulation sources
Powerful Pulse Modulation

It produces high quality pulse modulated signals with rise/fall times typically less than 10 ns and on/off ratios greater than 70 dB. Support for internal and external modulation. Built-in pulse generator can generate pulse sequence and output to the outside as a separate pulse generator
Excellent Phase Noise

High signal purity, phase noise typical value <-112dBc/Hz@20kHz, similar products in the United States; better high-stability clock reference can get better near-phase noise index
Wide Range of High Power Output

Maximum output amplitude is +13dBm (nominal value), and can be set to +20dBm to meet the nonlinearity test of the amplifier.
Amplitude Stability

0.02dBExcellent repeatability provides engineers with sufficient test confidence that the 72-hour output amplitude variation is less than 0.02dB

Product Name	Market Price	Total	Delivery	Operation
RM-1-DG1000Z	€99.00	€99.00	1 Week	Add To Cart
RM-2-DG1000Z	€129.00	€129.00	1 Week	Add To Cart
DSG800-PUG	€739.00	€739.00	1 Working Day	Add To Cart
RIGOL DSG800-PUM	€549.00	€549.00	1 Working Day	Add To Cart
RIGOL CB-BNC-BNC-MM-100	€15.00	€15.00	1 Week	Add To Cart
RIGOL CB-NM-SMAM-75-L-12G	€179.00	€179.00	1 Week	Add To Cart
RIGOL CB-NM-NM-75-L-12G	€179.00	€179.00	1 Week	Add To Cart
RIGOL ATT03301H	€209.00	€209.00	1 Week	Add To Cart
RIGOL RF Attenuator Kit	€469.00	€469.00	1 Week	Add To Cart
RIGOL RF Adaptor Kit	€279.00	€279.00	1 Week	Add To Cart

File Name	Version	Release Date	Operation
DSG800 FIRMWARE	00.01.07.00.06	6/2/2020	Download
DSG800 FIRMWARE	00.01.07.00.06	6/2/2020	Download

File Name	Version	Release Date	Operation
DSG800 IVI	1.0.0	8/29/2019	Download
Ultra IQ Station	00.02.00.23	8/29/2019	Download

Manual Download

File Name	Version	Release Date	Operation
DSG800A_datasheet	V1.0	9/30/2019	Download
DSG800 Programming Guide	V1.0	9/30/2019	Download
DSG800_QuickGuide	v1.0	12/4/2021	Download
DSG800_RackmountKit	V1.0	8/29/2019	Download
DSG800_UserGuide	V1.0	9/30/2019	Download
UltraSigma-HelpDocument	V1.0	8/22/2020	Download
Ultra Sigma (PC)Installer	00.01.06.01	8/22/2020	Download
