RIGOL Waveform Generator DG822 Pro
In stock
SKU
DG822 Pro
2 channel function / arbitrary waveform generator with 25 MHz bandwidth, 625 MSa/s and 2 Mpts（8Mpts opt.) memory,EU Cable
Deliver in
2 - 4 working Days
• Max. sample rate: 625 MSa/s
• Max. output frequency: 25 MHz
• 16-bit vertical resolution
• Arbitrary waveform editing function with a max. Arb waveform length of 2 Mpts/CH (8 Mpts/CH
optional)
• Built-in high-order harmonic generator (max. 20th order)
• Independent signal frequency measurement channel with a max. frequency of 500 MHz
• USB and LAN interfaces for remote connection
• Type-C power interface for powering the instrument with mobile power source, satisfying
testing requirements in the field
• Standard Web Control function for easier remote cooperation
Outstanding accuracy
625MSa/s maximum sampling rate, 16bit vertical resolution, more accurate waveform output, and cost-effective choice for entry-level signal sources.

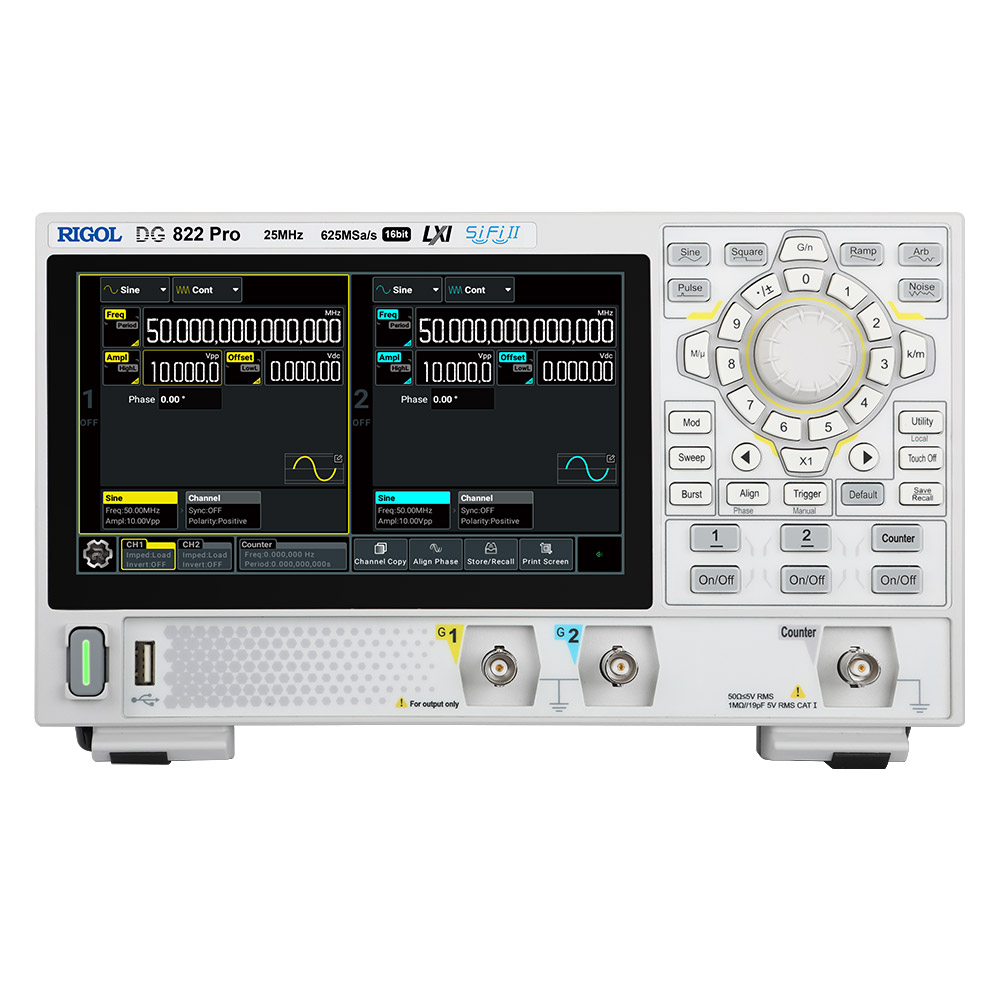

7-inch color touch screen display
7-inch color touch screen display, convenient for you to set parameters, view and edit signals for dual channel waveforms simultaneously.

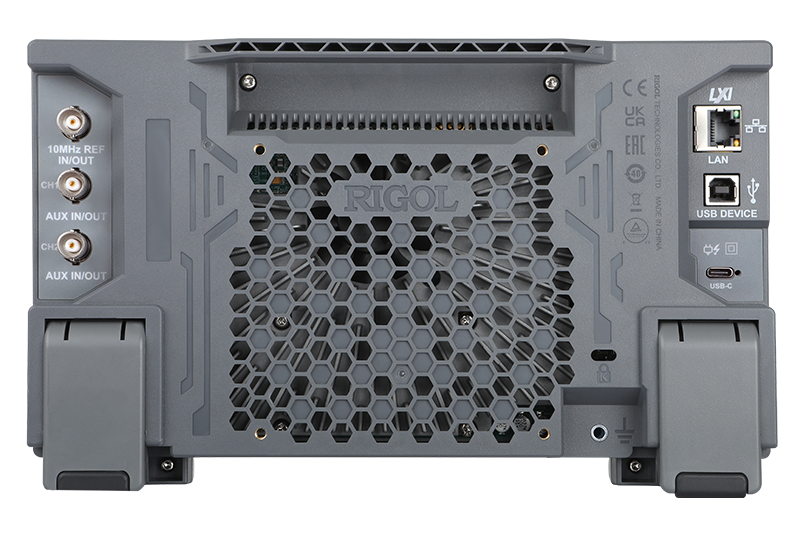

Equipped with Type-C connector
Type-C connector enable DG800 Pro to be powered up by mobile power supply, make on-site testing more convenient.

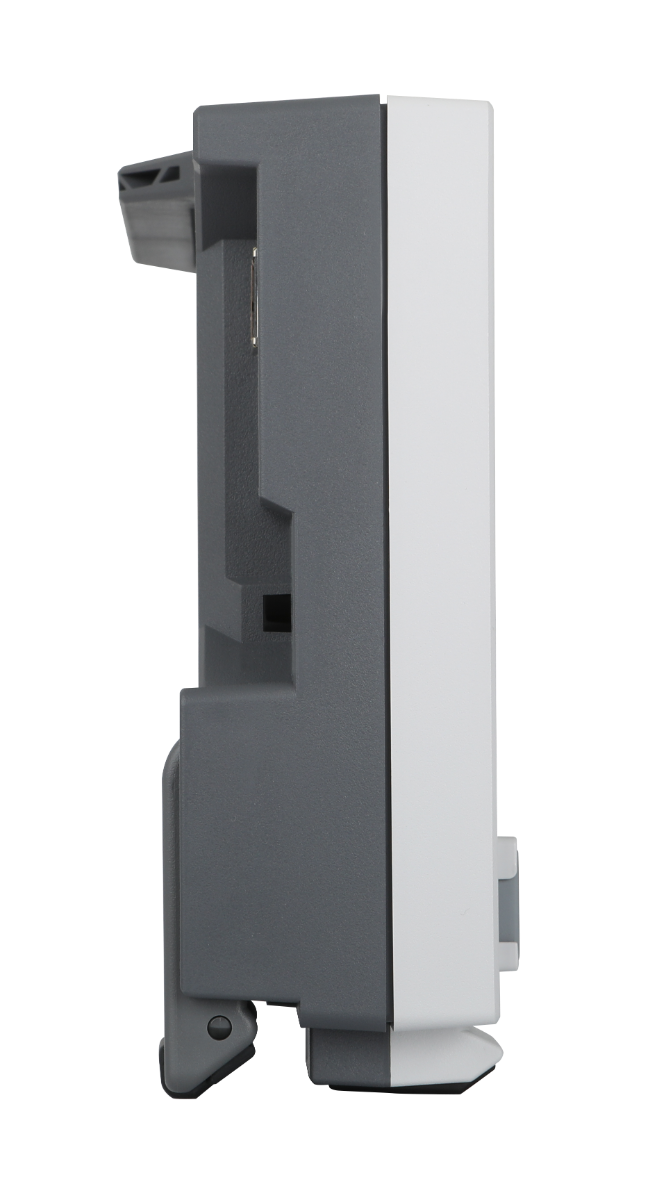

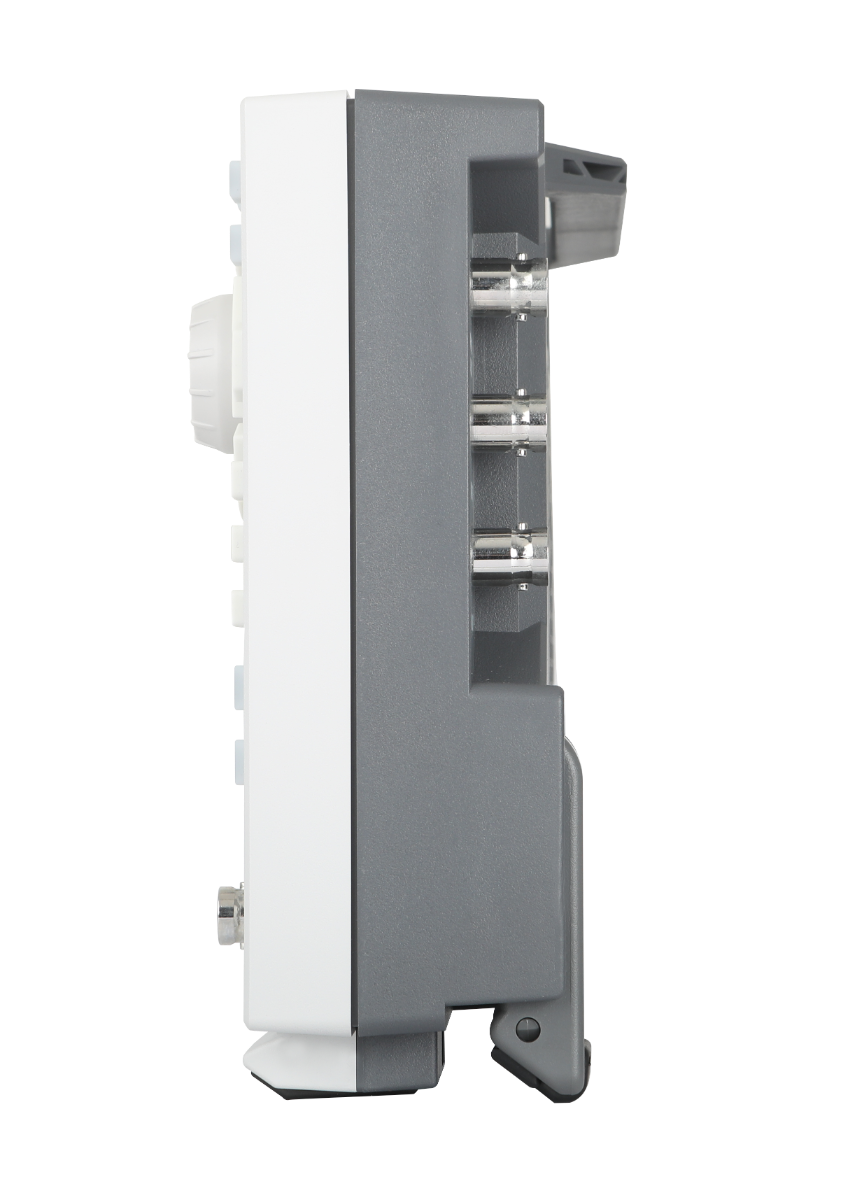

Smart appearance
The 266mm (width) x 165mm (height) x 63mm (depth) DG800 Pro weight only 1.78kg. With its ultra portable design, compact size, and supported by standard display stand, saves your workspace space.
Fast rising edge
40MHz square wave and 25MHz adjustable edge pulse wave output, with waveform rise time as low as 3ns, meeting the waveform requirements of different applications.
Ultra low signal jitter
Based on RIGOL's SIFI ll technology, the DG800 Pro series can generate any waveform point by point and restore signals without distortion. The sampling rate is precisely adjustable. Compared to traditional DDS signal sources, the generated signal jitter is lower, with all output signal jitter as low as 200ps (rms).
Rich modulation functions
Support rich modulation functions (AM, FM, PM, ASK, FSK, PSK, PWM, SUM modulation functions, etc.) to meet the requirements of communication principles, motor control, switching power supply and other application scenarios.
Sequence function
Support up to 64 waveform events, 256 repetitions, and able to load multiple test cases in a sequence that require sequential execution at once. Thus, greatly improving testing efficiency through achieving seamless switching of test cases.
Maximum 20th harmonic generation function
Up to 20 built-in waveform stacking functions provide a more accurate measurement method for performance testing of high-order filters, amplifiers, and other devices
High resolution frequency meter
A 7-bit 500MHz frequency meter that can measure parameters such as frequency, period, duty cycle, positive and negative pulse width from external input signals, and supports statistical analysis of measurement results
