- Description
- DG900 Pro Waveform-Generators Model
- Feature & Video
- Software ＆ Firmware
- Datasheet & Manual Download
| Model | Market Price | Price | Delivery | Max. Output Frequency | Channels | Vertical Resolution | Sample Rate | Waveform Length | Operation |
|---|---|---|---|---|---|---|---|---|---|
| RIGOL Waveform Generator DG922 Pro | €1099.00 |
€1099.00
|
1 Week | 200MHz | 2CH | 16bits | 1.25GSa/s | 16M(32M opt.) | |
| RIGOL Waveform Generator DG912 Pro | €839.00 |
€839.00
|
1 Week | 150MHz | 2CH | 16bits | 1.25GSa/s | 16M(32M opt.) | |

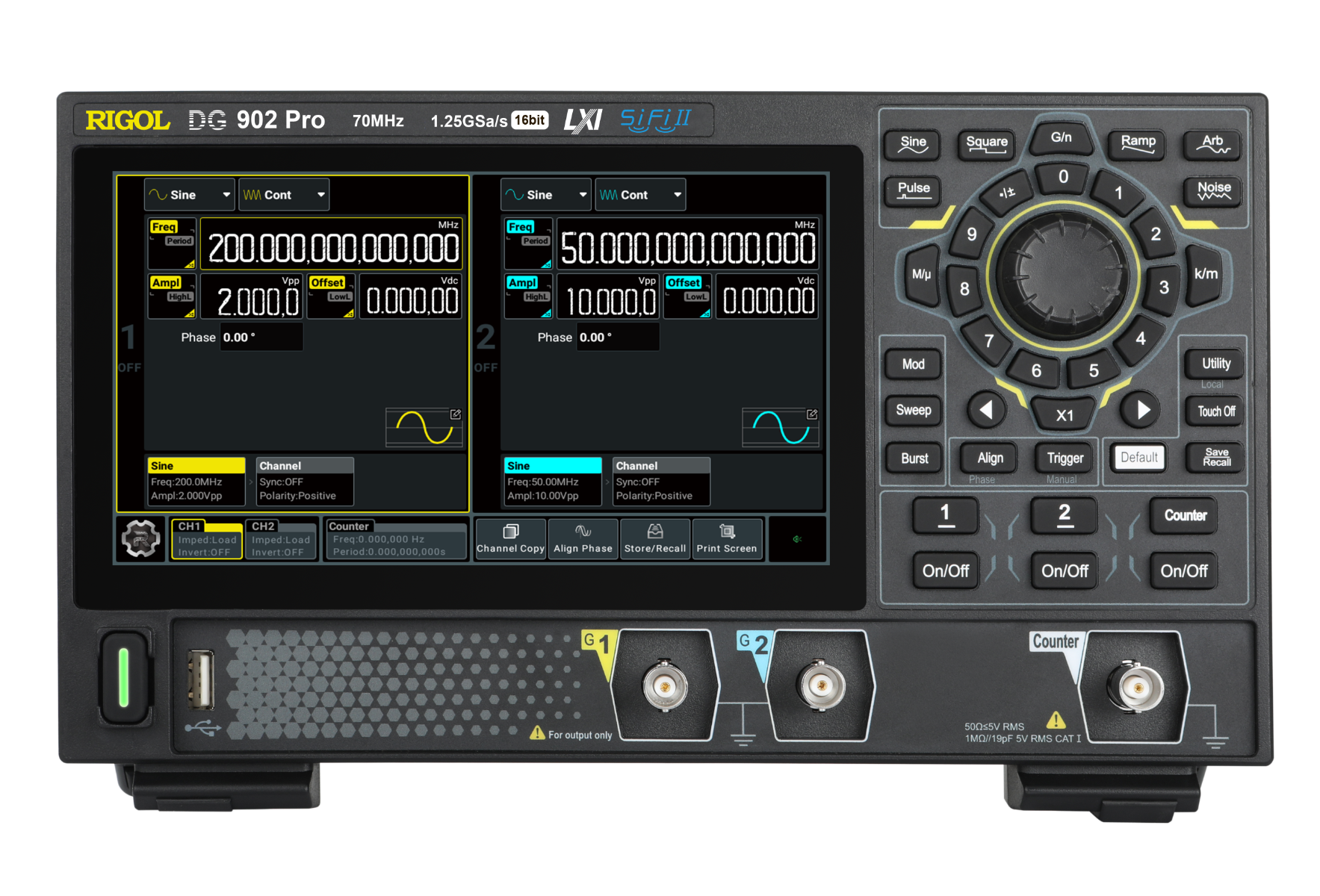

| RIGOL Waveform Generator DG902 Pro | €639.00 |
€639.00
|
about one month | 2CH | 16bits | 1.25GSa/s | 16M(32M opt.) |
-
Outstanding accuracy1.25GSa/s sampling rate, 16-bit vertical resolution, easy creation of high fidelity signals -
7-inch color touch screen display7-inch color touch screen display, convenient for you to set parameters, view and edit signals for dual channel waveforms simultaneously. -
Equipped with Type-C connectorType-C connector enable DG800 Pro to be powered up by mobile power supply, make on-site testing more convenient. -
Smart appearanceThe 266mm (width) x 165mm (height) x 63mm (depth) DG800 Pro weight only 1.78kg. With its ultra portable design, compact size, and supported by standard display stand, saves your workspace space. -
Fast rising edge60MHz square wave and 50MHz adjustable edge pulse wave output, with waveform rise time as low as 3ns, meeting the waveform requirements of different applications. -
Ultra low signal jitterBased on RIGOL's SIFI ll technology, the DG900 Pro series can generate any waveform point by point and restore signals without distortion. The sampling rate is precisely adjustable, Compared to traditional DDS signal sources, the generated signal jitter is lower, with all output signal jitter as low as 200ps (rms). -
Rich modulation functionsSupport rich modulation functions (AM, FM, PM, ASK, FSK, PSK, PWM, SUM modulation functions, etc.) to meet the requirements of communication principles, motor control, switching power supply and other application scenarios. -
Sequence functionSupport up to 64 waveform events, 256 repetitions, and able to load multiple test cases in a sequence that require sequential execution at once. Thus, greatly improving testing efficiency through achieving seamless switching of test cases. -
Maximum 20th harmonic generation functionUp to 20 built-in waveform stacking functions provide a more accurate measurement method for performance testing of high-order filters, amplifiers, and other devices -
High resolution frequency meterA 7-bit 1GHz frequency meter can measure the frequency of common high-frequency signals such as VHF and UHF, facilitating relevant debugging
Manual Download
| File Name | Version | Release Date | Operation |
|---|---|---|---|
| DG900 Pro Datasheet | V3.0 | 3/14/2024 | Download |
| DG900 Pro Open Source Acknowledgment | V2.0 | 2/19/2024 | Download |
| DG900 Pro Programming Manual | V1.0 | 2/19/2024 | Download |
| DG900 Pro QuickGuide | V1.0 | 2/19/2024 | Download |
| DG900 Pro User Manual | V1.0 | 2/19/2024 | Download |
